| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | CE FCC ROHS SGS |
| Model Number: | TX-JZ01 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated USD or RMB |
| Packaging Details: | Durable Alluminum alloy case with wooden case outside |
| Delivery Time: | in 2 days |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | Prison Signal Jammer | Range: | Radius 200-300meter |
|---|---|---|---|
| Output Power: | 650W | Antenna: | 16dBi For Each Band |
| Power Case: | IP64 Level | Color: | Grey |
| Power Supply: | AC110-240V To DC27V | Duration Time: | Continuous 24hour |
| Case Size: | 38.5*30.7*15.6cm(not Including Antenna) | Product Weight: | 10.0kgs(antenna Not Included ) |
| Installation Height: | 3 To 18 Meter | ||
| High Light: | wifi jamming device,wifi signal scrambler |
||

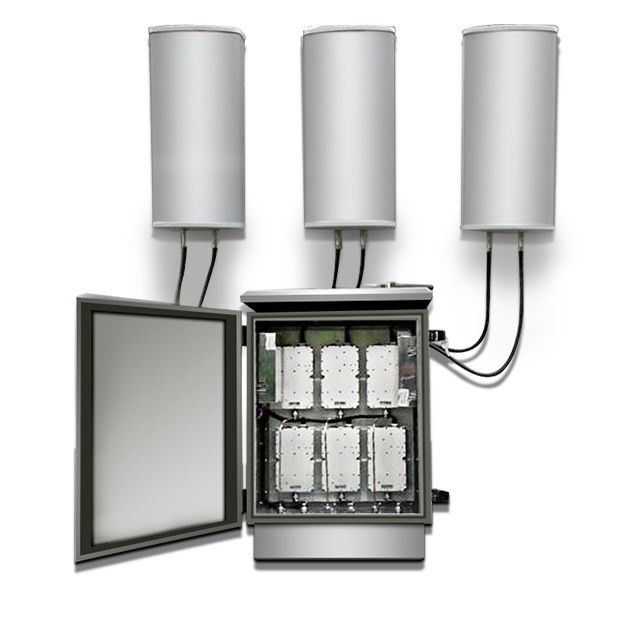

650W high power Phone wifi GPS drone VHF UHF signal jammer for Prison
Function
1. Let the prison area without specific signal as required, such as phone wifi drone signal
2. All frequency customized and has single switch control, high gain antenna shielding for each frequency
3. Customized for different country phone frequency
4. We can do wifi 5.8G 40W or 50W RF jammer module
5. Designed to block all wireless networks including cellular bands such as iden, TDMA, CDMA
GSM, UMTS,DCS, PHS, 3G, 4G LTE, Bluetooth, GPS, drone, AMPS, N-AMPS, NMT,TACS, etc
Feature
1. Ultra high power 650W (for 7 channel, each channel 100W or 50W )
combined with high gain directional antenna for each band
to shield radius 200 to 300 meter area (depends on real environment and signal strength)
2. 7 channel or More channel Customized as required signal shielding IP64 level main control engine
or other customized frequency 433MHz, 868MHz, 912MHz, 916MHz, GPS/Glonass navigation signal,
3. Seperate fequency RF module and Single Switch control to exactly shield specific signal
also for customized frequency and easy maintainance
4. Efficient heat dissipation system: fast blow heat away to ensure long time operation
5. Optional monitoring software monitoring for client : can support PC operation, phone APP control,
drone detecting integrated system
6. VSWR protection: use power supply protection box, to ensure stable and safe power supply
7. Huawei latest high tech thunder protection box
8. Only influence downlink; No influence to base station
|
|
|
|
|
|
Main Engine Case
1. IP64 level reoxidation alluminum alloy design, Hinge lock protection for easy management and and
anti-damage
2. N type connector(customized) to link with Antenna
3. Efficient heat dissipation system with built in fan and fin
4. Main switch to control the complete device work
5. Optional choice for directional antenna
6. Seperate module design, For single frequency control and easy maintainance
7. LED indicates the working-on status
8. Over temperature and VSWR protection with power supply protection box
9. Please Ensure the anntenna is connected before turning power on
Optional Frequency (10W, 20W,30W,40W, 50W, 100W; RF jammer module also available)
CDMA/GSM850MHz:850-894MHz; 100W;
GSM900MHz:925-960MHz; 100W;
GSM/DCS1800MHz:1805-1880MHz; 100W;
3G/UMTS2100MHz:2110-2170MHz; 100W;
4GLte700MHz:790-826MHz; 100W;
4G/WiMAX2600MHz:2620-2690MHz; 100W;
WIFI2.4G:2400-2485MHz; 100W;
4G2500MHz:2500-2570MHz; 100W;
GPSL1:1570-1610MHz; 100W;
GPSL2:1200-1300MHz; 100W;
GPSL3:1380-1400MHz; 100W;
Wi-Fi5.8GHz:5725-5850MHz; 10W;
VHF:135-174MHz; 100W
UHF:400-470MHz; 100W
RC433MHz:433MHz; 100W
RC315MHz:315MHz; 100W
17.CDMA450MHz:450-470MHz; 100W;
Tests
Long time Aging test and Repeated Spectrum Analyzer tests to ensure products qualified
Installation Reference:
Different Solution:
Main Engine , Antenna ,Coxial, Connectors,etc.
Details Photo
Technical Data:
|
Model |
TX-JZ01 |
|
Jamming radius |
1000-3000 meter |
|
Output Power |
Total 190W |
|
Standard Shield Frequency |
CDMA/GSM850MHz:850-894MHz; 100W |
|
GSM900MHz:925-960MHz; 100W; |
|
|
GSM/DCS1800MHz:1805-1880MHz; 100W; 3G/UMTS2100MHz:2110-2170MHz; 100W; WIFI2.4G:2400-2500MHz; 100W; 4G/WiMAX2600MHz:2620-2690MHz; 100W; Wi-Fi5.8GHz:5725-5850MHz; 50W; etc |
|
|
(Other customized frequency) |
|
|
Power consumption |
380W |
|
Size |
53*41*23cm |
|
Antenna size |
124*28*8cm |
|
Working Hour |
Continuous Working |
|
Ambient Temperature |
-40℃～75℃ |
|
Relative Humidity |
35～85% |
|
Installation Height |
3～15meter |
|
Installation ways |
Wall hanging/pole holding |
|
Outshell material |
Reoxidation Aluminium alloy |
|
Waterproof Level |
IPX64 |
Antenna Data:
|
FrequencyRange |
Can be customized |
|
Dimensions*mm(Height/Width/Depth) |
124*28*8cm (Customized) |
|
Gain |
16±1dBi (Customized) |
|
VSWR |
≤1.5 |
|
Polarization |
Vertical |
|
Horizontal Beamwidth(0º) |
100±5º |
|
Vertical Beamwidth(0º) |
15±3º |
|
Front-to-back ratio(dB) |
≥25 |
|
Input Impedance(Ω) |
50Ω |
|
Maximum input power(W) |
100W for single connector |
|
Input connector type |
N type or customized |
|
Lightening Protection |
DC Ground |
|
Rated Wind Velocity(m/s) |
60m/s |
|
Operational Humidity(％) |
10- 95 |
|
Radome Color |
Gray Color |
|
Radome material |
UPVC |
|
Operating temperature(ºC) |
-30～75 º |
|
Installution Method |
Pole Mount |
|
Mounting hardware(mm) |
￠40～￠80 |
|
Mechanical tilt(º) |
0-10º |
