Name: Factory price TXA3-36 Radio 700MHz 900MHz 5.2ghz 5.8ghz Detection Module
Brand: Amplifier module
SKU: TXA3-36
Price: 1,703.00 USD
Availability: InStock

Detail Information

Type:	Drone Detection Module	Frequency Range:	700-6300MHz
Application:	Drone Fpv Detector	Detection Distance:	2KM
Weight:	25g	Size:	70409mm
Highlight:	Drone Signal Detector Module 700MHz , TXA3-36 Radio Detection Module , 5.8GHz Drone Signal Detector

Product Description

TXA3-36 Radio Detection Module

The A3-36 is a compact radio detection component that scans, receives, and identifies common civilian radio transmission signals across multiple frequency bands including 700MHz, 900MHz, 5.2GHz, and 5.8GHz. This module demodulates signals meeting specific characteristics and transmits alarm data to host computers.

Product Overview

Structurally and interface-compatible with its predecessor, the A3-30, the A3-36 adds comprehensive FPV drone detection capabilities. It provides FPV video output, Bluetooth connectivity, and network interface support, delivering exceptional cost-effectiveness and high performance for radio signal detection applications.

Key Features

High sensitivity with minimal error rates
Integrated antenna interface for customer installation
Reliable operation in complex noisy environments
Protocol version support with parameter modulation
Recognition of drone image transmission and analog signals
Wide operating voltage range with low power consumption
Firmware updates via dedicated USB port

Technical Specifications

Model	TXA3-36
Frequency Bands	2400-2485MHz, 5000-6300MHz, 700-1500MHz, 3000-4000MHz, 4000-5000MHz
Target Drones	DJI, Quadrotor, Fixed Wing, DIY, FPV
Detection Range	2km OFDM / 4km FPV 5.8G 2W
Working Angle	360°
Voltage	DC 4.75-36V
Power Consumption	3.5W
Charging Method	DC 5V
Dimensions	70×40×9mm
Weight	25g
Identification Type	OFDM High-definition image transmission, FPV analog image transmission

Performance Advantages

High sensitivity with low false alarm rate
Signal extraction capability under noise interference
Built-in limiter for high-power signal input handling
Dual input ports for flexible frequency band configuration
Frequency band or amplitude comparison direction finding
FPV drone video image output capability
True physical dual channels supporting dual-frequency operations

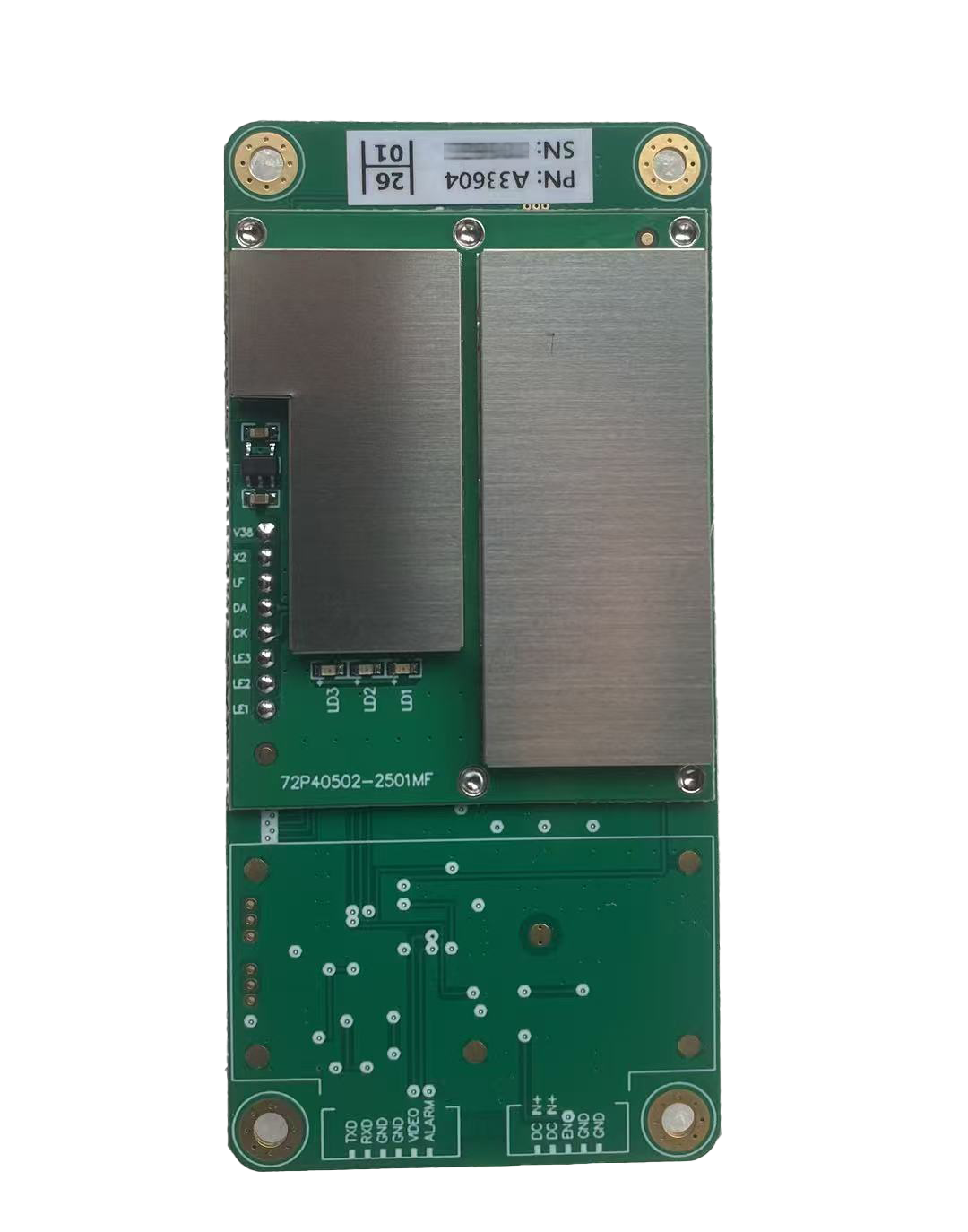

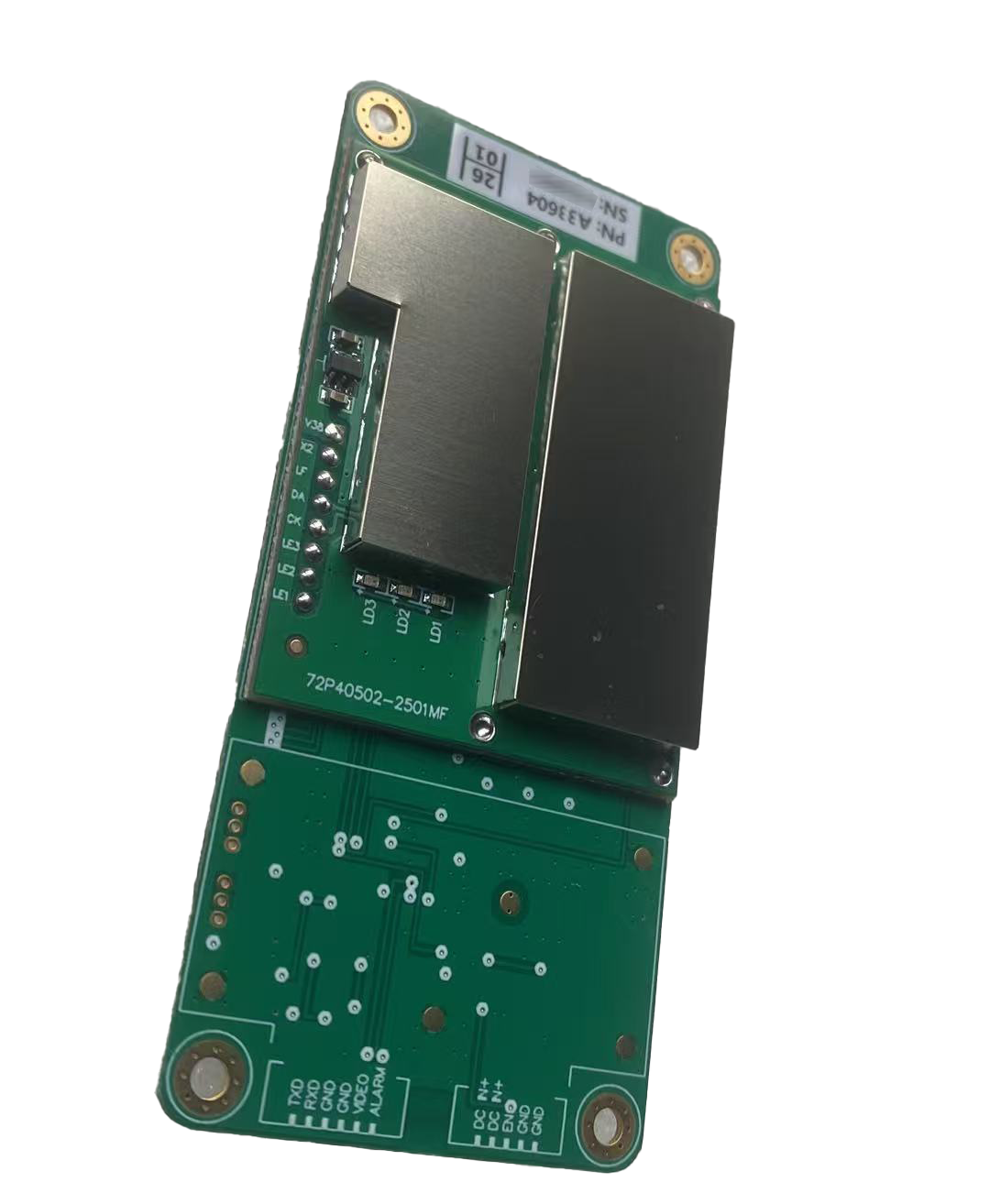

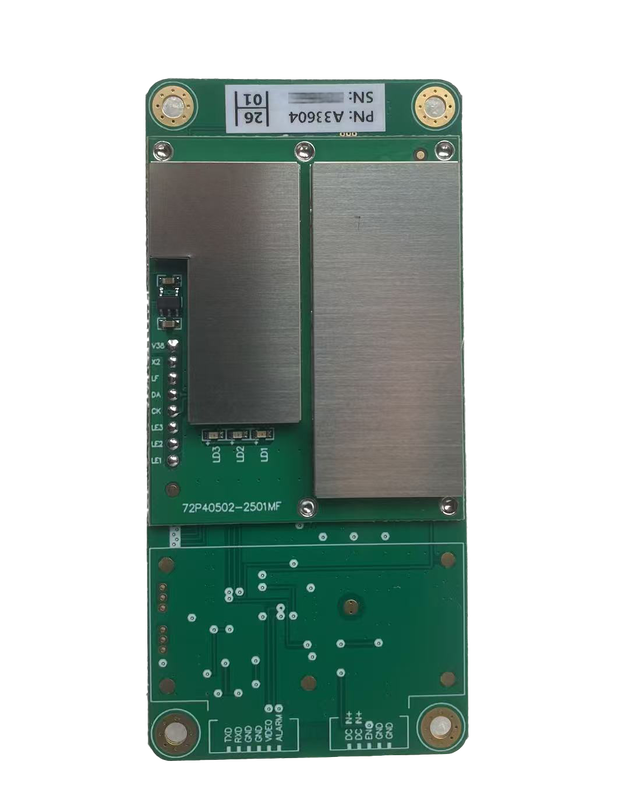

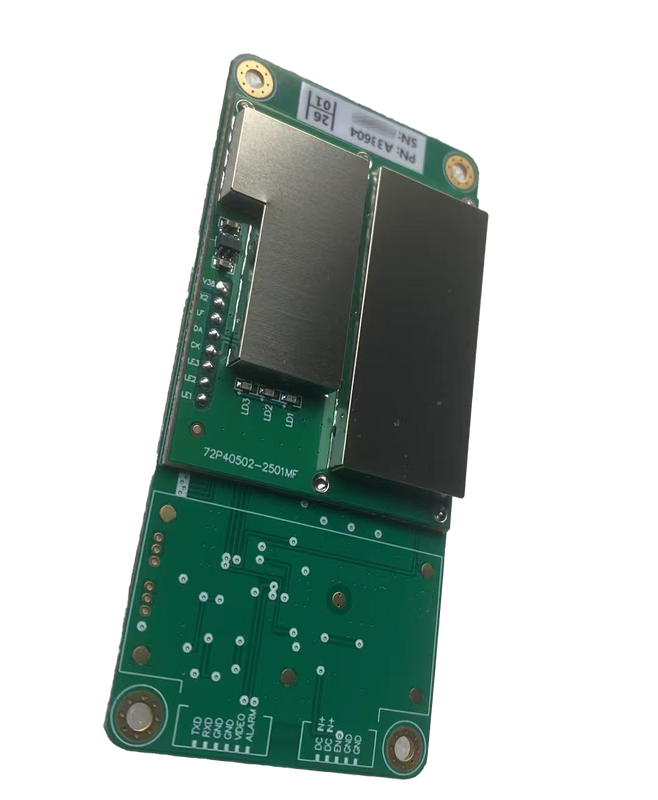

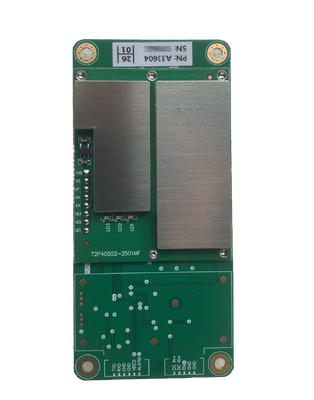

Product Image

Frequently Asked Questions

Does it support customization?

Yes, we can design modules according to your specific technical requirements. Simply provide your detailed specifications.

Are you the manufacturer?

Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility for quality verification.

How do you handle shipping?

If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXA3-36

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal,Etc.
Supply Ability:	100,000pcs/month
