Detail Information

Type:	Drone Detection Module	Frequency Range:	700-6300MHz
Application:	Drone Fpv Detector	Detection Distance:	2KM
Weight:	25g	Size:	70409mm
Highlight:	700-6300MHz UAV Detection Module , 2KM Detection Distance Drone Signal Detector , 360° Working Angle FPV Detection Module

Product Description

Full-band 400MHz 500MHz 6.2GHz 7.2GHz UAV Detection Module

The full-band FPV detection and identification module is a high-performance radio receiving and analysis device, specifically designed for various wireless video signals using analog modulation methods. It is especially suitable for highly reliable detection, identification, and alarm of FPV racing drone video transmission signals in various standard and non-standard frequency bands.

Key Features

Full-band FPV detection and recognition module
Utilizes a low-noise, high-dynamic-range front-end signal conditioning solution
Offers a wide operating frequency range and lower power consumption
Covers common FPV image transmission frequency bands
Supports wide voltage (4.75~36V)
Supports various display devices with CVBS signal input to display real-time video images transmitted by the detected target

Technical Specifications

Model	TXA3-36
Frequency Bands	2400-2485MHz, 5000-6300MHz, 700-1500MHz, 3000-4000MHz, 4000-5000MHz
Target Drones	DJI, Quadrotor, Fixed Wing, DIY, FPV
Detection Range	2km OFDM / 4km FPV 5.8G 2W
Working Angle	360°
Voltage	DC 2.7~5V
Power Consumption	3.5W
Charging Method	DC 5V

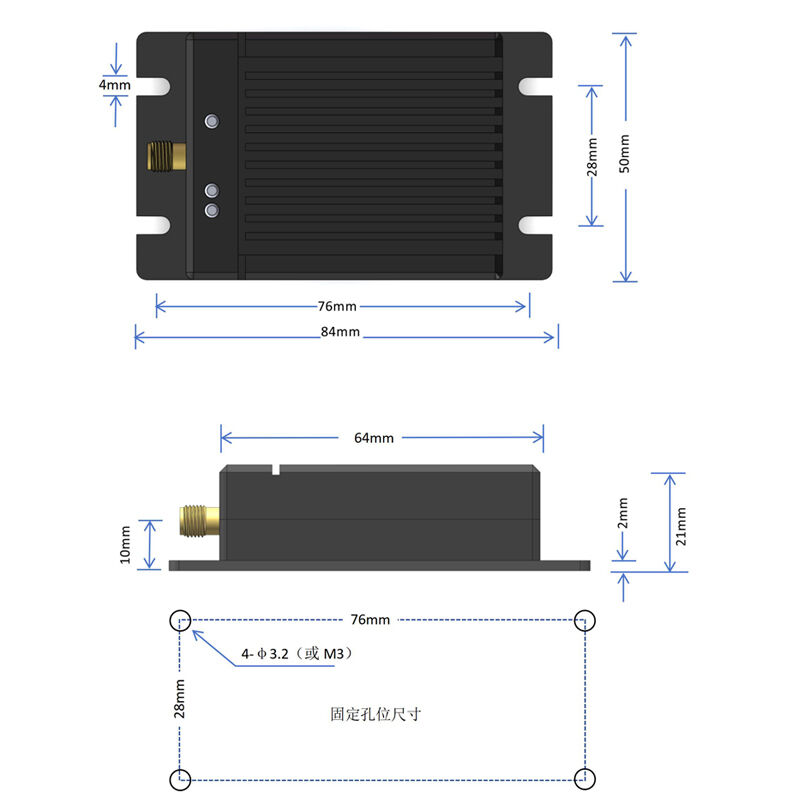

Dimensions	84×50×21mm
Weight	125g
Identification Type	OFDM High-definition image transmission, FPV analog image transmission

Advantages

Outputs frequency, signal strength, timestamp, and alarm signal

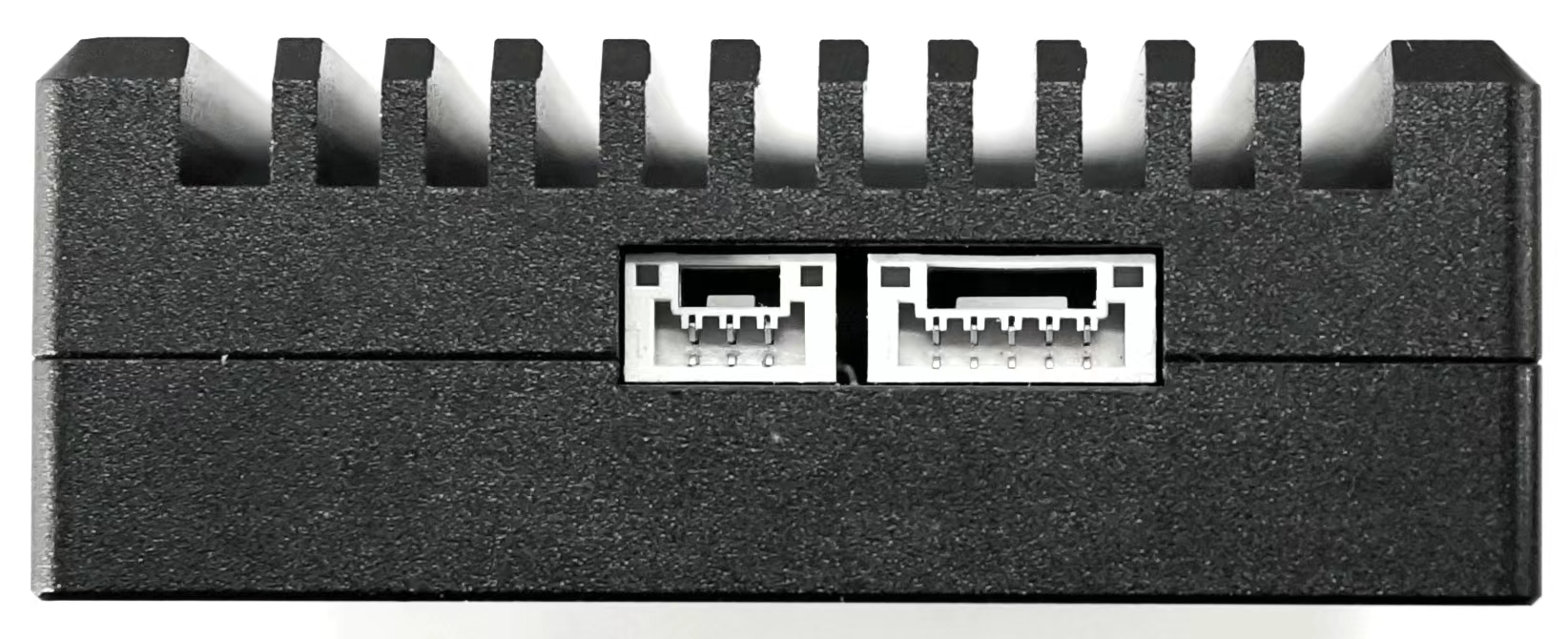

TCP/UDP Ethernet port + GPIO alarm interface for easy connection to host computer, jammer, and direction finding unit
Supports external direction finding antenna array to acquire target azimuth information
Wide temperature and voltage power supply, supporting fixed-point and vehicle-mounted field deployment
Covers 400-500MHz ELRS remote control and 6.2-7.2GHz modified FPV image transmission, identifying modified racing drones missed by traditional detection equipment

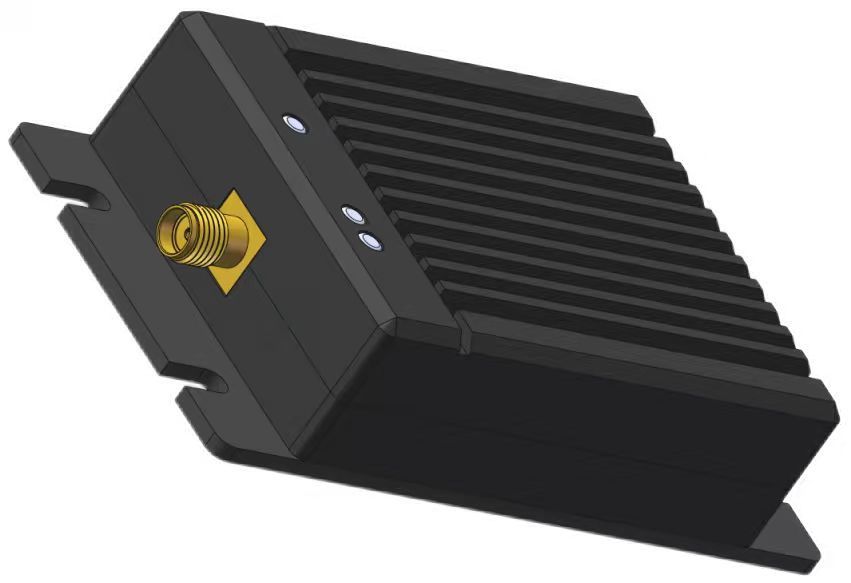

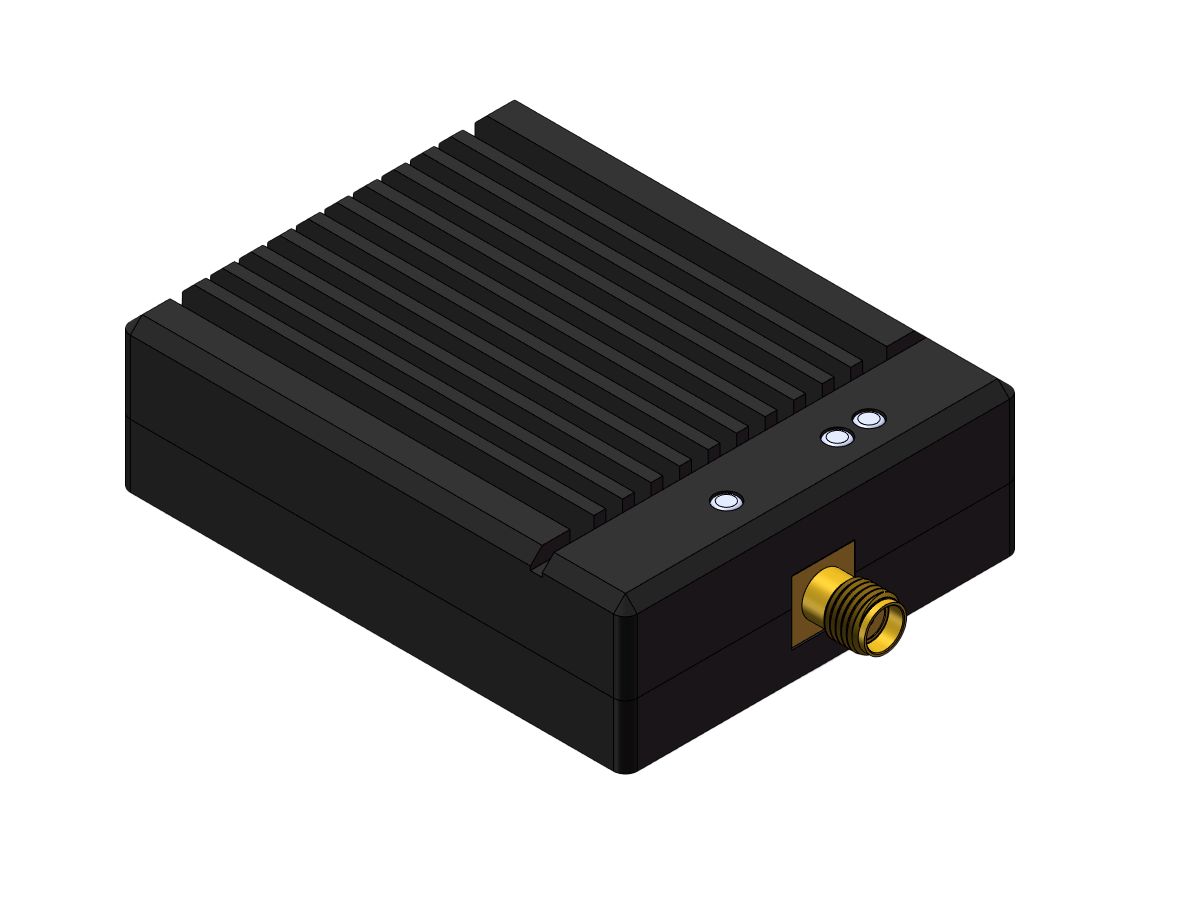

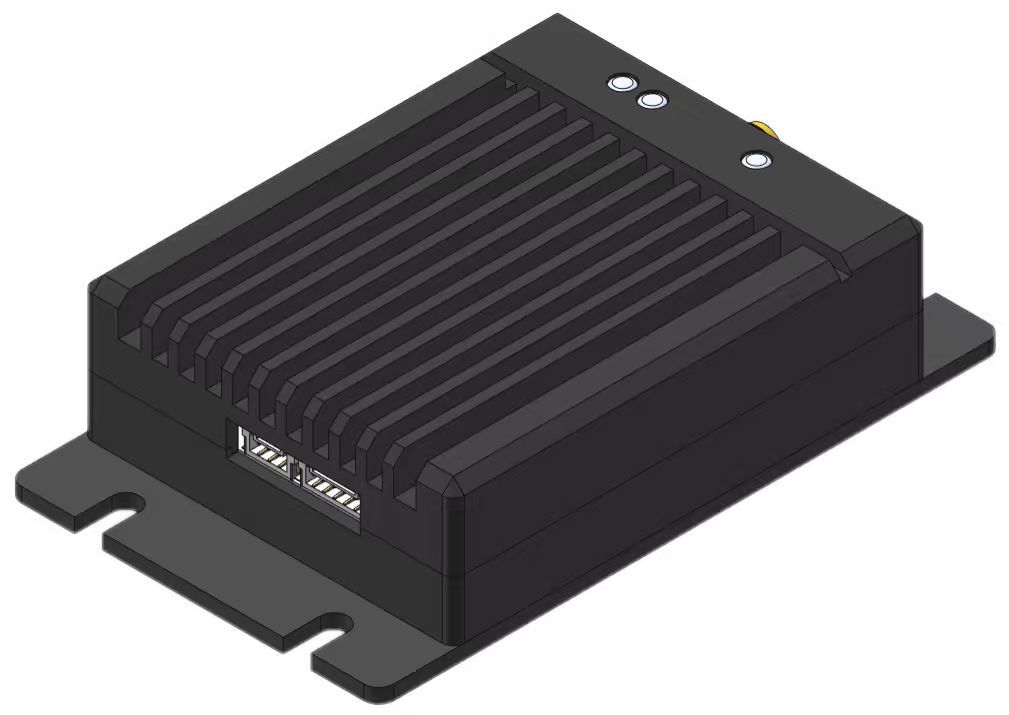

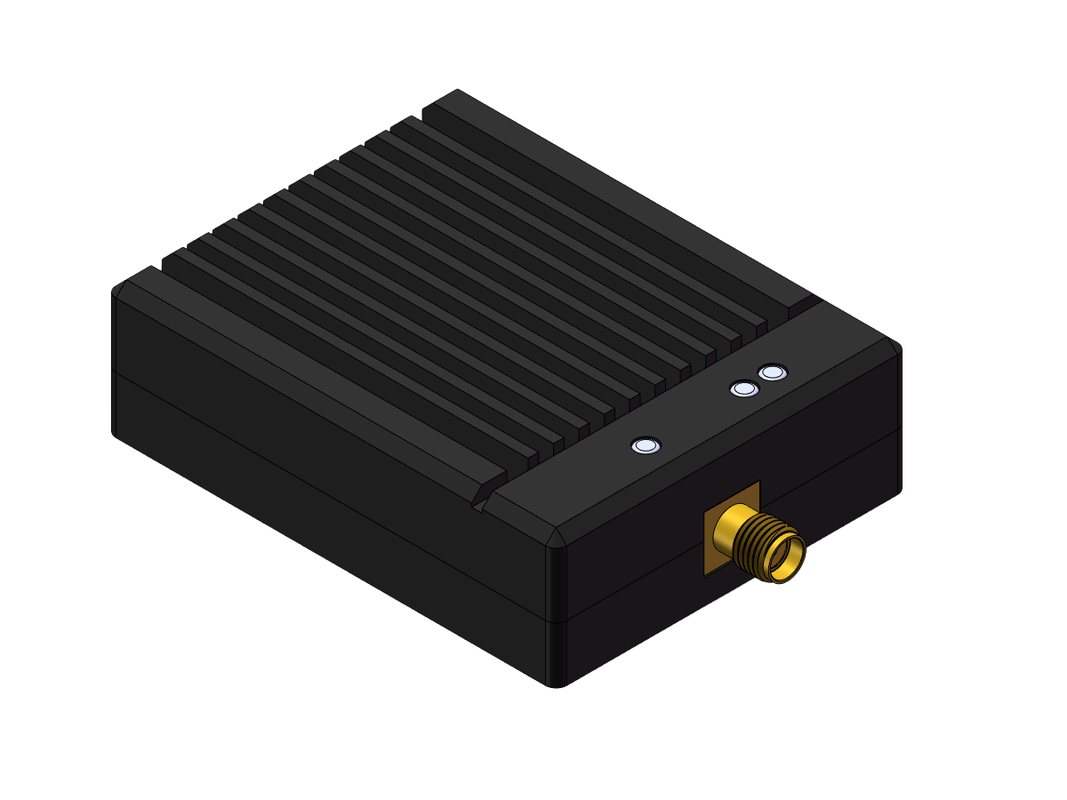

Product Images

Frequently Asked Questions

Does it support customization?

Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.

Are you the manufacturer?

Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.

How do you handle shipping?

If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXA3-36

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal,Etc.
Supply Ability:	100,000pcs/month

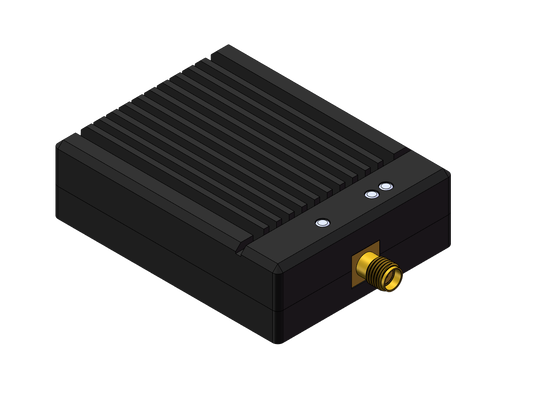

700-6300MHz UAV Detection Module with 2KM Detection Distance and 360° Working Angle for Drone Signal Detection
