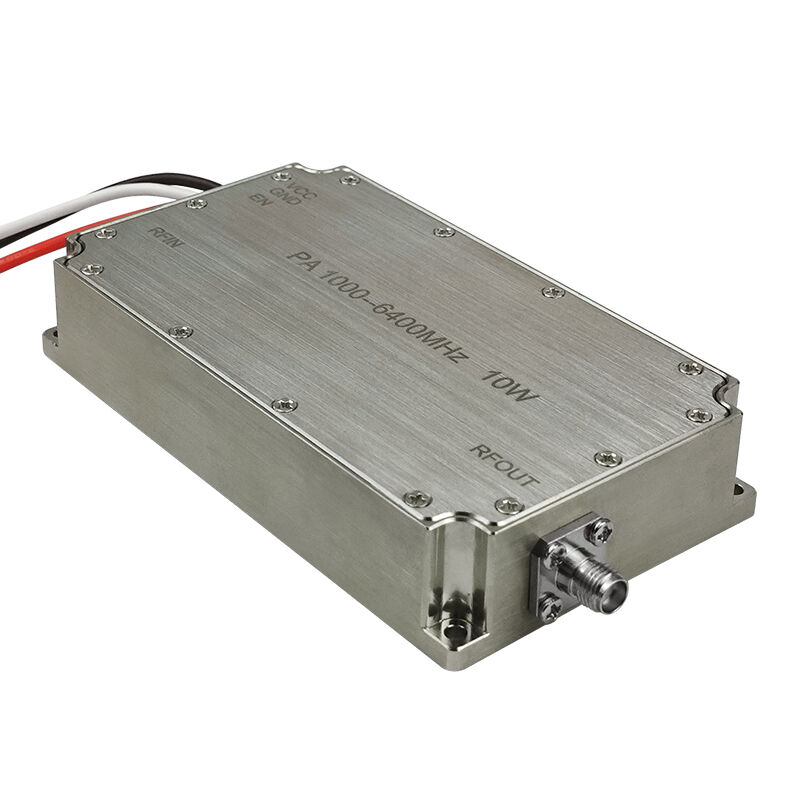

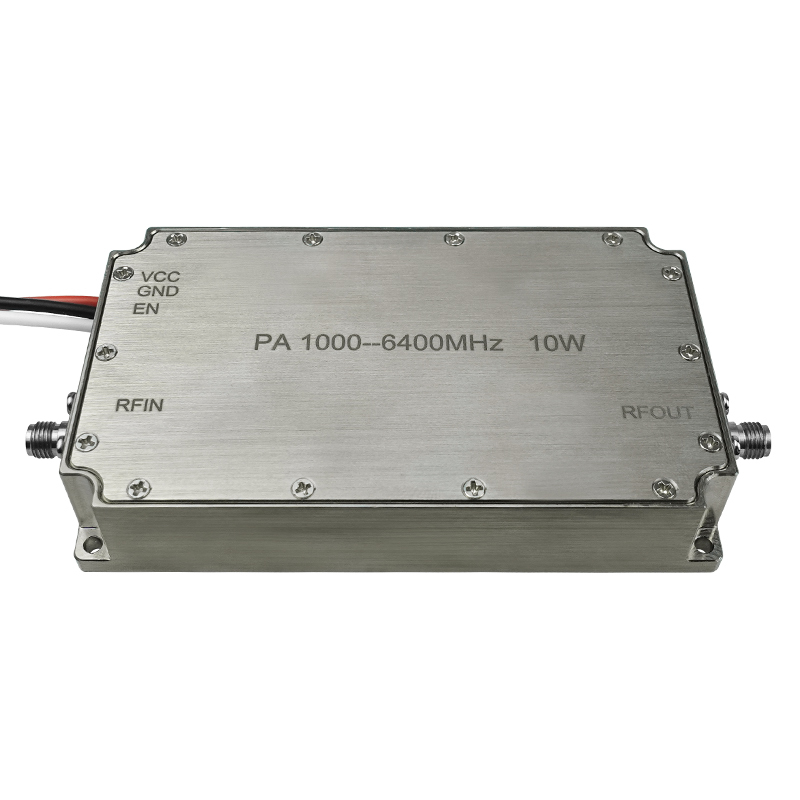

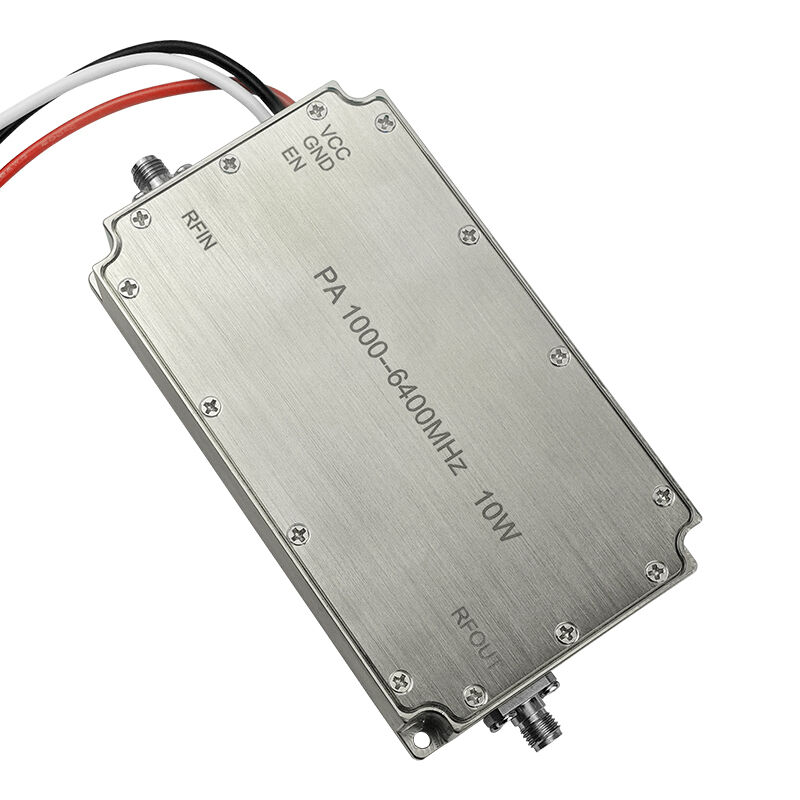

Name: TX long distance jamming 10W 20W 1000-6200mhz wide band anti drone power amplifier module for government
Brand: Shenzhen TeXin electronic Co., Limited
SKU: TEXINPA020
Price: 4,014.00 USD
Availability: InStock

Detail Information

Brand:	TEXIN	Frequency:	500-7300MHZ (Customized)
RF Distance:	1.5-2 Km	Current:	2A
Power:	20W(customized)	Jammer Type:	UAV FPV Drone
Dimensions Of Device:	1056020mm	Packing:	Box
Working Temperature:	-40℃ To +80℃	Gain:	43dbm
Connector:	SMA	Weight:	278g
Voltage:	24V-28V
Highlight:	long distance drone jammer 10W , wide band anti drone amplifier 20W , government signal jammer 6200mhz

Product Description

TX Long Distance Jamming 10W 20W 1000-6200MHz Wide Band Anti-Drone Power Amplifier Module for Government

The TEXINPA020 is a wideband 1000-6200MHz PA power amplifier module designed for long-distance jamming of drone FPV remote control to protect privacy. When used in government applications, this long-distance jamming 10W 20W wide band power amplifier module can drive away illegal drones and prevent unauthorized access to state secrets. It serves as a critical component of government security systems.

Technical Specifications

No.	Item	Data	Unit
1	Frequency	500-7300	MHz
2	Test Voltage	28	V
3	Current	1.5	A
4	Output	20	W
5	Gain	43	dB
6	Output Stability	1	dB
7	Connector	SMA / Female
8	Output Connector VSWR	≤1.30 (No power and VNA test)
9	Power Supply Wire	Red+Black
10	Enable Control	High ON Low Off
11	Out Shell Size	1056020	mm
12	Mount Hole	105*60	mm
13	Weight	278	g
14	Work Temperature	-40~+125	℃
15	Out Shell Material	Aluminum
16	Vibration Need	Car load ok
17	Input	0-10dbm

Key Features

500-7300MHz RF frequency coverage
20W output with low power consumption
Lightweight 300g design suitable for FPV jammer devices
Aluminum shell with waterproofing and excellent heat dissipation
Industrial grade construction with no built-in signal source
Capable of amplifying signals over long distances
Power amplifier with built-in signal source capability

Usage Precautions

Thorough testing required before deployment
Always connect antenna before powering on
Install separate close band modules when required
Use appropriate cooling devices when output power exceeds recommended levels

Frequently Asked Questions

Are you an anti-drone module and jammer manufacturer?

Shenzhen TeXin Electronic Co., Ltd. has over 10 years of experience in China. We independently develop and produce high-tech, professional anti-drone modules, anti-drone signal jammers, and drone detectors. We also provide antennas, heat sinks, and power supplies.

What is the customized frequency range and output power of the anti-drone jammer module?

TeXin anti-drone modules typically offer 5W to 300W output with frequency ranges from 100MHz to 6300MHz. The usual bandwidth is approximately 200MHz (for example, 2300-2500MHz). We can customize specifications according to specific customer requirements, even if they fall outside these standard ranges.

Can you show us test photos and videos of the FPV jammer module after we purchase them?

Yes, TeXin will provide photos and videos of sample and mass production assembly and testing before delivery, as requested by customers.
