Detail Information

Type:	Drone Detection Module	Frequency Range:	700-6300MHz
Application:	Security Guard	Detection Distance:	2KM
Weight:	25g	Size:	70409mm
Highlight:	FPV UAV wireless detection PCB , Drone signal detector with direction finding , UAV PCB components with wireless detection

Product Description

FPV UAV Wireless Detection PCB Component with Direction Finding

This core component enhances drone detection systems by recognizing common drone image transmissions and analog signals. It features parameter adjustment capabilities and specific signal warnings, while adding full-band FPV racing drone detection to existing systems. The board includes Wi-Fi and Bluetooth interfaces and is sold as a bare PCB for optimal cost-performance.

Key Features

Detection frequency band: 600-7300MHz
High sensitivity with minimal error margin
Noise-resistant signal extraction
Bluetooth and WiFi interfaces for custom firmware updates
Signal transmission capability for racing drones
High-power signal transmission handling
Wireless network terminal design for computer and mobile updates

Technical Specifications

Model	TXA3006
Frequency Bands	2400-2485MHz, 5000-6300MHz, 700-1500MHz, 3000-4000MHz, 4000-5000MHz
Target Drones	DJI, Quadrotor, Fixed Wing, DIY, FPV
Detection Range	2km OFDM / 4km FPV 5.8G 2W
Working Angle	360°
Voltage	DC 4.75-36V
Power Consumption	3.5W
Charging Method	DC 5V
Dimensions	70×40×9mm
Weight	25g
Identification Type	OFDM High-definition image transmission, FPV analog image transmission

Applications

Airports/Terminals: Prevent unauthorized FPV drones from entering restricted airspace. Multiple PCBs can be networked for comprehensive area detection and early warning systems.
Substations, Oil Depots, Chemical Plants, Water Facilities: Prevent FPV drones from secret filming and hazardous material drops with 24/7 low-altitude radio signal monitoring.
Detention Centers: Detect FPV drones delivering identify remote control and image transmission signals, and trigger audio-visual alarms integrated with security platforms.
Factories, Classified Facilities: Defend against DIY-FPV drones for espionage. Identify and report simulated FPV image transmission signal characteristics to backend systems.

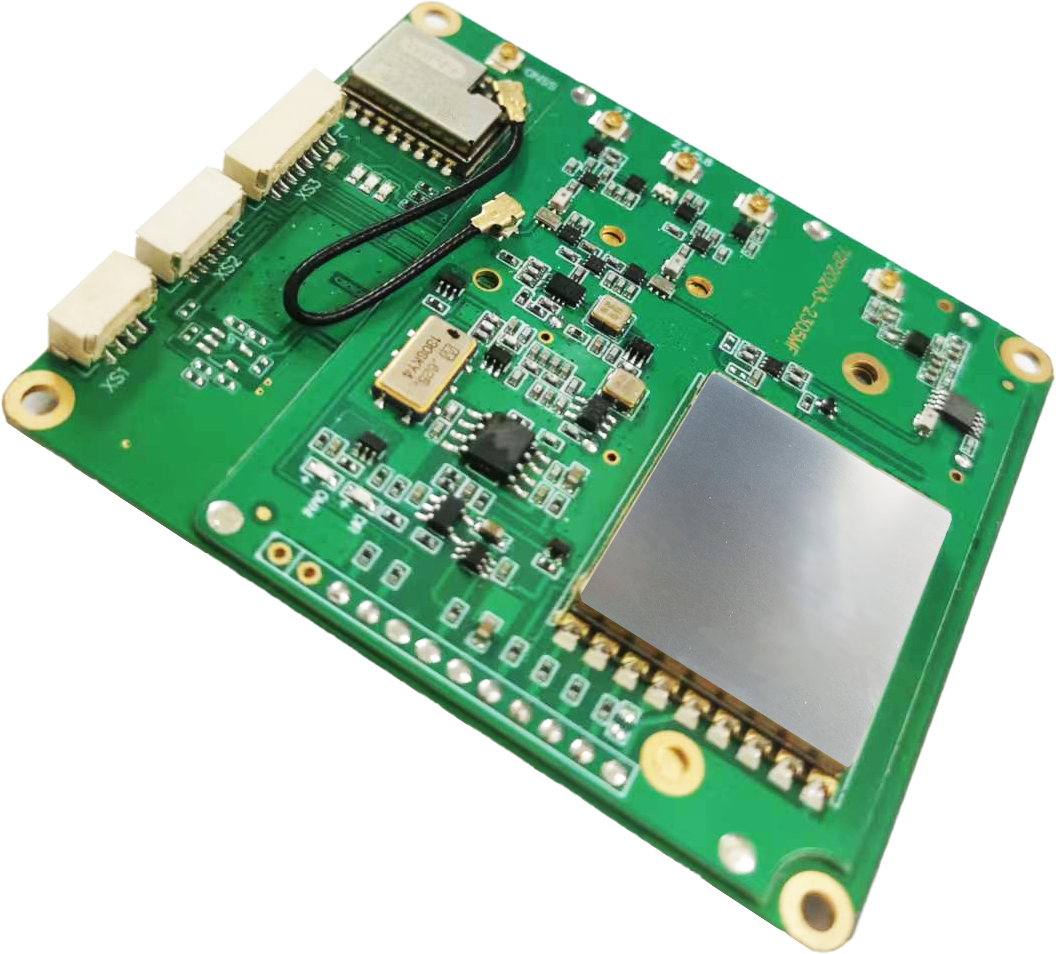

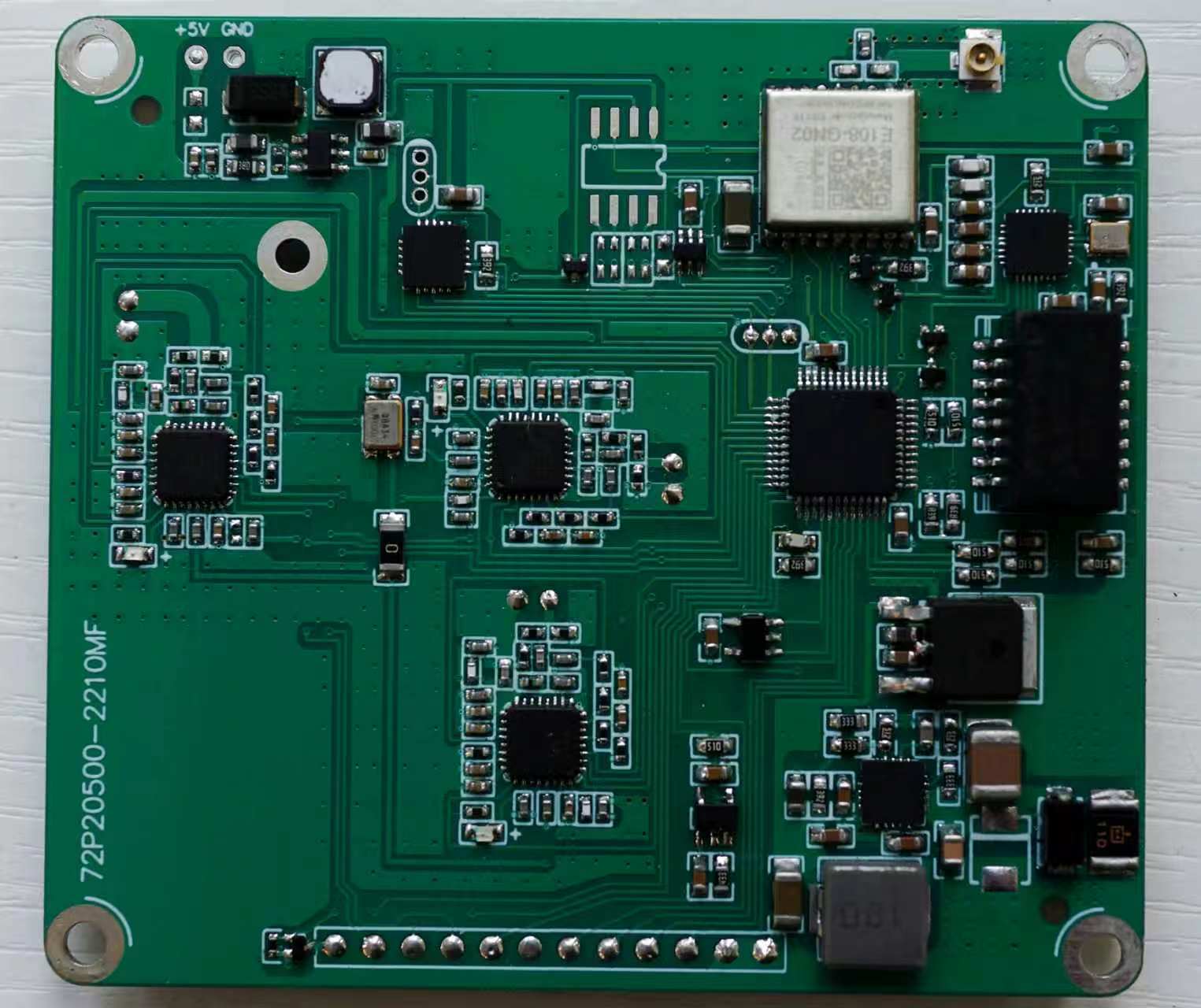

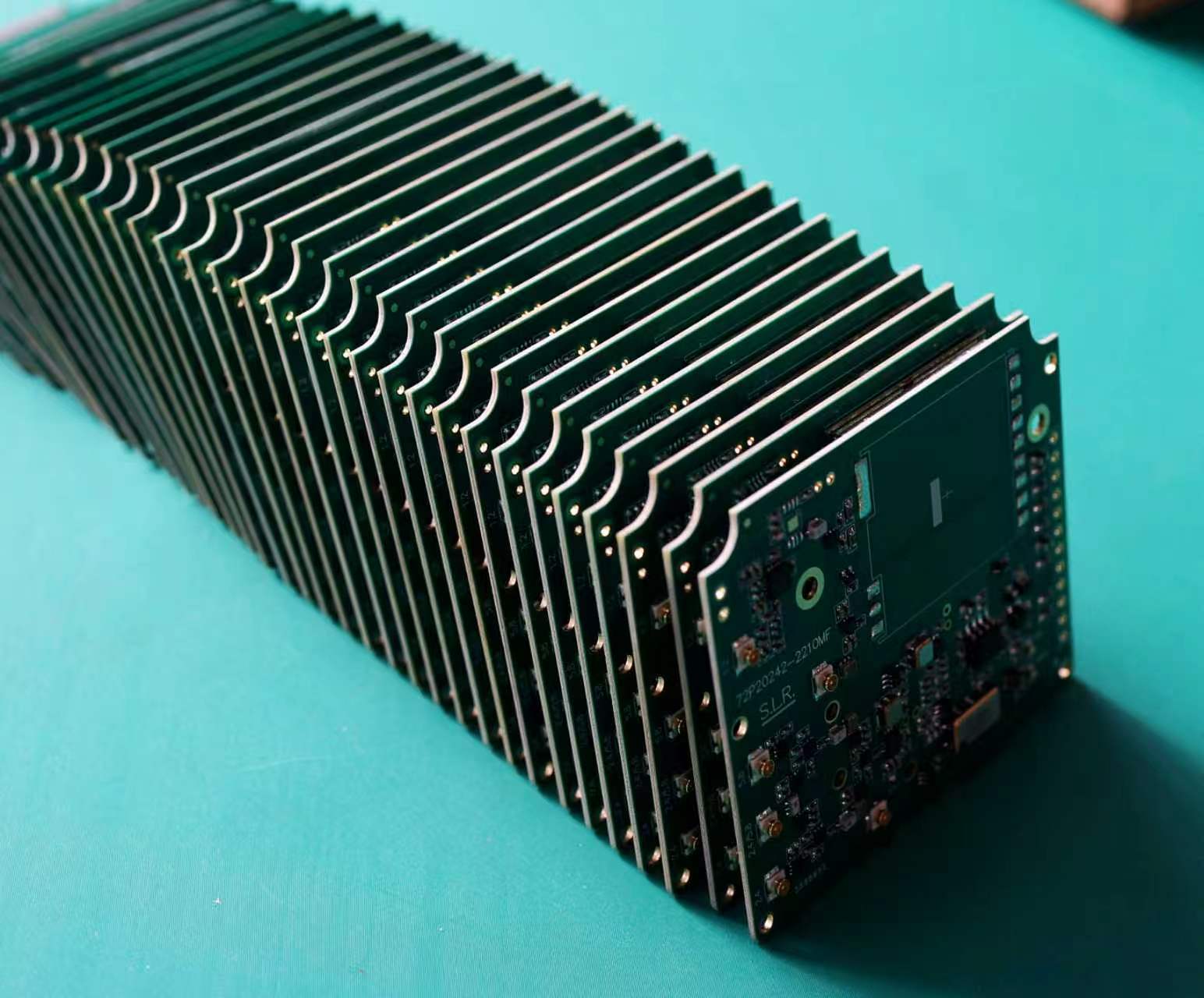

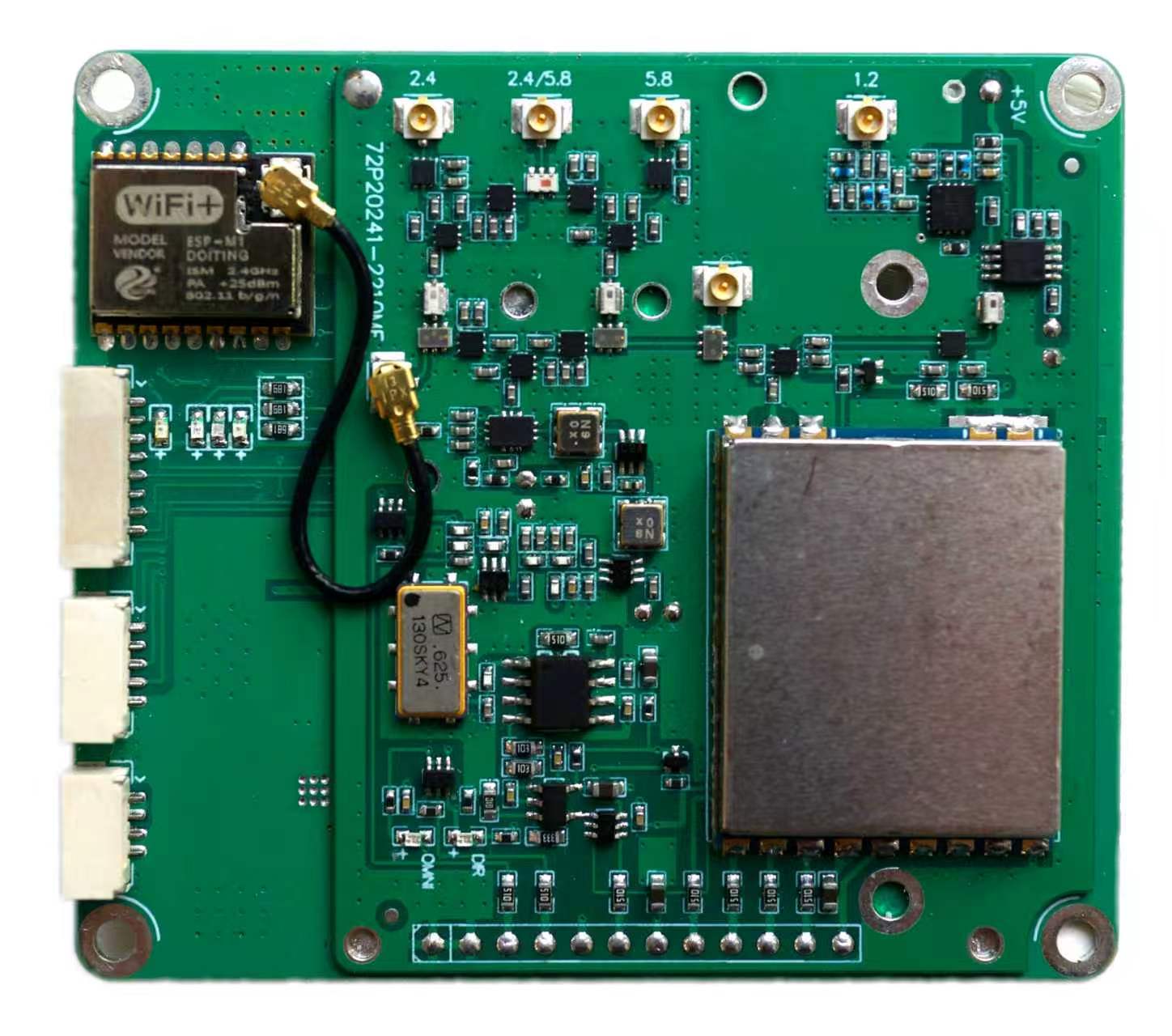

Product Image

Frequently Asked Questions

Does it support customization?

Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.

Are you the manufacturer?

Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.

How do you handle shipping?

If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXA3006

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal,Etc.
Supply Ability:	100,000pcs/month

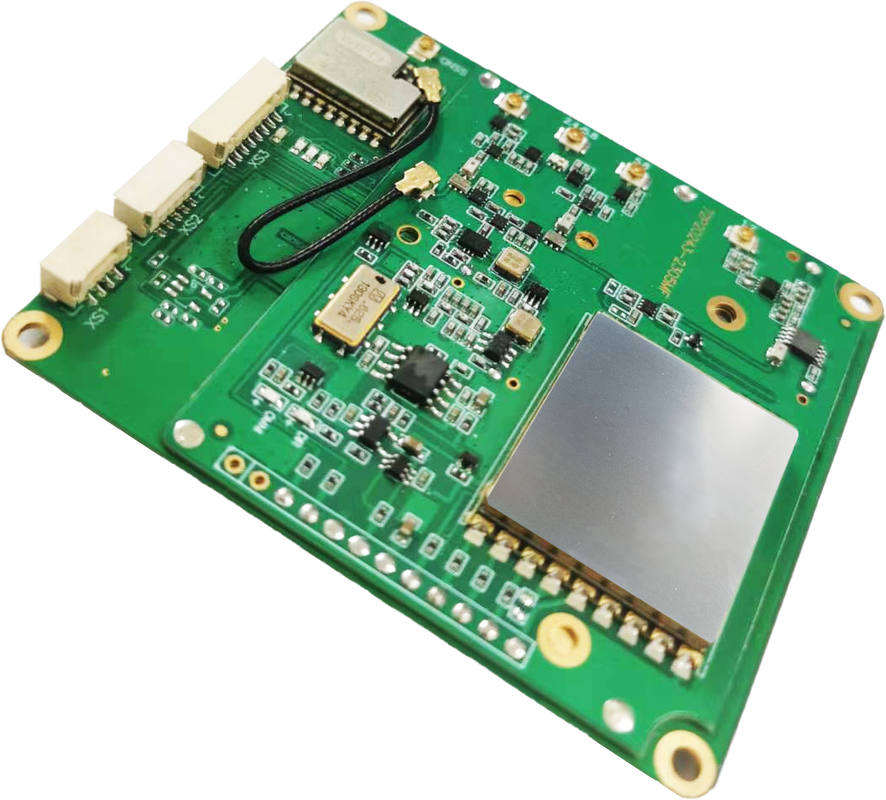

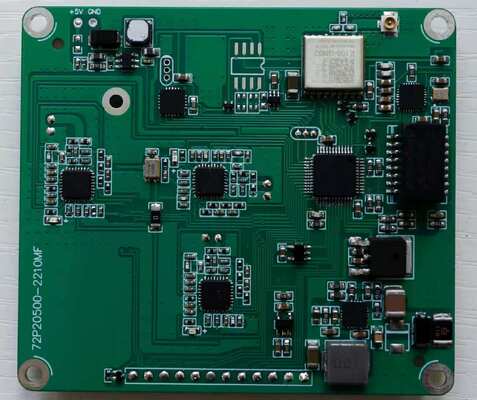

In-stock FPV UAV wireless detection PCB components with direction finding function
