Detail Information

Type:	Wifi 5ghz	Frequency Range:	5150-5250mhz
Weight:	113g	Power:	10W
Current:	1.5A	Connector:	SMA / Female
Voltage:	28V	Gain:	40dbm
Nominal Impedance:	50Ω	Applicaition:	Wireless Signal， Security
Highlight:	5GHz WIFI signal jammer module , Bluetooth 5.2GHz signal jammer , 10W 5.8GHz phone jammer module

Product Description

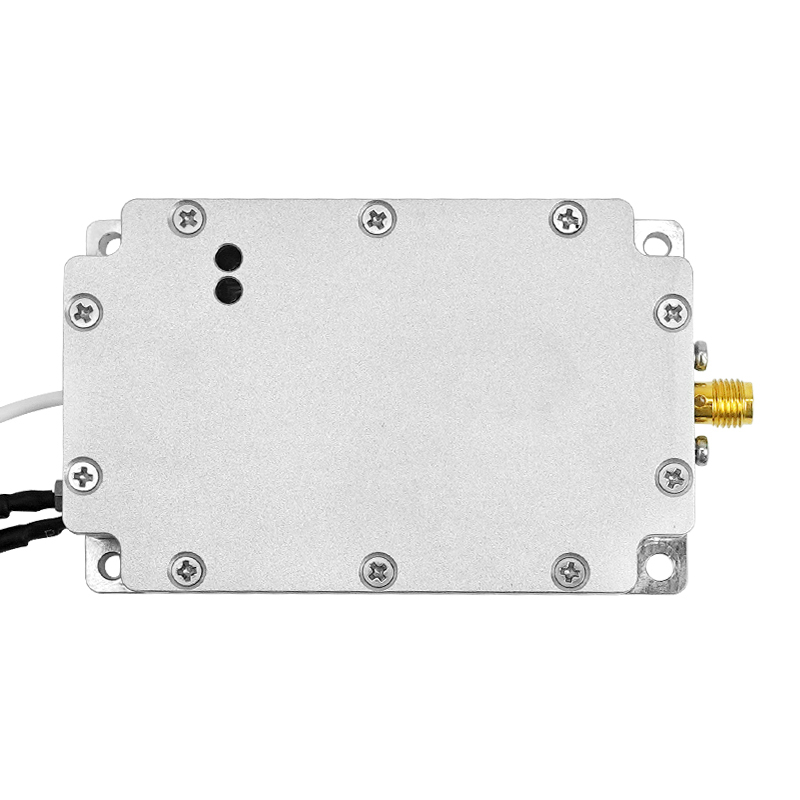

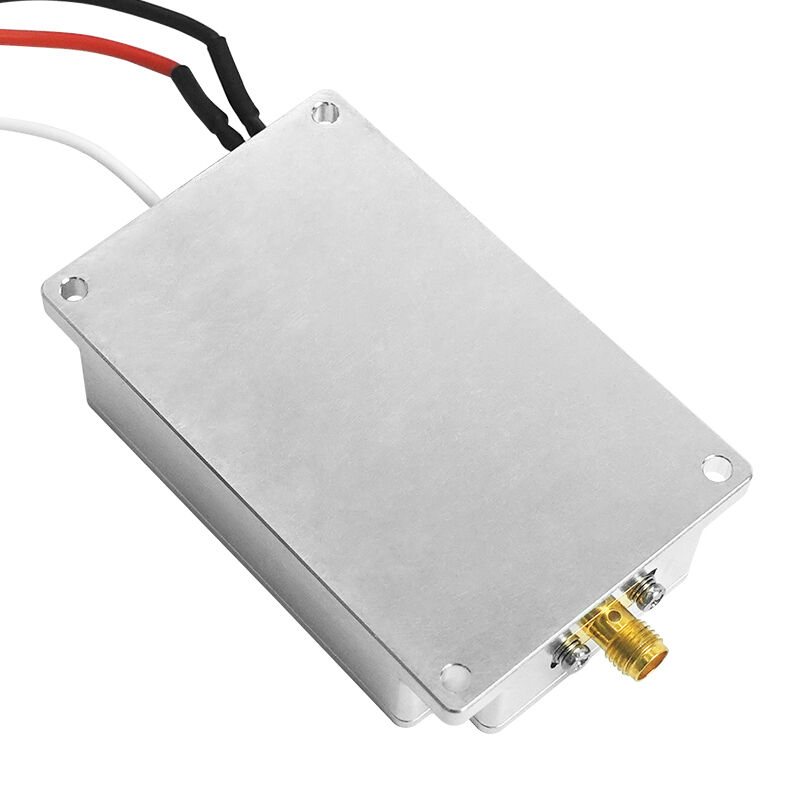

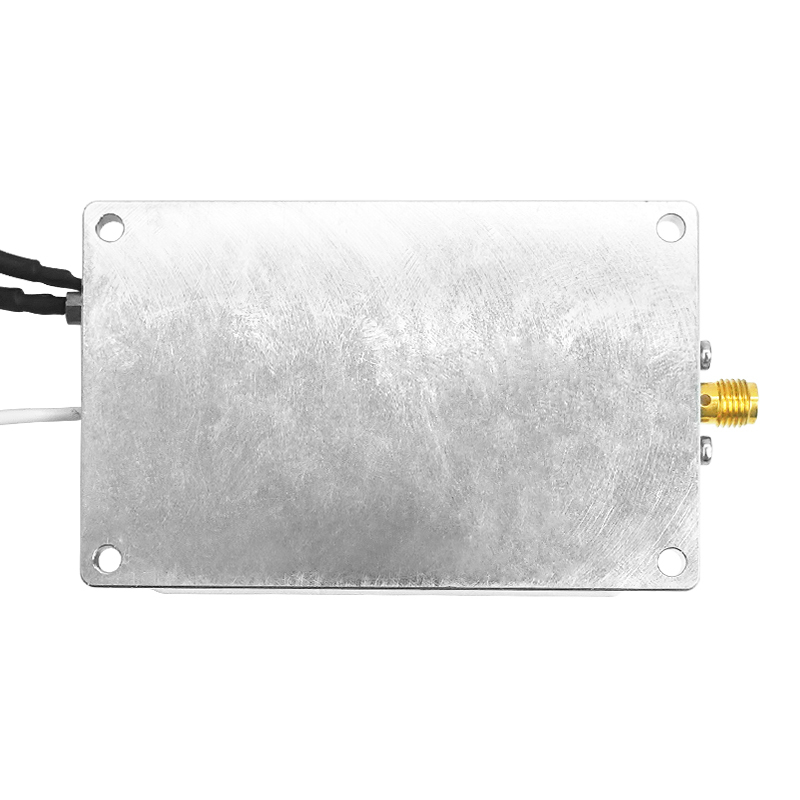

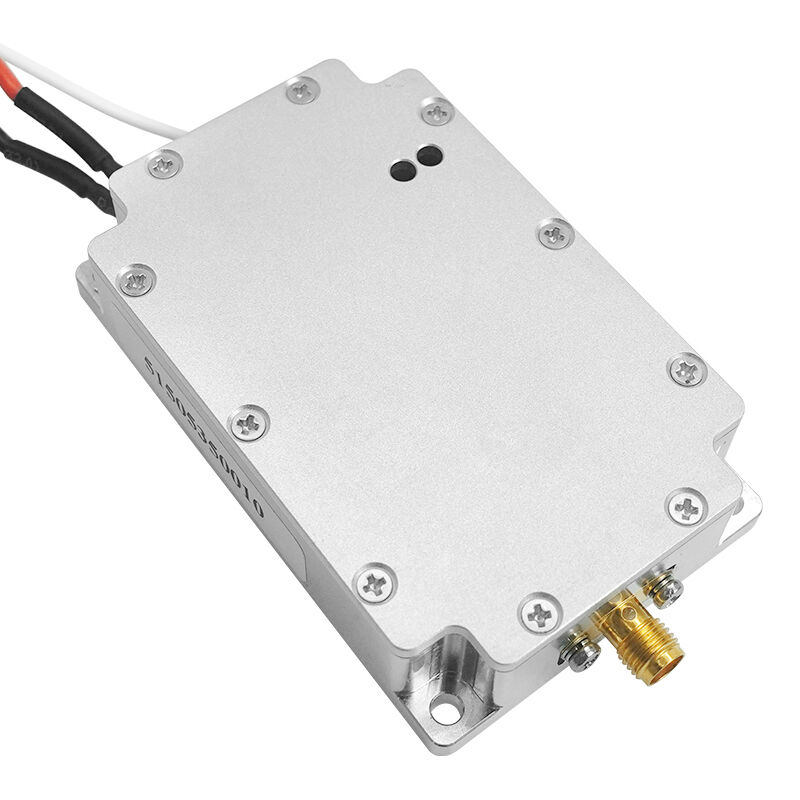

WIFI 5GHz Bluetooth Phone 5.2GHz 5.8GHz 10W Signal Jammer Module

This high-power 10W RF jamming module operates in the 5.2GHz and 5.8GHz frequency bands, delivering exceptional signal suppression capabilities with optimized linearity control and thermal management for extended operational reliability.

Technical Specifications

Parameter	Test Condition	Minimum Value	Representative Value	Maximum Value	Unit
Working Frequency Range		5150		5800	MHz
Saturation Output Power			10		W
Full-power Supply Current			1.2	1.5	A
Enable Level Logic	High = On, Low = Off
Enable Control Voltage			28		V
Output Impedance			50		ohm

Parameter	Minimum Value	Maximum Value	Unit
Module Operating Temperature	-40	+85	℃
Storage Temperature	-40	+105	℃
DC Power Supply Voltage		28	V

Key Features

10W high-power output (40dBm)
28V operating voltage
Covers frequency ranges 5150-5250MHz and 5750-5850MHz
High-efficiency heat dissipation design
Fully customizable parameters

Main Applications

5GHz band drone data link jamming & counter-UAV systems
Industrial site confidential wireless signal shielding
Private network communication signal suppression
High-power RF test and experimental equipment

Product Images

Frequently Asked Questions

How about delivery time?

Regular delivery time is 4-5 work days.

Are you manufacturer?

Yes, we have our own factory and can provide customized services.

How to ship?

If you have logistic forwarder, we can ship it directly to your forwarder. Alternatively, we can ship via logistics companies such as WPS, DHL, and UPS.
