Detail Information

Type:	Hand Held Drone Detector	Frequency Range:	700-6300MHz
Weight:	233g	Application:	Outdoords Safety Protection
Aim Drone:	DJI、quadrotor、Fixed Wing、DIY、FPV	Battery:	Replaceable Lithium Battery
Highlight:	long range drone signal detector , handheld FPV drone detector , 700-6300mhz omni drone detector

Product Description

TX-TcA2 Long Range Handheld FPV Drone Detector

The TX-TcA2 wireless handheld drone detector is a portable, ultra-wideband detection device developed and manufactured by Shenzhen Texin Electronics Co., Ltd. Utilizing low-power digital analog hybrid receiving technology and advanced power management, this detector achieves a working range of 600-800 meters in real environments with continuous operation up to 6 hours.

Key Features

Compatible with two 700MHz-6GHz full-band replaceable omnidirectional fiberglass antennas
Detects various drone types including DJI, quadrotor, fixed wing, DIY, and FPV drones
Triple alert system: voice, lighting, and vibration indicators
High sensitivity with low false alarm rate in complex electromagnetic environments
Lightweight compact design (233g) with carrying buckle
Long battery life: over 5 hours of continuous operation
Wireless network terminal design for computer and mobile phone updates

Technical Specifications

Model	TX-TcA2
Frequency Bands	2400-2485MHz, 5000-6300MHz, 700-1500MHz, 3000-4000MHz, 4000-5000MHz
Target Drones	DJI, Quadrotor, Fixed Wing, DIY, FPV
Detection Range	600-800m
Working Angle	360°
Alert Methods	Voice, Lighting, Vibration
Working Time	>5 hours
Battery	Replaceable lithium battery
Charging Method	DC5V
Dimensions	115×60×233mm (excluding antenna)
Weight	233g (excluding antenna)
Antenna 1	700MHz-6GHz full band short omnidirectional antenna
Antenna 2	700MHz-6GHz full band flexible omnidirectional antenna

Operation Instructions

Turn on the detector and enable Bluetooth update status
After powering on, select the "Bluetooth Icon" to begin connection
Once connected successfully, access Parameter Settings and select Firmware to enter update interface
Update is complete when progress bar reaches 100%

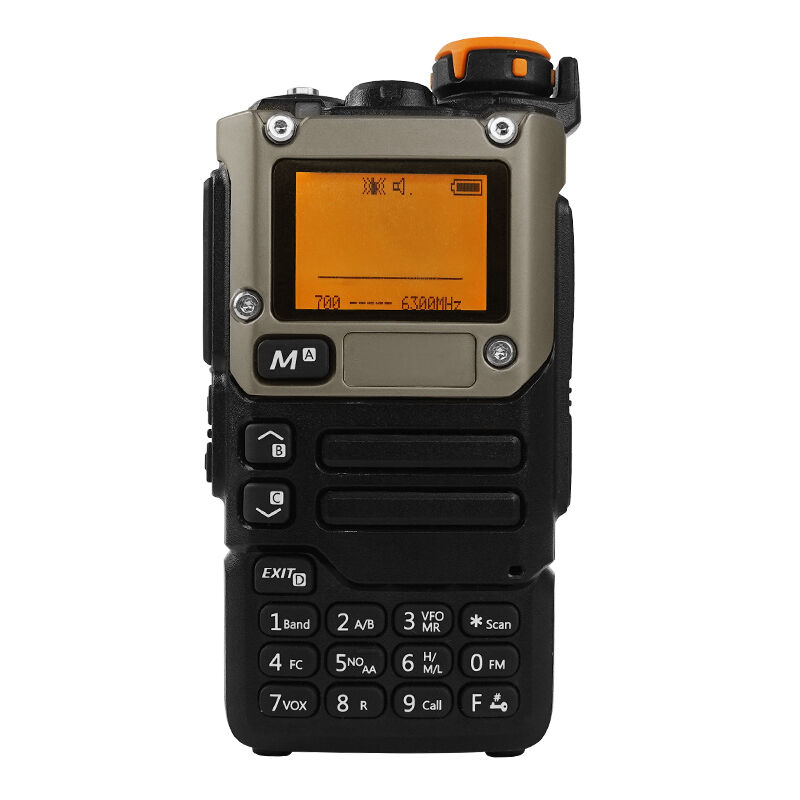

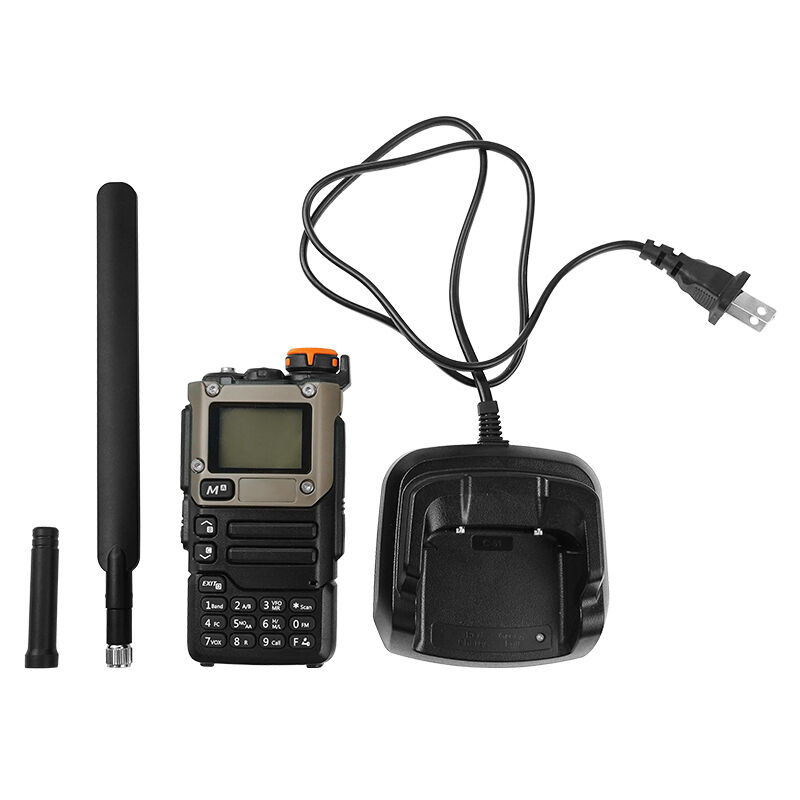

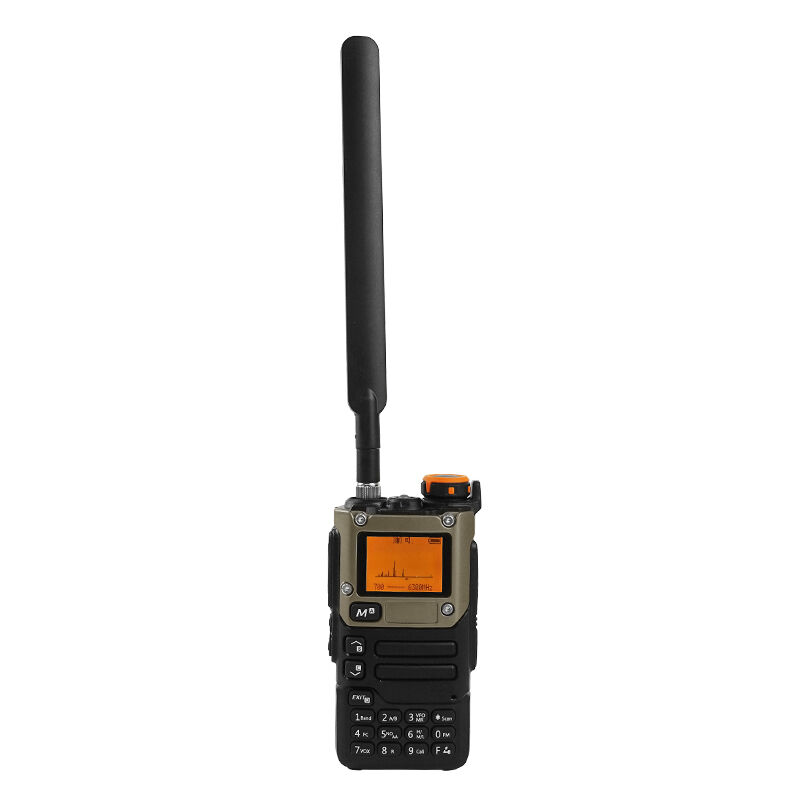

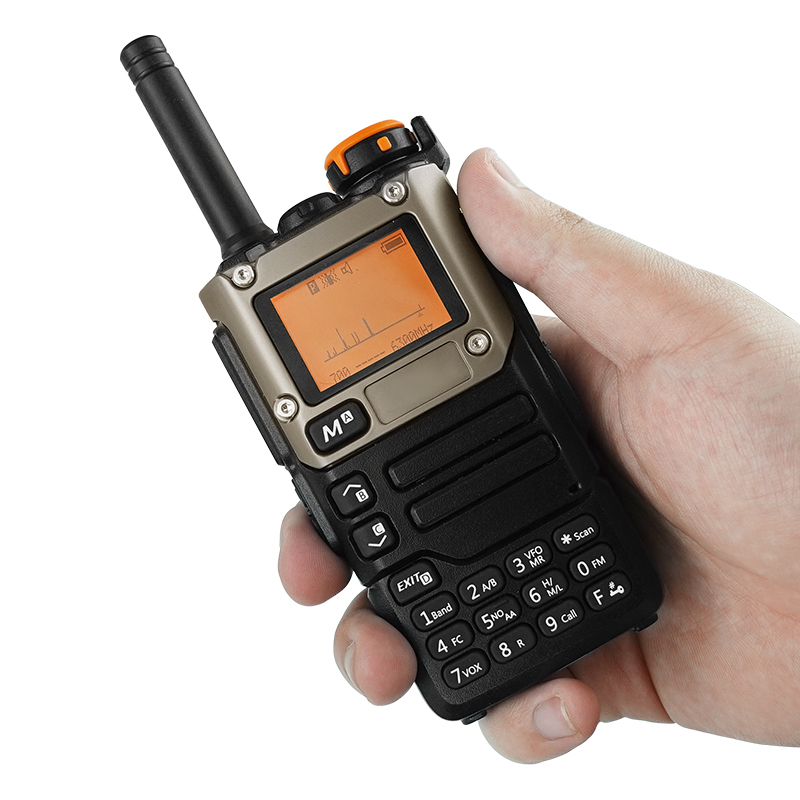

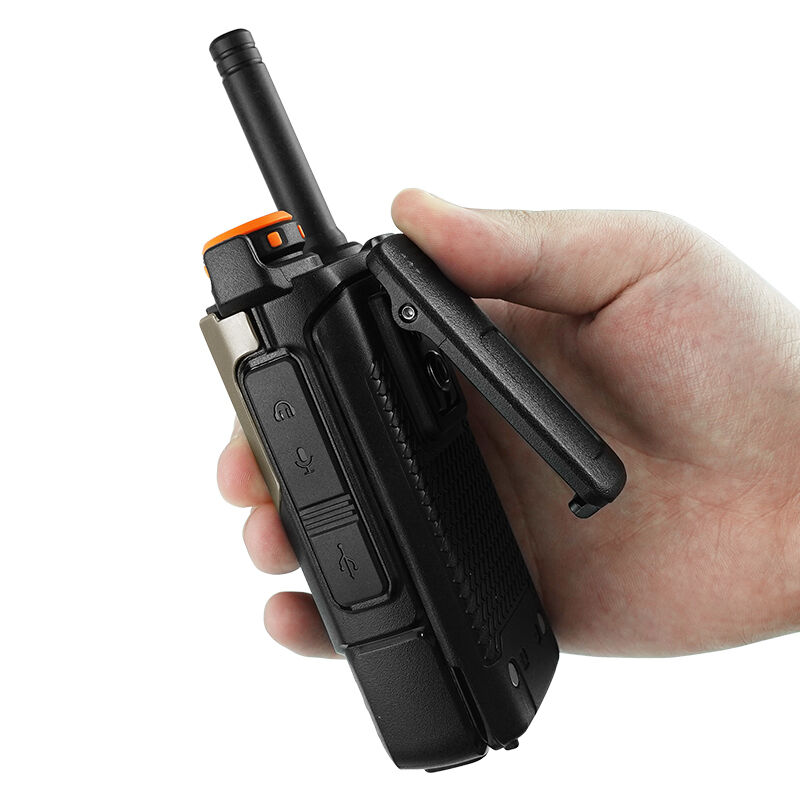

Product Image

Frequently Asked Questions

Does it support customization?

Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.

Are you the manufacturer?

Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.

How do you handle shipping?

If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXH20006000100

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal,Etc.
Supply Ability:	100,000pcs/month
