300W WiFi 2.4GHz anti done ,Radar system RF module for safety pravicy protection

Basic Information

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TXH20006000100

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal,Etc.
Supply Ability:	100,000pcs/month

Get Best Price Contact Now

Detail Information

Type:	Jammer Module	Frequency Range:	2400-2500MHz
Weight:	1161g	Power:	300W
Current:	25A	Connector:	N / Female
Voltage:	28V	Gain:	55dbm
Nominal Impedance:	50Ω	Applicaition:	Wireless Signal， Security
Highlight:	300W WiFi anti drone radar system , 2.4GHz RF module for privacy protection , WiFi radar system with safety protection

Product Description

300W WiFi 2.4GHz Anti-Drone Radar System RF Module

This 300W 2.4GHz high-power RF module serves as the core hardware for anti-drone radar defense systems. Designed to interfere with 2.4GHz WiFi remote control and video transmission signals of unauthorized drones, it effectively blocks illegal aerial surveillance, prevents privacy leakage, and establishes reliable airspace safety barriers for sensitive areas. Supports seamless integration into fixed anti-drone stations, vehicle-mounted C-UAS systems, and radar early-warning defense equipment.

Technical Specifications

300W output with 28V power supply
No signal source included
2400-2500MHz frequency coverage
Lightweight design at 1161g
Compact dimensions: 220.5×113×27.5mm

Performance Parameters

Parameter	Test Condition	Minimum Value	Representative Value	Maximum Value	Unit
Working Frequency Range		2400		2500	MHz
Saturation Output Power			300		W
Full-power Supply Current			25	30	A
Enable Level Logic	High = On, Low = Off
Enable Control Voltage			28		V
Output Impedance			55		ohm

Environmental Specifications

Parameter	Minimum Value	Maximum Value	Unit
Module Operating Temperature	-40	+85	℃
Storage Temperature	-40	+105	℃
DC Power Supply Voltage		28	V

Important Usage Notes

Always connect the antenna before use - direct power-on without antenna may damage the module
Requires compatible power supply with appropriate voltage for proper operation
Optimal performance achieved in open spaces
Install cooling system for prolonged continuous operation

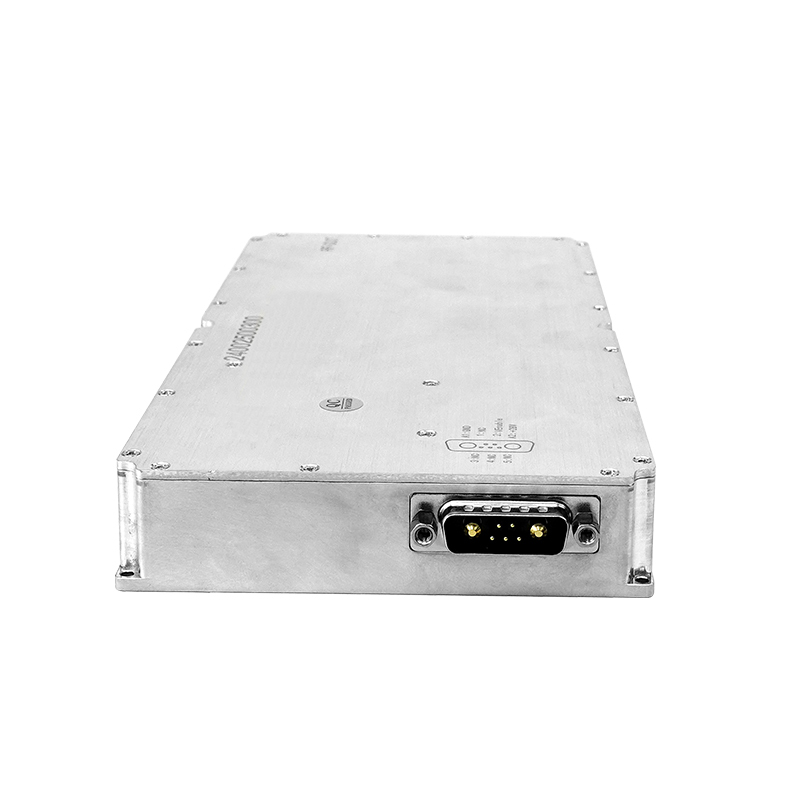

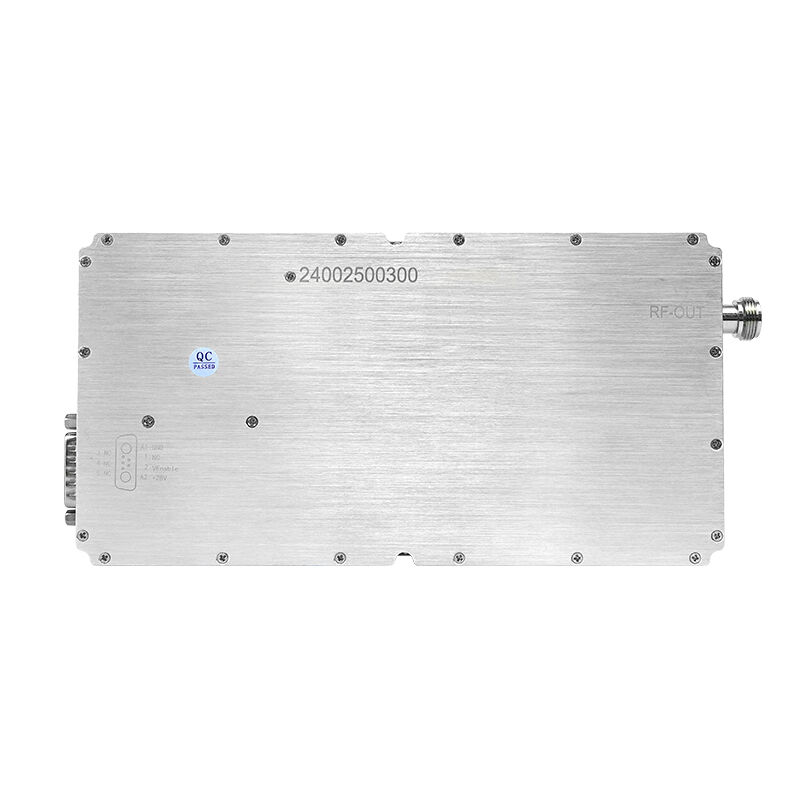

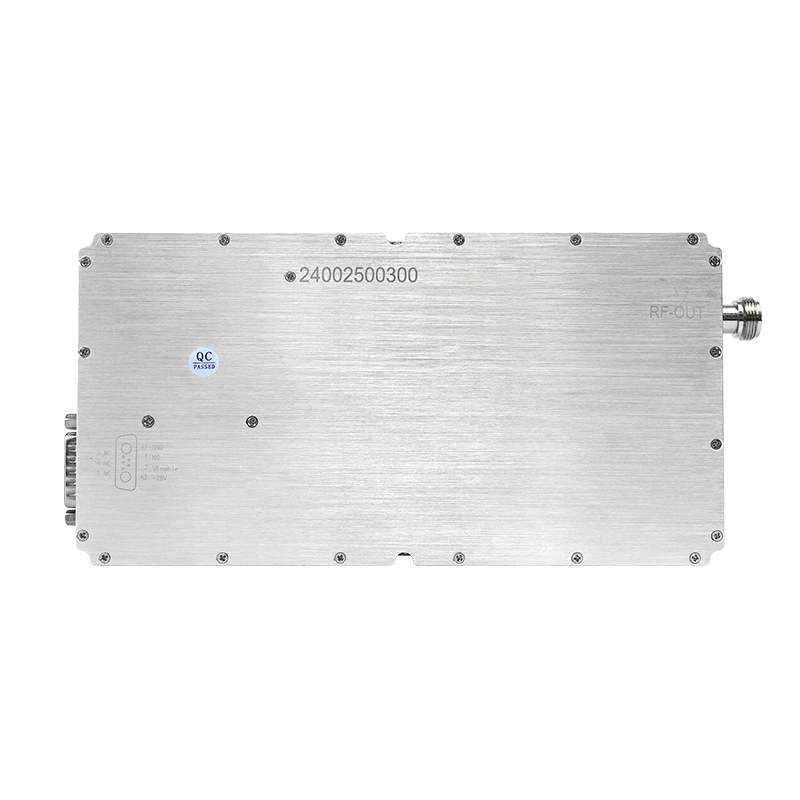

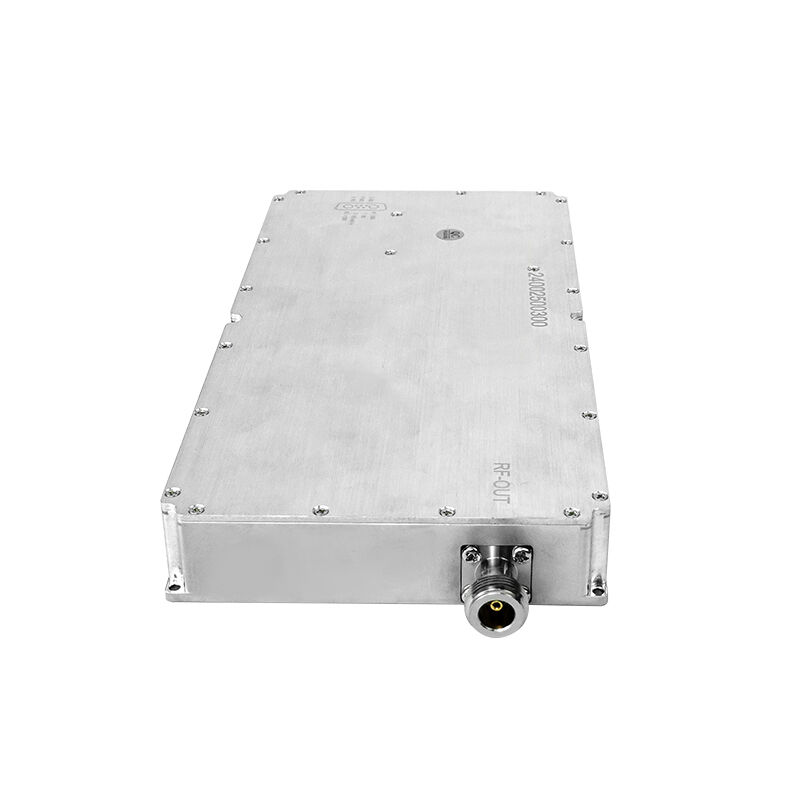

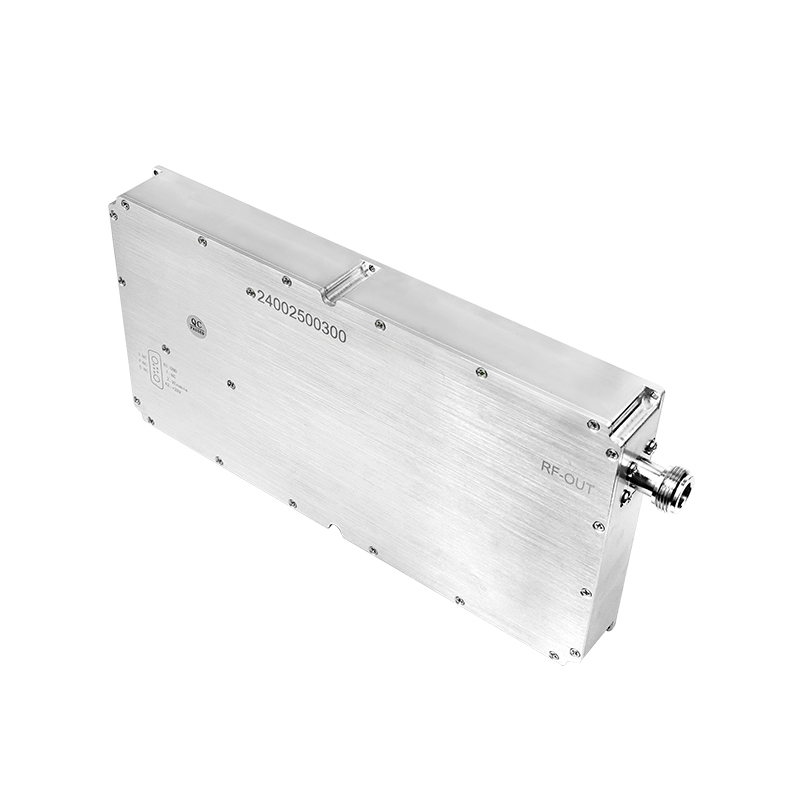

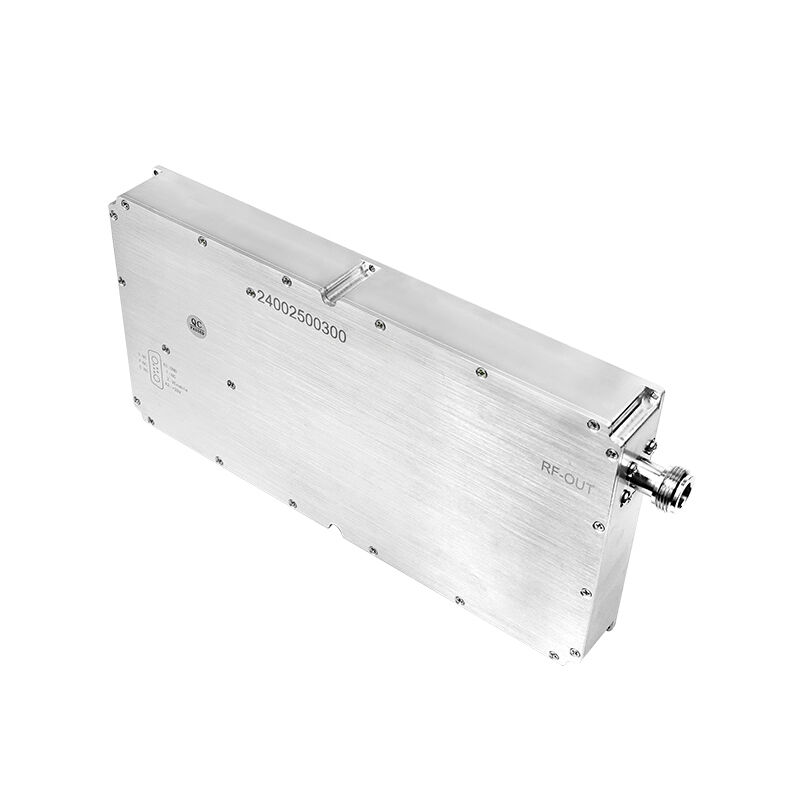

Product Image

Frequently Asked Questions

Does it support customization?

Yes, we can design modules according to your specific requirements. Simply provide your technical specifications.

Are you the manufacturer?

Yes, our factory is located in Shenzhen, China. We welcome visits to our manufacturing facility.

How do you handle shipping?

If you have a logistics forwarder, we can ship directly to them. Alternatively, we ship via major logistics companies including FedEx, DHL, and UPS.
