Detail Information

Type:	Poratable Module	Frequency Range:	Customized

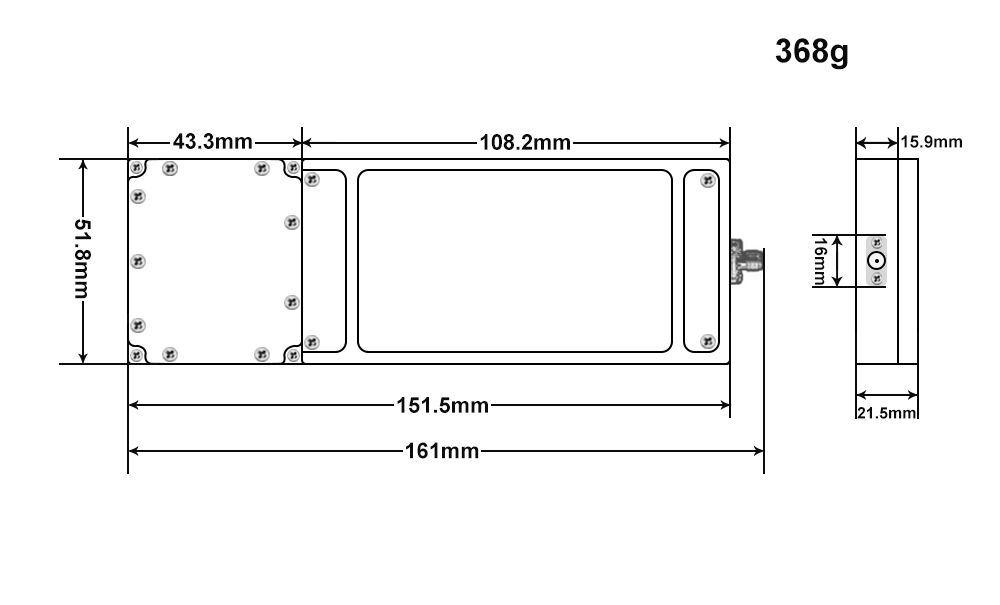

Weight:	368g	Bandwidth:	200MHz
Power:	50W	Current:	4A
Voltage:	32V	Max Power:	50 W
Nominal Impedance:	50Ω	Applicaition:	Wireless Signal， Security
Highlight:	Pocket-sized VCO interference module , Split-type WiFi jammer module , Customizable 2.4GHz 5.8GHz signal jammer

Product Description

Pocket-sized VCO Split-Type Interference Module

Ultra-compact split-type VCO interference module covering 2.4GHz and 5.8GHz WiFi bands. Built with independent VCO isolation design for stable output, low self-interference, and customizable linear/saturated power parameters.

Product Overview

This advanced interference module features a split-type independent VCO oscillator design that ensures stable output with minimal self-interference. Unlike standard fixed modules, this model offers complete customization including output power, frequency range, working mode, interface definition, and heat dissipation configuration. It serves as a high-cost-effective core solution for portable signal shielding devices, anti-drone systems, privacy protection equipment, and RF experimental development.

Technical Specifications

Key Features

Working Frequency: Customizable (800MHz, 900MHz, etc.)
Core Structure: Split-type independent VCO oscillator
Working State: Linear region stable output / Saturation peak output
Output: Stable operation at 50W (47dBm)
Output Mode: Fixed frequency
Features: Low noise, high isolation, no frequency drift
Size: Pocket mini compact design
Custom Service: Power, frequency, interface, program, shell customizable

Performance Parameters

Parameter	Test Condition	Minimum Value	Representative Value	Maximum Value	Unit
Working Frequency Range		830		930	MHz
Saturation Output Power		40	45		W
Full-power Supply Current			3.8	4.0	A
Enable Level Logic	High = On, Low = Off
Enable Control Voltage			28		V
Output Impedance			50		Ohm

Environmental Specifications

Parameter	Minimum Value	Maximum Value	Unit
Module Operating Temperature	-40	+85	℃
Storage Temperature	-40	+105	℃
DC Power Supply Voltage		32	V

Main Applications

Portable WiFi signal shielding equipment
Anti-drone interference suppression systems
Privacy & confidential environment signal isolation
RF circuit development and experimental testing
Custom wireless countermeasure equipment integration

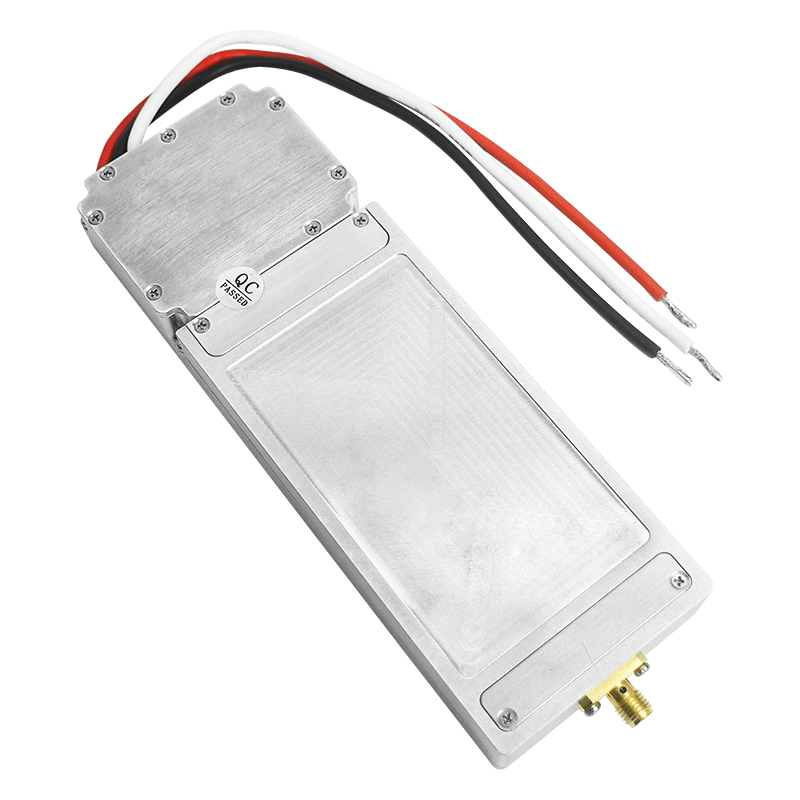

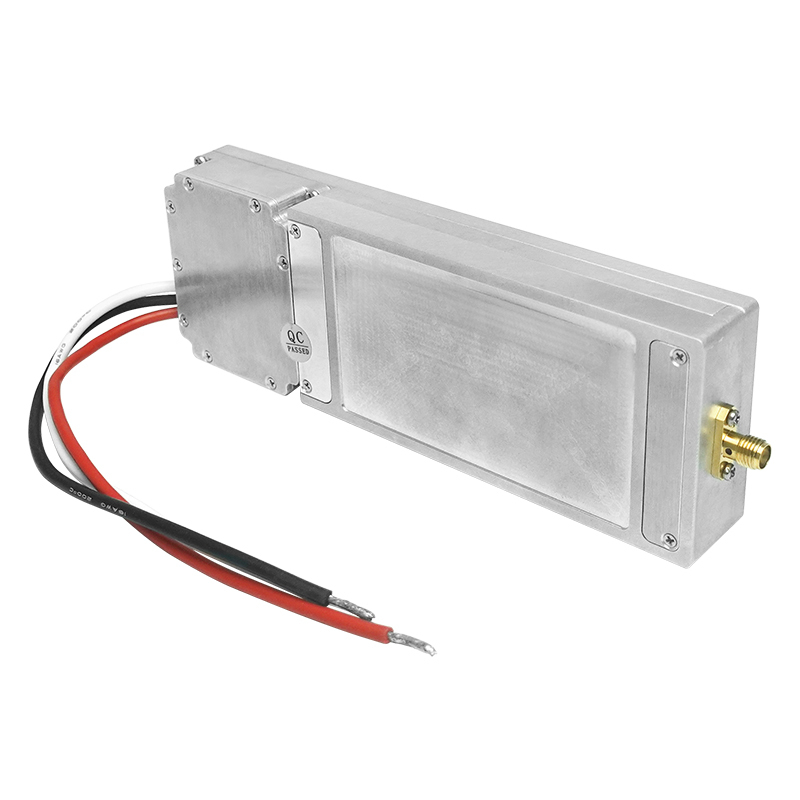

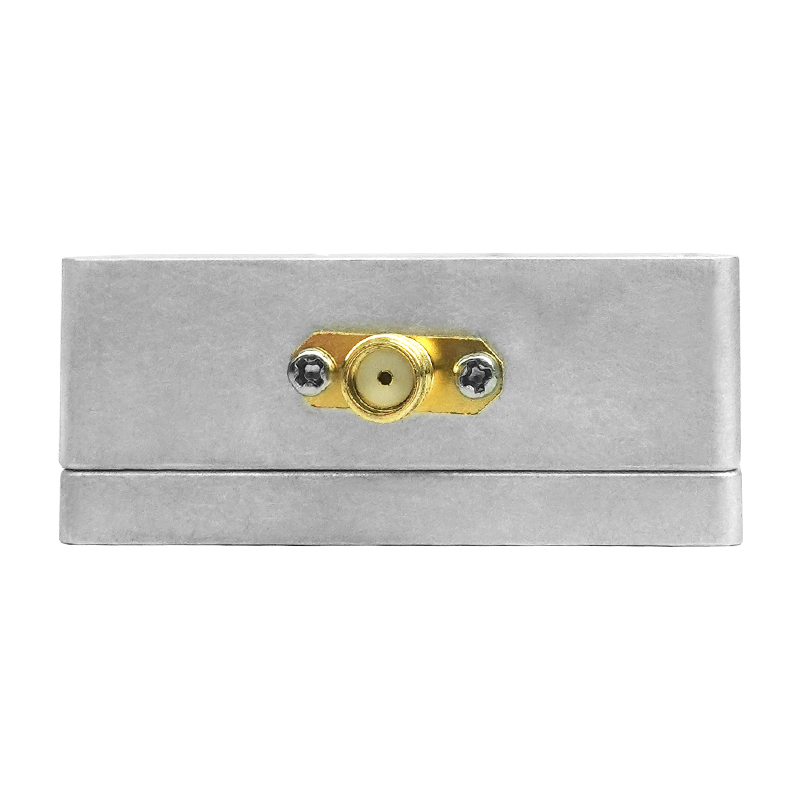

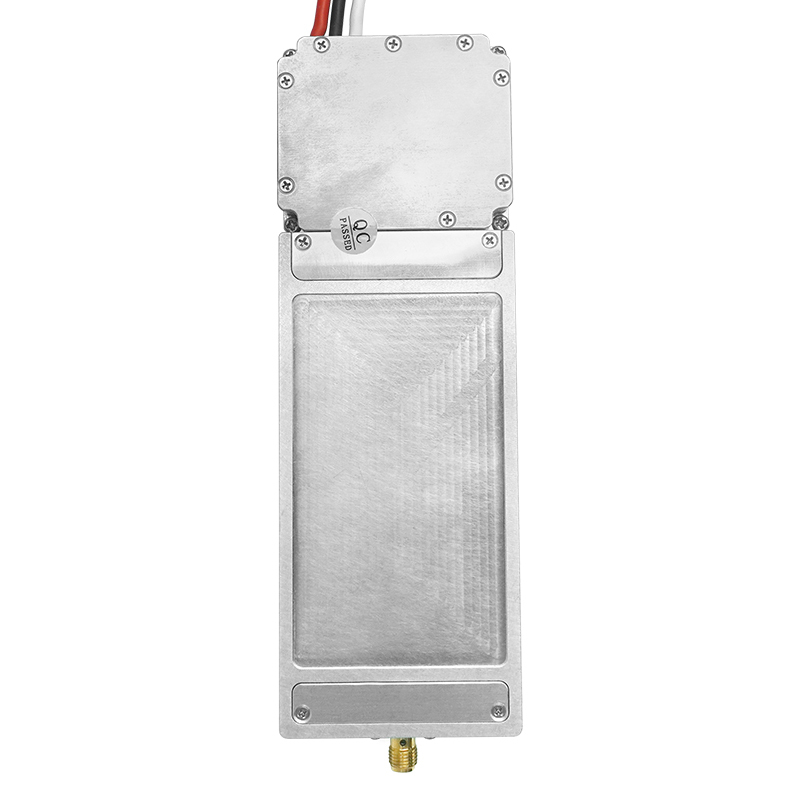

Product Images
