| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-L-NT |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal,Western Union, Etc. |
| Supply Ability: | 100,000pcs/month |
| Type: | 4G LTE Signal Booster | Coverage Area: | Up To 3000m² |
|---|---|---|---|
| Frequency Range: | N Connector (customized) | Frequency Options: | 800,900,1800,1900,2100,2600MHZ Or Customized |
| Product Size: | 151*123*28mm | Weight: | 0.45Kgs |
| High Light: | cellular signal booster,mobile network signal booster |
||
Home / Office Portable Cell 4g Mobile Network Booster , 4G LTE Cell Phone Antenna Booster

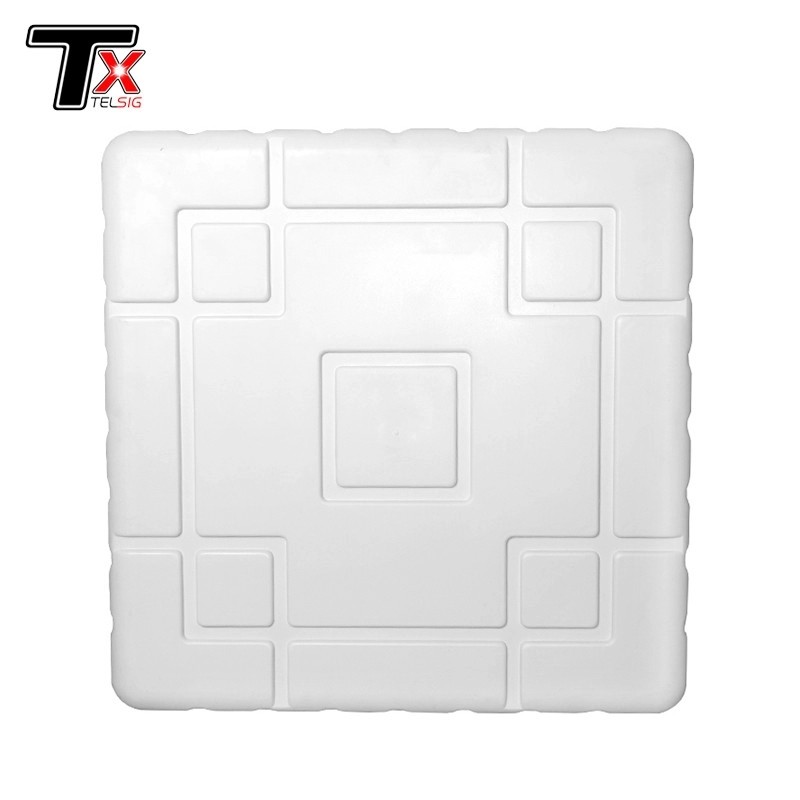

TX-L-NT is a high effective signal booster to enhance the signal to full bar status. If one ceiling antenna
installed, it can cover a range of 200-350㎡, or the largest to 3000㎡, a customized project can be offered
according to your own specific requirement.
TXtelsig is a over 10 year manufacturer specializing in signal jamming and wireless coverage product.
The frequency can be customized by different country and specific need.
Feature
1. This economic signal repeater is with efficient electronic components and PCB with powerful output
power to continuously create the full bar signal
2. High gain increases the phone signal indoor to a large range, thouroughly solving the problems
caused by weak signal such as blocking of game,call,etc.
3. Durable aluminum alloy out shell to dissipate heat fast and also reduce the electromagnetic
wave from this device to surrounding
4. It can work for 24/7 non stop with whole body cooling system and nice electronics parts
5. True signal filtering technology with no false signal
6. No interruption to BTS
7. Thunder Prevention
8. Auto adjustment of output power to suit the surrounding environment
9. Low noise control
Specification
| Frequency | 900MHz |
| Frequency Range | Uplink 890-915MHz |
| Downlink 935-960MHz | |
| Gain | Uplink 60±3dBi |
| Downlink 65±3dBi | |
| Output Power | 20dBm±3dBm |
| Power Supply | Input AC100V-240V 50/60Hz 0.6A |
| Output 12V 2.0A | |
| Size | 173 X 106 X 22mm |
| Weight | 0.6kg |
| Coverage Area | 250-300㎡(largest to 3000㎡) |
| Pass Band Ripple | ≤3dBi |
| I/O Impedance | 50Ω |
| Connector Type | N female connector |
| Noise Figure | ≤4dBi |
| Transmission Delay | ≤0.5μs |
| Ambient Temperature | -10ºC~60ºC |
| Reliability | To the GB6993-86 standard |
| Electromagnetic Compatibility | To the ETS300 694-4 standard |
| Function | a) Power supply LED denote |
| b) Export power LED denote |
Application
1. Weak/Blind Signal Area such underground company, basement, parking, etc
2. Conference room, supermarket, office, restaurants, shopping mall, or other public place
3. Bars, Cybercafe, Dance Hall, Cafe, GYM and other Entertainment Place
4. Home, Office, Luxury yacht, Police System and Transportation Management
5. Factory, Manufacturer
6. Residential Area etc.
