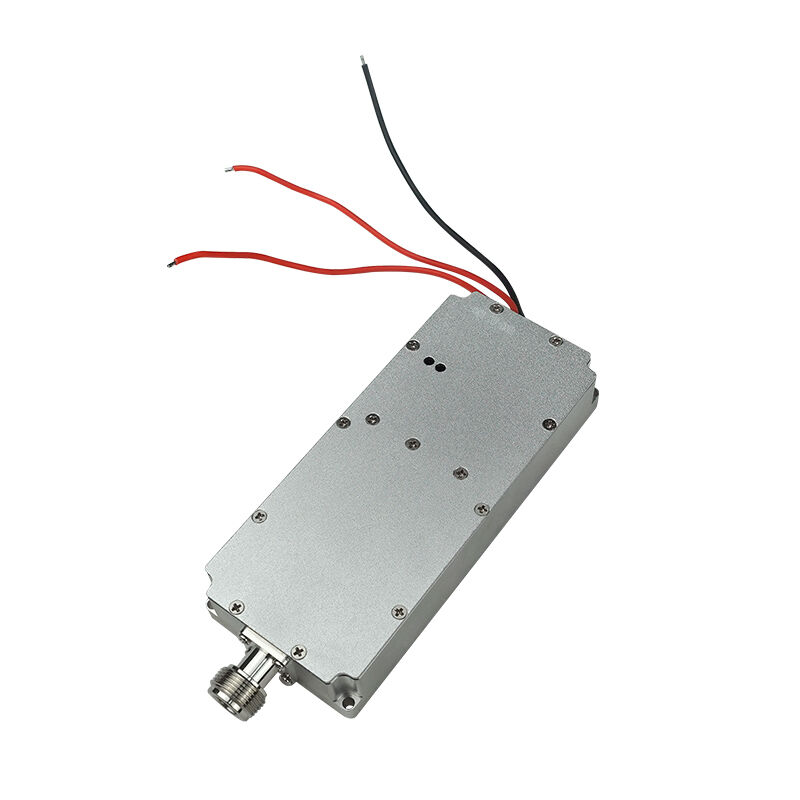

50W RF Power Module LDMOS with N-Type Connectors for Anti-UAS Drone Jamming Systems

50W Drone Jammer RF Power Module (100-2900MHz) | LDMOS with Circulator for Drone jamming Systems

This is a core component built to destroy drone signals. It is a radio frequency (RF) power amplifier module that acts as the "muscle" for a drone jammer (counter-UAS system). It takes a weak signal and boosts it to a powerful 50 Watts, then broadcasts it through an antenna to block, disrupt, and disable unwanted drones by overwhelming their control, GPS, and video links.

1.Key Funtion: Targeted Signal Jamming

• What It Does: This module jams and neutralizes drones. It broadcasts high-power RF noise on specific frequencies to crash drones or force them to land.

• Core Advantage - Narrow Band: Unlike cheaper wideband jammers that spread power thin, this module focuses all 50W of power into a single, selectable frequency band (between 100-2900MHz). This makes the jamming signal much more powerful and effective at longer ranges.

• Core Advantage - Built-In Protector (Circulator): Jamming antennas can get damaged or mis-tuned. This reflects power back into the amplifier, which can destroy it. The integrated circulator acts as a shield, absorbing this reflected power and preventing the module from blowing itself up. This is critical for reliable, mission-ready gear.

2.Technical Specifications(What You Get)

• Jamming Power Output: 50 Watts (Minimum, guaranteed).

• Frequency Range: Covers 100 MHz to 2900 MHz. You choose the exact narrow band you need (e.g., 1.5-1.6 GHz for GPS, 2.4-2.5 GHz for control).

• Technology: LDMOS Transistor. Known for being tough, efficient, and reliable for continuous high-power transmission.

• Critical Protection: Integrated RF Circulator/Isolator. Protects your investment from antenna damage.

• Power Supply: Requires +28V DC input.

• Connectors: The connector can be customized.Standard SMA ports for signal in and out.

• Cooling: Needs a heat sink or fan for continuous operation at full power.

  Item	Data
  Frequency	(Customized)
  Test voltage	28V
  Current	4.1A
  Output	50W
  Gain	47dB
  Output stability	1dB
  Connector	N
  Output connector VSWR	≤1.30 (No power and VNA test)
  Power supply wire	Red+Black+Enable wire
  Enable Control	High ON Low Off
  Out shell Size	130*55*24mm
  Mount hole	126*51mm
  Weight	350g
  Work Temperature	-40~+65℃
  Out shell material	Aluminum
  Vibration need	Car load OK



3.Who Need This

This is professional, military-grade equipment, not a consumer toy. It's for building or upgrading serious counter-drone systems.

1. System Integrators & OEMs: Building vehicle-mounted, fixed-site, or portable drone jamming guns and protection systems.

2. Military & Government Units: For field operations, base protection, and electronic warfare (EW) training against UAVs.

3. Prison & Critical Infrastructure Security: To create a no-fly zone over sensitive facilities.

4. Event Security Teams: To protect stadiums, airports, and VIP areas from drone intrusions.

4.Why This Module Is Better

• More Effective Jamming: Narrow band + 50W means a stronger, more destructive signal against the drone.

• Doesn't Break Easily: The LDMOS amp + circulator combo is built to handle tough conditions and won't fail from simple antenna issues.

• Builds a Reliable System: This is the core power unit you can depend on for a system that must work every time

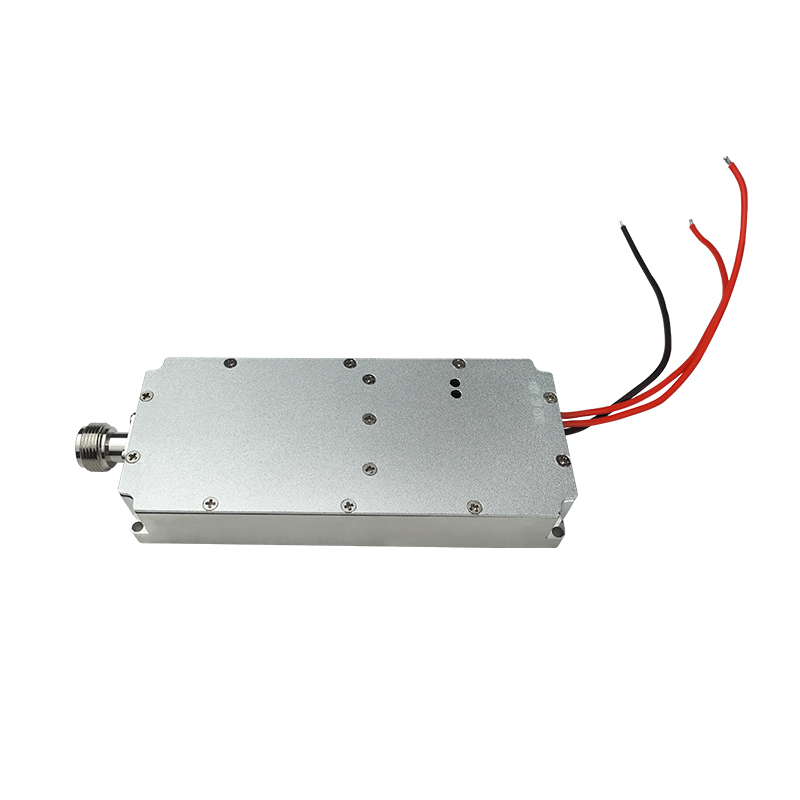

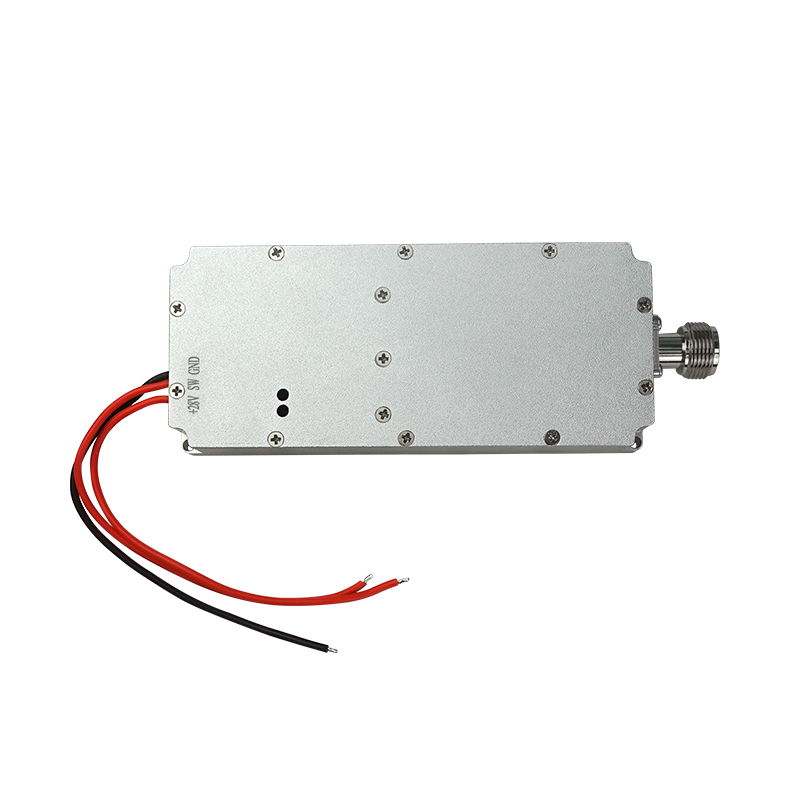

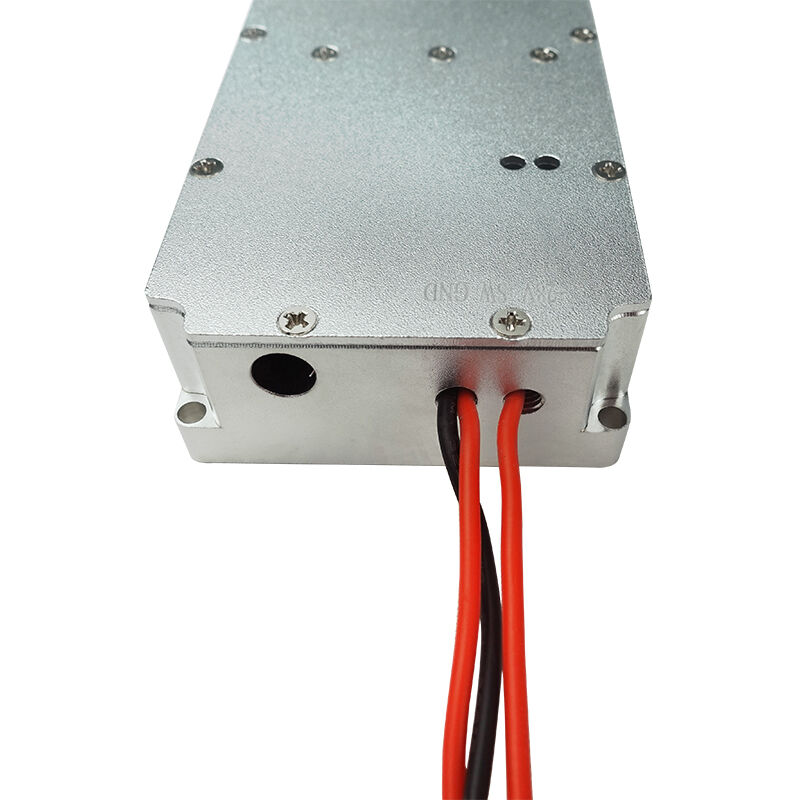

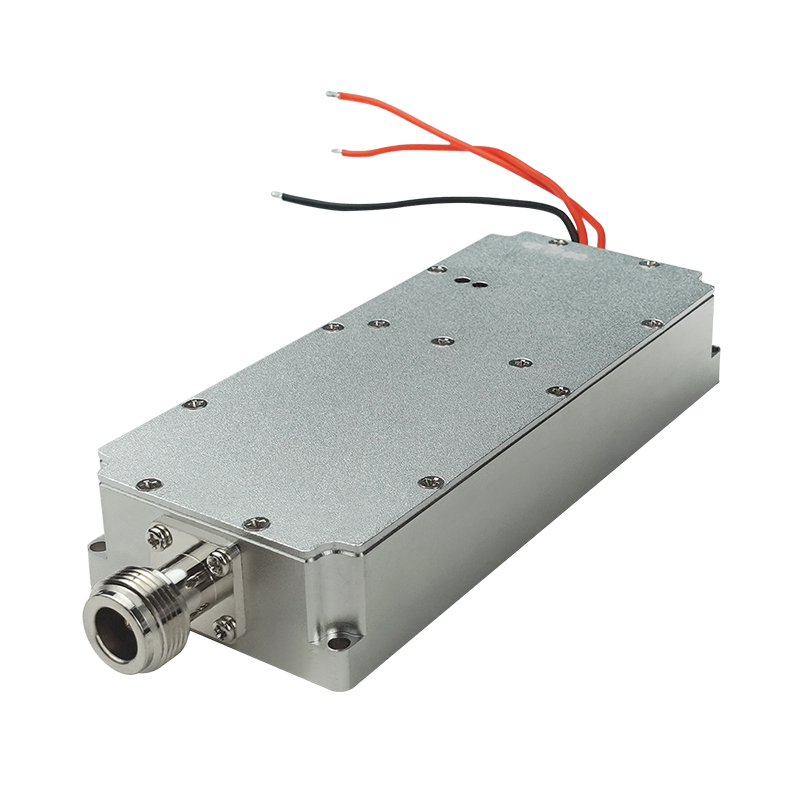

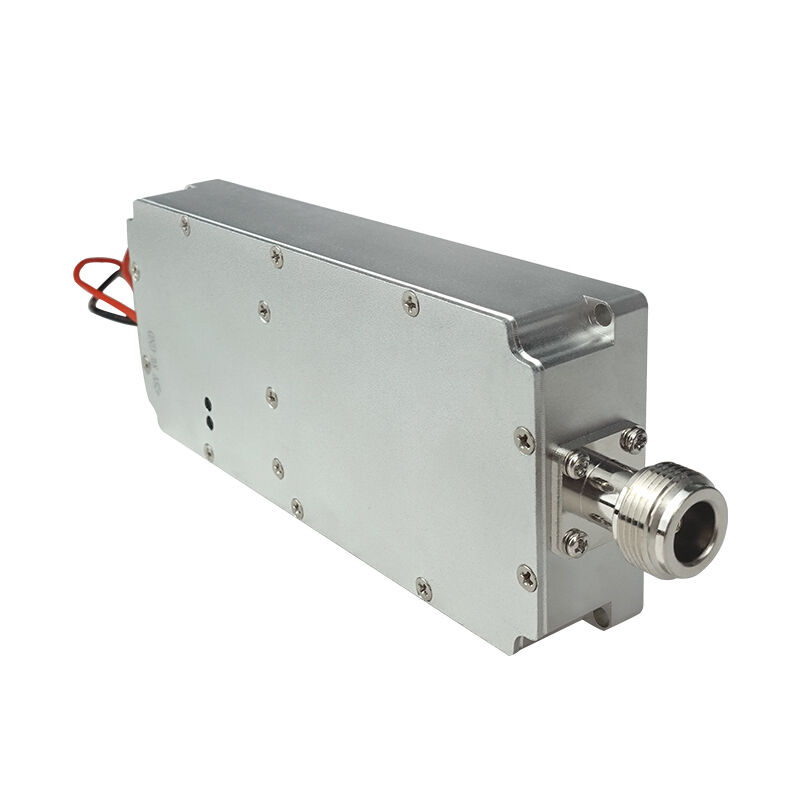

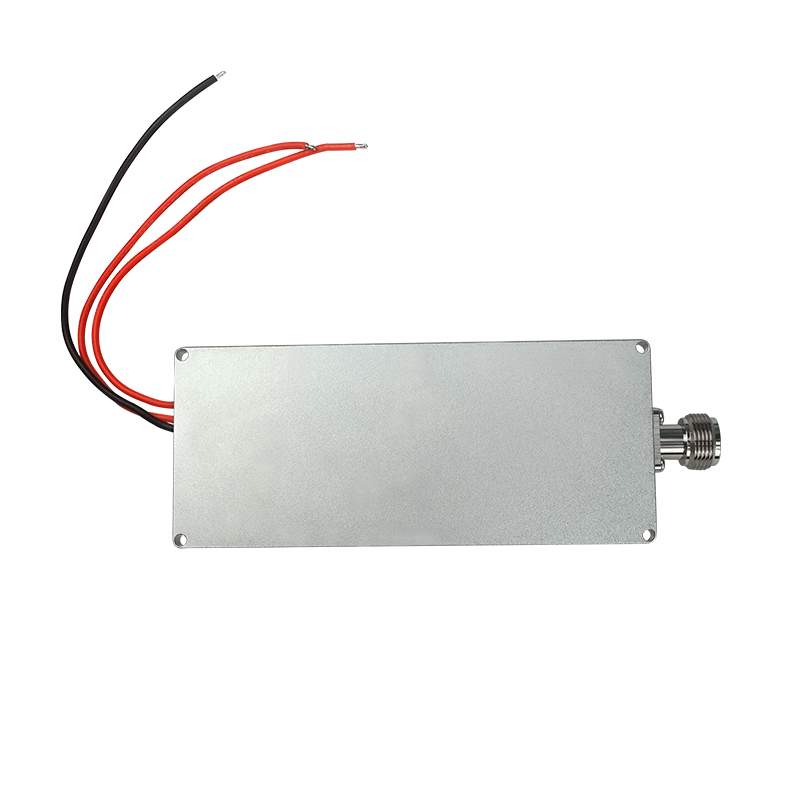

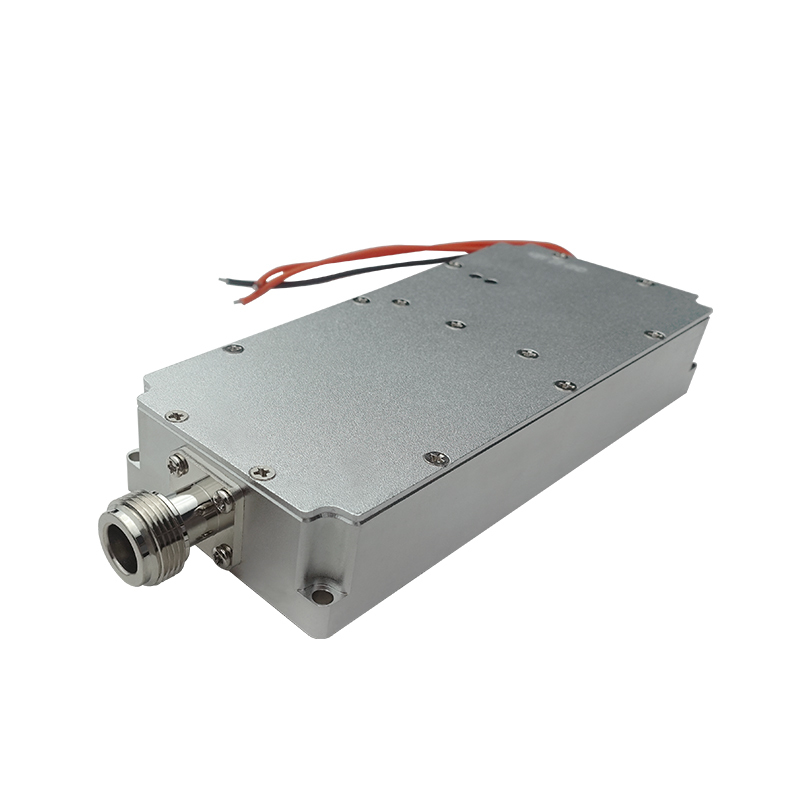

5.More Photo
