2.4ghz 20W 30W 50W S connector anti drone power amplifier jamming module crossing machine interference
Product introduction :
It is a wireless information security module dedicated to 2400-2500MHz signals, or customize support. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower side bands.
Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)
| 50W RF Power Amplifier Specification |
| No. |
Item |
Data |
Unit |
Notes |
| 1 |
Frequency |
2400-2500 |
MHZ |
Customized |
| 2 |
Work Temperature |
-20~+70 |
℃ |
|
| 3 |
Max Output Power |
50 |
W |
|
| 4 |
Work Voltage |
24-28 |
V |
24-28V all okay |
| 5 |
Max Gain |
46 |
dB |
|
| 6 |
Max Current |
4.5 |
A |
|
| 7 |
iutput connector |
SMA-female |
|
If need |
| 8 |
Output Connector |
N/F 50Ω |
|
Customized |
| 9 |
Power Amplifier Efficiency |
45 |
|
when Max Output |
| 10 |
Switch Control |
24-28 |
V |
Same as the voltage |
| 11 |
Standing Wave Protection |
OK |
|
|
| 12 |
Temperature Protection |
75° |
℃ |
|
| 13 |
Size |
139*55*20 |
mm |
|
| 14 |
Weight |
0.261 |
Kg |
|
Product Features:
Precautions for use
Before the module is used, the customer must first configure the corresponding heat dissipation measures, antenna connection and power connection
About cooling measures
* Due to the high output power, the module will heat up when it is used
* Please be sure to add heat sink and cooling fan to the module to keep the module low temperature and high efficiency
* If there is no corresponding heat dissipation measures, the module will be short-circuited or directly damaged
-About the antenna connection
When connecting, you must screw on the antenna first, then connect the front-end source equipment, and finally supply power
power connection
Power supply support voltage DC24-28V
When the power supply is 28V, the use effect of the module is better
Application:
For this jamming module :
* Applicable to places where students and students are prohibited from using drone in the school
* Suitable for meeting rooms, churches, libraries, courtrooms, etc. where serious and quiet occasions are required;
* It can be used to prevent meeting information from being leaked by drone when government departments hold emergency secret meetings;
* It can also be used by companies or factories to reduce the time employees spend using UAV at work and improve work efficiency.

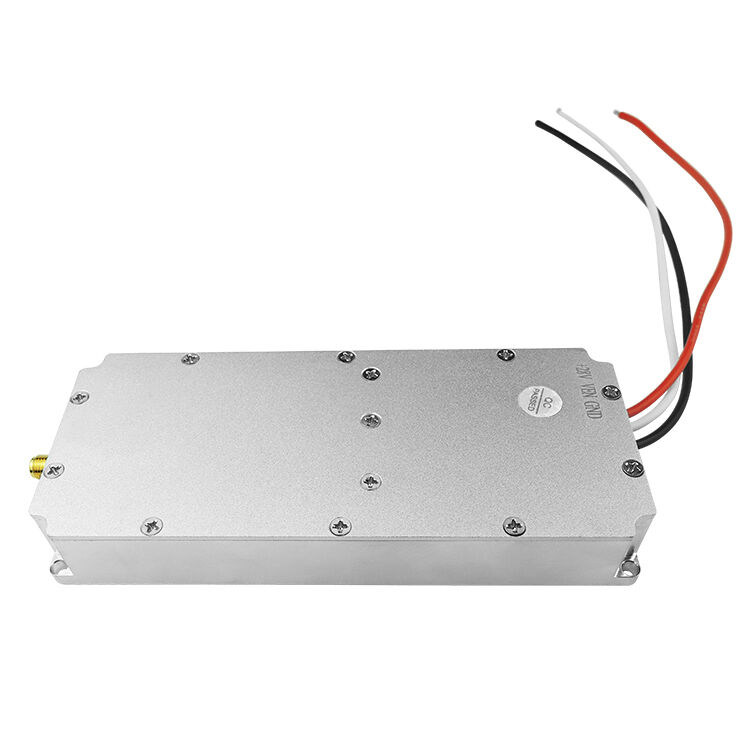

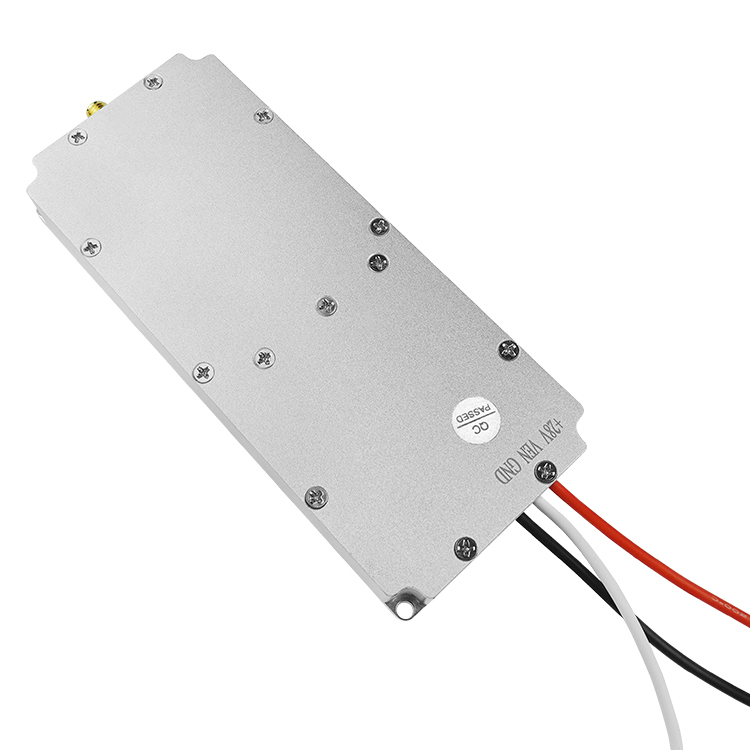

Pictures:
