Home > Products> Unidirectional Amplifier> Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation

Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation

Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation
Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation
Basic Information
Place of Origin: China
Brand Name: TeXin
Certification: CE ISO
Model Number: TX-HZ130W
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable case or box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100000per month
Get Best Price Contact Now
Detail Information
Power: 130W Frequency: Customized
Voltage: 28V Current: 11A
Weight: 643g Size: 177*64*24mm
Application: Anti Drone System Material: Aluminium
Connector: SMA
Highlight:

130W WiFi 5GHz amplifier

,

anti FPV UAV module

,

VCO modulation amplifier

Product Description

Custom 130W WIFI 5GHz Anti-FPV UAV Module
This custom 130W anti-FPV drone module specifically targets the 5GHz WiFi band (5150MHz-5350MHz and 5725MHz-5850MHz) used by FPV drones for high-definition image transmission and remote control. Utilizing advanced VCO modulation technology, this module effectively counters small, fast-flying FPV drones that are difficult to detect and control.
Technical Specifications
Parameter Value Unit
Frequency 5150-5250 MHz
Test Voltage 28 V
Current 11 A
Output Power 130 W
Gain 52 dB
Output Stability 1 dB
Connector N/Female
Output Connector VSWR ≤1.30 (No power and VNA test)
Power Supply Red+Black+Enable wire
Enable Control High ON Low Off

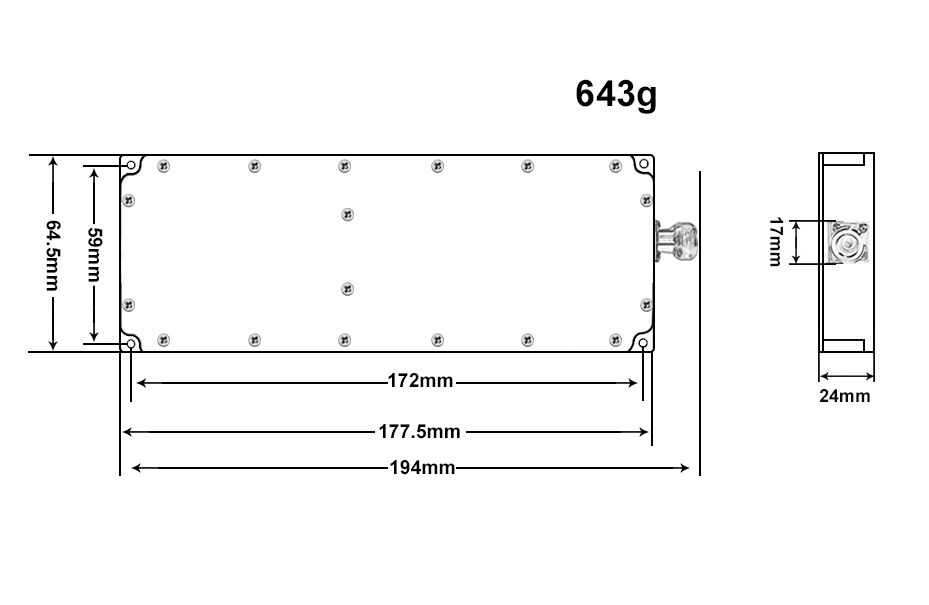

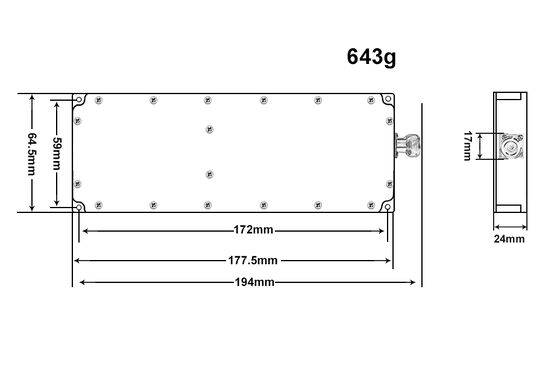

Dimensions 177*64*24 mm
Mount Hole 177*64 mm
Weight 643 g
Operating Temperature -40 to +65 ℃
Housing Material Aluminum
Vibration Resistance Car load OK
Key Features
  • 130W High Power Output: Equipped with high-efficiency GaN power amplifier delivering maximum output power of 130W (≥51dBm) for long-distance interference
  • Advanced VCO Modulation Technology: Precisely covers core frequency bands of 5150MHz (5150-5350MHz) and 5850MHz (5725-5850MHz)
  • High Power & Long-Distance Interference: Maximum output power of single frequency band reaches 70W with omnidirectional interference radius of 800-1500m in open environments
  • Customizable Design: Combined output power adjustable according to actual operational needs
  • Targeted 5GHz Coverage: Specifically designed to disrupt FPV drone high-definition image transmission and remote control systems
Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation 0 Customize 130W WIFI 5GHz 5150 mhz 5850 mhz anti fpv uav module with VCO modulation 1
Important Usage Notes
  • Use only with matched voltage specifications
  • Connect antenna before powering on the device
  • Cooling system required for prolonged operation
  • Optimal performance in areas with unobstructed views
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
