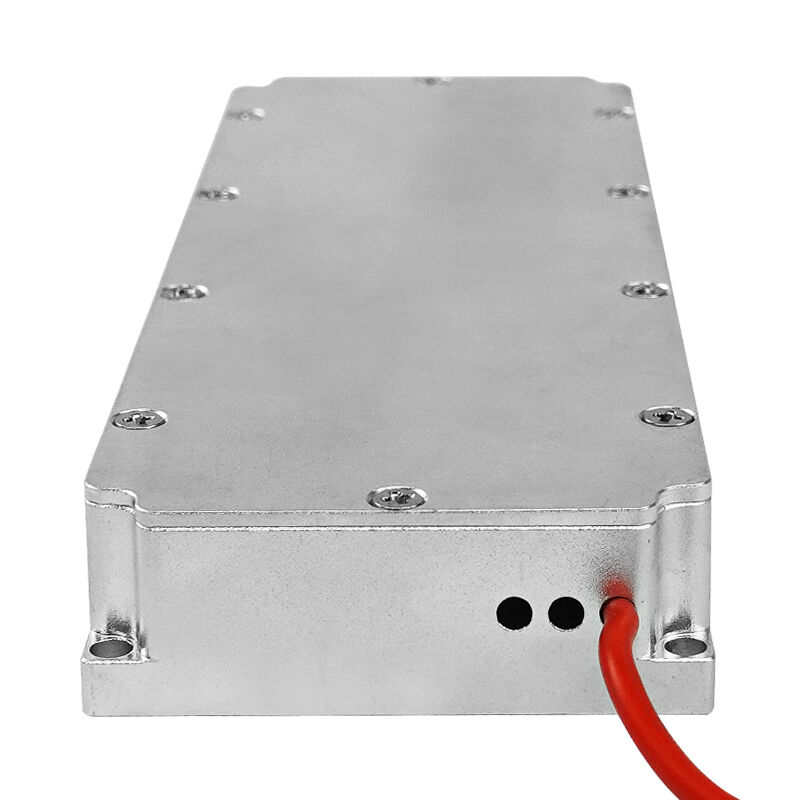

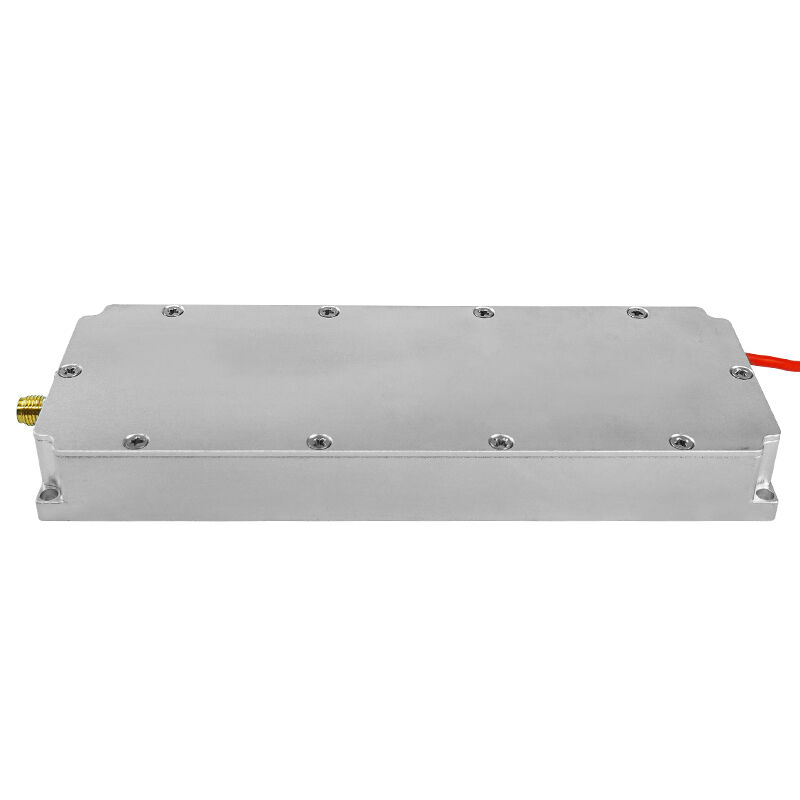

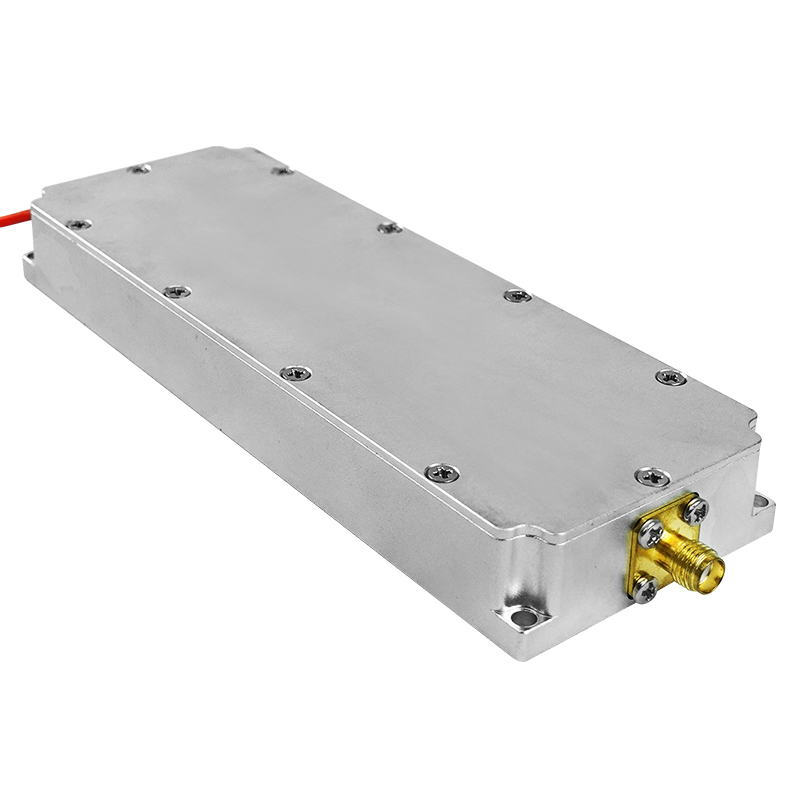

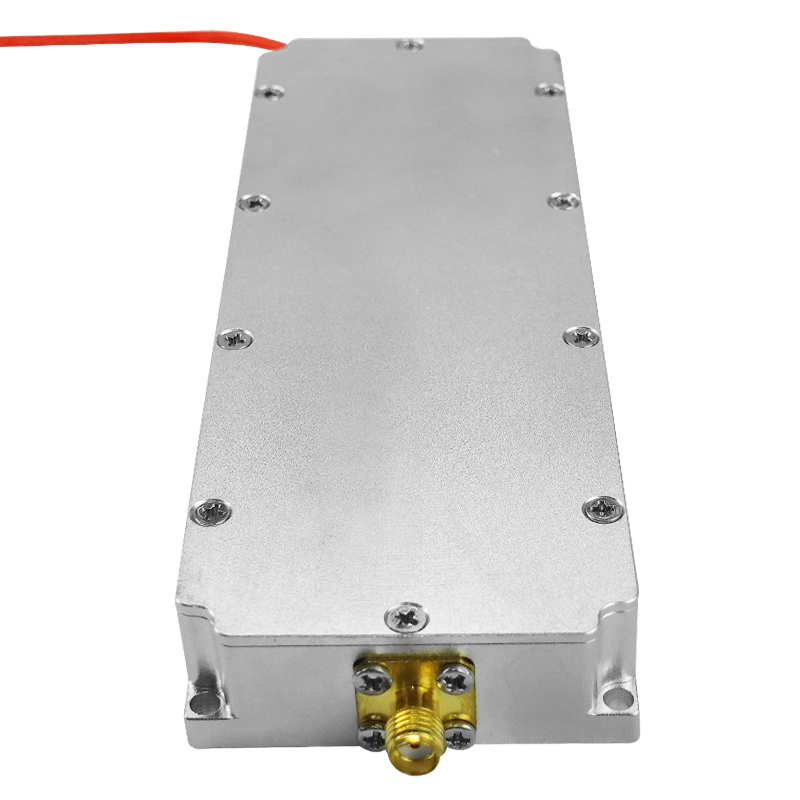

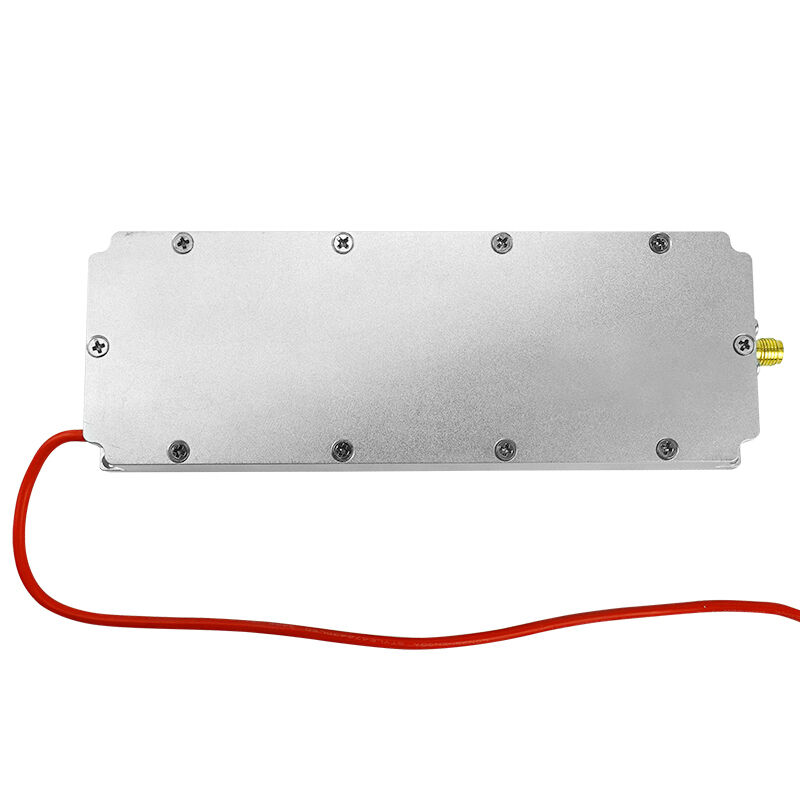

High Gain Wireless Signal Jammer For GPS / Wifi / Cell Phone 3.5kg Weight
TX-3F8 is a TXtelsig wireless signal jammer to high-effectively block specific signals of 2G
3G 4G 5G Wifi GPS in the designated area in 5-20 meter range. ( also depends on the area’s signal strength )
The jamming frequency band is also adjustable as required.
Feature
1. This jammer can powerfully break the wireless signal in a wide range of 5-20 meter
2. It only effects the downlink and not the base station cause the subsection of spectrum
3. Cooling fan system helps the 24/7 non stop working
4. Durable and Heat-dissipation aluminum alloy assists with the stable and high efficient
performance
5. Easy to install
6. Easily adopted on car with a charger
7. A monitoring system can be connected with this device as customer requirement
Specification
| Output port |
Frequency |
Average output power |
Output power |
| LTE800 / LTE700 |
725-821MHz |
33dBm |
2W |
| CDMA800 |
851-894MHz |
33dBm |
2W |
| GSM900 |
925-960MHz |
33dBm |
2W |
| DCS1800 |
1805-1880MHz |
33dBm |
2W |
| PCS1900 |
1930-1990MHz |
33dBm |
2W |
| 3G |
2110-2170MHz |
33dBm |
2W |
| WiFi2.4G |
2400-2500MHz |
33dBm |
2W |
| LTE2600 |
2620-2690MHz |
33dBm |
2W |
| GPS (Optional) |
1570-1580MHz |
33dBm |
2W |
| Total Output Power |
16 Watt |
| Power consumption: |
48W |
| Power Supply |
AC110-240V,DC 12V |
| Weight |
3.5 kgs |
| Size |
390*340*140mm |
| Running temperature |
-10℃ to +55℃ |
| Humidity |
5% - 95% |
| Complete accessories |
Eight Omni-directional antennas |
| Jamming range(Radius) |
5 - 30meters , depend on local signal strength |
Application
1. Transportation: Bus station, Subway, Airports
2. Military: Political Vip convoy, EOD, Anti-Terrorism, Anti-Riot, Special Troops
3. Police and Law: Police Station, Prison, Law enforcement, Court
4. School, Examination Room, Library, Gallery, Museum, Auditorium, Concert
5. Stadiums Events, Public Entertainment
6. Agriculture Application
