100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems

Basic Information

Get Best Price Contact Now

Detail Information

Frequency:	300-2700MHz(Bandwidth Customized)	Work Temperature:	-20~+70℃
Max Output Power:	100w	Input Power:	5dBm(0-10dbm Optional Regular Type With VCO Inside No Need Input)
Work Voltage:	24-32V	Max Gain:	50dB
Max Current:	10A	Impedance:	50Ω
Output Connector:	N/F	Power Amplifier Efficiency:	45(when Max Output)
Switch Control:	High Low Level Current	Power Adjustable:	Customized
Standing Wave Protection:	OK	Temperature Protection:	75℃
Size:	20011024mm	Weight:	0.91Kg
Highlight:	300sqm USB GPS Blocker , Mini USB GPS Blocker , LCD Screen GPS Signal Jammer

Product Description

300-2700 100W Jammer Module

Model:

It is a wireless information security module dedicated to frequency in 300-2700MHz.

This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.

Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

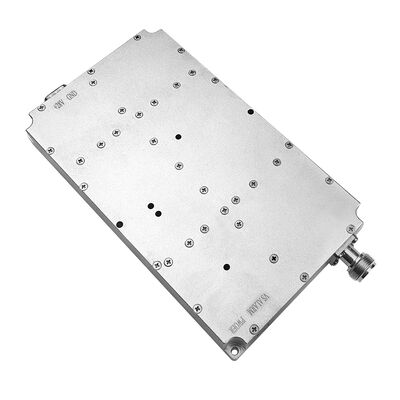

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems 0

2.4GHz 100W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	300-2700	MHZ	Bandwidth customize
2	Work Temperature	-20~+70	℃
3	Max Output Power	100	W
4	Input power	5	dBm	0-10dbm optional Regular type with VCO inside no need input
5	Work Voltage	24-32	V
6	Max Gain	50	dB
7	Max Current	10	A
8	Impedance	50Ω
9	Output Connector	N/F		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	24-28V Or Customized
12	Power adjustable	Customize		Can make if you need
13	Standing Wave Protection	OK
14	Temperature Protection	75°	℃
15	Size	20011024	mm
16	Weight	0.91	Kg

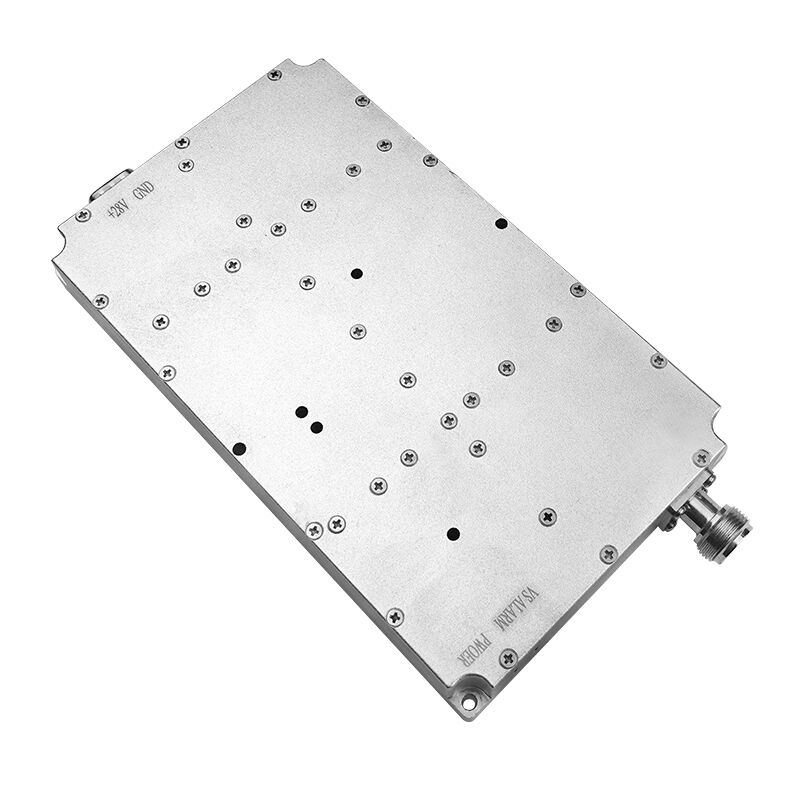

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems 1

Application field:

100W High-Power Jammer Module LDMOS with Circulator Protection for Anti-Drone Systems 2 Precautions for use

Power supply needs to carry more than24V 10A
If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power
