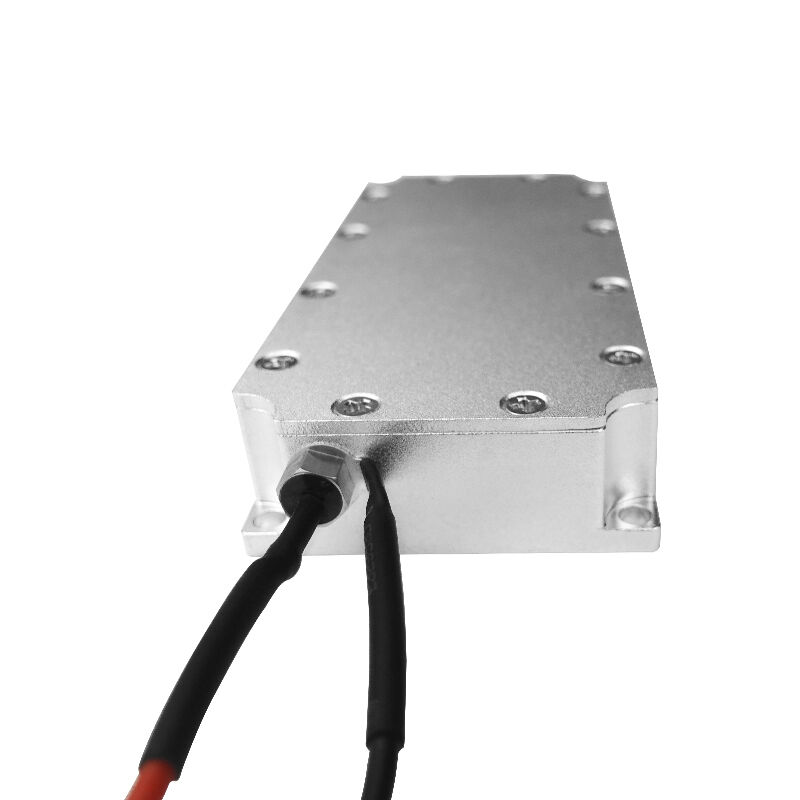

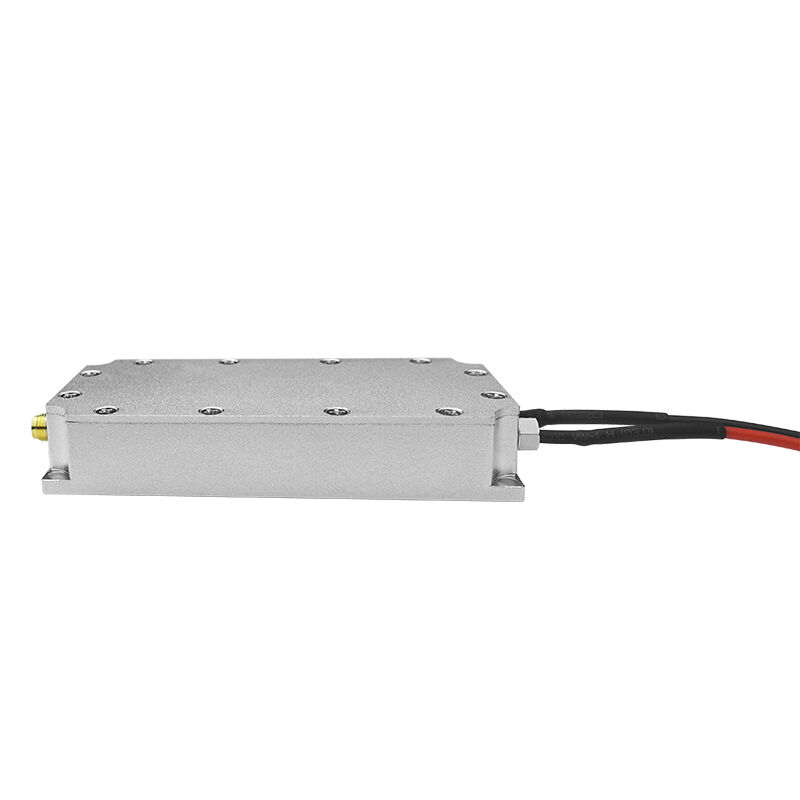

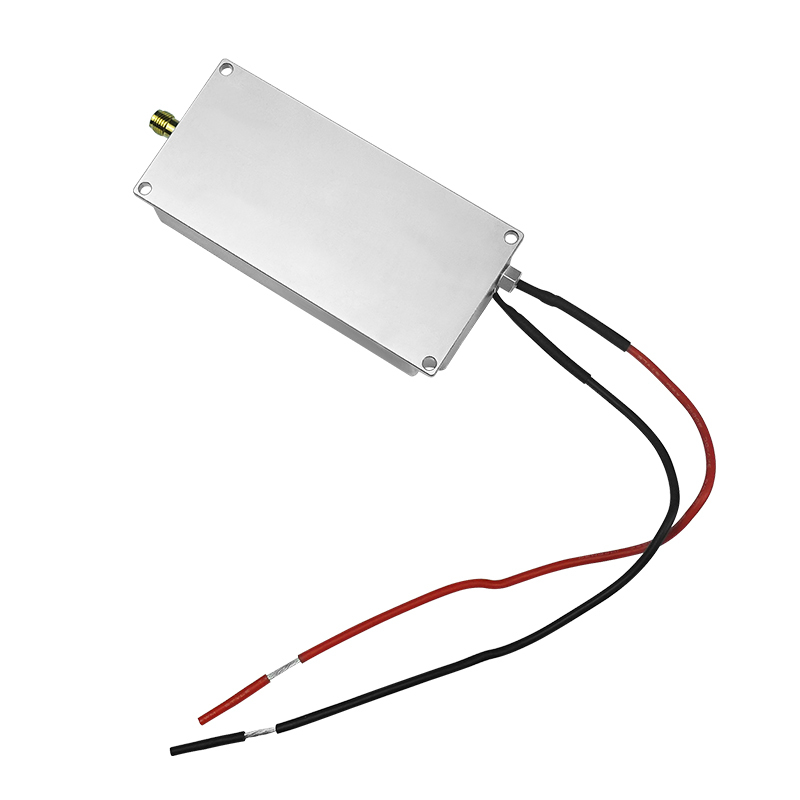

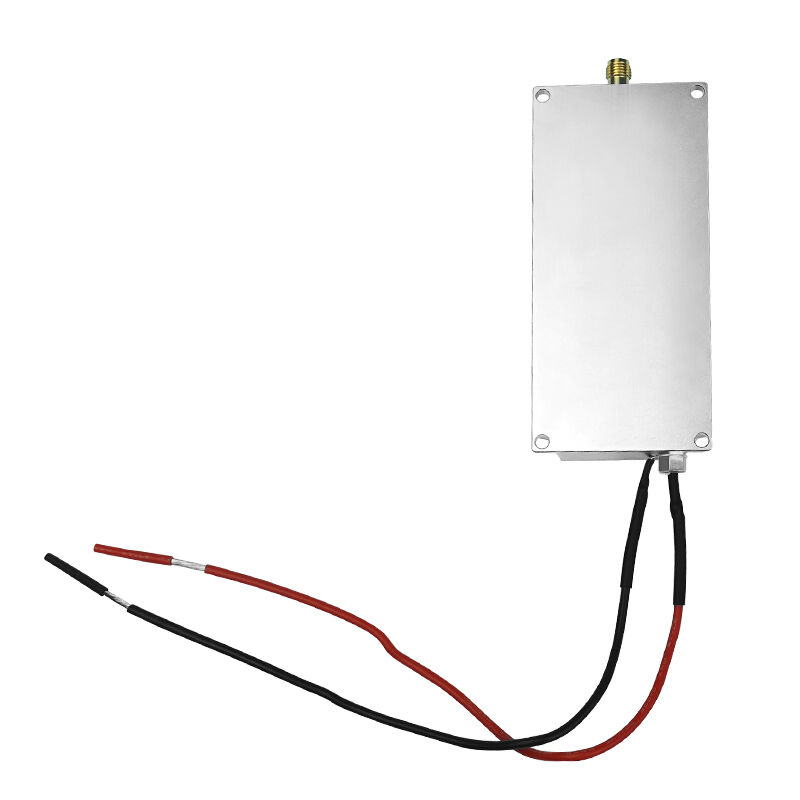

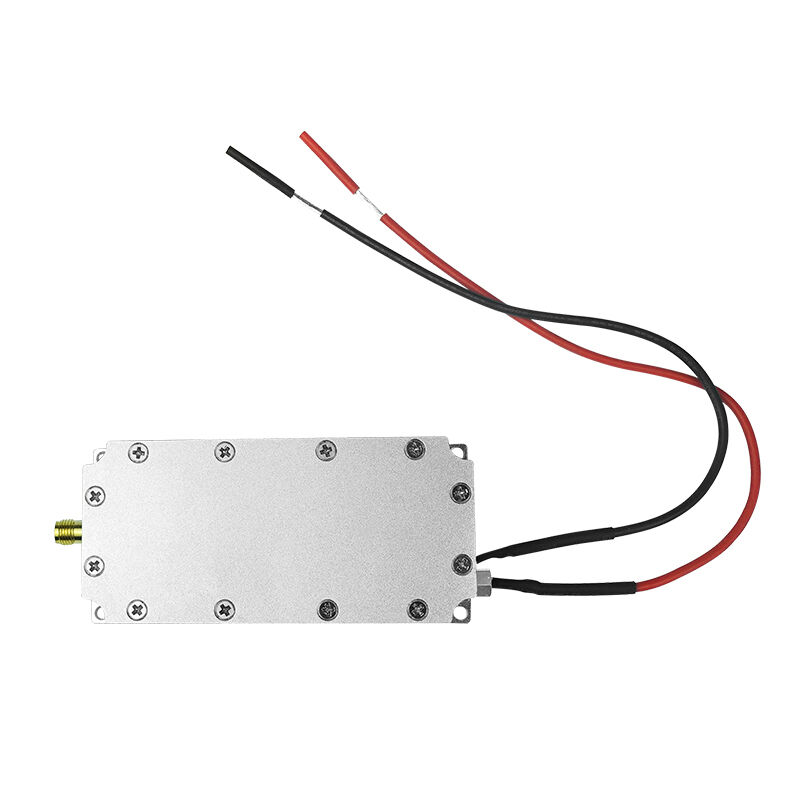

10W RF Jamming Module Power Amplifier Module for Anti-Drone Jammer Systems

Model No.:TX-CZ10W

This module is of the high average output power, good in-band flatness and the small offset between upper and lower side band.

( No signal source version is offered)

Application:

Drone Jammer, Signal Jammer, Signal Booster

Product Feature:

• Working frequency band: MHz

• Working voltage: 24/28/32V

• Working current: 1000mA@Pout 40dBm 24V

• Working temperature: -40℃～65℃

Physical Structure

• Shell size: 97*43*17mm

• Net weight: 0.102 KG

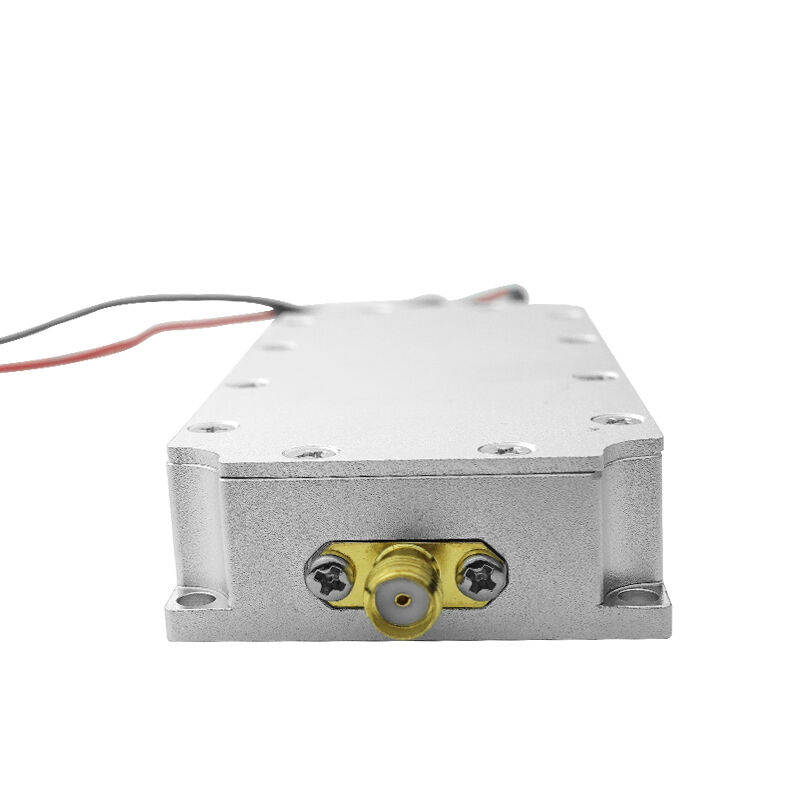

• RF output connector: SMA/Female

• Power supply port: red and black wire

• Shell: aluminum material, natural color oxide sandblasting

• Fixed hole: 4 fixed position around the shell

Precautions for use

• Power supply needs to carry 24V 1A

• When the output power is > 5W, it is necessary to strengthen the heat

dissipation treatment such as the thermal glue, heat sink and the cool fan

• Antenna or Load must be firstly connected before the power supply
