| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | SGS,ISO9001 |
| Model Number: | TX-T80W |
| Minimum Order Quantity: | 1 |
| Price: | Negotiation |
| Packaging Details: | Durable case or box |
| Delivery Time: | In 2 work day |
| Payment Terms: | T/T,Paypal, Etc. |
| Supply Ability: | 50,000pcs/month |
| Type: | Phone Wifi Signal Jammer | Frequency: | 1 To 8 Channels Customized |
|---|---|---|---|
| Marterial: | Durable Alluminum Alloy | Si Ze: | 370*145*346 Mm |
| Data: | Built In Directional Antenna With 5-7dBi Gain | Power Supply: | AC 100V-240V DC24V |
| Jamming Range: | 30-50 Meter(depends On Signal) | Weight: | 5.0kg |
| High Light: | wifi jamming device,wifi signal scrambler,DC24V phone wifi signal jammer |
||

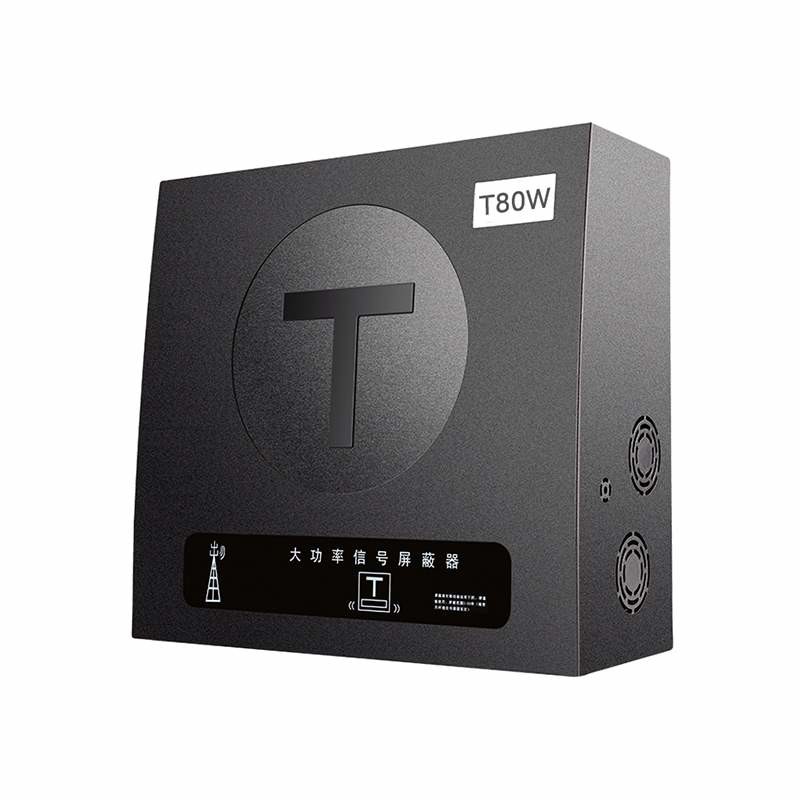

TX-T80W this signal jammer can shield specific signal in a certain area about 30-50 meter radius .
Product Feature
1. 8 channel frequency jamming coverage 300-500sqm and efficient frequency division ensures best signal interference
of different frequency, and cut off signal link in 3-5 second
2. Each channel can be turned on separately to deal with specific frequency signal as customized
3. Durable and heat-dissipation ABS outshell
4. Portable small Box shape
Specification
| TX Module No. | TX-T80W |
| Main Engine Size | 370*145*346mm |
| Main Engine Weight | 5KG |
| Working Temperature | —40 to 55℃ |
| Relative Humidity | <=80% |
| Power Supply | 24V 12A |
| Input Power | AC 100-240V DC 24V |
| Antenna Data | built in orientation antenna gain 5-7dBi |
| Switch Control | Manual Switch |
| Guarantee | 1 Year |
Jamming Frequency Details (customized by different country and specific need)
| Channel | Working Frequency | Output Power (±1dBm) |
| GSM900 | 925-960MHZ | 10W |
| DCS1800 | 1805-1850MHZ | 10W |
| 4G TDD-LTE | 1880-1920MHZ | 10W |
| 3G TD-SCDMA | 2010-2170MHZ | 10W |
| 3G TDD-LTE | 2110-2175MHZ | 10W |
| 4G/WIFI | 2300-2400MHZ | 10W |
| 4G TDD-LTE | 2555-2655MHZ | 10W |
Application
Car, Indoor, Outdoor
Full Set Packing
1pcs*Drone jammer
1pcs*AC Adapter
1pcs*User manual
