High Power 100W 5G 5.2ghz 5.8ghz drone signal inhibitor jammer module For Jamming signal inhibitor

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TX-NZ150W

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	100,000pcs/month

Get Best Price Contact Now

Detail Information

Product Name:	Desktop 150W Signal Jammer	Size:	450450200mm
Weight:	15KG	Shield Bands:	Customized Such As Cell Phone GSM 2345G WiFi VHF UHF GPS ,etc
Shield Range:	50-100 Meters	Warranty:	1 Year
Highlight:	dual band signal booster , cellular signal booster

Product Description

High Power 100W 5G 5.2ghz 5.8ghz drone signal inhibitor jammer module For Jamming signal inhibitor

1.Product Introduction

Our High Power 100W Signal Power Amplifier Module is a high-performance device designed to amplify signals with remarkable power and precision. It is an essential component for various applications where strong and reliable signal amplification is required, such as in communication systems, school, prison, military base and so on.

Product Features:

1. High Power Output 100 W

2. Wide Frequency Range

3. Robust Construction

4. Easy to Install

5. Customized frequency range you want

Specifications :

No.	Item	Data	Unit
1	Frequency	Customized	MHz
2	Test voltage	28	V
3	Current	12	A
4	Output	100	W
5	Gain	46	dB
6	Output stability	2	dB
7	Connector	N / Female
8	Output connector VSWR	≤1.40 (No power and VNA test)
9	Power supply wire	Red+Black wire
10	Enable Control	High ON Low Off
11	Out shell Size	1758423	mm
12	Color	Silver	mm
13	Weight	736	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK

Pictures:

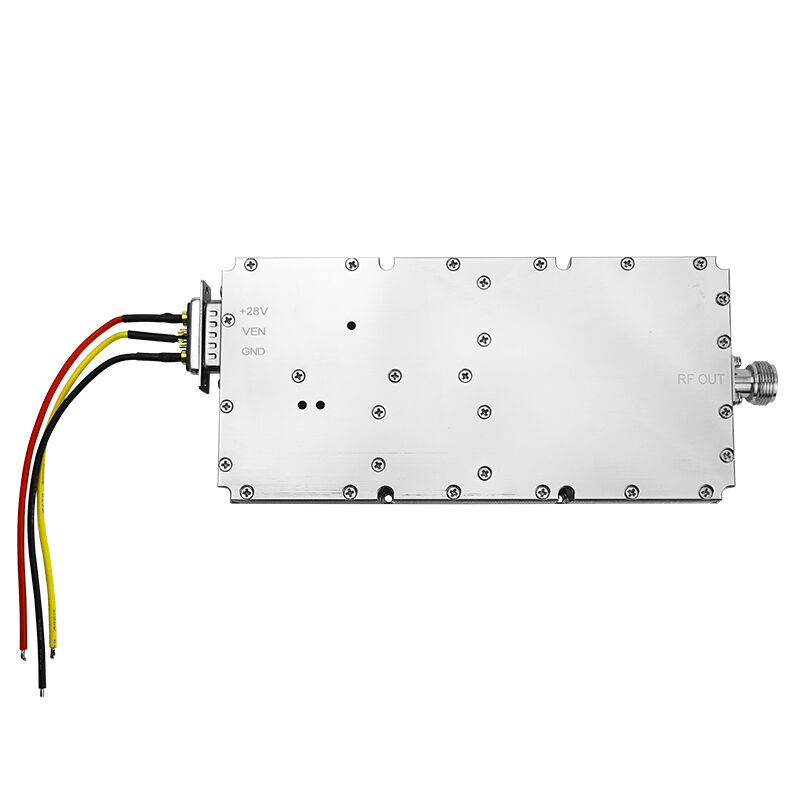

High Power 100W 5G 5.2ghz 5.8ghz drone signal inhibitor jammer module For Jamming signal inhibitor 0
