Customized 50W 400MHz 500MHz 3G 4G Lora Digital Long Range RF amplifier anti drone module Jammer system

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Certification: CE
Model Number: TEXIN-50W
Document: Module -TeXin.pdf
Minimum Order Quantity: 10
Price: US$145-158/pieces
Packaging Details: 44-38.5-24cm/50pcs
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Detail Information
Brand: TEXIN Frequency: 400-5800MHZ (Customized)
RF: 1.5-2 Km Outshell: Aluminium
Chip: Digital Industrial Grade Power: 50w(customized)
Jammer Type: High PowerRF Drone Jammer Module Dimensions Of Device: 137*43*16mm
Highlight: GaN &Lora Digital Packing: Box
Working Temperature: -40℃ To +80℃ Gain: 47dbm
Voltage: 24-28V Connector: S/Female
Highlight:

RF Jammer Module

,

Lora Digital Jammer Module

,

Jammer Module For Anti FPV


Product Description

Customized 50W 400MHz 500MHz 3G 4G Lora Digital Long Range RF amplifier Jammer Module For Anti FPV

product Introduction

This is a 50W Lora digital jammer module specially designed for anti-FPV, UAV, and drones. drones,it takes advance lora digital technology which can operate in same power RF longer distance with less consumption.


The dates of the anti-drone device test show that using the LORA digital module solution, the drone, which is in the air, can be interfered with quickly. There is not using the Lora digital module anti-drone device that takes more time than the Lora digital source module.

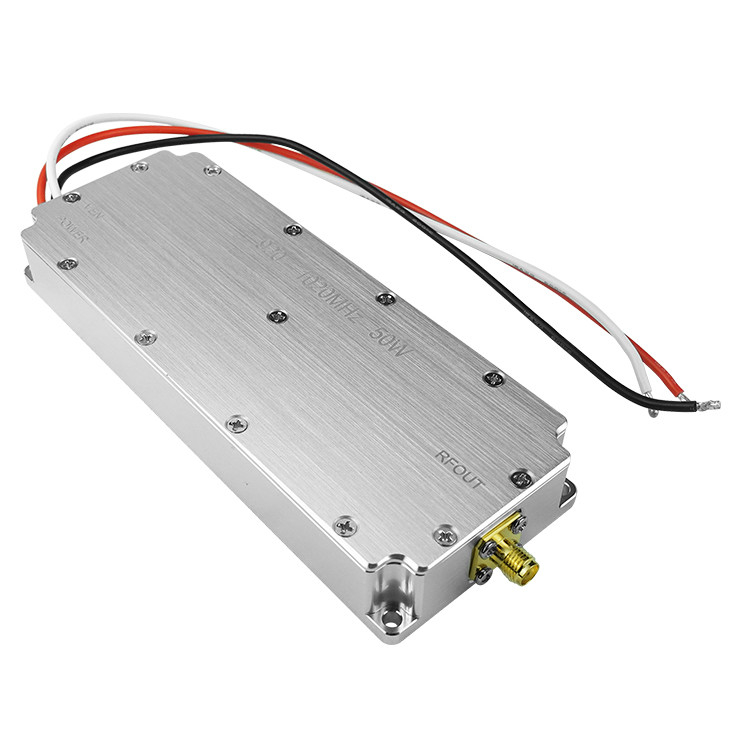

And the 50W LoRa digital jammer module outer shell is made of aluminum material, which has waterproof and strongly heat-resistant performance. 4 fixed screws around the module enhance the quality of the product, matching 3 different electric wires when you connect the testing machine to the specifications clearly.

Specification

No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 24-28 V
3 Current 3.7 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)

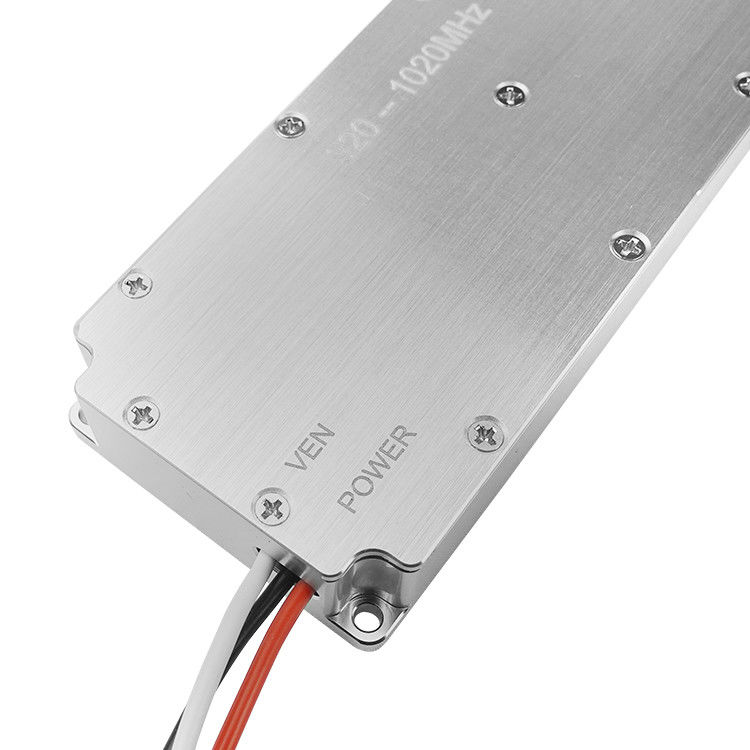

9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off

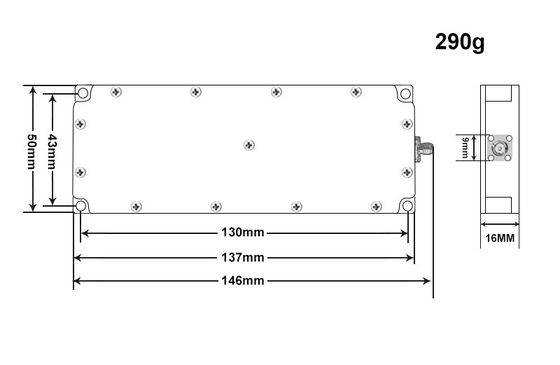

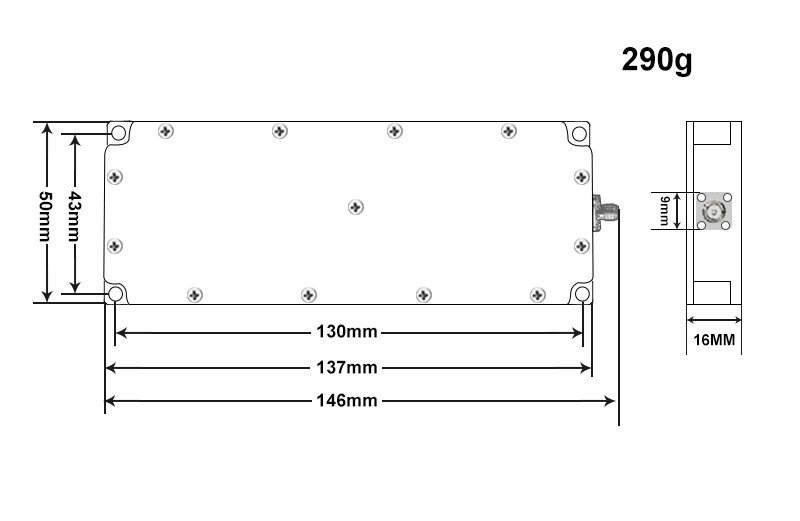

11 Out shell Size 137*43*16 mm
12 Mount hole 50*130 mm
13 Weight 290 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load OK



Customized 50W 400MHz 500MHz  3G 4G Lora Digital Long Range RF amplifier anti drone  module Jammer system 0



Features

  • Build in lora digital source RF longer  distance
  • Frequency 433MHz 700MHz 3G 4G WIFI5G
  • High power 50W-100W customized
  • Low consumption with strong stability
  • Industrial grade chips are used more efficiency to use
  • 290g  Portable use easily installed
  • Advance technology designed and wide range to use

Attention



* Power supply better carry about 28V 5.6A when itself 3.7A for its stable work Heat dissipation measure is necessary including the thermal glue, suitable-sizeheat sink and cooling fans

*Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

*Need read the Operation Manual first

*Need operate in 24-28V voltage

Packing &shipment

*Every product will test before shipment

*Takes carton plus foam packaging

*Have much shipment way can chosen

*Will covering film

Customized 50W 400MHz 500MHz  3G 4G Lora Digital Long Range RF amplifier anti drone  module Jammer system 1

Customized 50W 400MHz 500MHz  3G 4G Lora Digital Long Range RF amplifier anti drone  module Jammer system 2

Quality assurance

TX has own factory on the Shen Zhen of china

TX has advance spectrum equipment and promise 100% test

TX has professional engineer to deal with the problem

TX has a strong after-sales team

Customized 50W 400MHz 500MHz  3G 4G Lora Digital Long Range RF amplifier anti drone  module Jammer system 3

Customized 50W 400MHz 500MHz  3G 4G Lora Digital Long Range RF amplifier anti drone  module Jammer system 4



After service

*our company will perform the agreed responsibility and duty during the warranty period

*Fast reply of Customer feedback and questions

* All product enjoy 1 year warranty and Life time maintenance service

*User Instruction: we can offer online details photo illustration and video;local instruction is also available but with extra cost

* Online technical support:our professional engineers will assist customers with technical problems
