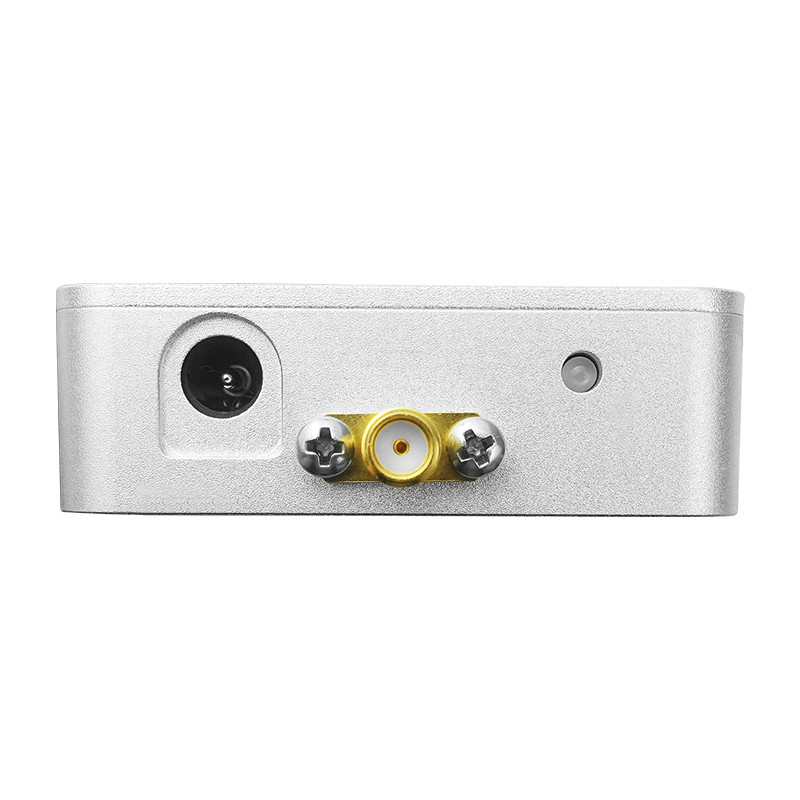

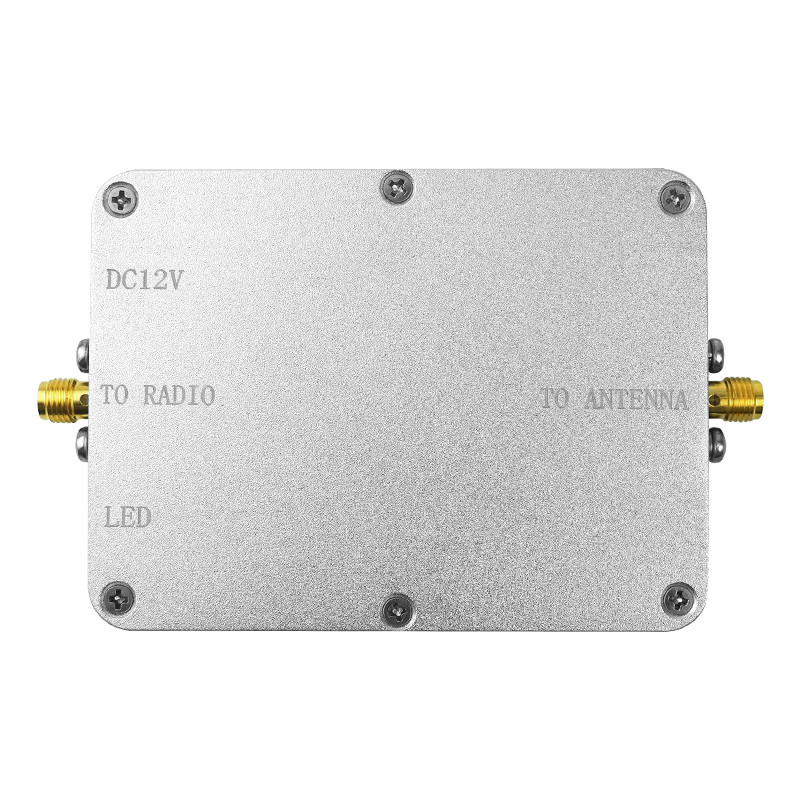

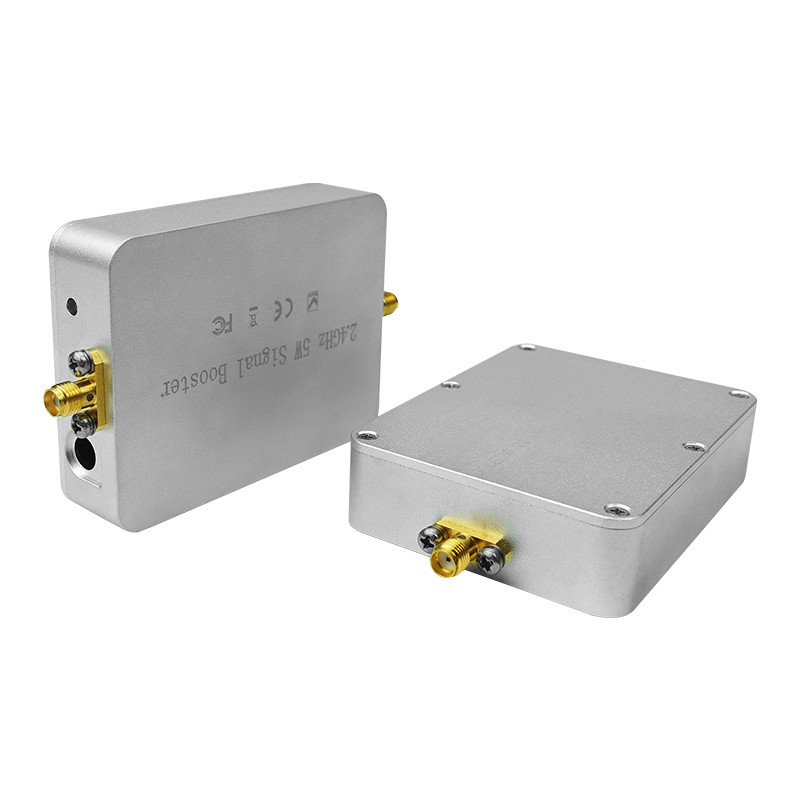

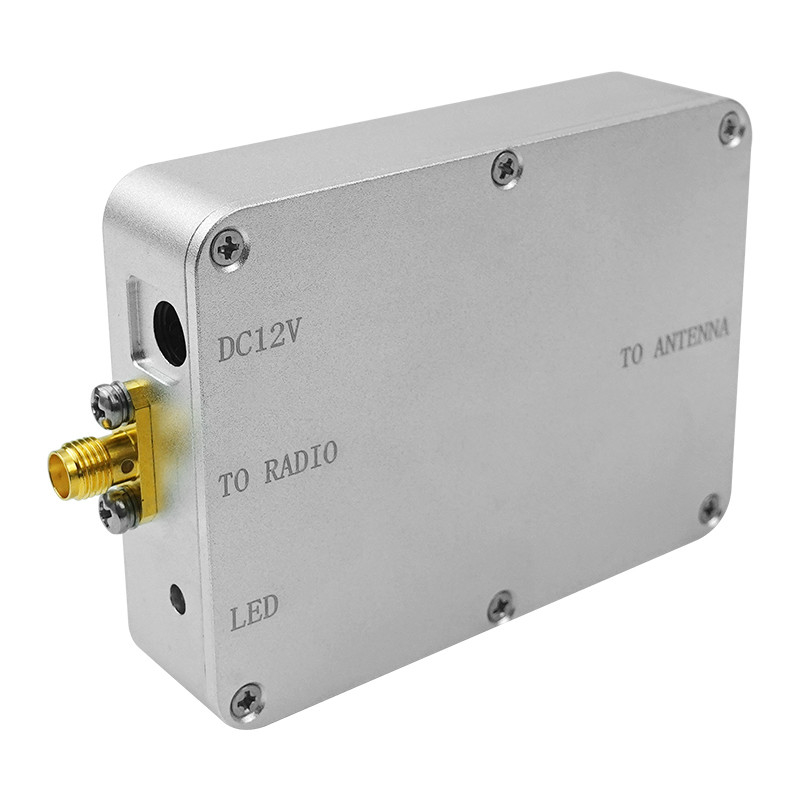

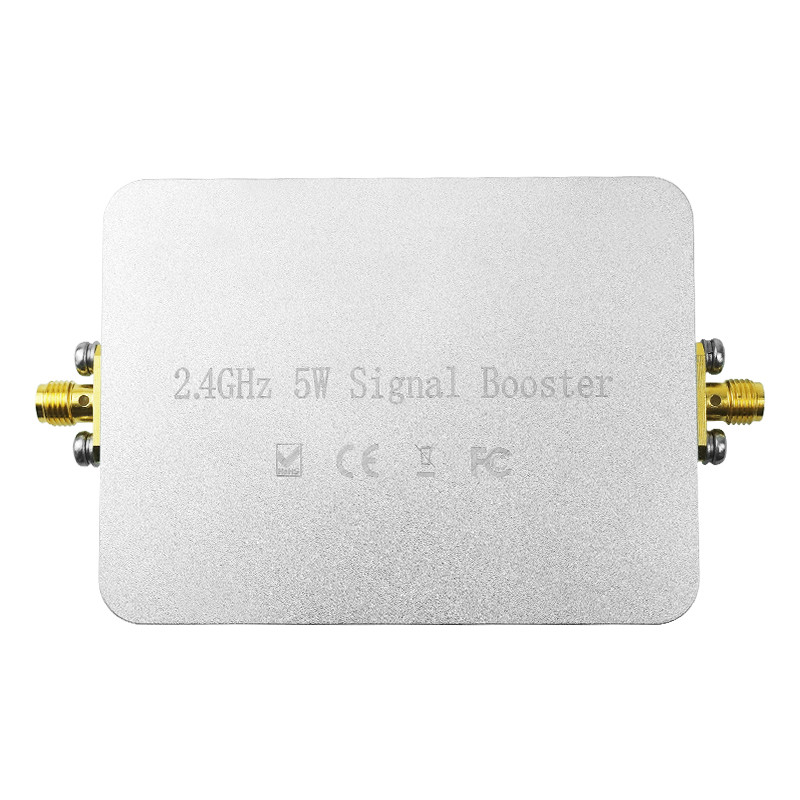

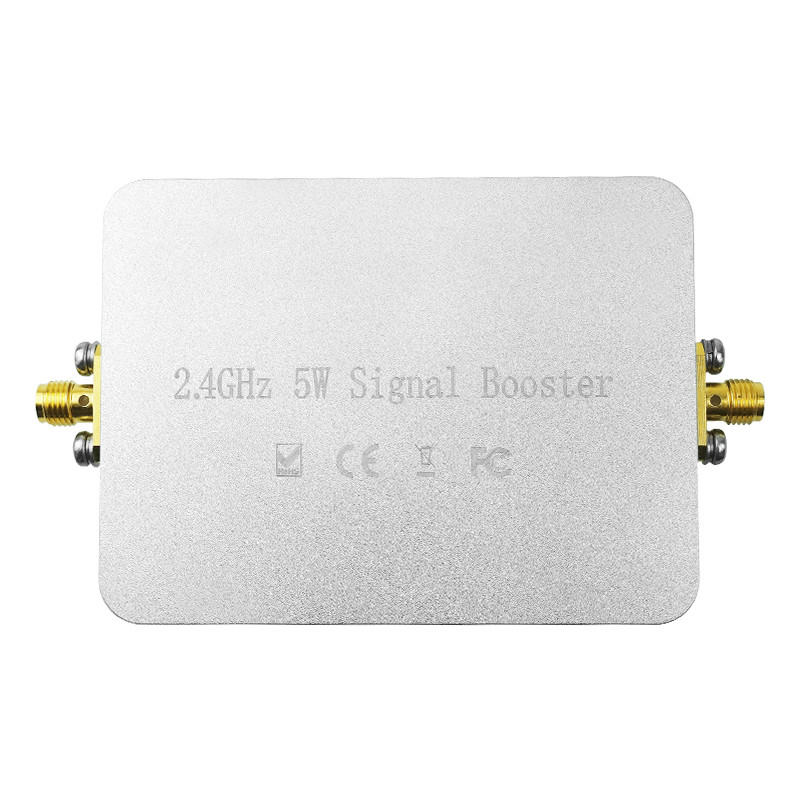

4W 5W 6W 10W 2.4g 5.2g5.8g WIFI drone signal booster bidirectional power amplifier module
This is a TDD bidirectional single-channel power amplifier (one channel for transmitting and one channel for receiving). This product is specially developed for 1420~1470MHz wireless image transmission applications and is a bidirectional power amplifier that complies with wireless image transmission standards. This product adopts leading single-carrier modulation technology, has extremely long air transmission distance and strong anti-interference ability, and matches frequency extension technologies such as direct sequence radio frequency (DSSS) and orthogonal frequency division multiplexing (OFDM). While ensuring that the transmission rate of wireless devices remains unchanged, it greatly expands the wireless RF communication distance. The product has the advantages of small size, high efficiency, good linearity, stability and reliability.
| Functional Unit |
parameter |
MINI |
Typical Value |
Max |
Unit |
Remark |
|
General
Requirements
|
Duplex mode |
TDD |
|
|
| Operating frequency |
300 |
|
6000 |
MHz |
Customized |
| Supply voltage |
12 |
24 |
31 |
V |
|
| Operating temperature |
-40 |
|
70 |
℃ |
|
|
Transmitter way
|
Transmitter gain |
10 |
32 |
40 |
dB |
Customized |
| Maximum output power(P1dB) |
|
45 |
|
dBm |
|
| Linear output power |
|
38 |
|
dBm |
EVM<5% |
|
EVM@Pout=38dBm
|
|
-27
|
|
dB
|
802.11g 54Mbps
OFDM 64QAM
BW 20MHz
|
| In-band fluctuation |
|
0.3 |
0.5 |
dB |
|
| Working current |
|
0.6 |
0.65 |
A |
@Pout=38dBm, VCC=31V |
| Switching delay |
|
|
2.5 |
us |
|
| Second Harmonic |
-65 |
|
-50 |
dBc |
|
| Second Harmonic |
|
|
-70 |
dBc |
|
|
Receiving way
|
Receive gain |
10 |
18 |
25 |
dB |
Customized |
| Noise Figure |
|
2.5 |
3 |
dB |
|
| Working current |
10 |
11 |
12 |
mA |
|
| In-band fluctuation |
|
0.1 |
0.2 |
dB |
|
Working and storage environment requirements
a) Temperature: -40～+70℃;
b) Working relative humidity: 5%～95%, no condensation;
c) Atmospheric pressure: (70～106) kPa;
d) Humidity: Can work in a high temperature and high relative humidity environment with a temperature not lower than 40℃ and a relative humidity not lower than 95%;
e) Storage temperature: -40～+125℃;
f) Storage humidity: 5%～98%, no condensation.
Application
Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.
FAQ
1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
