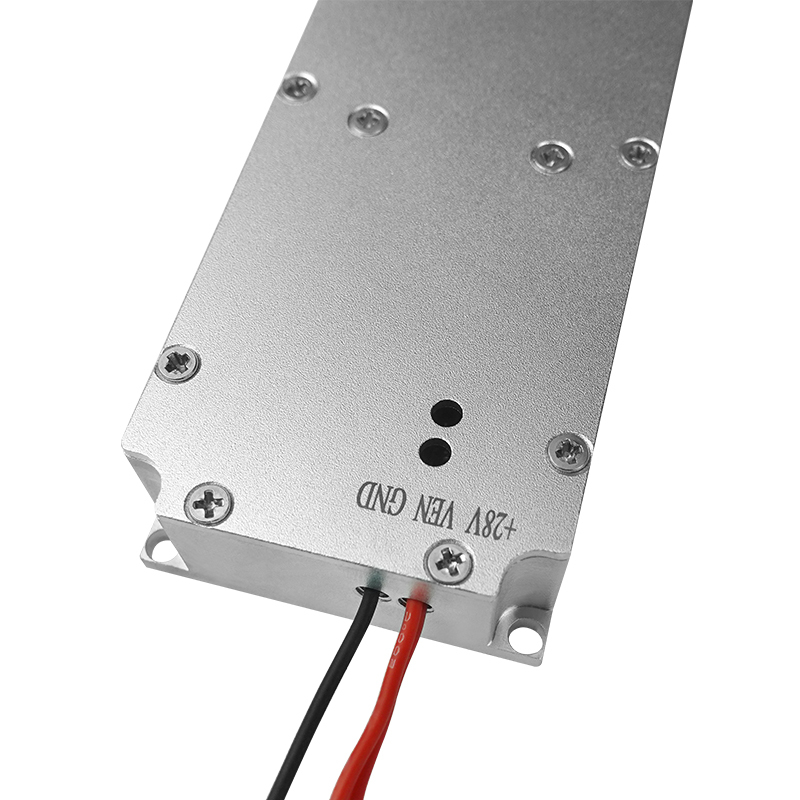

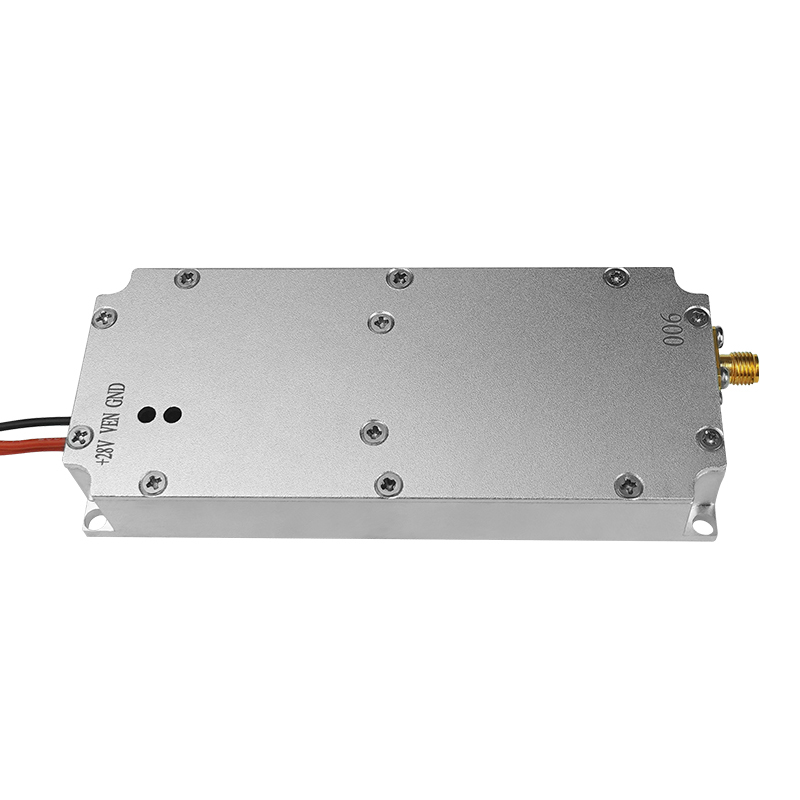

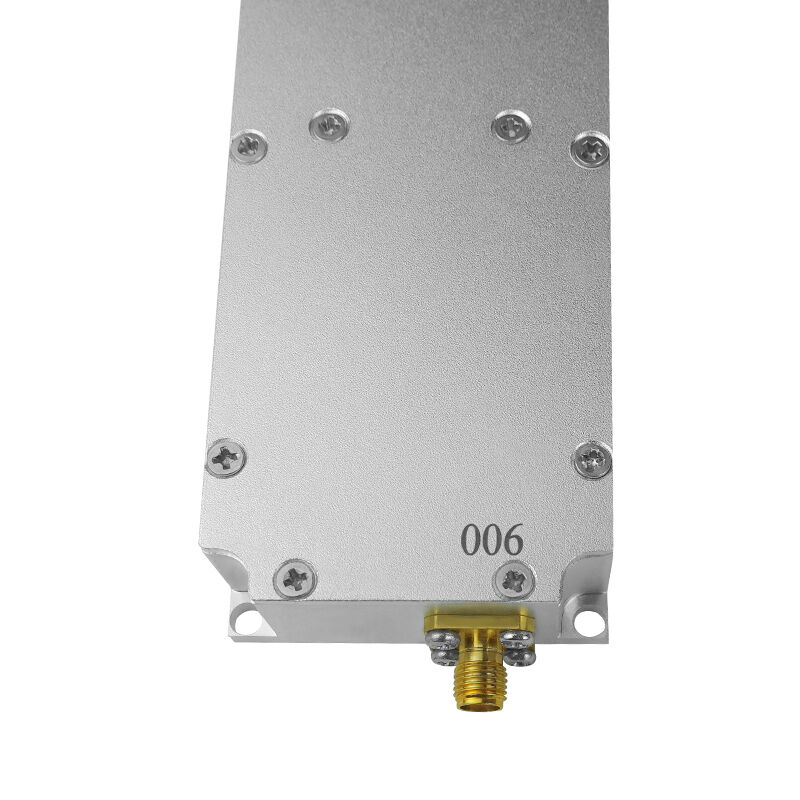

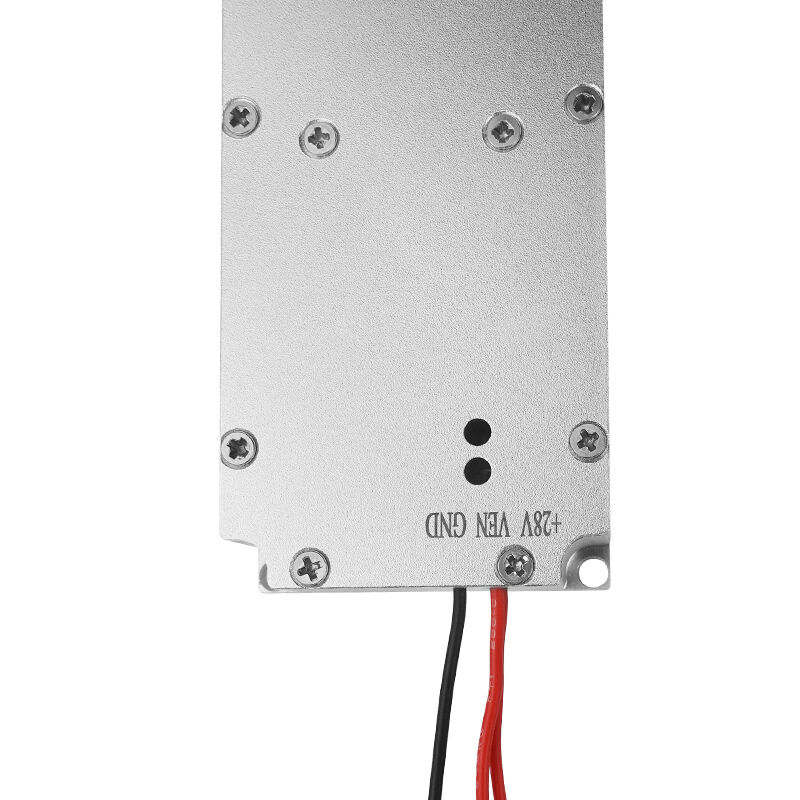

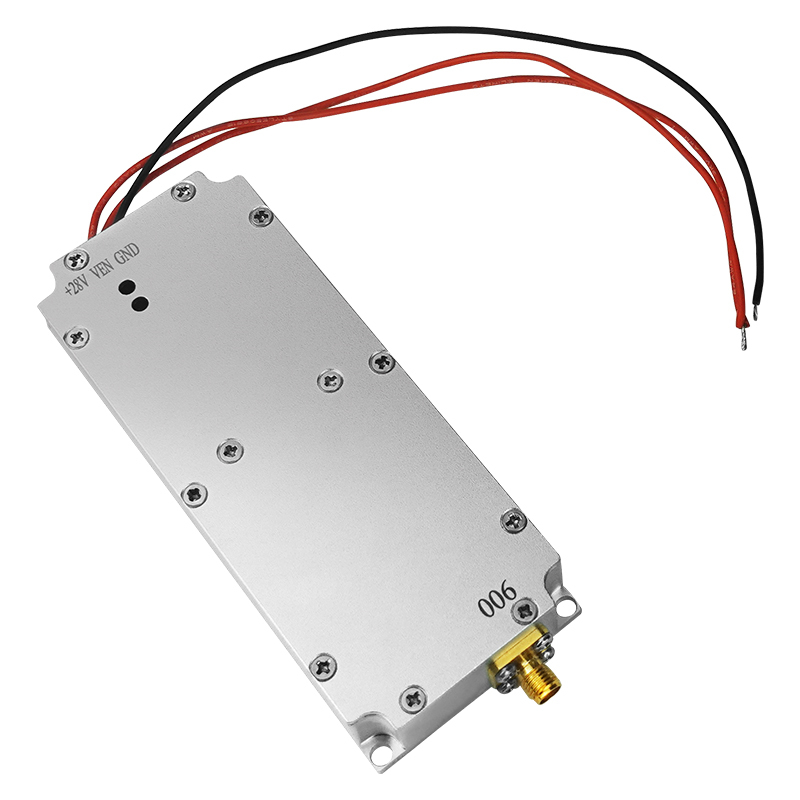

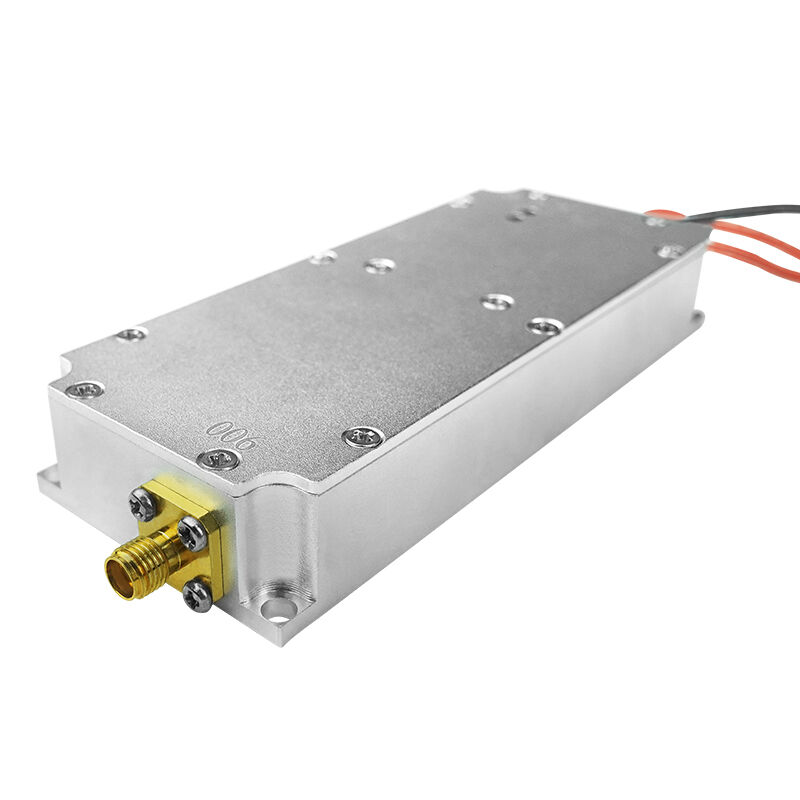

Name: 50W UAV Signal Jammer Module High-Power Amplifier with Circulator Protection for Anti-Drone Systems
Brand: Shenzhen TeXin electronic Co., Limited
SKU: TX-TZ50W
Price: 4,004.00 USD
Availability: InStock

Detail Information

Frequency:	100-2900MHz(Bandwidth Customized)	Max Output Power:	50w
Work Voltage:	24-28V	Max Gain:	46dB
Max Current:	4.5A	Output Connector:	SMA-female
Switch Control:	24-28v	Size:	1395520mm
Weight:	0.261kg	Work Temperature:	-20~+70℃
Power Amplifier Efficiency:	45(when Max Output)
Highlight:	50W UAV signal jammer module , high-power amplifier with circulator protection , anti-drone GPS signal jammer

Product Description

50W UAV Signal Jammer Module High-Power Amplifier with Circulator Protection for Anti-Drone Systems

50W Jammer Module for Anti-Drone Systems

Model: TX-TZ50W
This wireless information security module is dedicated to 300-2900MHz signals, with customizable support available. The module features high average output power, excellent in-band flatness, and minimal offset between upper and lower side bands. Available in regular type with signal source, or without signal source type (input signal 0-10dBm).

50W RF Power Amplifier Specifications

No.	Item	Data	Unit	Notes
1	Frequency	100-2900	MHz
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	24-28	V	24-28V all okay
5	Max Gain	46	dB
6	Max Current	4.5	A
7	Input Connector	SMA-female		If needed
8	Output Connector	N/F 50Ω		Customized
9	Power Amplifier Efficiency	45		when Max Output
10	Switch Control	24-28	V	Same as the voltage
11	Standing Wave Protection	OK
12	Temperature Protection	75°	℃
13	Size	1395520	mm
14	Weight	0.261	Kg

Application Fields

WiFi jammer, drone jammer, etc.

Precautions for Use

Before using the module, customers must first configure corresponding heat dissipation measures, antenna connection, and power connection.

About Cooling Measures: Due to high output power, the module will heat up during use. Please ensure to add heat sink and cooling fan to maintain low temperature and high efficiency. Without proper heat dissipation measures, the module may short-circuit or become damaged.
About Antenna Connection: When connecting, first screw on the antenna, then connect the front-end source equipment, and finally supply power.
About Power Connection: Power supply supports DC 24-28V. When using 28V power supply, the module performs better.

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS, ISO9001
Model Number:	TX-TZ50W

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	PP plastic bag
Delivery Time:	2 Days
Payment Terms:	L/C, T/T, Paypal,etc.
Supply Ability:	100000pcs/month
