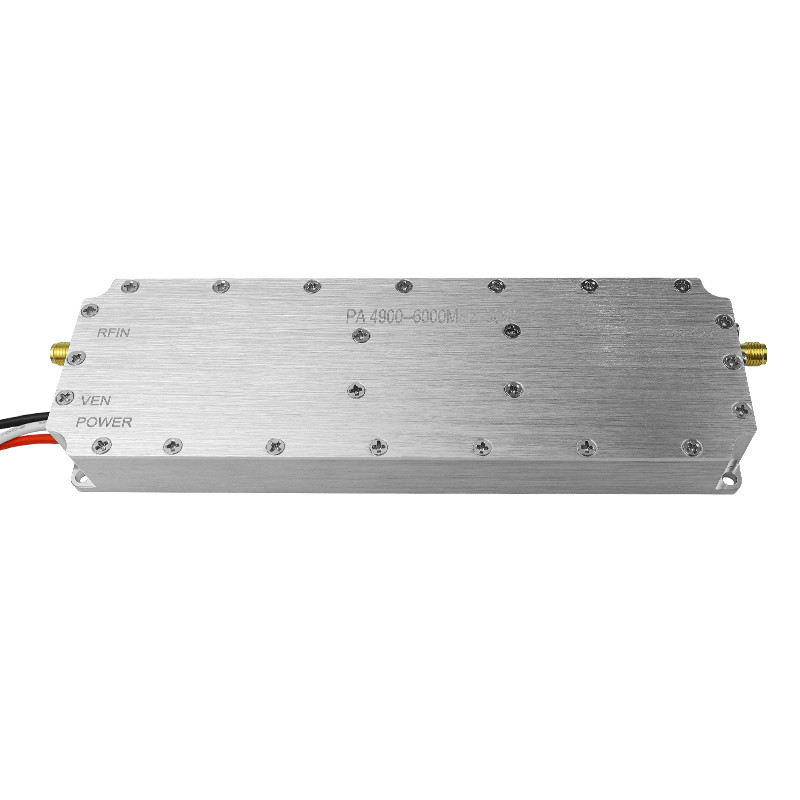

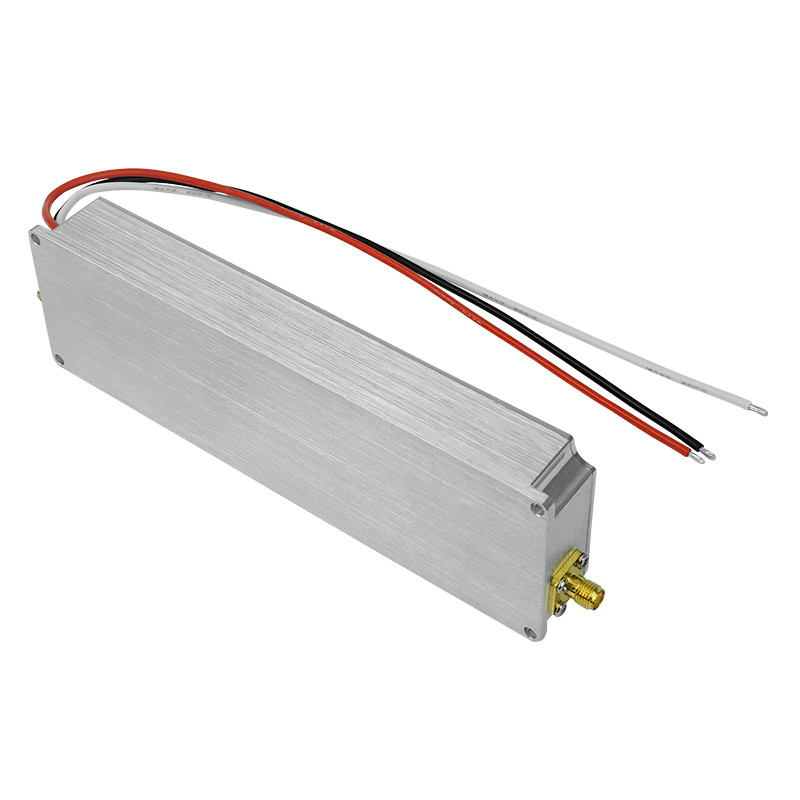

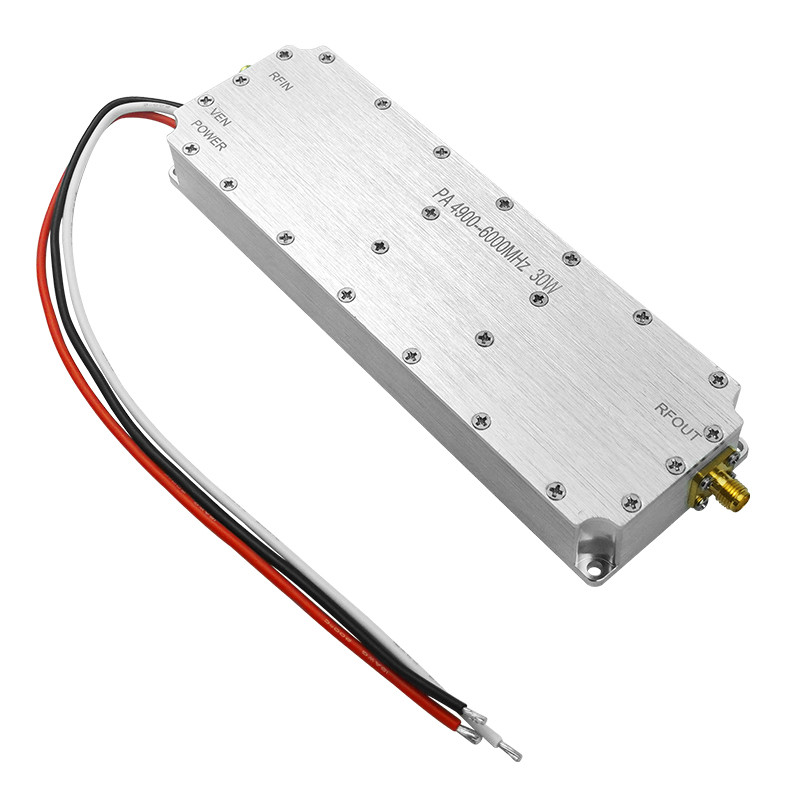

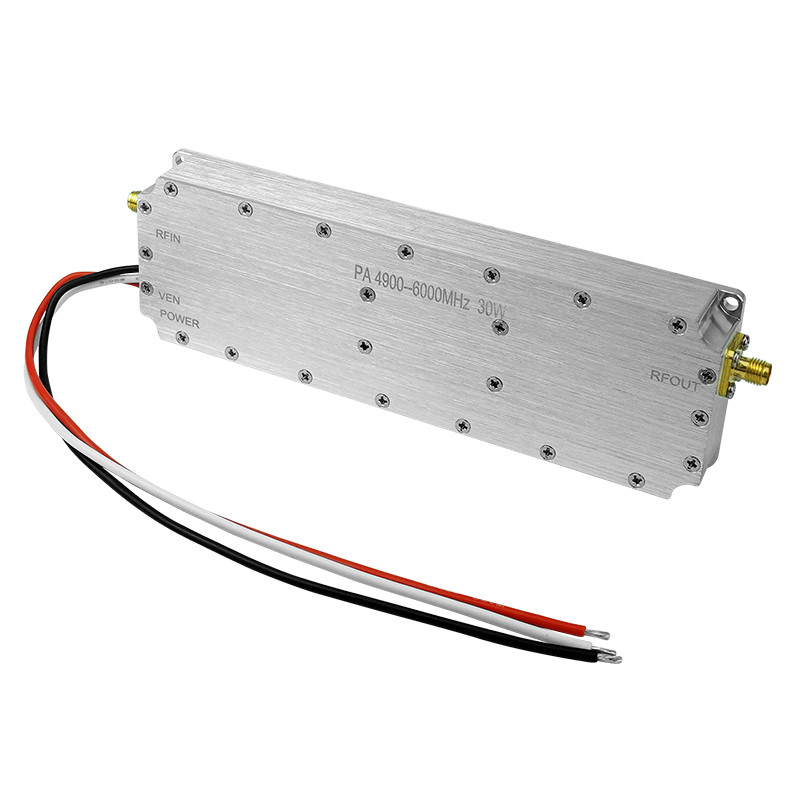

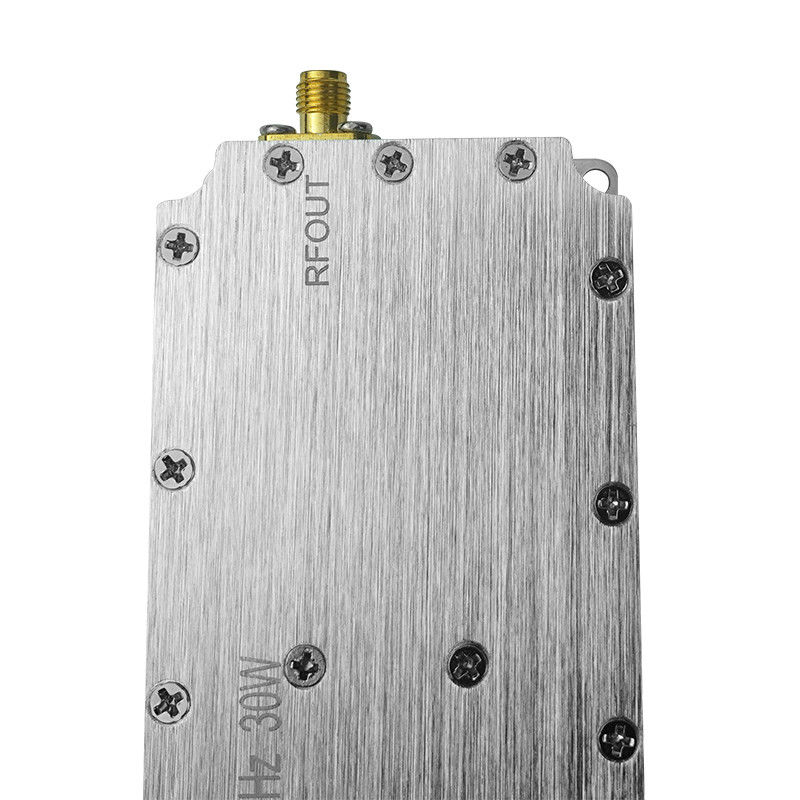

PA 5600-6000MHz 3000MHz -6000MHz 4000-6000MHz wireless signal power amplifier anti drone module
This is wideband small size PA 5600-6000MHz ,3000-6000MHz customization low power 30W power amplifier module .There is No signal source build in ,and output input connector taking high performance material .When operate in 28-32V voltage the power amplifier module can keep stable current and flat bandwidth.The wide band power amplifier can use in anti drone jammer system ,it can highly efficient to jamming the FPV drone in the market.
- 30W power amplifier wide band 3000-6000MHz ,4000-6000MHz ,5600-6000MHz (Other regular band also can be customized)
- In put 0-5dbm (If you need special frequency,regular 0-10dbm is OK)
- Easy to carry and portable installation (Can connect signal source for use )
- 100%Quality inspection, original factory shipment
| No. |
Item |
Data |
Unit |
| 1 |
Frequency |
Customized |
MHz |
| 2 |
Test voltage |
24-28 |
V |
| 3 |
Current |
3 |
A |
| 4 |
Output |
30 |
W |
| 5 |
Gain |
43 |
dB |
| 6 |
Output stability |
1 |
dB |
| 7 |

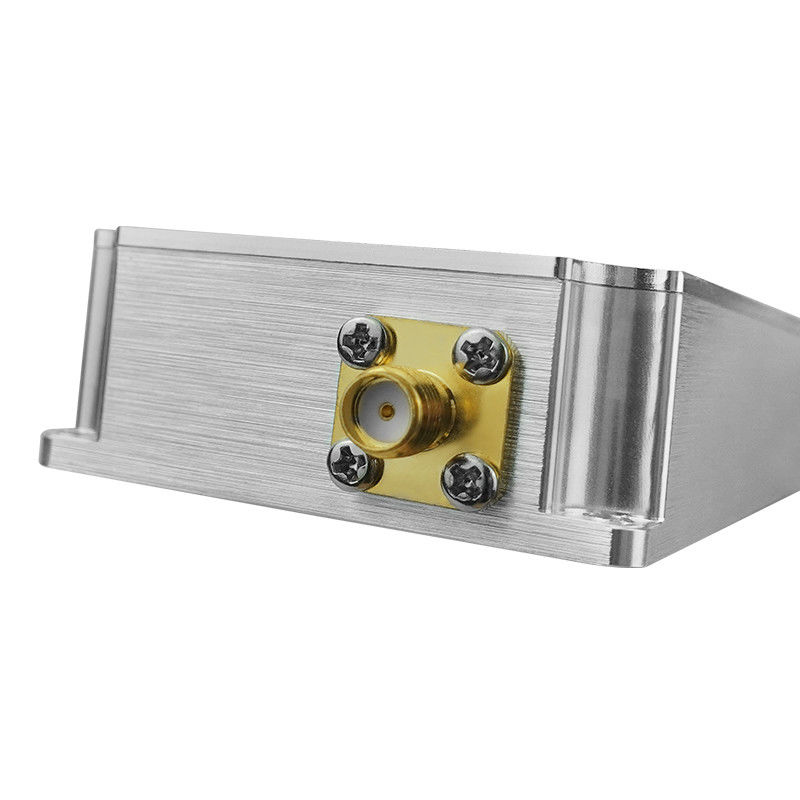

Connector |
SMA / Female |
| 8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
| 9 |
Standard input |
0-5 dBm (default 0dB) |
| 10 |
Power supply wire |
Red+Black+Enable wire |
| 11 |
Enable Control |
High ON Low Off |
| 12 |

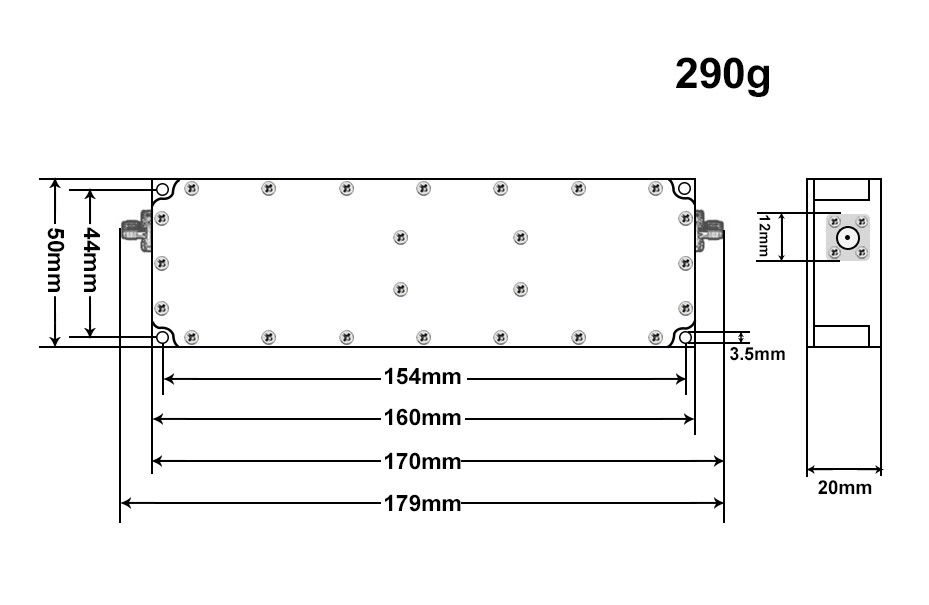

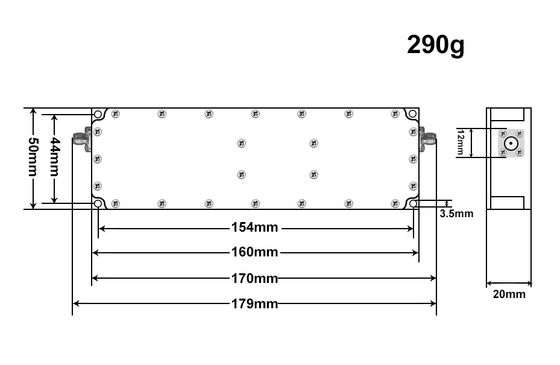

Out shell Size |
179*50*20 |
mm |
| 13 |
Mount hole |
50*154 |
mm |
| 14 |
Weight |
290 |
g |
| 15 |
Work Temperature |
-40~+65 |
℃ |
| 16 |
Out shell material |
Aluminum |
| 17 |
Vibration need |
Car load OK |
Notice
1. Need match 28-32V voltage ,if use not correct voltage will broken easily
2. Please use with an antenna of the corresponding frequency band
3. Heat dissipation measure is necessary including the thermal glue, suitable-size
heat sink and cooling fans
Company strength
Since 2014, Shenzhen Texin Electronics Co., Ltd (Brand name: TXtelsig or TeXin) is the professional manufacturer of the innovative signal jammer catering to the international quality standard and the market need. Our factory locates in the Shenzhen city, Guangdong Province, China, with the whole 2ND floor factory the SMT machine, assembly and the warehouse, and the No. 303 in 3rd floor the office room.
Our main product is the high-end RF module of signal jammer, anti drone system, anti drone gun, Phone WiFi signal jammer, GPS signal jammer and the relative accessory. We can also offer the one-stop service for the signal jammer product with the signal jammer module, antenna, power supply, heat sink and cooling fans.
- Exclusive customization, advanced technology. 100% original production
- Big brands are guaranteed
- One-year warranty
- Own factory, delivery time can be guaranteed
FAQ
1.Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welecom to visit us here
2.MOQ?
1 to 100pcs
3.Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4.How to proceed an order ?
A.Let us know your requirement and product application through inquiry on Alibaba website B.We quote according to your specific need C.Customers agree with the quotation and make the payment
5.How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
