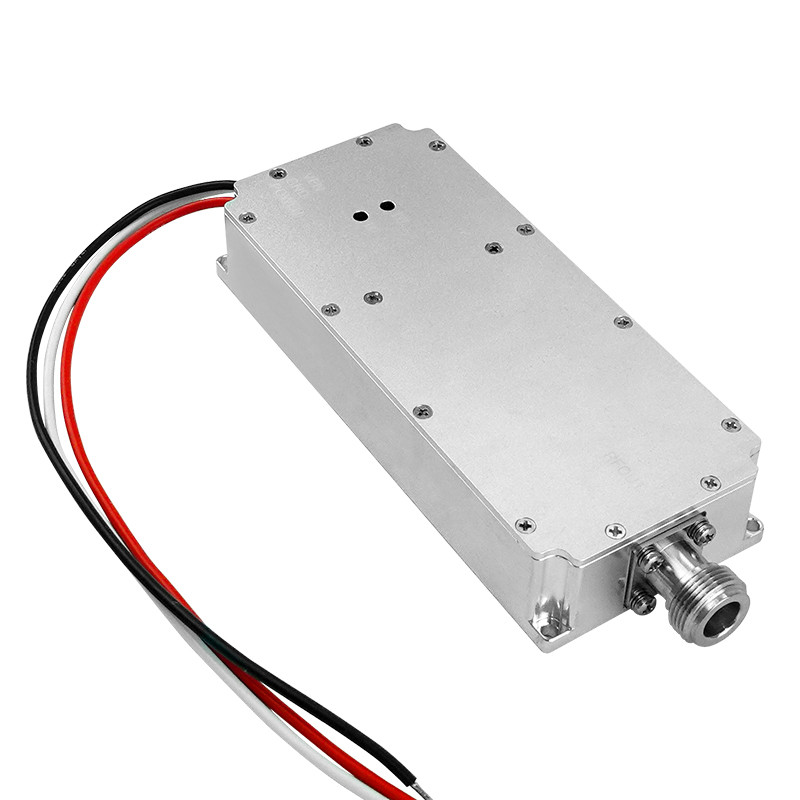

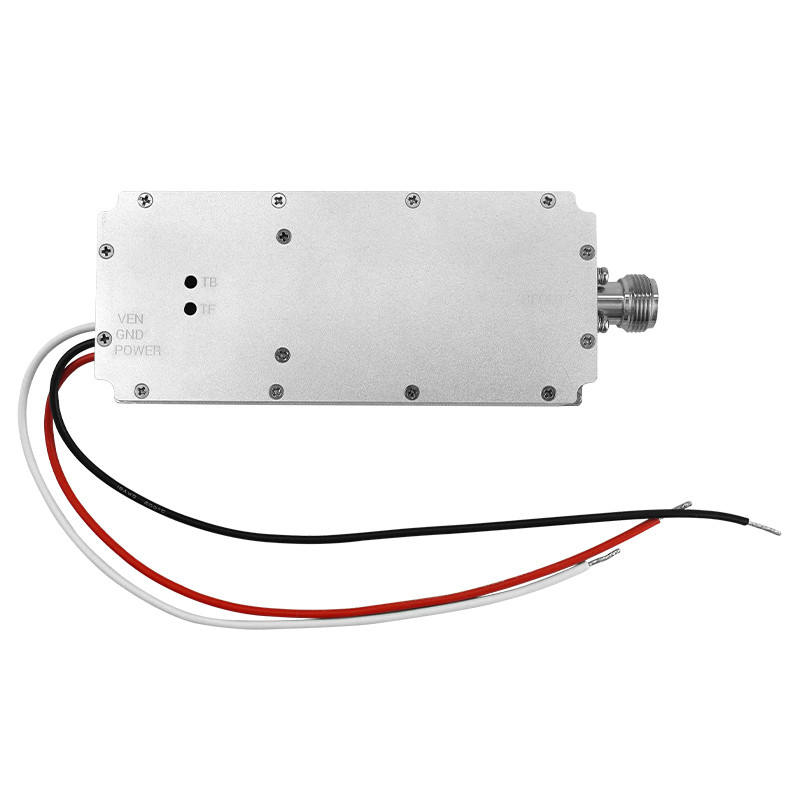

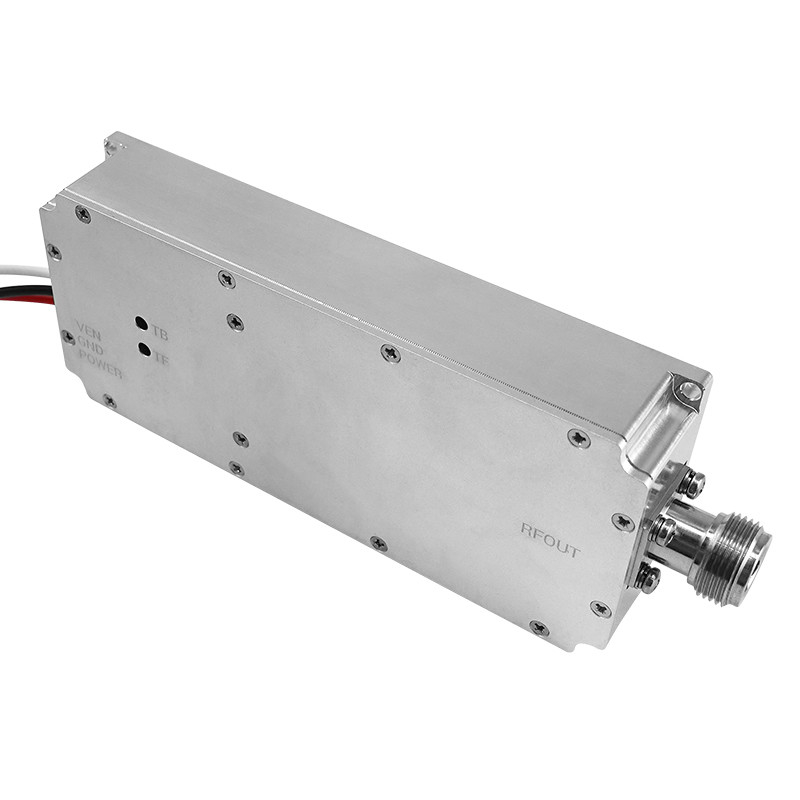

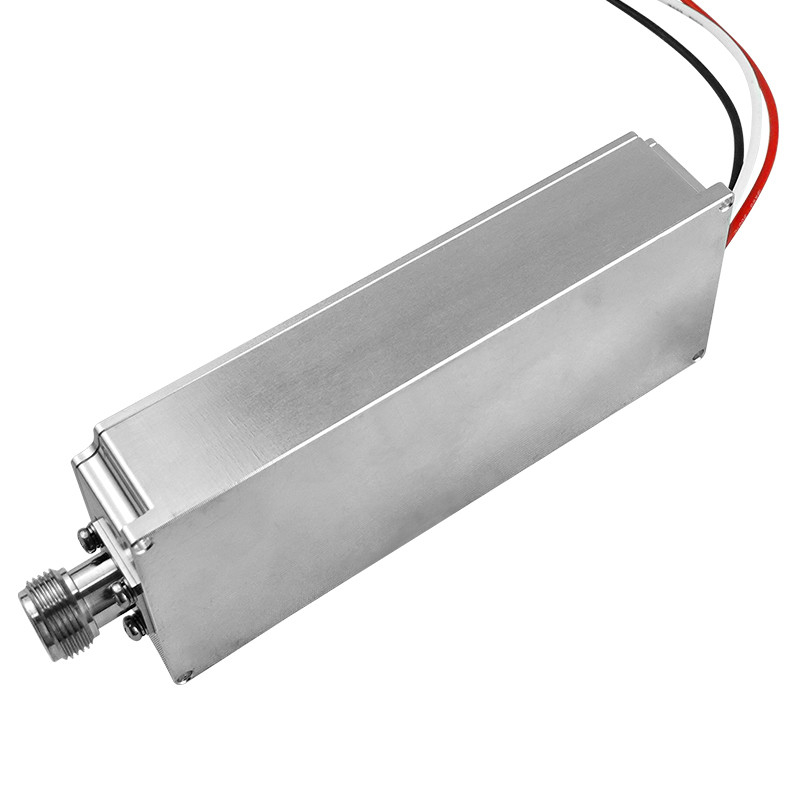

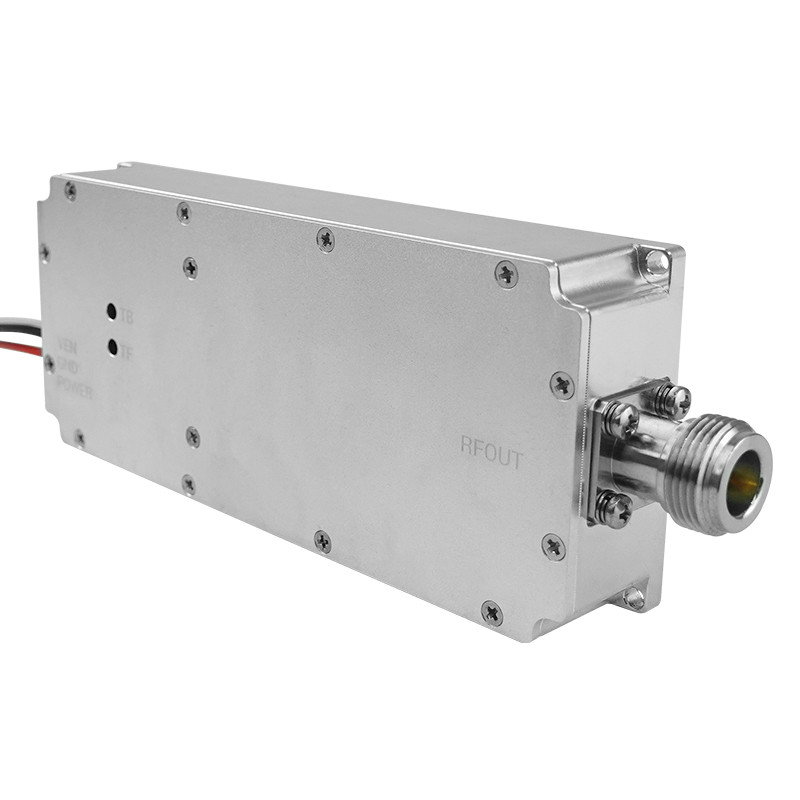

GaN material N-end 90W 2400-2500MHz &circulator jammer module for anti Uav
This jammer module takes GaN material with highly effective output, stable and high-temperature resistance; it stands out in the market. And this material can operate under complex temperatures of -40°C-85°C. Also the jammer module is designed to circulate form another protection. When users operate high power device ,the circulator can protect the components keep working not influenced by high temperature .
This module has full wattage at 24-28V, average output stability, and flat bandwidth.Frequency 433 MHz/900 MHz/1.2 G/1.4 G/2.4 G/5.2 G/5.8 G supported. 10W /20W/30W/50W/60W/90W offered.
ShenZhen Texin Electronic Co., Ltd. is devoted to providing anti-drone solutions to our clients. Our products drone jammer ,antenna ,drone jammer module have sold all around world .All products can be customized ,texin has own factory located in 201, Building A, No.1 Xinghua Road, Pingxi Community, Pingdi Street, Longgang District, Shenzhen.Welcome to visit Texin factory.
Product specification
| No. |
Item |
Data |
Unit |
| 1 |
Frequency |
Customized |
MHz |
| 2 |
Test voltage |
28 |
V |
| 3 |
Current |
3.7 |
A |
| 4 |
Output |
90 |
W |
| 5 |
Gain |
49 |
dB |
| 6 |
Output stability |
1 |
dB |
| 7 |

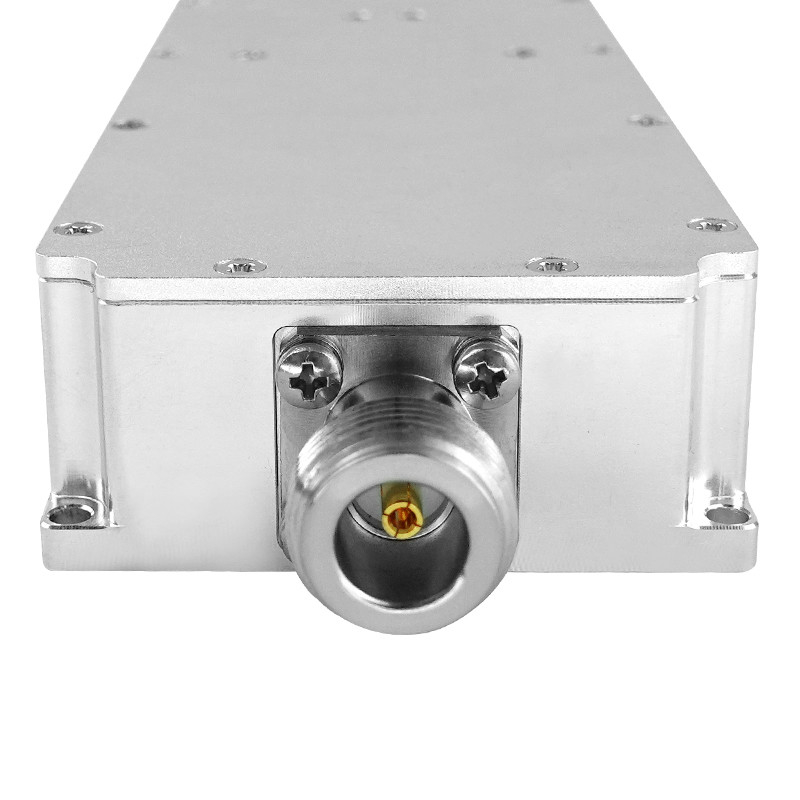

Connector |
N/ Female |
| 8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
| 9 |
Power supply wire |
Red+Black+Enable wire |
| 10 |
Enable Control |
High ON Low Off |
| 11 |

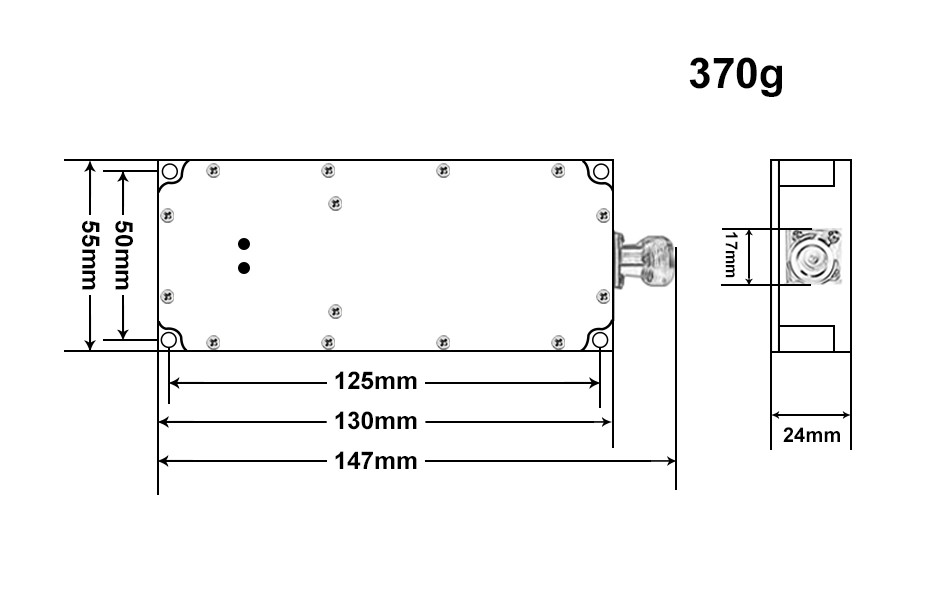

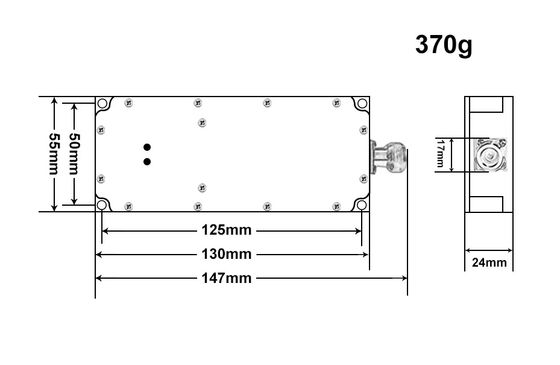

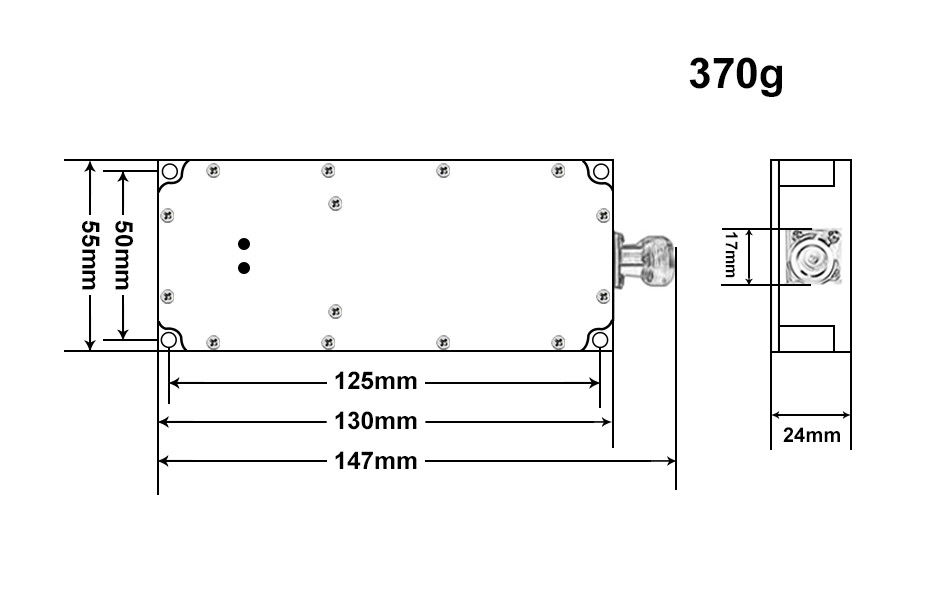

Out shell Size |
130*55*24 |
mm |
| 12 |
Mount hole |
125*50 |
mm |
| 13 |
Weight |
370 |
g |
| 14 |
Work Temperature |
-40~+65 |
℃ |
| 15 |
Out shell material |
Aluminum |
| 16 |
Vibration need |
Car load OK |
Product feature
*Mini size easy to carry
*Lora source built-in long-distance jamming and low-consumption
*Frequency band and power can be customized
*Made of aluminum material high heat dissipation
*Lightweight and small size easy to carry
*The module support 24V-28V operate voltage
FAQ
1. Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here.
2. MOQ?
1 to 100pcs
3 . Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website B. We quote according to your specifineedsed C. Customers agree with the quotation and make the payment
5. What do I do if I receive defective products?
Our strict quality control will ensure a 100% pass rate, but it can be damaged. Please share a photo or video of the defective product to let us know where the problem is. We will compensate you accordingly or send you a new electronic part or product.
