| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | ISO9001 |
| Model Number: | TX-10 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Durable case or box |
| Delivery Time: | 3-7 work days |
| Payment Terms: | L/C, T/T, |
| High Light: | Customized Signal Jammer Module,5.8G Signal Jammer Module,UAV RF Jammer Module |
||
|---|---|---|---|

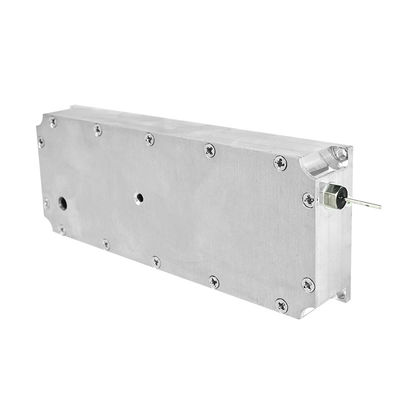

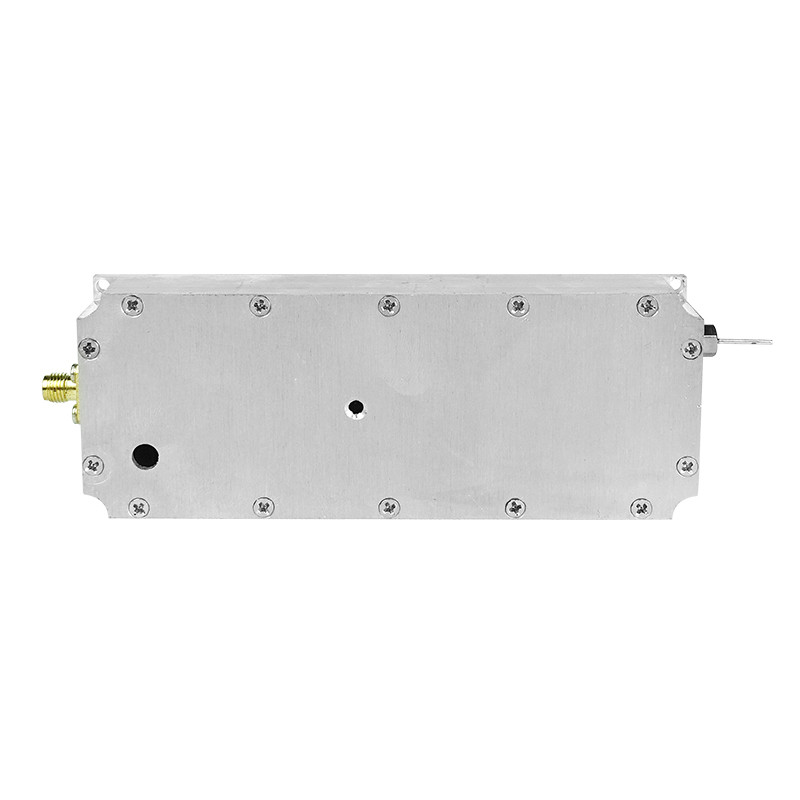

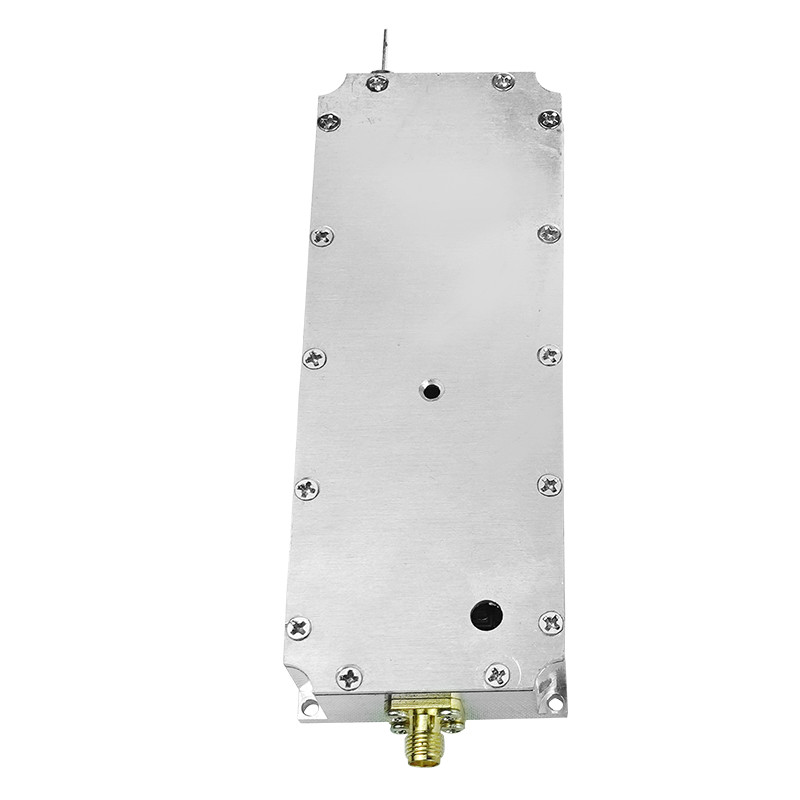

5.8G UAV Signal Jammer Module 10W 40 DBM
Detail Information
Max Output:50W (47dBm) Voltage: Customized
Product Size:132*53*18mm Net weight: 0.28KG
High Light:10W Signal Jammer Module, RF Jammer Module
Product Description
Working frequency band: 5.7~5.9GHz
Working voltage: 24V
Maximum output power (P1dB): 50W (47dBm)
Working current: 1500mA@Pout 47dBm24V
Average efficiency: 40%
Working temperature: -20℃～60℃
| Common bands 0-5W RF Power Amplifier Specification | ||||
| No. | Item | Data | Unit | Notes |
| 1 | Frequency |
430-450/860-873/ 902-928/1100-1300 1560-1620/2400-2500/customize |
MHZ | |
| 2 | Work Temperature | -20~+70 | ℃ | |
| 3 | Max Output Power | 5W/10W | W | |
| 4 | Work Voltage | DC24 | V | |
| 5 | Max Gain | 37/40dBm | dB | |
| 6 | Flatness | ±1 | dB | |
| 7 | Max Current | 0.5/1 | A | |
| 8 | Output VSWR | ≤1.5 | ||
| 9 | Output Connector | SMA/F 50Ω | ||
| 10 | Power Amplifier Efficiency | 40 | % | |
| 11 | Switch Control | high low level current |
V | |
| 12 | Standing Wave Protection | OK | ||
| 13 | Temperature Protection | 75° | ℃ | |
| 14 | Size | 90*48*18 | mm | |
| 15 | Weight | 0.2 | Kg | |
