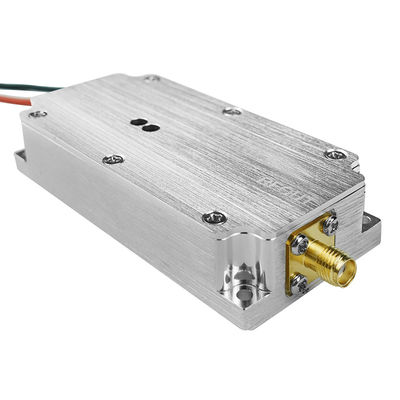

Lora Digital Source 50W 300-1200MHz RF Amplifier Module For Anti Drone

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Minimum Order Quantity: 2/pieces
Price: US$150-200/pieces
Packaging Details: 15*13.5*4cm/0.5kg
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000per month
Detail Information
Provide Type: Manufacturer Application: Drone FPV Protection
Type: Blocker Module Output: 50W,Customized
Input Impedance: 50Ω Operate Voltage: 24-28 V
Color: Silver (Customized)
High Light:

50W RF Amplifier Module

,

1200MHz Lora Module

,

Anti drone Lora Module


Product Description

Product description



it has installed digital chip inside ,the module can fre 300-1200mhz(customized)Using s connector.it operate conveninet.it
is a technical grade product,which is more efficient then traditional module.it takes FPGA logic chip to control,connects frequency locking VCO tanlent frequency satable to build drone jammer control digital signal.it is a low comsumption and high power module.
Lora Digital Source 50W 300-1200MHz RF Amplifier Module For Anti Drone 0
Lora Digital Source 50W 300-1200MHz RF Amplifier Module For Anti Drone 1


performance feature

  1. FrequencyRange: 300-1200MHz,2.4GHz ( customized)
  2. output Impedance:50W

  3. Install digtal signal,operate easy,more efficient,Small design dand size,convenint

  4. technical design, made technical chip ,Suitable for industrial applications


sepcification
Product name Specifications remark
Operate voltage 24-28 V
Output frequancy 50W (47dBm)
FrequencyRange 300~1200MHz,2.4GHz ISM customized
Mian Frequency 433MHz 868MHz 915MHz, 2.4GHz
Operate current 2.8A
Inpur connector type SMA-F RF input
InputImpedance 50Ω
Module size 83*40*17mm
Operate temperature -40℃+80℃ technical grade



Lora Digital Source 50W 300-1200MHz RF Amplifier Module For Anti Drone 2
