| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | TEXIN-50W |
| Minimum Order Quantity: | 10 |
| Price: | negotiate |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000per month |
| Brand: | TEXIN | Frequency: | 400-5800MHZ (Customized) |
|---|---|---|---|
| RF Distance: | 1.5-2 Km | Current: | 2.8A |
| Power: | 50w(customized) | Jammer Type: | UAV FPV Drone |
| Dimensions Of Device: | 140*53*20 | Packing: | Box |
| Working Temperature: | -40℃ To +80℃ | Gain: | 47dbm |
| Connector: | SMA | Weight: | 274g |
| Voltage: | 24V-28V | ||
| High Light: | 50W Jammer Module,Wide Band Jammer Module,Drone Defense Jammer Module |
||

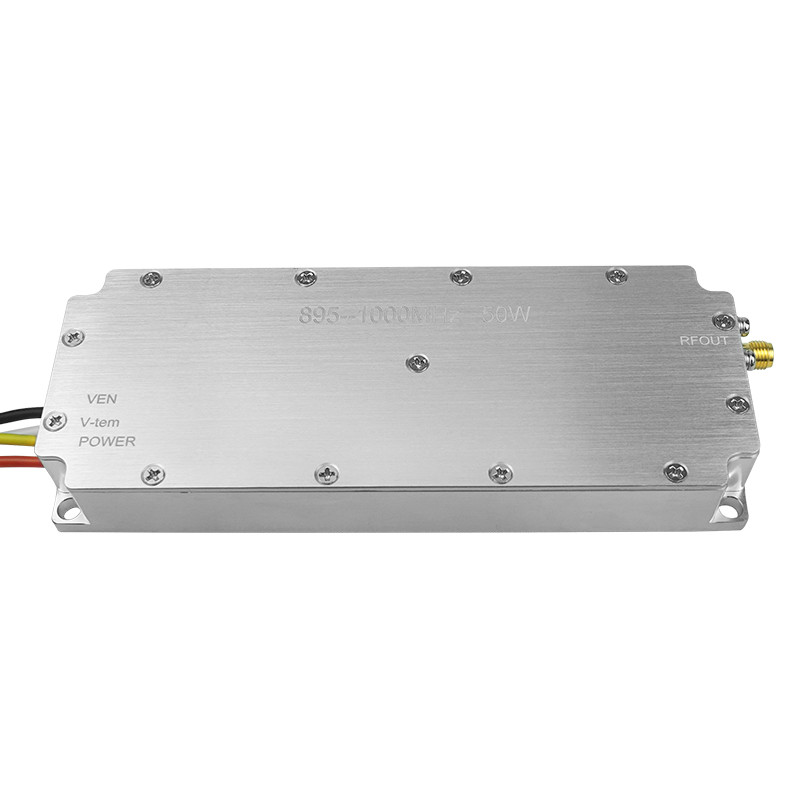

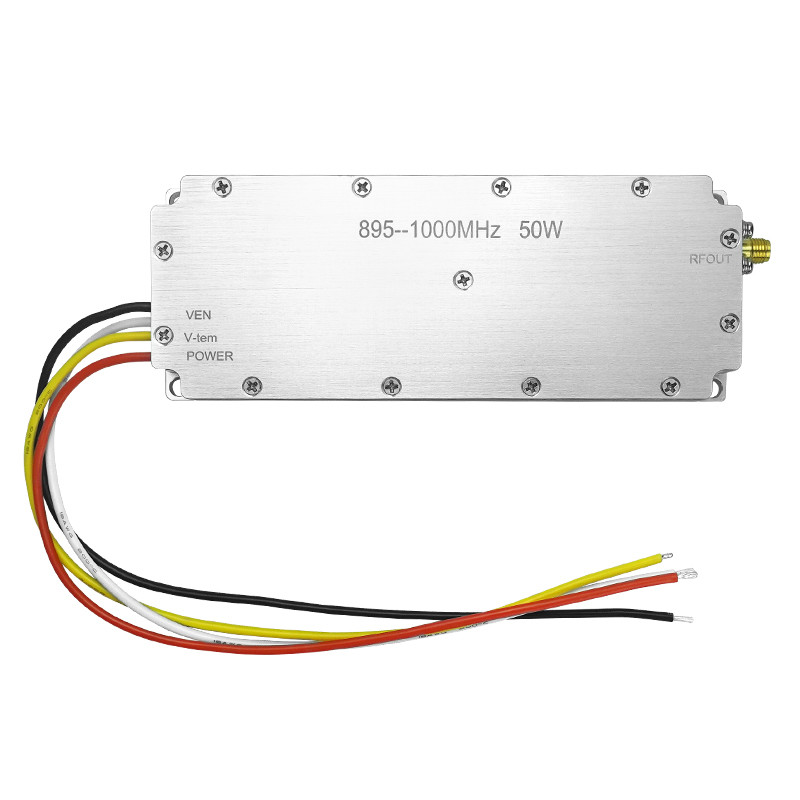

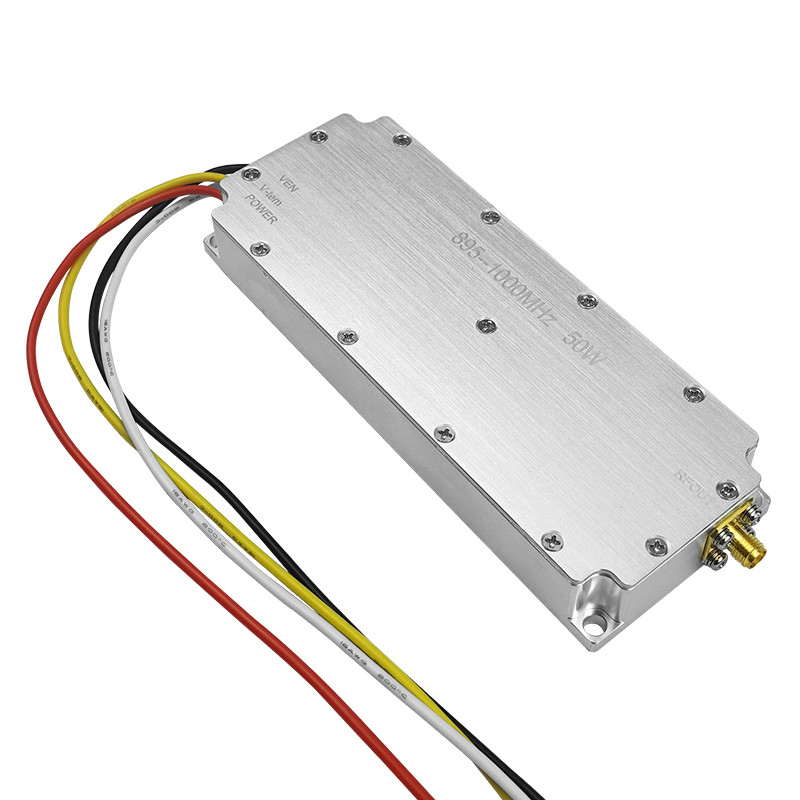

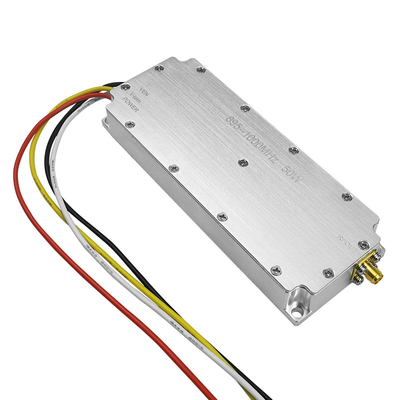

Wide band 433MHZ 1.2G 2.4G 5.2G with temp controlled 50W jammer module for drone defense device
product Introduction
Signal jammer module has big Significant in recently years .it widely use in air protection ,this product has stable wide band that transmit fluently .VCO technology build in ,it can cut the image channel of the drone and remote control .And compare with common jammer module the Wide band 433MHZ 1.2G 2.4G 5.2G with temp controlled 50W jammer module build in temp chip that can offer the module protection when it high power operate .The protect set 4 electronics wire, the one of yellow wire is the temp control wire ,the others are enable wire .The most obvious feature is when it testing under 28V the current about 2.8A.it is highest work temp can reach 125c°,it is Heat resistant between ordinary jammer module .
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 400-5800(Customized) | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 2.8 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |

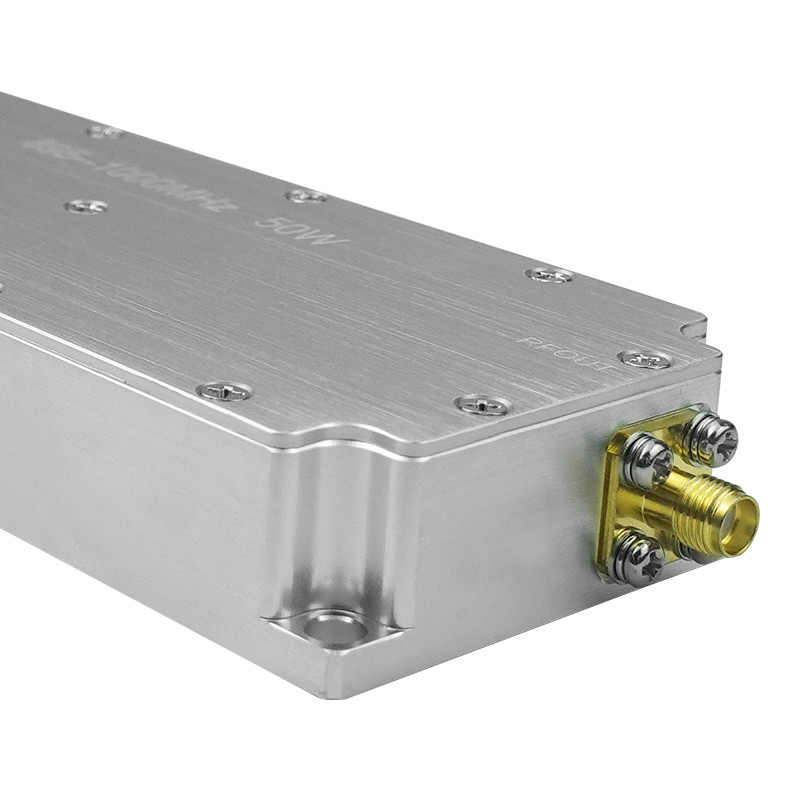

| 7 | Connector | SMA / Female | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |

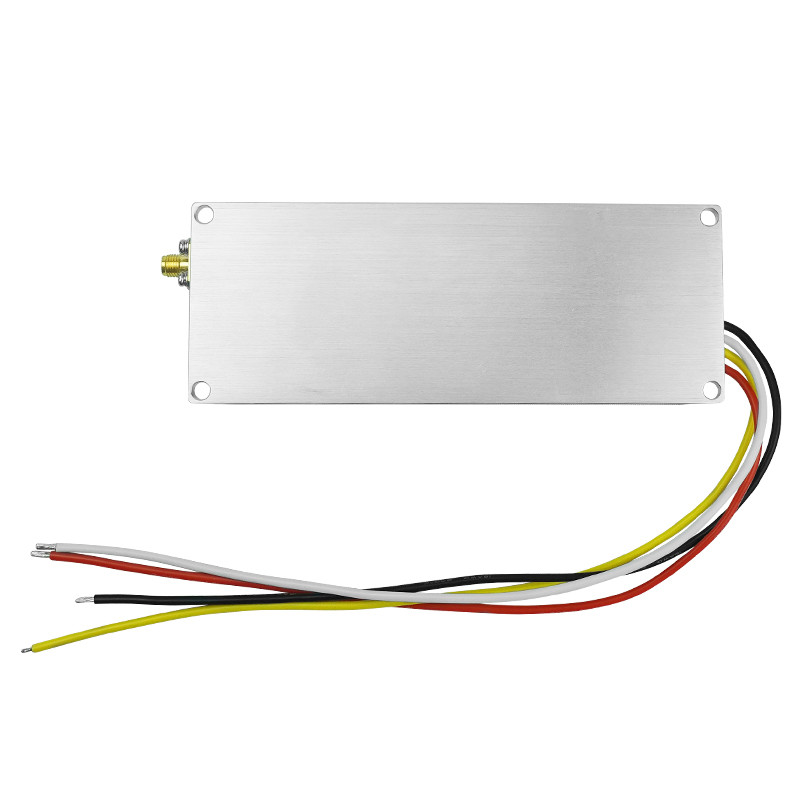

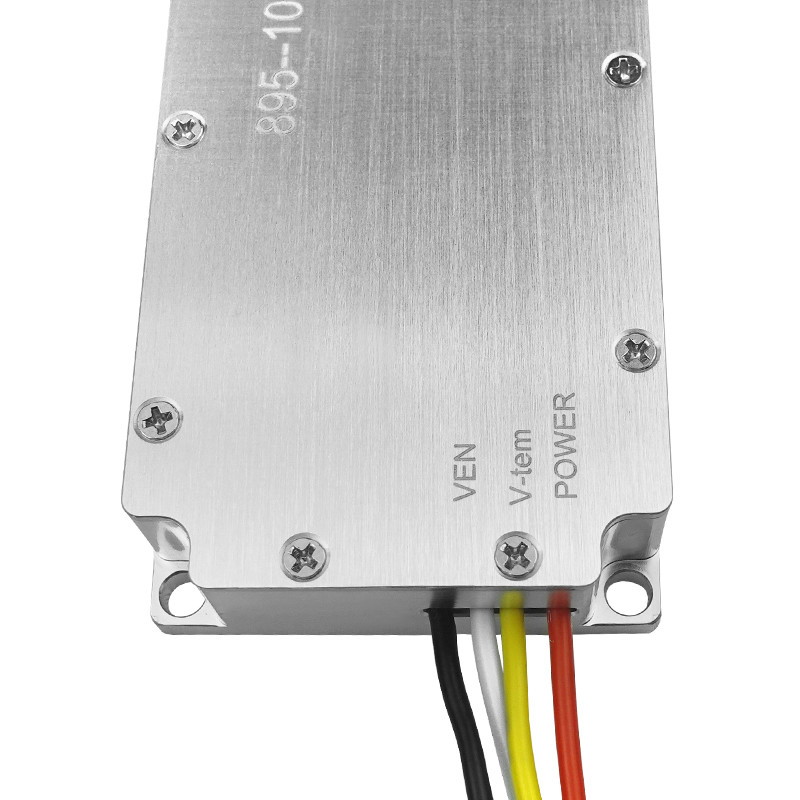

| 9 | Power supply wire | Red+Black+Enable wire+yellow protect | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Out shell Size | 43*137*16 | mm |
| 12 | Mount hole | 130*50 | mm |
| 13 | Weight | 290 | g |
| 14 | Work Temperature | -40~+125 | ℃ |
| 15 | Out shell material | Aluminum | |
| 16 | Vibration need | Car load ok | |
Features
It has temp protect controlled
it is power amplifier signal source build in
Attention
FAQ
Are you a anti drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.
What is the customized frequency range and output power of the anti drone jammer module?
TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.
Can you show us the test photo and video of the FPV jammer module after we buy them?
yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
