RF Drone Signal Jammer Module High Power 300W 400MHz 6000MHz With Adapter

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: TX-300W
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Detail Information
Brand: TEXIN Frequency: 400-6300MHZ (Customized)
Color: Silver Size: 180*99*30mm
Jammer Type: DJI、quadrotor、Fixed Wing、DIY、FPV Detector Weight: 1143g
Packing: Box Working Temperature: -40ºC To +65ºC
Vibration Need: Car Load OK Out Shell Material: Aluminum
Highlight:

RF Drone Signal Jammer Module

,

300W signal jammer module

,

6000MHz signal jammer module


Product Description

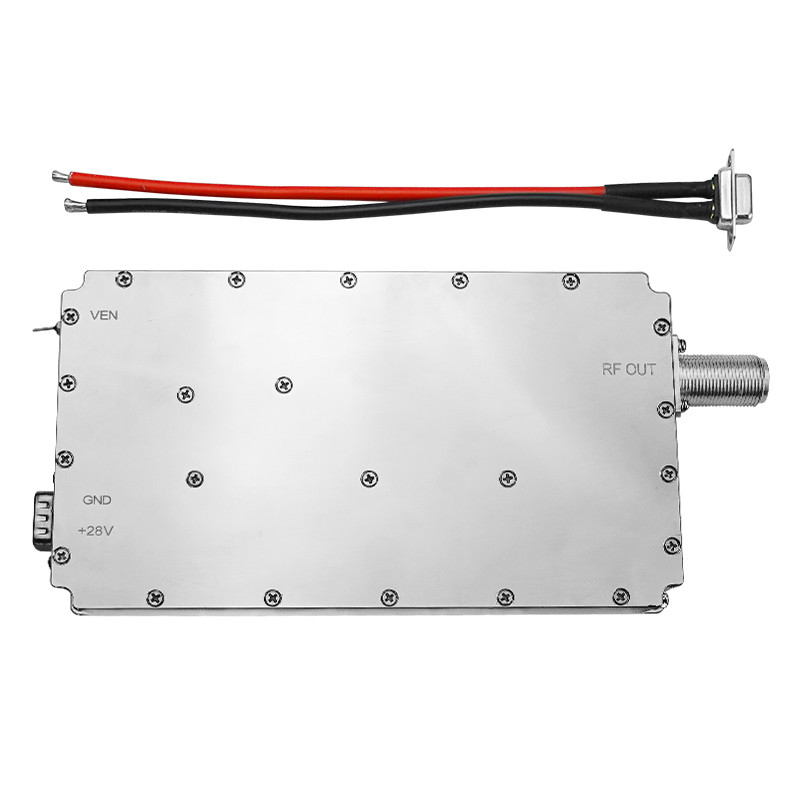

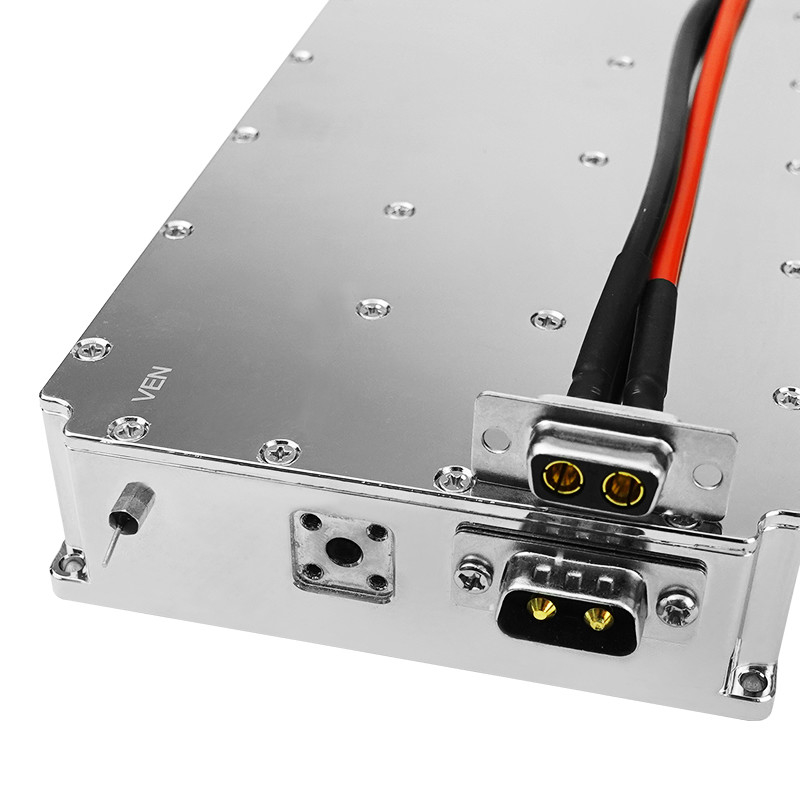

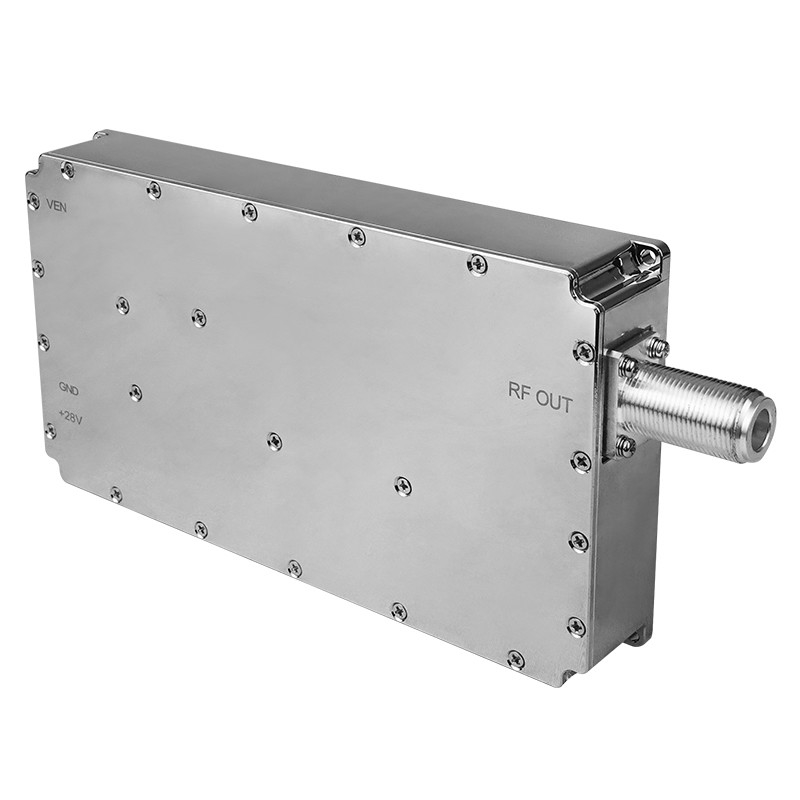

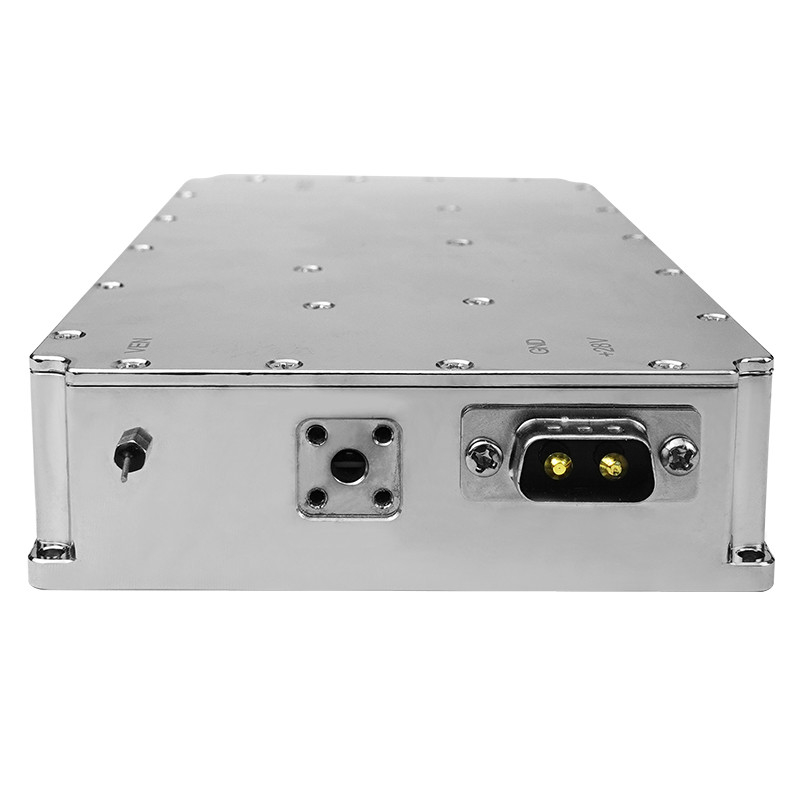

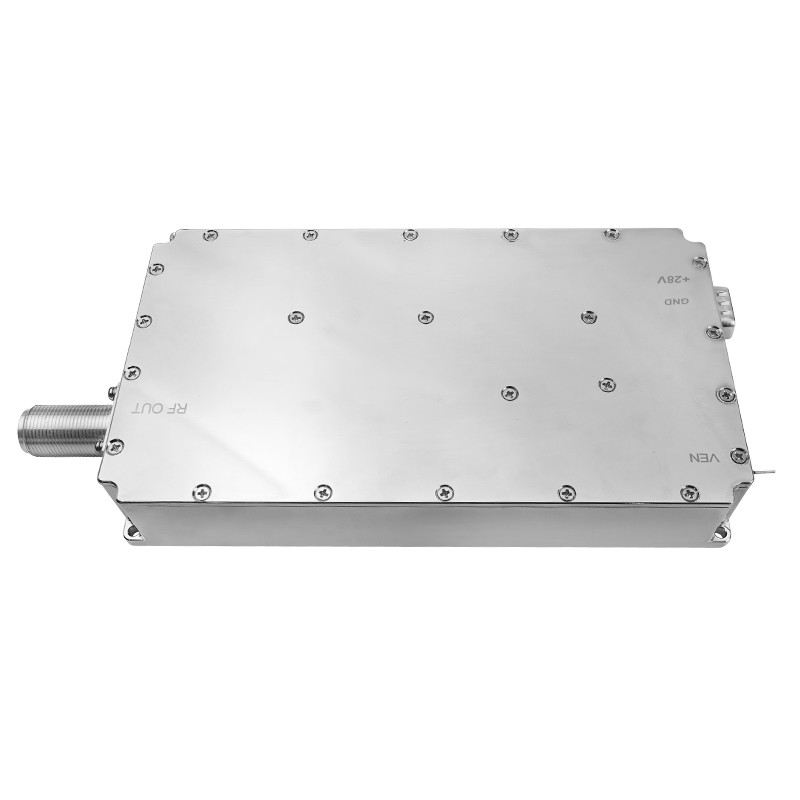

Longer N-type connector high power 300W with adapter rf jammer module
product Introduction
This is high power 300W anti drone module, the biggest highlight is the jammer module max out put can reach around 300W, and stable output during operation.

This jammer module  frequency band can customized by customers need .There is longer connector than common 300W jammer module ,the special designed makes out put strength and decrease damage of high power out put .

The 300W jammer module can install in the large fixed drone jammer ,high power out put makes drone jammer full range jamming and the correct ratio have improved .

Specification

No. Item Data Unit
1 Frequency 400-6300 MHz
2 Test voltage 24-28 V
3 Current 16 A
4 Output 300 W
5 Gain 53 dB
6 Output stability 2 dB
7 Connector N / Female
8 Output connector VSWR ≤1.40 (No power and VNA test)
9 Power supply wire Red+Black wire
10 Enable Control High ON Low Off

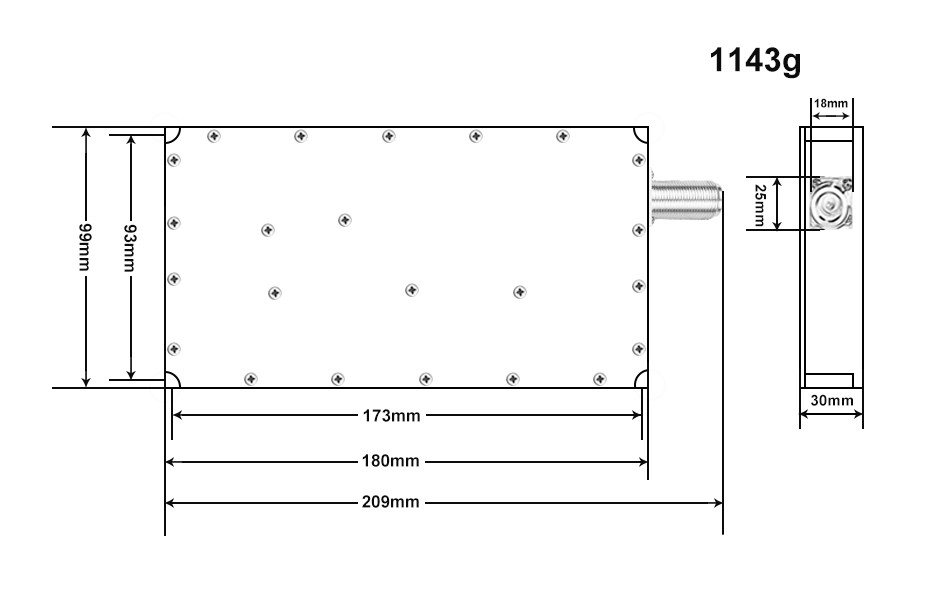

11 Out shell Size 180*99*30 mm
12 Color Silver mm
13 Weight 1143 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load OK

RF Drone Signal Jammer Module High Power 300W 400MHz 6000MHz With Adapter 0



 RF Drone Signal Jammer Module High Power 300W 400MHz 6000MHz With Adapter 1


RF Drone Signal Jammer Module High Power 300W 400MHz 6000MHz With Adapter 2RF Drone Signal Jammer Module High Power 300W 400MHz 6000MHz With Adapter 3

Features

  • High power reach 300W
  • Made of aluminum outshell strong thermal conductivity
  • Widely use in many places such as school,government ,entertainment venues
  •  Good in-band flatness and a small offset between upper and lower side band
  • Hihly efficient for jamming DJI /FPV/DIY

​How to operate

  • when you recived the drone jammer there is 1detector ,short antenna ,long antenna ,battery ,charger in the box
  1. The first step ,full charge the detector by the charger
  2. Second ,choose the antenna you need that short antenna or long antenna
  3. And then flip the switch in the upper right corner the detecor turned on
  4. Press the M key to set parameter with function  and pess the up and down Arrows to choose the work method

​FAQ

Do you have the self development capacity to design the new and creative anti drone solution?

yes, TeXin is with the key know-how and thousands of project experience to offer a new anti drone solution from shape to inside design according to customer specific need.

How many assemblies you have in your factory ?

TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.

Do you have the engineer for the technical support when you are making the after sales service ?

TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.

How can i be a your distributor in our own country ?

For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
