| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | TX-50W |
| Minimum Order Quantity: | 1 |
| Price: | negotiate |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000per month |
| Brand: | TEXIN | Frequency: | 400-2700MHZ (Customized) |
|---|---|---|---|
| RF Distance: | 1-1.5km | Total Power: | 80W-100W(customized) |
| Jammer Type: | UAV FPV Drone | Dimensions Of Device: | 179*67*23mm |
| Packing: | Carton | Working Temperature: | -40ºC To +65ºC |
| Material: | Aluminium | Voltage: | 24-28V |
| Gain: | 50dbm | Mount Hole: | 60*179 |
| Highlight: | Remote Monitoring System Jammer Module,80-100W Jammer Module,UAV FPV Drone Jammer Module |
||

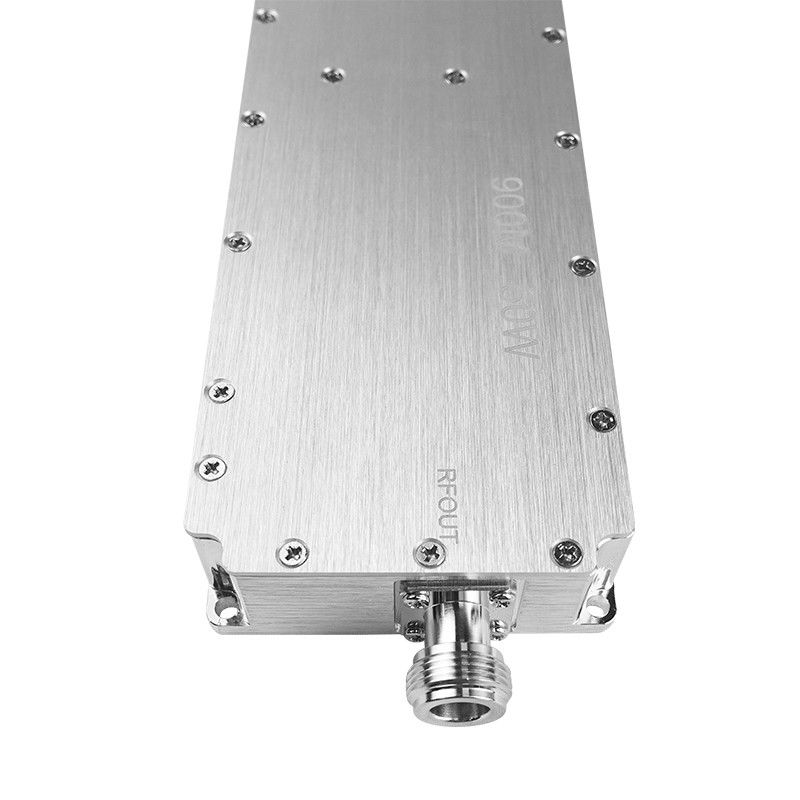

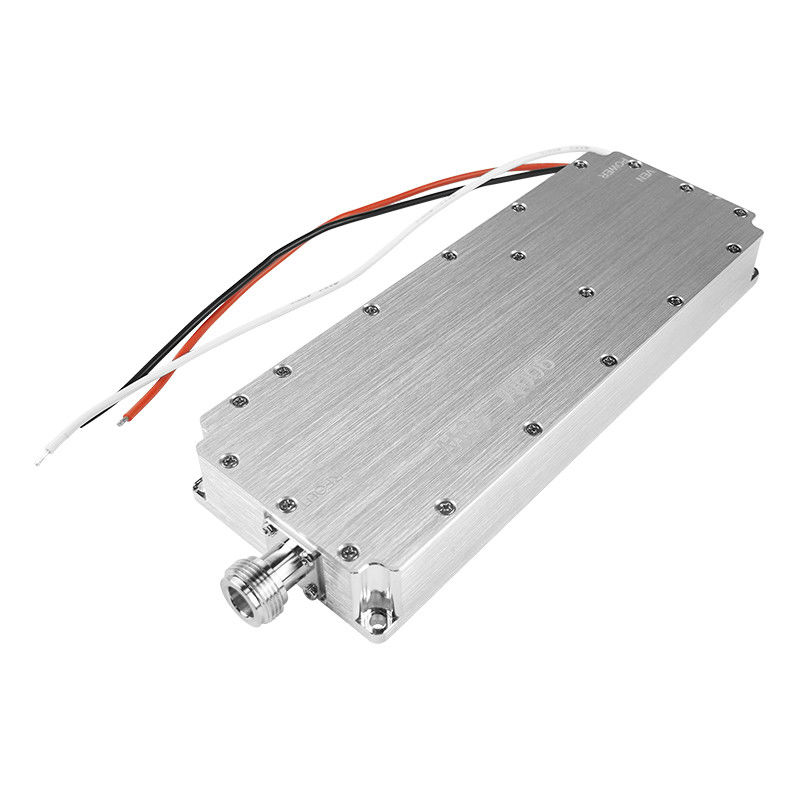

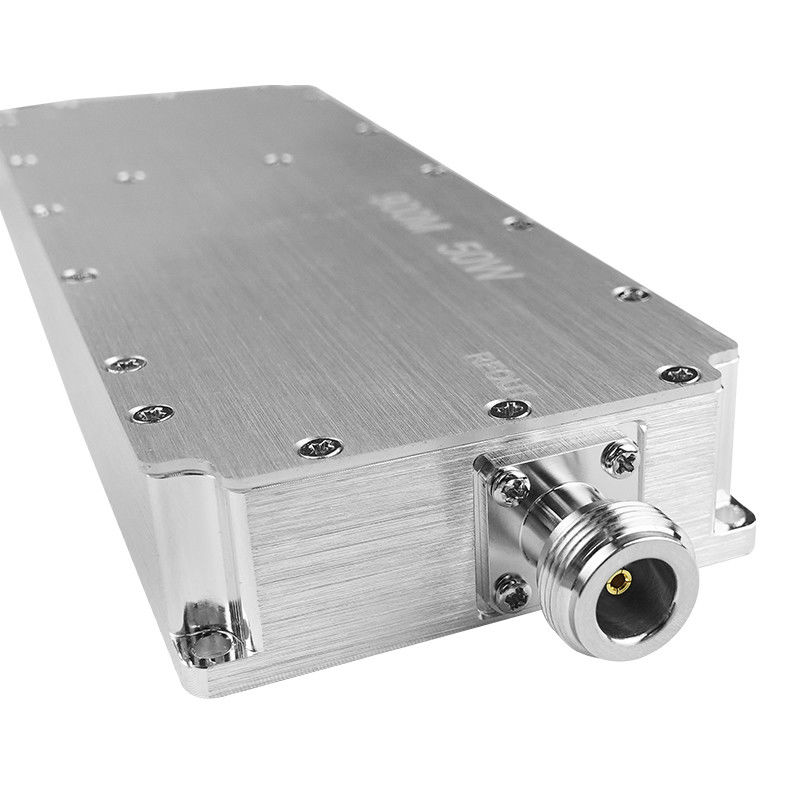

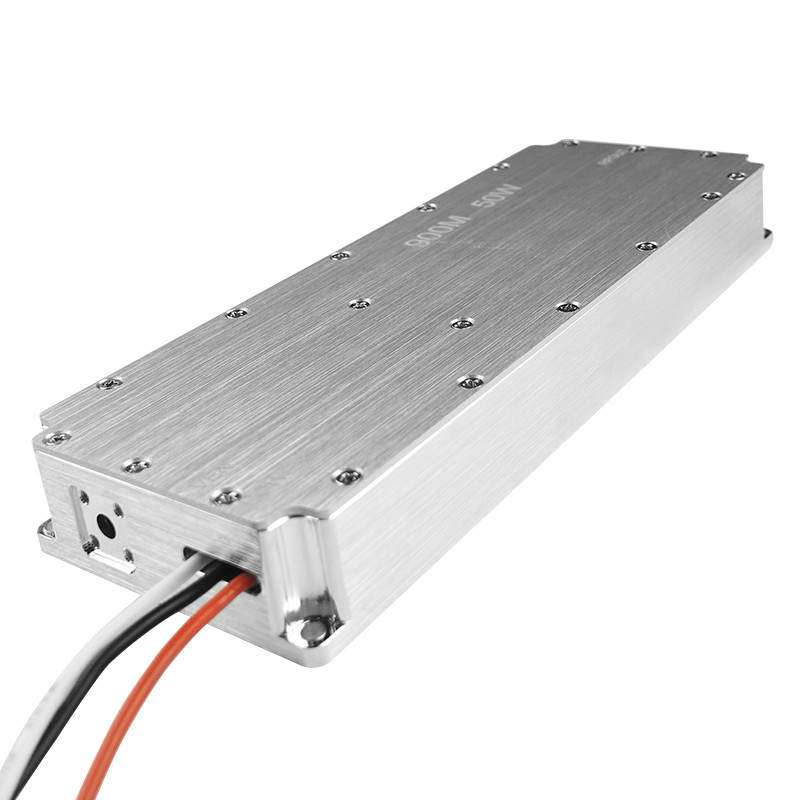

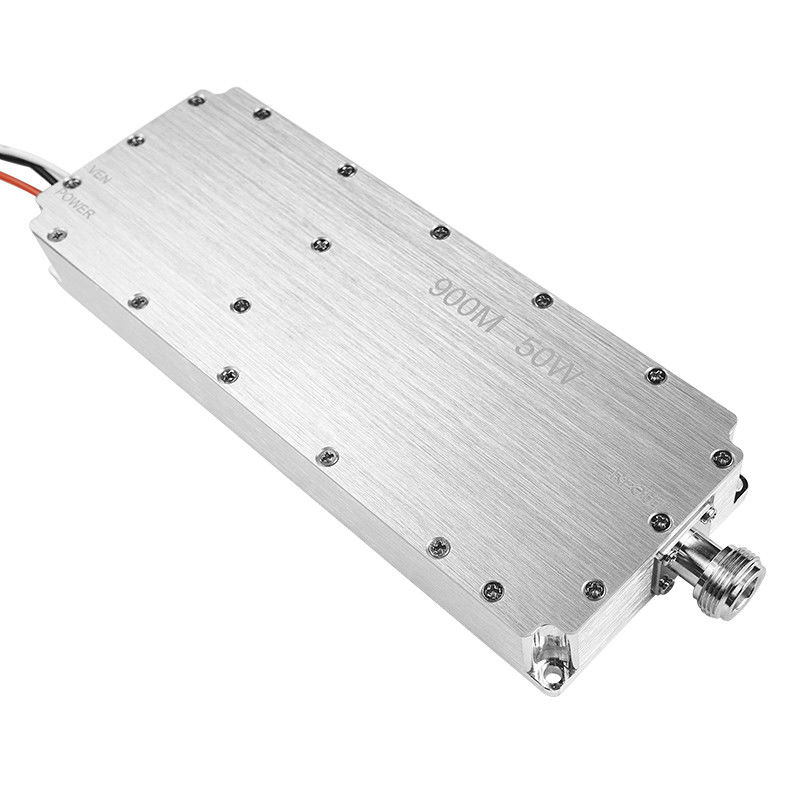

Jammer Module 80-100W High Power Remote Monitoring System for FPV with Circle Protection
product Introduction
This is a high power with circle protection jammer module remote monitoring system ,the jammer module has Bandwidth flat and RF emit stable features .Depend on real environment the 80-100W circle protection jammer module can RF distance more than 500m.And the product takes N-end Output,When connect high power jammer device the module not easy to damage .
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 400-2700 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 4 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | N | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power supply wire | Red+Black+Enable wire | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Out shell Size | 179*67*23 | mm |
| 12 | Mount hole | 60*173 | mm |
| 13 | Weight | 555 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum | |
| 16 | Vibration need | Car load OK | |
Features
Can interfere FPV,AUV signal
Attention
FAQ
Do you have the self development capacity to design the new and creative anti drone solution?
yes, TeXin is with the key know-how and thousands of project experience to offer a new anti drone solution from shape to inside design according to customer specific need.
How many assemblies you have in your factory ?
TeXin factory has over 9 assemblies in our over 5000sqm 2 floor factory in Long area, Shenzhen city.
Do you have the engineer for the technical support when you are making the after sales service ?
TeXin engineer team can directly offer the customers with the techinical support online anytime customer need it.
How can i be a your distributor in our own country ?
For the TeXin distribution authorization,we can definitely offer it for some customer after the details negotiation, it depends on the real situation of each side.
