| Place of Origin: | Guang Dong china |
|---|---|
| Brand Name: | Texin |
| Model Number: | TEXIN-50W |
| Minimum Order Quantity: | 10 |
| Price: | negotiate |
| Delivery Time: | 5-8 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000per month |
| Brand: | TEXIN | Frequency: | 100-1000MHZ (Customized) |
|---|---|---|---|
| RF Distance: | 1.5-2 Km | Current: | 4A |
| Power: | 50w(customized) | Jammer Type: | UAV FPV Drone |
| Dimensions Of Device: | 177*84*26 | Packing: | Box |
| Working Temperature: | -40℃ To +80℃ | Gain: | 47dbm |
| Connector: | SMA | Weight: | 764g |
| Voltage: | 24V-28V | Material: | Aluminium |
| High Light: | 50W Power Amplifier Module,SMA Connector Power Amplifier Module,1.5-2 km Power Amplifier Module |
||

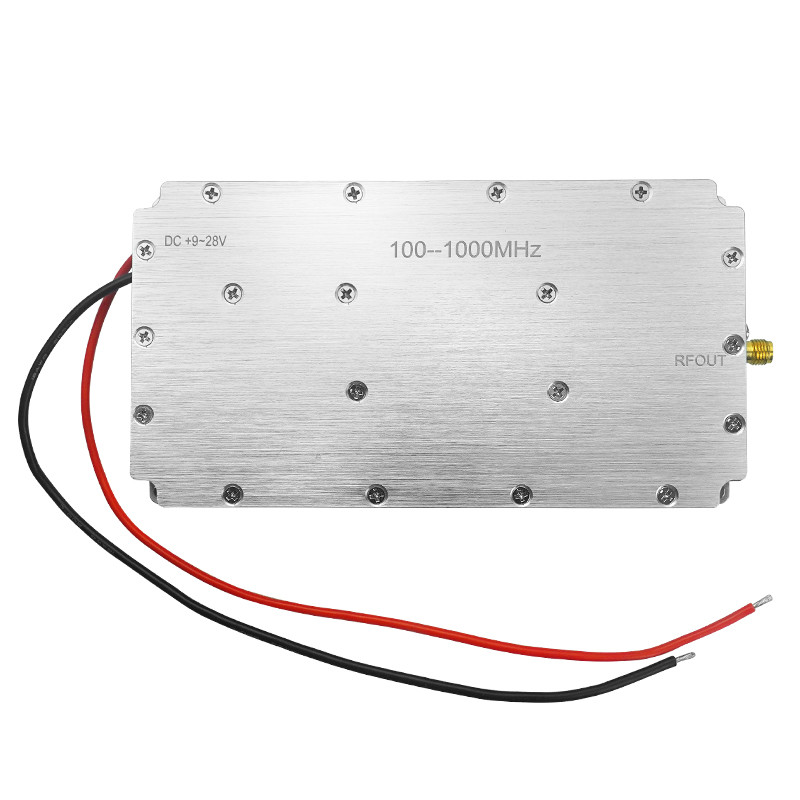

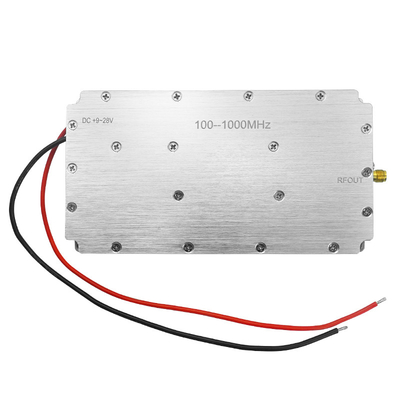

Newest designed customized bandwidth 50W power amplifier aluminium made of silver module 100-1000mhz
product Introduction
This product is no signal source version build ,the frequency band can over 900mhz,it is widely cover the multiple band .when you got it ,you can use in signal booster or communication area .This product customized bandwidth 50W power amplifier max power rech 50W,if you want more power offer the factory can satisfied you request.The product delicate and exquisite it is easy to carry.
Specification
| No. | Item | Data | Unit |
| 1 | Frequency | Customized | MHz |
| 2 | Test voltage | 24-28 | V |
| 3 | Current | 3 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | SMA / Female | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Standard input | 0-10DB | |
| 10 | Power supply wire | Red+Black+Enable wire | |
| 11 | Enable Control | High ON Low Off | |
| 12 | Out shell Size | 177*84*26 | mm |
| 13 | Mount hole | 170*78 | mm |
| 14 | Weight | 764 | g |
| 15 | Work Temperature | -40~+65 | ℃ |
| 16 | Out shell material | Aluminum | |
| 17 | Vibration need | Car load OK | |
Features
No-signal-source version that frequency band can over 700-1000mhz
Attention
FAQ
Are you a anti drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.
What is the customized frequency range and output power of the anti drone jammer module?
TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.
Can you show us the test photo and video of the FPV jammer module after we buy them?
yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
