High power 100W aluminium jammer module for air protection

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: TEXIN-100W
Minimum Order Quantity: 10
Price: US$170-245/pieces
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Detail Information
Brand: TEXIN Frequency: 400-2700MHZ (Customized)
RF Distance: 1.5-2 Km Current: 6.8-7.2A
Wide: 91mm Power: 100w(customized)
Jammer Type: FPV Drone Dimensions Of Device: 175*91*24mm
Packing: Box Working Temperature: -40℃ To +80℃
Gain: 50dbm Connector: N
Weight: 765 Voltage: 24V-28V

Product Description

High power 100W aluminium jammer module for air protection

product Introduction
The 100W high power aluminium wide 91MM using aluminium out shell ,strong heat resistance .And the jammer module takes circle protection ,light weight 765g it is easy to carry .Two electric wire with one of enable wire ,and when it under 28v the current support 10A,it can work at -40~+65℃ .

Specification


No.ItemDataUnit
1Frequency400-2700MHz
2Test voltage28V
3Current10A
4Output100W
5Gain50dB
6Output stability1dB

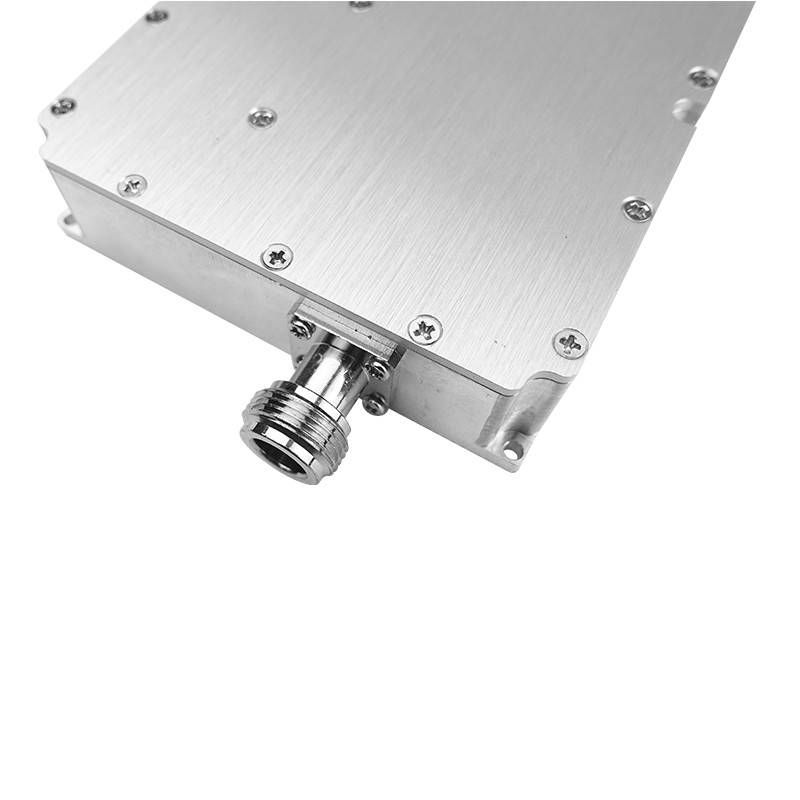

7ConnectorN / male
8Output connector VSWR≤1.30 (No power and VNA test)

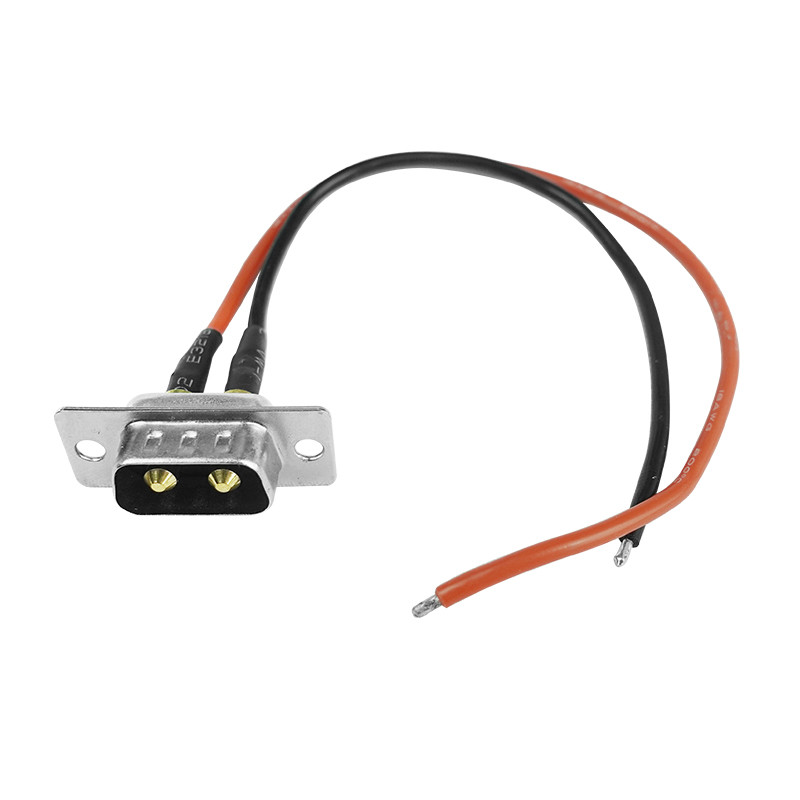

9Power supply wireRed+Black+Enable wire
10Enable ControlHigh ON Low Off
11Out shell Size175*91*24mm
12Mount hole86*171mm
13Weight765g
14Work Temperature-40~+65
15Out shell materialAluminum
16Vibration needCar load OK

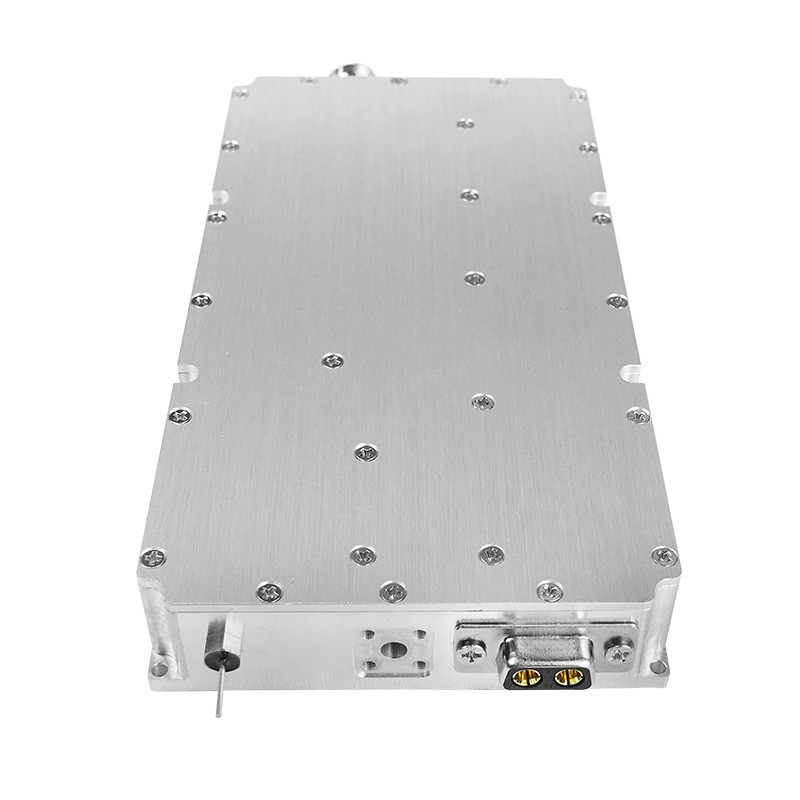

High power 100W aluminium  jammer module for air protection 0

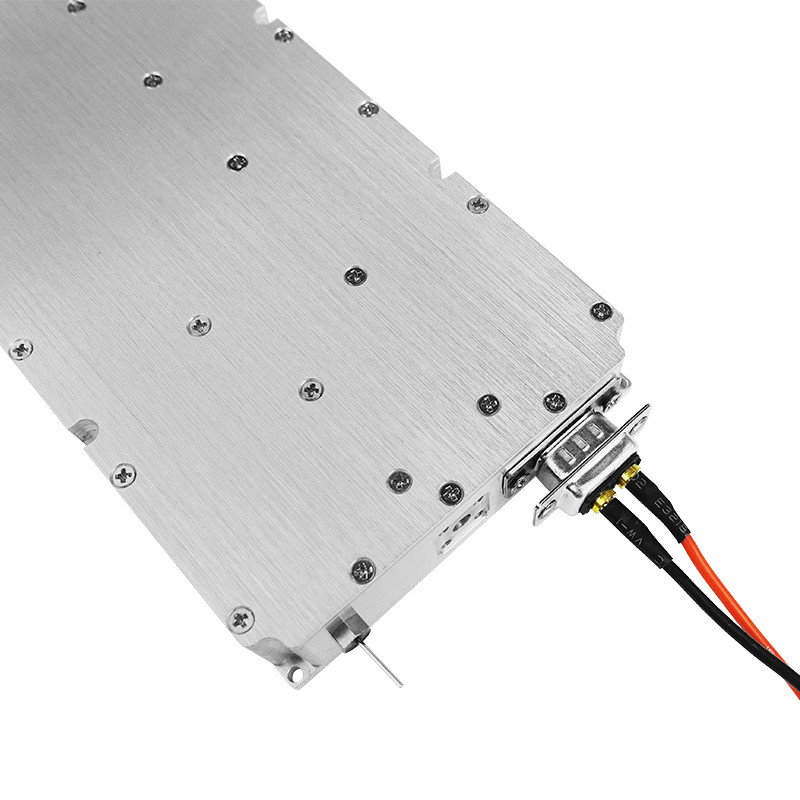

High power 100W aluminium  jammer module for air protection 1

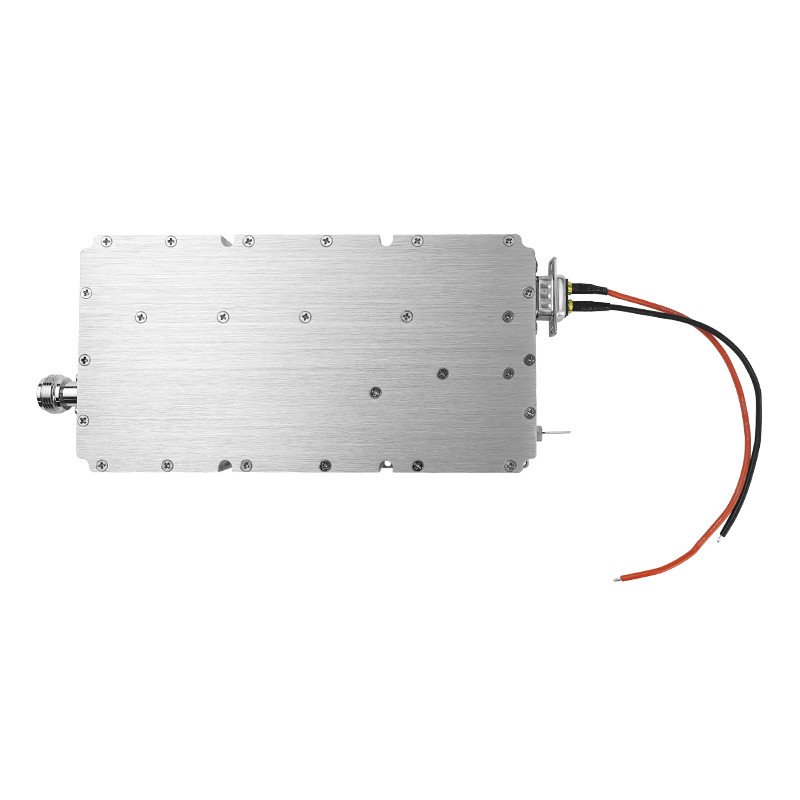

High power 100W aluminium  jammer module for air protection 2

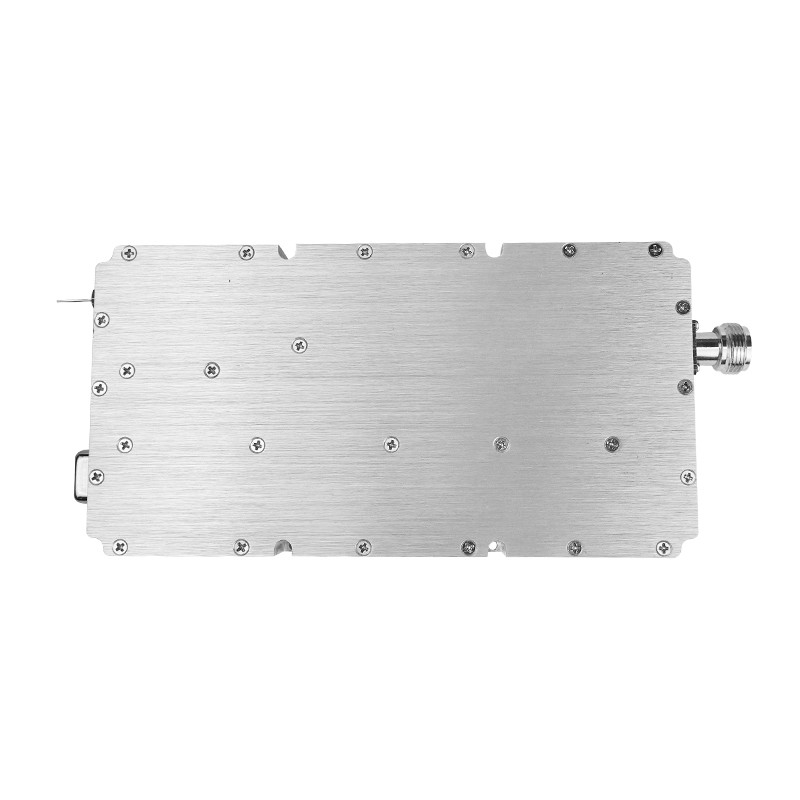

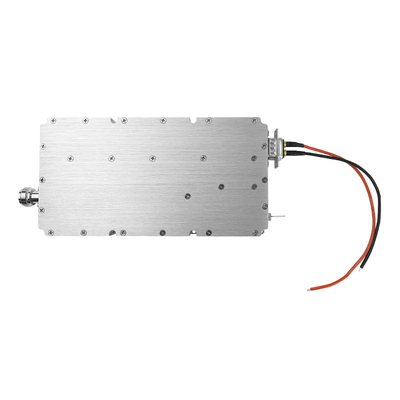

High power 100W aluminium  jammer module for air protection 3High power 100W aluminium  jammer module for air protection 4

Features

  • 400-2700mhz RF frequency offered
  • 100w out put low consumption
  • Aluminium shell waterproof and good heat dissipation
  • Industrial grade chips are used more efficiency to use
  • Circle protection inside

  • Advance technology designed and wide range to use

Attention

  • Use it before need test
  • when you connect power supply must related antenna
  • when you installed seperate close band module
  • when the out put power over high must matching cooling device

​FAQ

Are you a anti drone module and jammer manufacturer?

Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.

What is the customized frequency range and output power of the anti drone jammer module?

TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.

Can you show us the test photo and video of the FPV jammer module after we buy them?

yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
