Customized N connector 50W with circle protection jammer module for anti FPV

Basic Information
Place of Origin: Guang Dong china
Brand Name: Texin
Model Number: TEXIN-50W
Minimum Order Quantity: 10
Price: US$105-120/pieces
Delivery Time: 5-8
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000per month
Detail Information
Brand: TEXIN Frequency: 400-2700MHZ (Customized)
RF Distance: 1.5-2 Km Current: 3.5-4.5A
Chip: LDMOS Power: 50w(customized)
Jammer Type: WIFI ,drone ,FPV Dimensions Of Device: 145*54*25mm
Packing: Box Working Temperature: -40℃ To +80℃
Gain: 47dbm Connector: N
Weight: 396 Voltage: 24V-28V

Product Description

Customized N connector 50W with circle protection jammer module for anti FPV

product Introduction
This N type connector jammer module Exquisite appearance,supporting high power to jamming and when it under 28v the current about 4A ,it takes advance chips technology ,LDMOS material build in ,and cpare with common jammer module this product with circle protection .it offer temperature protection to jammer module ,when it operate  the working temperature up slowly at same time the effect has same influnence to jamming FPV drone .For users it provide multiple choice and low cost.

Specification



No.ItemDataUnit
1Frequency400-2700MHz
2Test voltage28V
3Current4.2A
4Output50W
5Gain47dB
6Output stability1dB
7ConnectorN / male
8Output connector VSWR≤1.30 (No power and VNA test)
9Power supply wireRed+Black+Enable wire
10Enable ControlHigh ON Low Off
11Out shell Size145*54*25mmmm
12Mount hole48*139mm
13Weight396g
14Work Temperature-40~+65
15Out shell materialAluminum
16Vibration needCar load OK

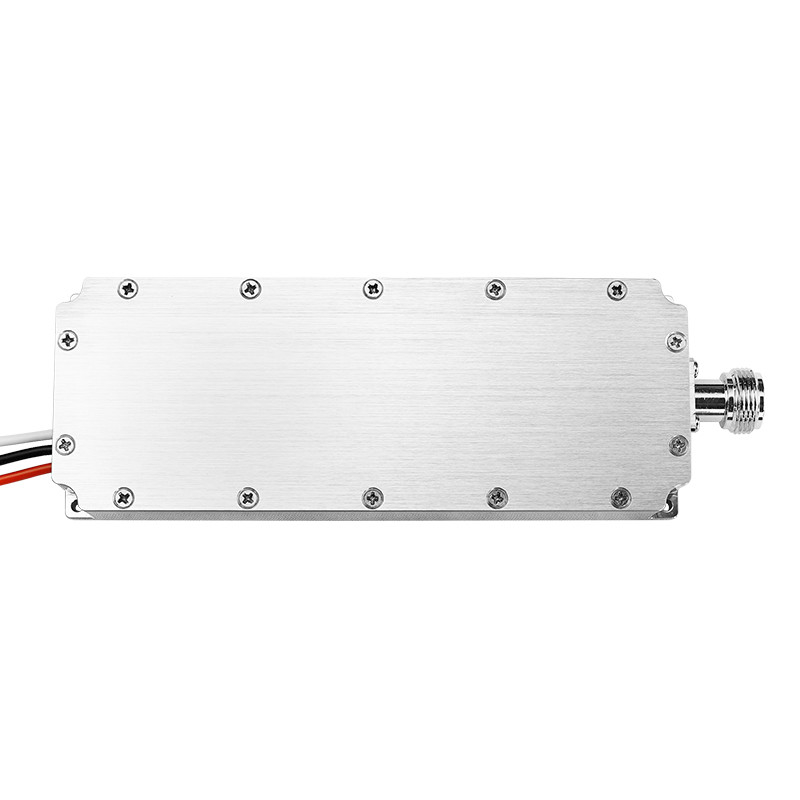

Customized N connector 50W with circle protection jammer module for anti FPV 0

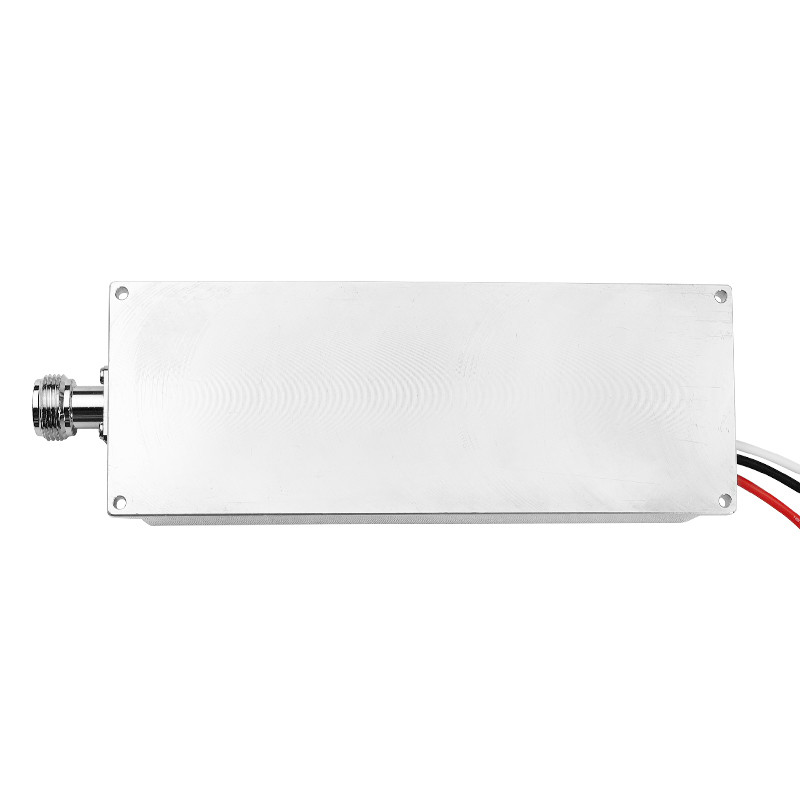

 Customized N connector 50W with circle protection jammer module for anti FPV 1

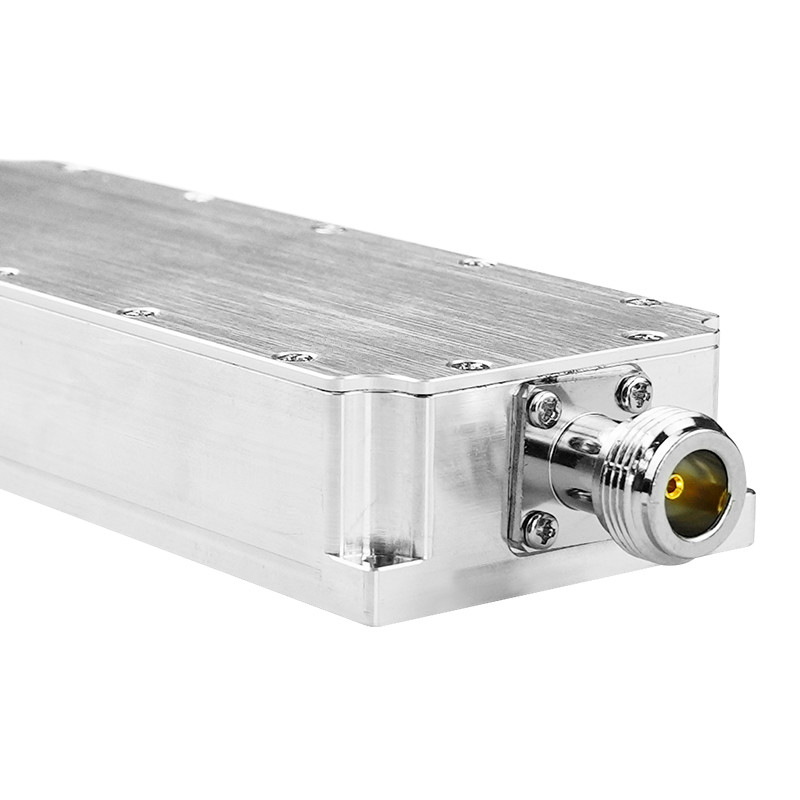

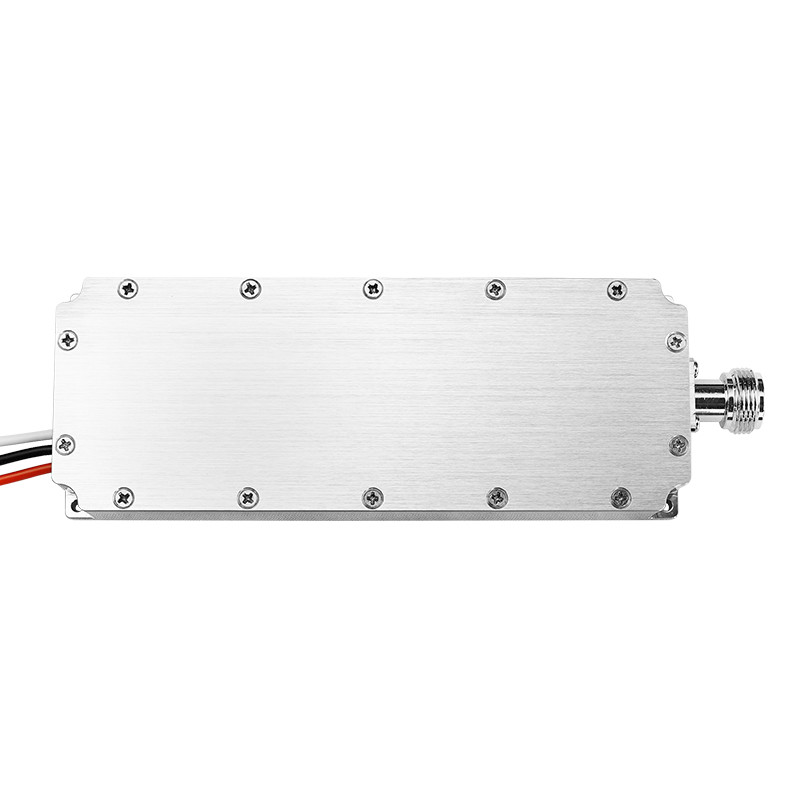

Customized N connector 50W with circle protection jammer module for anti FPV 2Customized N connector 50W with circle protection jammer module for anti FPV 3

Features

  • 400-2700mhz RF frequency offered
  • 50w-70W out put low consumption
  • Aluminium shell waterproof and good heat dissipation
  • Industrial grade chips are used more efficiency to use
  • Circle protection inside

  • Advance technology designed and wide range to use

Attention

  • Use it before need test
  • when you connect power supply must related antenna
  • when you installed seperate close band module
  • when the out put power over high must matching cooling device

​FAQ

Are you a anti drone module and jammer manufacturer?

Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.

What is the customized frequency range and output power of the anti drone jammer module?

TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.

Can you show us the test photo and video of the FPV jammer module after we buy them?

yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
