Brand: | TEXIN | Frequency: | 400-2700MHZ (Customized) |
---|---|---|---|
RF Distance: | 1.5-2 Km | Outshell: | Aluminium |
Chip: | LDMOS | Power: | 50w(customized) |
Jammer Type: | WIFI ,drone ,FPV | Dimensions Of Device: | 132*53*20mm |
Packing: | Box | Working Temperature: | -40℃ To +80℃ |
Gain: | 47dbm | Connector: | N |
Weight: | 358g | ||
Highlight: | FPV RF amplifier jammer module,400-2700MHZ RF amplifier jammer module,50W RF amplifier jammer module |

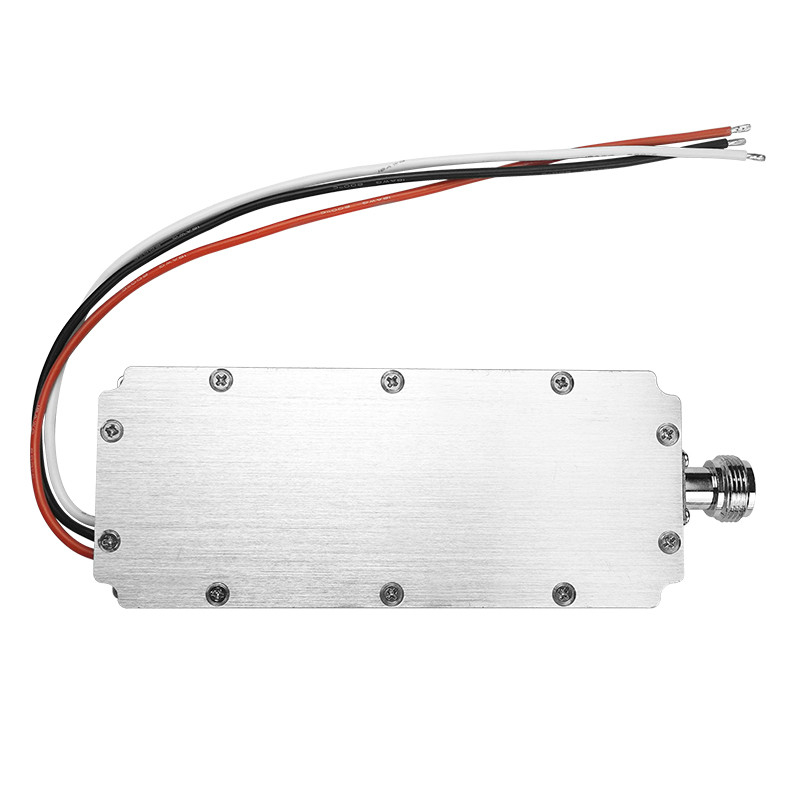

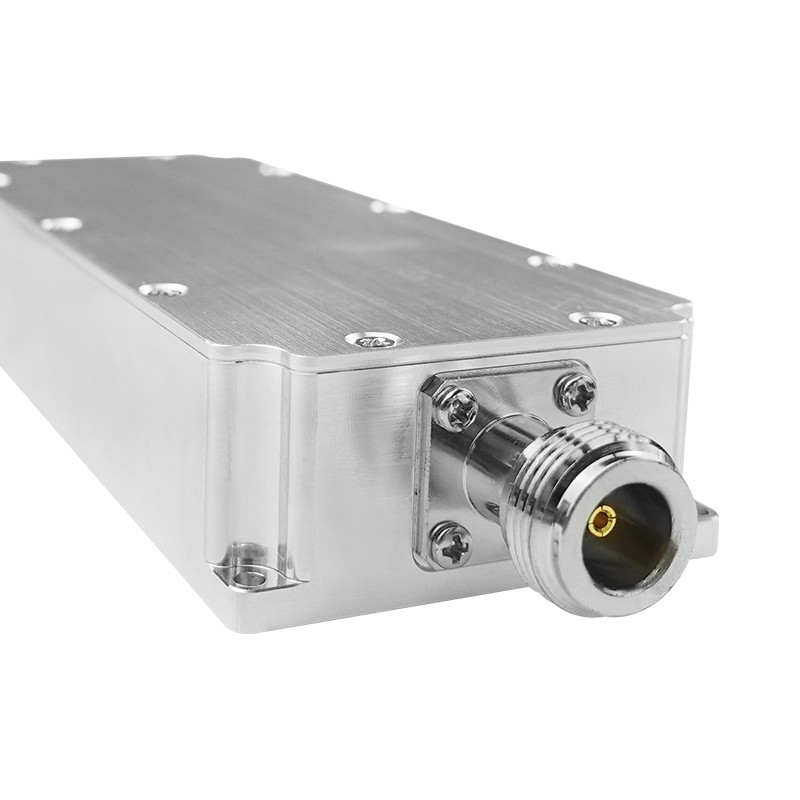

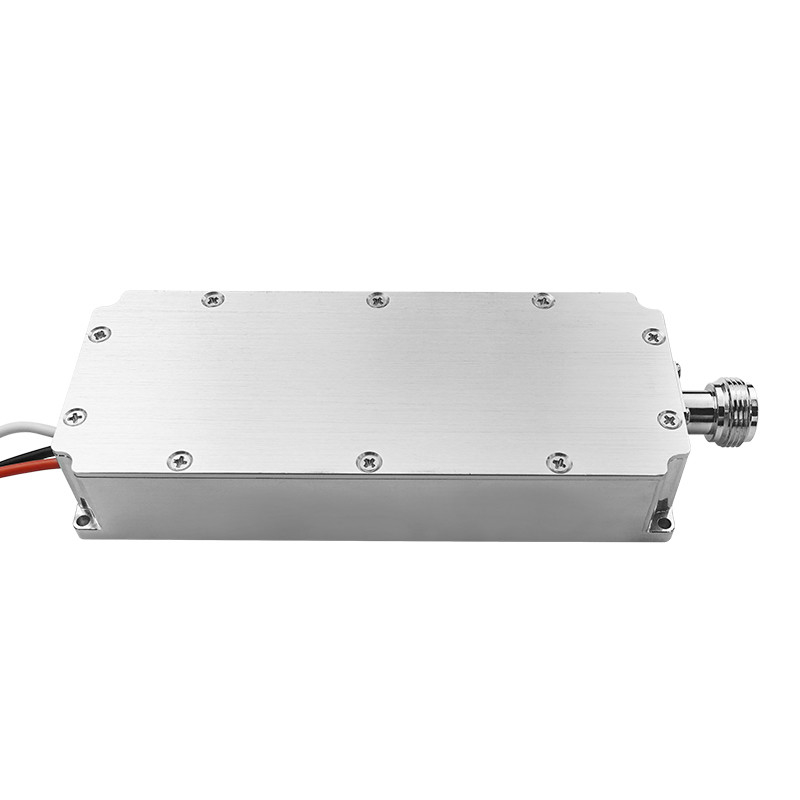

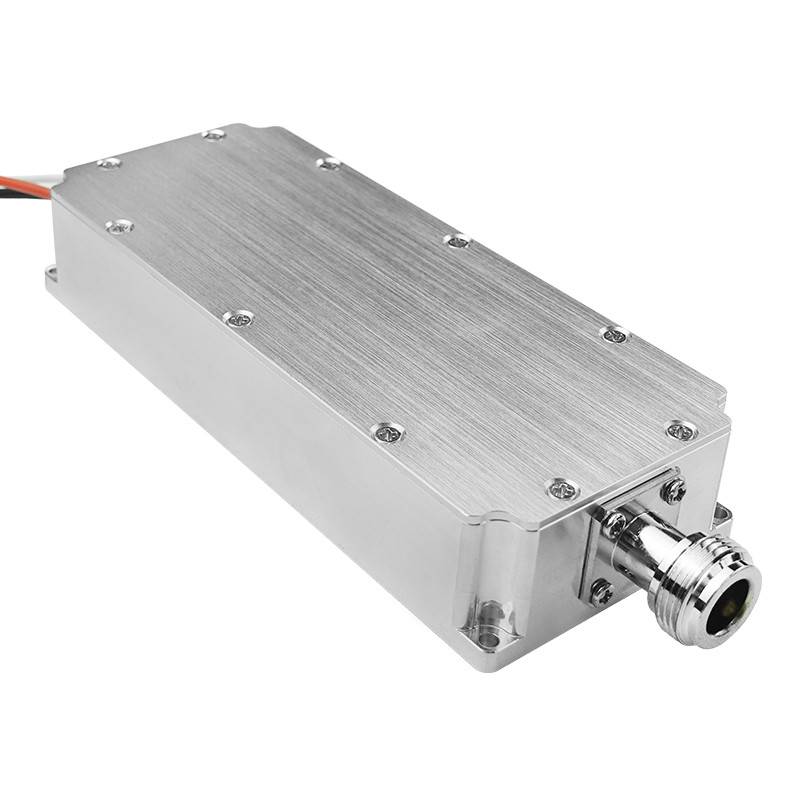

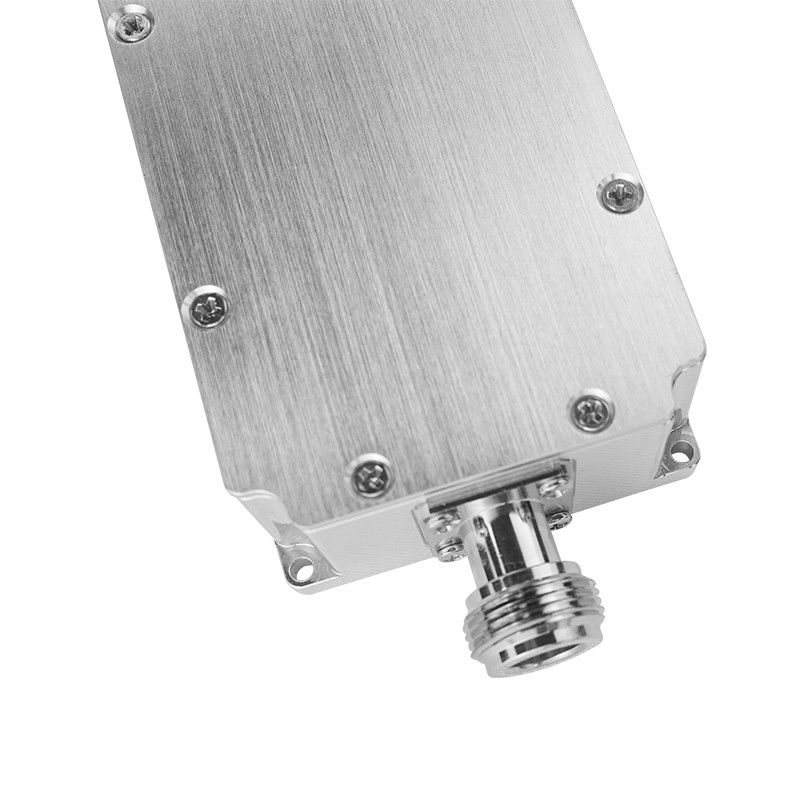

400-2700MHZ 50W N type RF amplifier jammer module for anti drone FPV
product Introduction
This 50W N type jammer module wide 53mm the connector takes N connector it support high power input .Light weight 358g easy to carry and portable to install ,the solution adopt LDMOS material that is more efficiency and long range RF ,and the module Bandwidth flat,
Output signal stationary,frequency band support 400-2700MHZ.Researches show that the 400-2700mhz 50w N type jammer module is efficient for anti 97% FPV in the market.
Specification
No. | Item | Data | Unit |
1 | Frequency | 400-2700 | MHz |
2 | Test voltage | 28 | V |
3 | Current | 4.2 | A |
4 | Output | 50 | W |
5 | Gain | 47 | dB |
6 | Output stability | 1 | dB |
7 | Connector | N / male | |
8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
9 | Power supply wire | Red+Black+Enable wire | |
10 | Enable Control | High ON Low Off | |
11 | Out shell Size | 132*53*20mm | mm |
12 | Mount hole | 48*126 | mm |
13 | Weight | 358 | g |
14 | Work Temperature | -40~+65 | ℃ |
15 | Out shell material | Aluminum | |
16 | Vibration need | Car load OK |
Features
mini type portable install
Advance technology designed and wide range to use
Attention
FAQ
Are you a anti drone module and jammer manufacturer?
Shenzhen TeXin Electronic Co., Ltd. is over 10 year history in China, we self develop and produce the high tech and professional anti drone module,anti drone signal jammer and the drone detector, we offer the antenna, heat sink, power supply too.
What is the customized frequency range and output power of the anti drone jammer module?
TeXin anti drone module is usually 5W to 300W output customized with frequency range 100MHz to 6300MHz, and the usual band width is about 200MHz, for example, 2300-2500MHz; we can customize them according to customer specific need if not in those range.
Can you show us the test photo and video of the FPV jammer module after we buy them?
yes, TeXin will take the photo and video of sample and mass production assembly and test before delivery as customer need.
