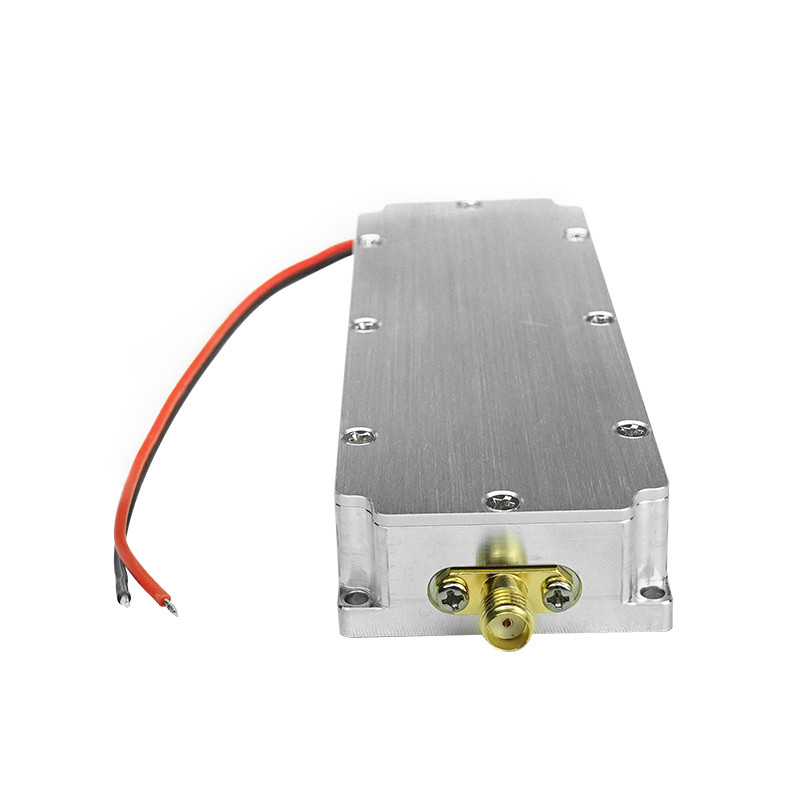

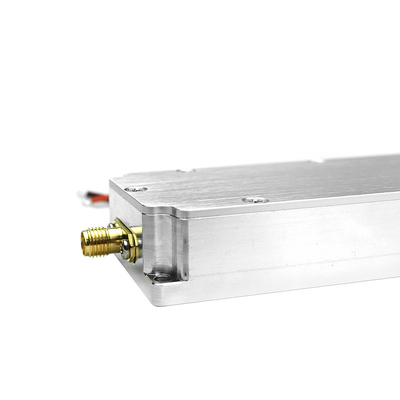

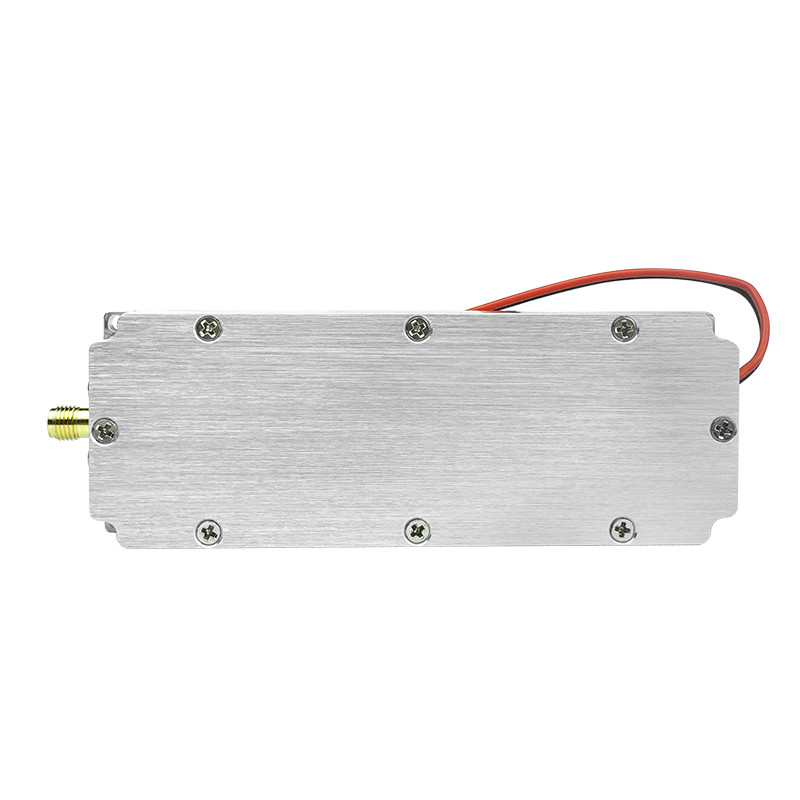

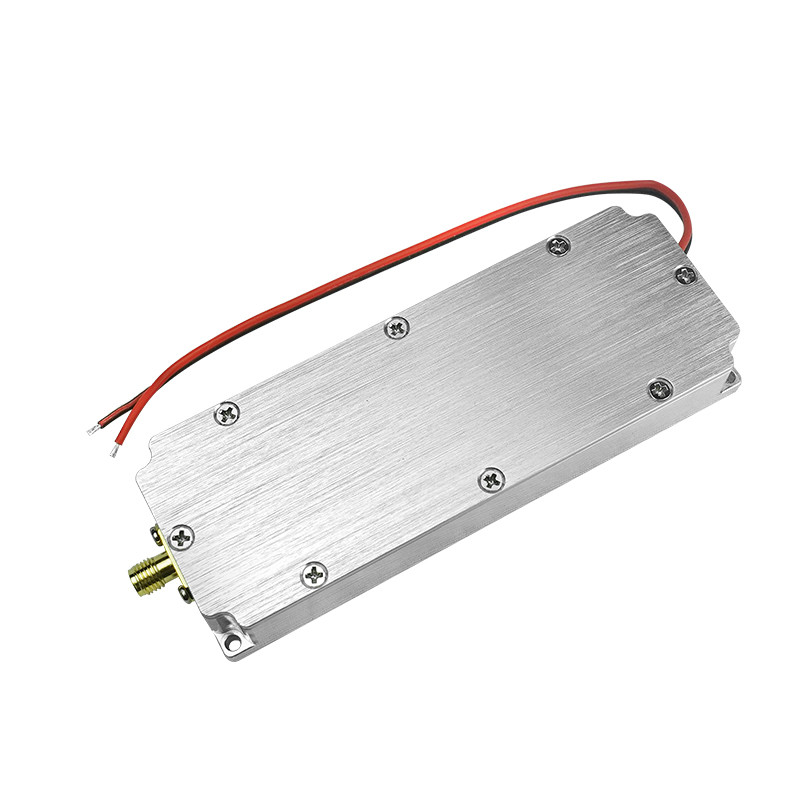

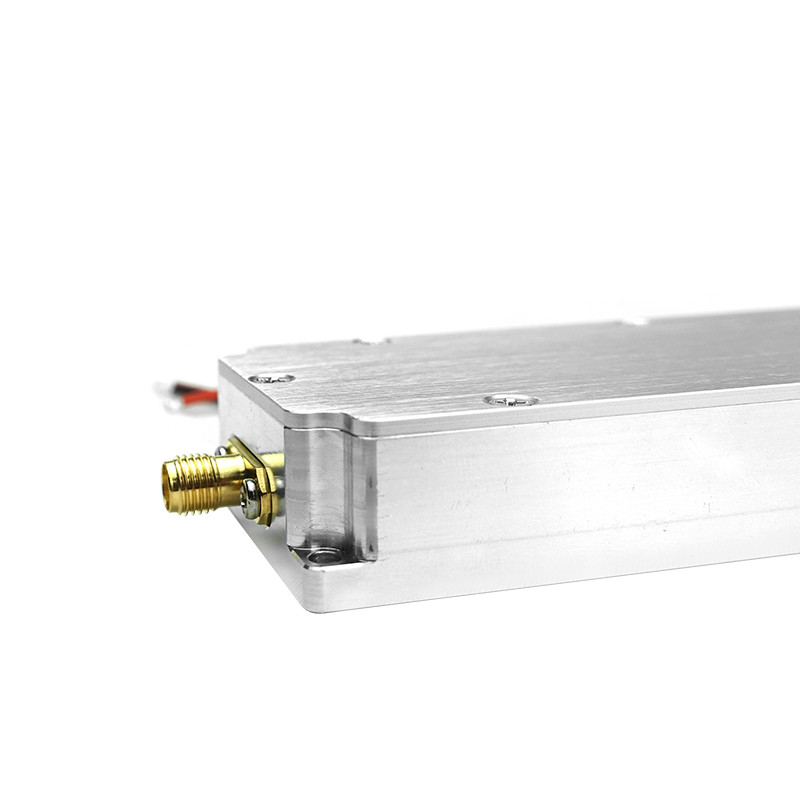

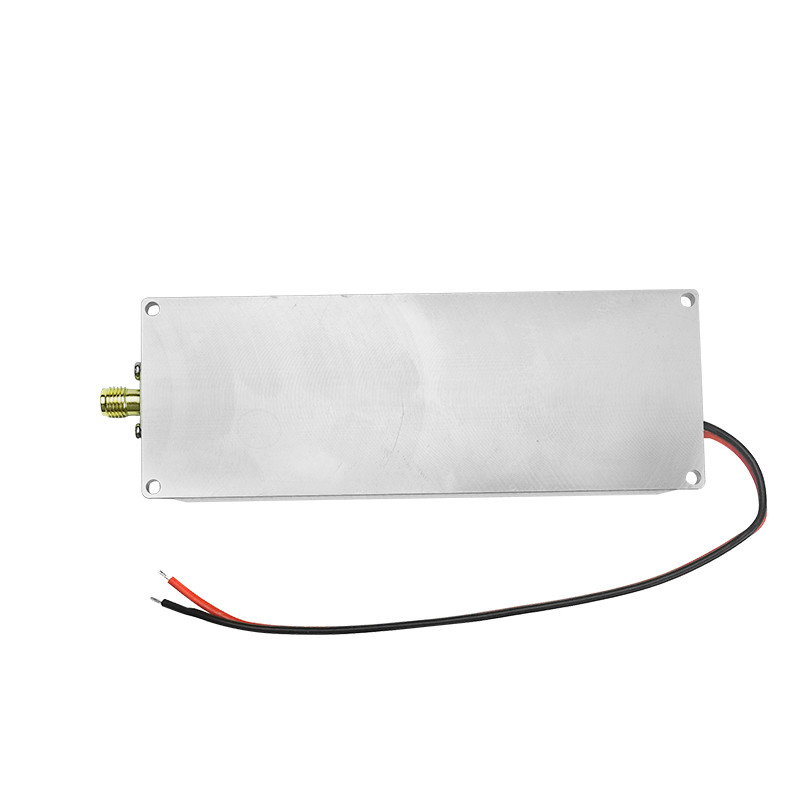

20w 400-2700mhz rf drone jammer module customized with dimensions of device 110*40*16mm

Basic Information

Place of Origin:	Guang Dong china
Brand Name:	Texin
Model Number:	TEXIN-20W

Minimum Order Quantity:	10
Price:	US$70-80/pieces
Delivery Time:	5-8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000per month

Get Best Price Contact Now

Detail Information

Brand:	TEXIN	Frequency:	400-2700MHZ (Customized)
RF Distance:	1.5-2 Km	Outshell:	Aluminium
Chip:	Industrial Grade	Power:	20w(customized)
Jammer Type:	High Power Outdoor Drone Jammer Module	Dimensions Of Device:	1104016mm
Customied:	Multi Band Frequency	Packing:	Box
Working Temperature:	-40℃ To +80℃	Gain:	43dbm
Highlight:	20w rf drone jammer module , 2700mhz rf drone jammer module

Product Description

Out put 20W 400-2700mhz RF drone jammer module

product Introduction

The product power output 20w ,Using technical grade chips that can operate under complex electromagnetic wave stably.the S type connector takes Copper plating technique which makes current smooth.High efficiency signal emit that strong interfere to air drone ,RF frequency 400-2700 mhz we can recomand customized .

Specification

No.	Item	Data	Unit
1	Frequency	400-1700	MHz
2	Test voltage	28	V
3	Current	1.9	A
4	Output	20	W
5	Gain	43	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1104016mm	mm
12	Mount hole	35*104	mm
13	Weight	121	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK

20w 400-2700mhz rf drone jammer module customized with dimensions of device 110*40*16mm 0

Features

400-2700mhz RF frequency offered
20w out put low consumption
Aluminium shell waterproof and good heat dissipation
Industrial grade chips are used more efficiency to use
mini type portable install
Advance technology designed and wide range to use

Attention

Use it before need test
when you connect power supply must related antenna
when you installed seperate close band module
when the out put power over high must matching cooling device
