Detail Information

Brand:	Texin	Application:	Drone FPV Protection
Type:	Blocker Module	Output:	10W,Customized
Operate Voltage:	12-31V	Color:	Silver (Customized)
Linear Output:	40dBm	Gain:	<=16
Size:	128mm59mm15mm
Highlight:	Anti Drone RF amplifier , 10W RF amplifier , Linear Image Transfer RF amplifier

Product Description

Product description

1420~1470MH is a bothway frequency for TDD,the one is transmition another is reception.the product is specially designed for TDD.And it reach the status of bothway RFamplifier.the product take single wave control skill,which has high power defense and working distance transmit in sky.it connect with DSSS and OFDM techniques of booster frequency.which can expend RF distance immediately instead of the device tranmit rate not changed.

Working place request

a.Temp:-40～+70℃

b.Working humidity:5%～95%,non-condensing

c.barometric pressure:(70～106)kPa

d.Hot and humid condition:It can work in high temperature and high relative humidity environment where the temperature is not less than 40℃ and the relative humidity is not less than 95%

e.storage condition:-40～+125℃

f.Storagehumidity:5%～98%non-condensing

sepcification

function	sepcification	min	mid	max	unit
general requirement	Bothway	TDD
	frequency	1420		1470	MHZ	Customized
	voltage	12	24	31	V
	temp	-40		70	℃
RF way	RF gain	10	20	32	dB	Customized
	output		48		dBm
	Linear output		40		dBm	EVM<3%
	EVM@Pout=40dBm		-30		dB	OFDM 64QAM BW 20MHz
	Inside wave		0.6	1	dB
	Working current		1.6	1.8	A	@Pout=40dBm, VCC=24V
	Switching delay			2.5	us
	Twice harmonic	-65		-50	dBc
	Third harmonic			-60	dBc
Recept way	Recept gain	0	5	16	dB
	Working current		60		dB	Contain fan current
	loud		2.5		dB
	Inside wave			0.3	dB

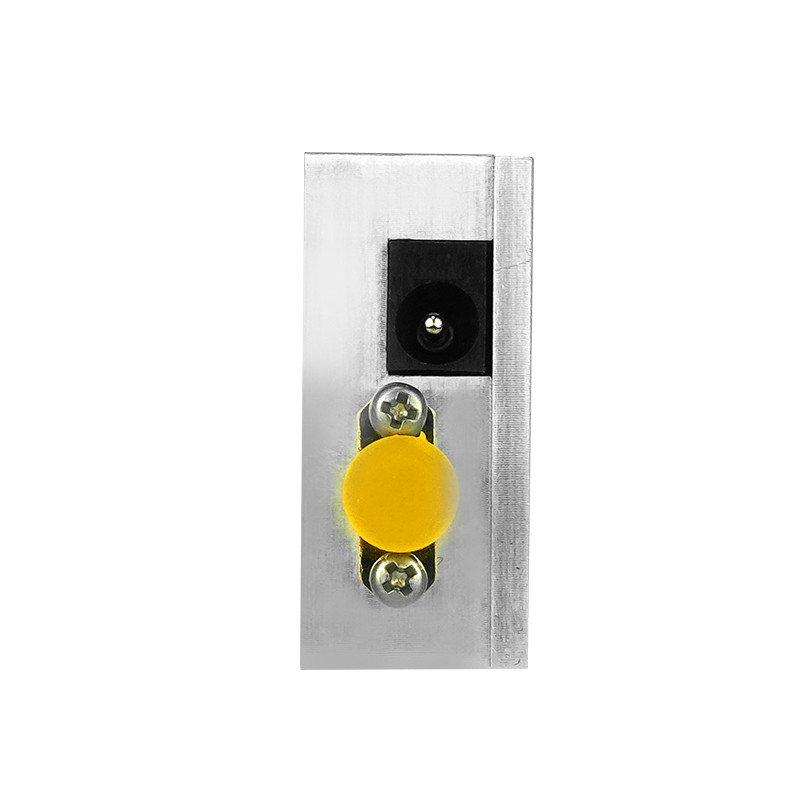

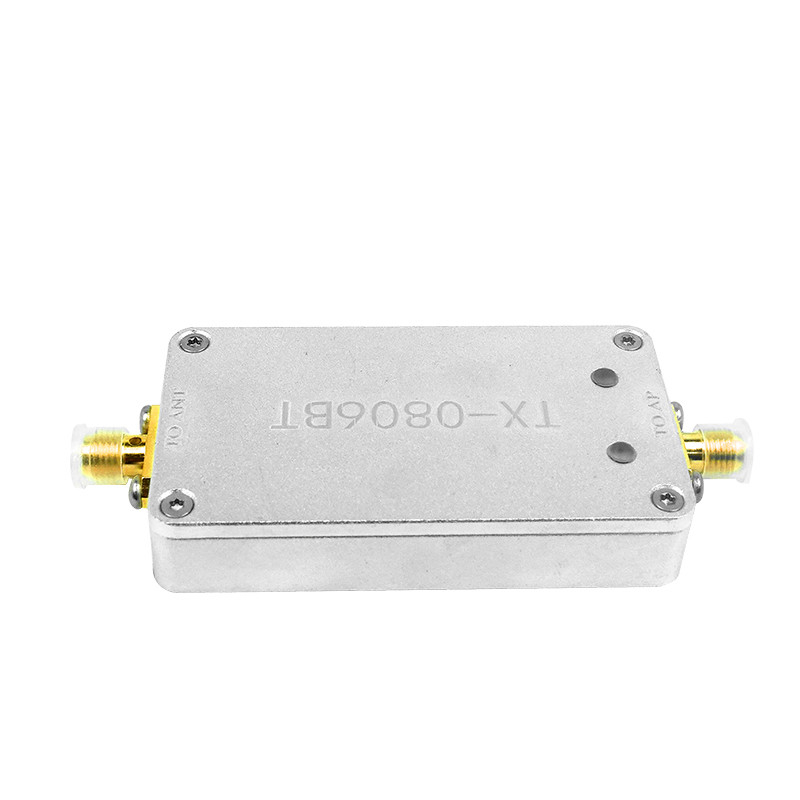

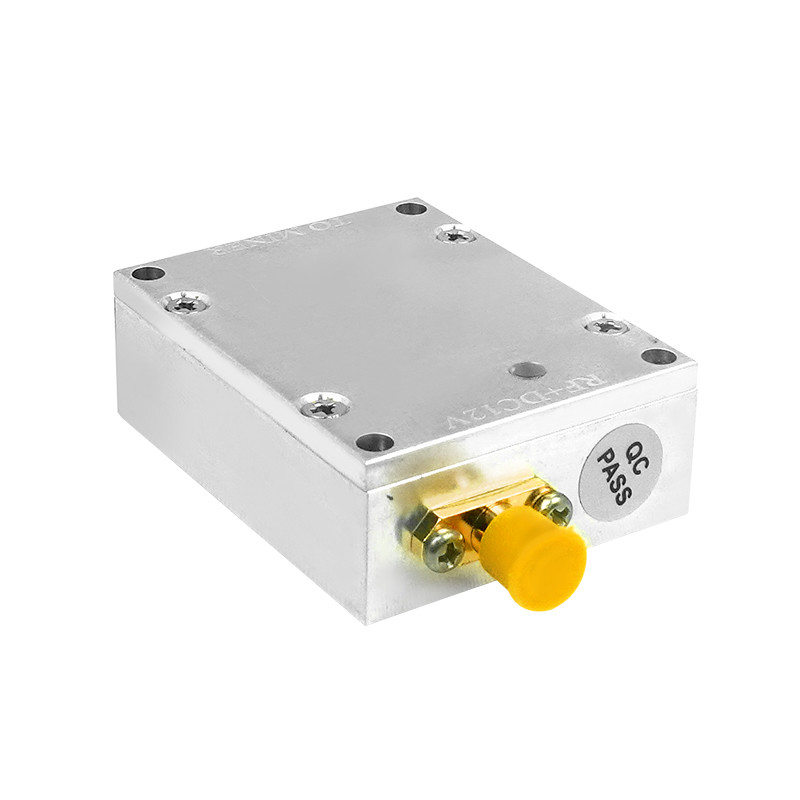

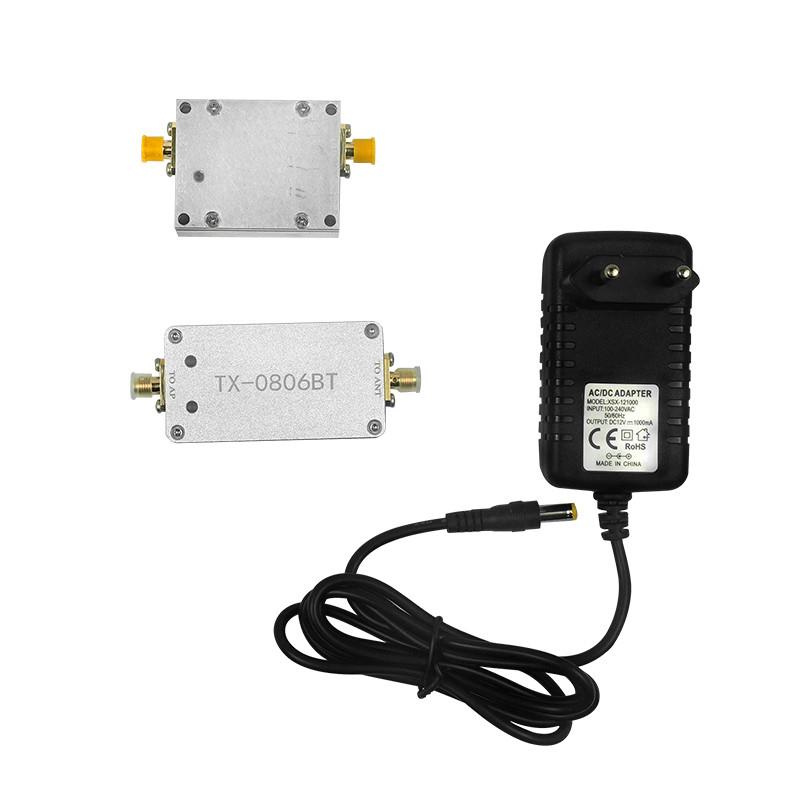

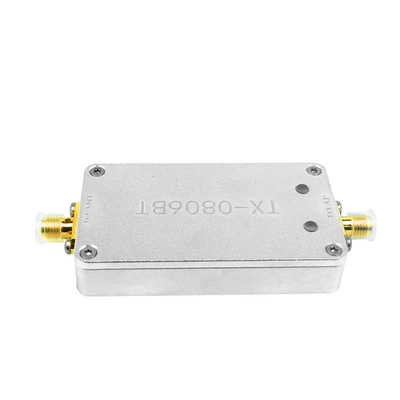

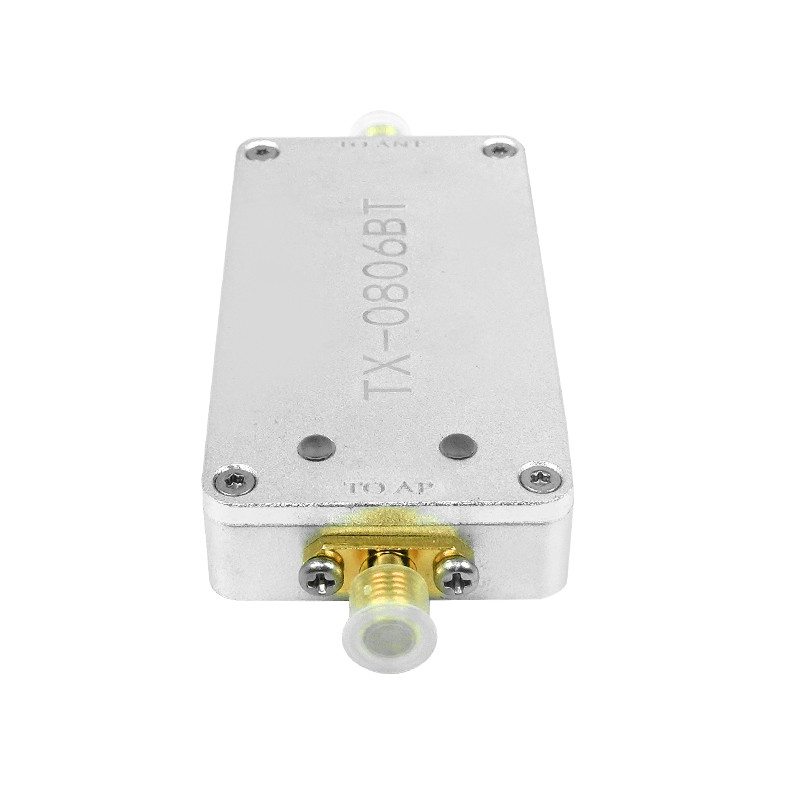

1420~1470MHZ 10W RF Amplifier Linear Image Transfer TDD Bothway For Anti Drone 1

ABOUT US

Shenzhen TeXin Electronics Co., Ltd is an innovative developer and producer of the anti drone product, RF shield module, phoneWiFi/GPS shield device, antenna, etc.Shenzhen TeXin Electronics is a famous conpany which develop signal repeater .it has much product can be customized.such as WIFI2g/3g/4g/5g signal repeater.and nowadays the most popular Anti drone source we have provide.and the most important is that we have factory which is located in shen zhen .

Tag:

Place of Origin:	Guang Dong china
Brand Name:	Texin
Model Number:	THSA27010SR

Minimum Order Quantity:	2/pieces
Price:	US$150-180/pieces
Packaging Details:	151810cm/0.5kg
Delivery Time:	5-8
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000per month
