| Place of Origin: | China |
|---|---|
| Brand Name: | TX TELSIG |
| Certification: | ISO |
| Model Number: | TX2445 |
| Minimum Order Quantity: | 1 pcs |
| Packaging Details: | Durable case or box |
| Delivery Time: | within 3 work days |
| Payment Terms: | L/C, T/T, |
| High Light: | UAV Signal Jammer Module,Aluminum Interface Signal Jammer Module,2.4G Signal Jammer Module |
||
|---|---|---|---|

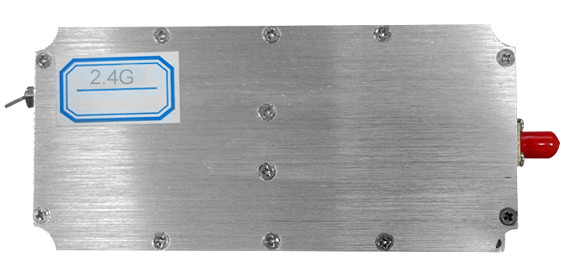

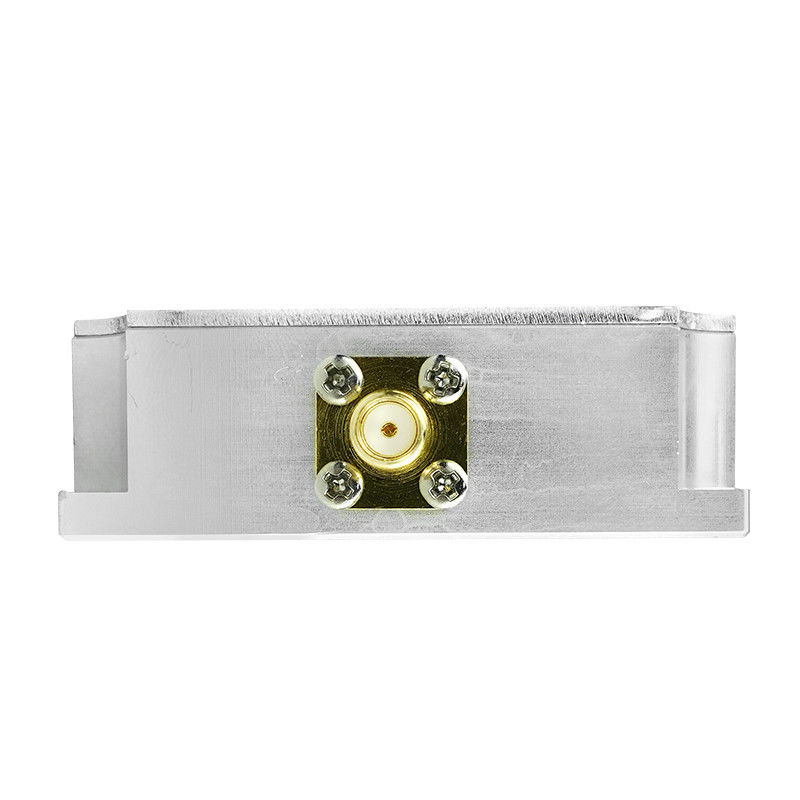

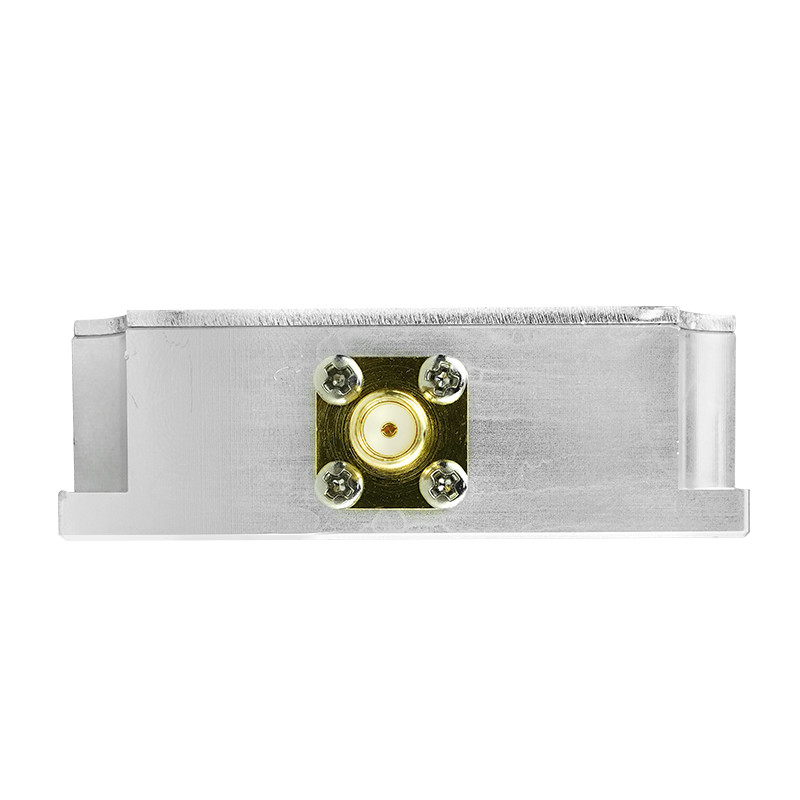

30W 45 dBm 2.4G UAV Signal Jammer Module
1.Product Feature
Independent R&D capability Source factory Customizable Reliable after-sales service
TX2445 is a special information security module for blocking UAV picture transmission/remote control signal transmission. This module has the advantages of all aluminum interface,, sufficient power, good flatness in the band, small offset of upper and lower sideband and so on. The product has the running indicator LED light, with VCO efficient sweep interference source, temperature drift is very small, and the power supply through the core capacitor is stable and reliable. The application of convenient frequency hopping UAV countermeasure effect is good.
2.Main performance index
| Index | Numerical value | Unit | Note | ||
| Min | Typical | Max | |||
| Signal frequency | 2400 | 2500 | MHz | ||
| Output power | 44.5 | 45 | 45.5 | dBm | |
| Band flatness | 1 | dB | |||
| Work current | 3.1 | A |
|
||
| Work voltage | 28 | 32 | V | ||
| Work efficiency | 38 | % | |||
| Thermally offset of upper band | 8 | MHz | Module surface temperature: 85°C | ||
| Thermally offset of bottom band | 8 | MHz | Module surface temperature: 85°C | ||
| Weight | 0.22kg | ||||
| Dimension | 131*60*18 mm | ||||
|
Note: 1. The positive terminal is connected to the core capacitor, and the negative terminal is connected to the edge of the shell 2. Connect the power when the antenna is connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range |
|||||
3.Dimension
4.Test diagram
