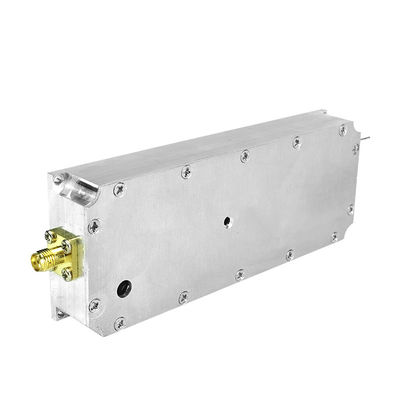

5.8G UAV Signal Jammer Module 10W 40 DBM RF Jammer Module Customized

Basic Information

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	ISO9001
Model Number:	TX-10

Minimum Order Quantity:	1
Packaging Details:	Durable case or box
Delivery Time:	3-7 work days
Payment Terms:	L/C, T/T,

Get Best Price Contact Now

Detail Information

Highlight:

Customized Signal Jammer Module

5.8G Signal Jammer Module

UAV RF Jammer Module

Product Description

5.8G UAV Signal Jammer Module 10W 40 DBM

Detail Information

Max Output:50W (47dBm) Voltage: Customized

Product Size:132*53*18mm Net weight: 0.28KG

High Light:10W Signal Jammer Module, RF Jammer Module

Product Description

Working frequency band: 5.7~5.9GHz
Working voltage: 24V
Maximum output power (P1dB): 50W (47dBm)
Working current: 1500mA@Pout 47dBm24V
Average efficiency: 40%
Working temperature: -20℃～60℃

Common bands 0-5W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	430-450/860-873/ 902-928/1100-1300 1560-1620/2400-2500/customize	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	5W/10W	W
4	Work Voltage	DC24	V
5	Max Gain	37/40dBm	dB
6	Flatness	±1	dB
7	Max Current	0.5/1	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω
10	Power Amplifier Efficiency	40	%
11	Switch Control	high low level current	V
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃
14	Size	904818	mm
15	Weight	0.2	Kg

5.8G UAV Signal Jammer Module 10W 40 DBM RF Jammer Module Customized 0

5.8G UAV Signal Jammer Module 10W 40 DBM RF Jammer Module Customized 1
