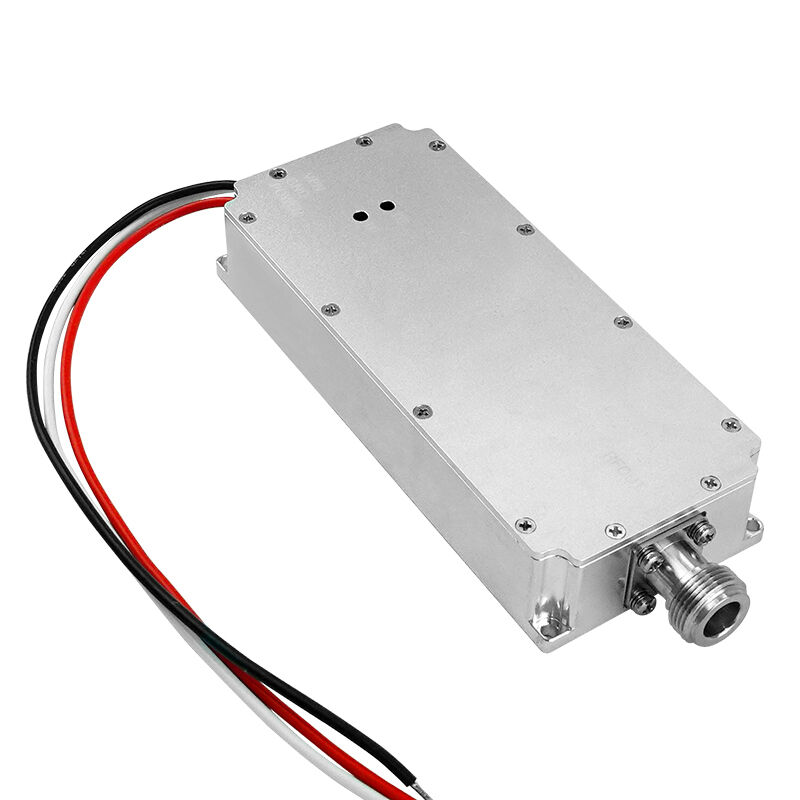

ultral band 400-700mhz 100W 28V GaN anti drone signal Jammer module for key location protection
TX- -S050400700 It is a high power 100W 28V voltage supply anti drone signal jammer module ,the jammer module cover range frequency band 400-700mhz in one module .It can jamming the 90% fpv drone in market .Mostly applicat in key area like school ,city center ,government to prevent illege drone to steal our privacy and harming our security.
The TX- -S050400700 is highly efficient to jamming the drone which signal 400-700mhz .But if need other frequency like 2400mhz 5200mhz 5800mhz that also available .TeXin is a manufacture which more than 10years in wireless RF signal field ,we support unique anti drone solution and the anti drone products can be customized .
Product Features:
* High power 100W with good shielding performance, and It can effectively cut off the drone's transmission channel.
* Built-in GaN chip, High efficiency and low consumption, fast shielding can be achieved by connecting to the power supply；
* Light weight portable to carry , and placed in key area can keep safety；
* Under the influence of the base station, the shielding range is relatively larger;
* High efficiency, high precision, only shielding drone signal , will not cause any damage to shielding equipment and base stations;
* Aluminum alloy shell design, pressure-resistant, heat-resistant, waterproof;
* Green and environmentally friendly, no harm to human health.
It can effectively shield 400-700mhz ,and other wireless signal bands . We can customize shielded frequency bands according to your needs and national frequencies
specifications:
| 400-700MHz 100W RF Power Amplifier Specification |
| No. |
Item |
Data |
Unit |
Notes |
| 1 |
Frequency |
400-700 |
MHZ |
|
| 2 |
Work Temperature |
-20~+70 |
℃ |
|
| 3 |
Max Output Power |
100 |
W |
|
| 4 |
Work Voltage |
DC24-28 |
V |
|
| 5 |
Max Gain |
50 |
dB |
|
| 6 |
Flatness |
±1 |
dB |
|
| 7 |
Max Current |
6 |
A |
|
| 8 |
Output VSWR |
≤1.5 |
|
|
| 9 |
Output Connector |
SMA/F 50Ω |
|
Customized |
| 10 |
Power Amplifier Efficiency |
45 |
|
when Max Output |
| 11 |
Switch Control |
high low
level current |
V |
0V off /0.6 on |
| 12 |
Standing Wave Protection |
OK |
|
|
| 13 |
Temperature Protection |
75° |
℃ |
|
| 14 |

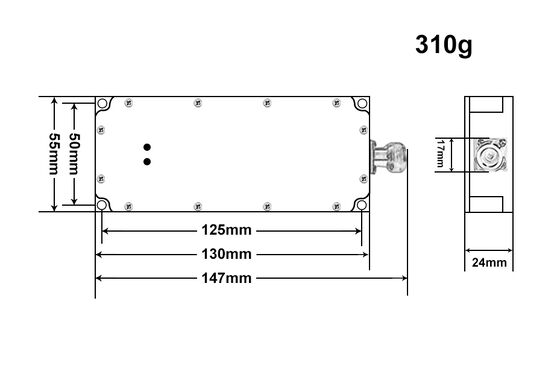

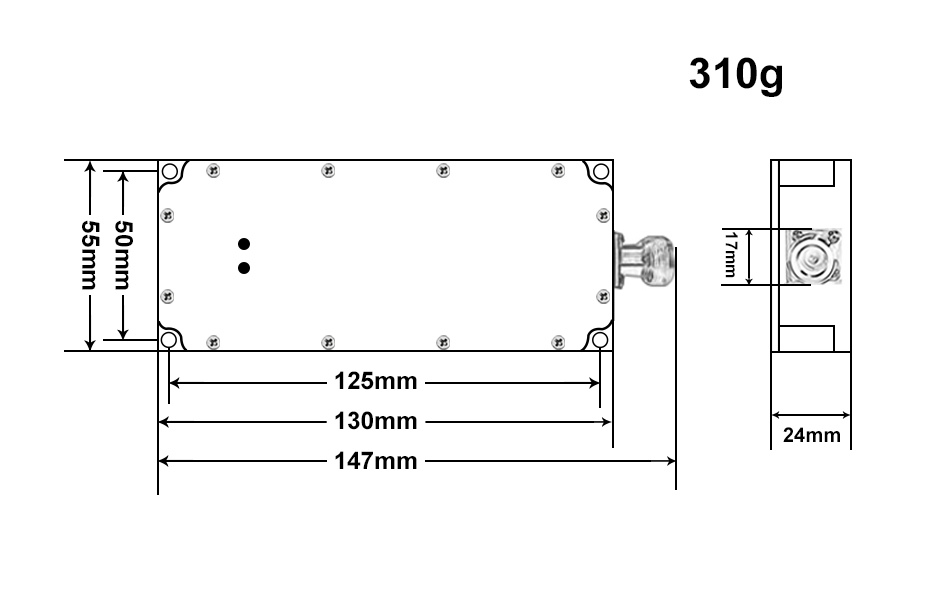

Size |
130*55*24 |
mm |
|
| 15 |
Weight |
0.31 |
Kg |
|
Applications :
* It can be used in places where the use of dorne fpv is prohibited, such as examination rooms, courts, gas stations, etc;
* High-power shielding performance is more suitable for uniform use in prisons;
* It can be used to drone and WiFi signals at home to prevent children from indulging in the Internet;
* Can block drone and positioning equipment.
Pictures:
