TX long range 50W ldmos circulator S band gps GNSS signal blocker rf anti drone jammer module

TX long range 50W ldmos circulator S band gps GNSS signal blocker rf anti drone jammer module

TX-S050L anti drone jammer module  is long distance high efficitive  RF output power to shield drone signal  800mhz 900mhz 2400mhz 5200mhz 5800mhz ,etc. And the jamming distance is up to100-1000 square meters ,which depends on the real environment and drone signal jammer system .can be applied for family ,  workplace , library , class rooom , examination room ,prison, etc .

Product Feature
1. LDMOS chips support high output 50W
2.Using Aluminum alloy shell to endure high temperature environment
3. Circulator designed that can protection with high power operating

4. Jamming signal bands support customization according to personal requests

5. Shielding distance and range can install by self very convenient .

Attention

 1.Power supply better carry about 28V 6.75A when itself 4.5A for its stable work

2.Heat dissipation measure is necessary including the thermal glue, suitable-size heat sink and cooling fans

3. Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

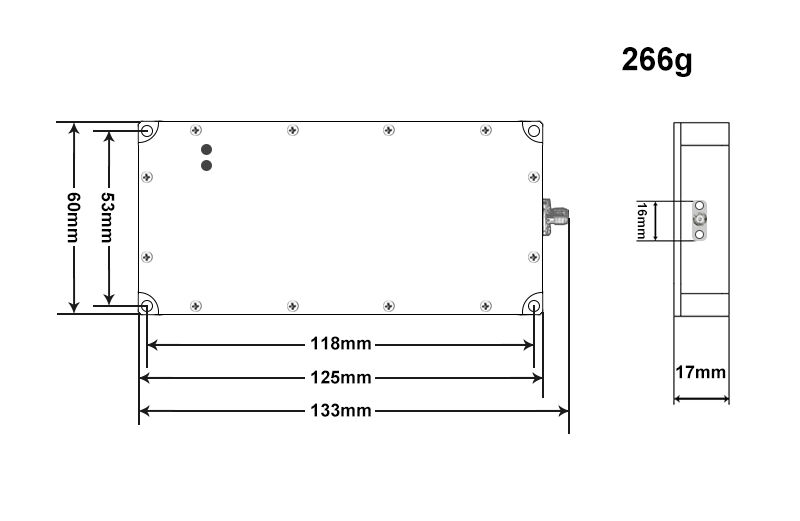

Specifications :

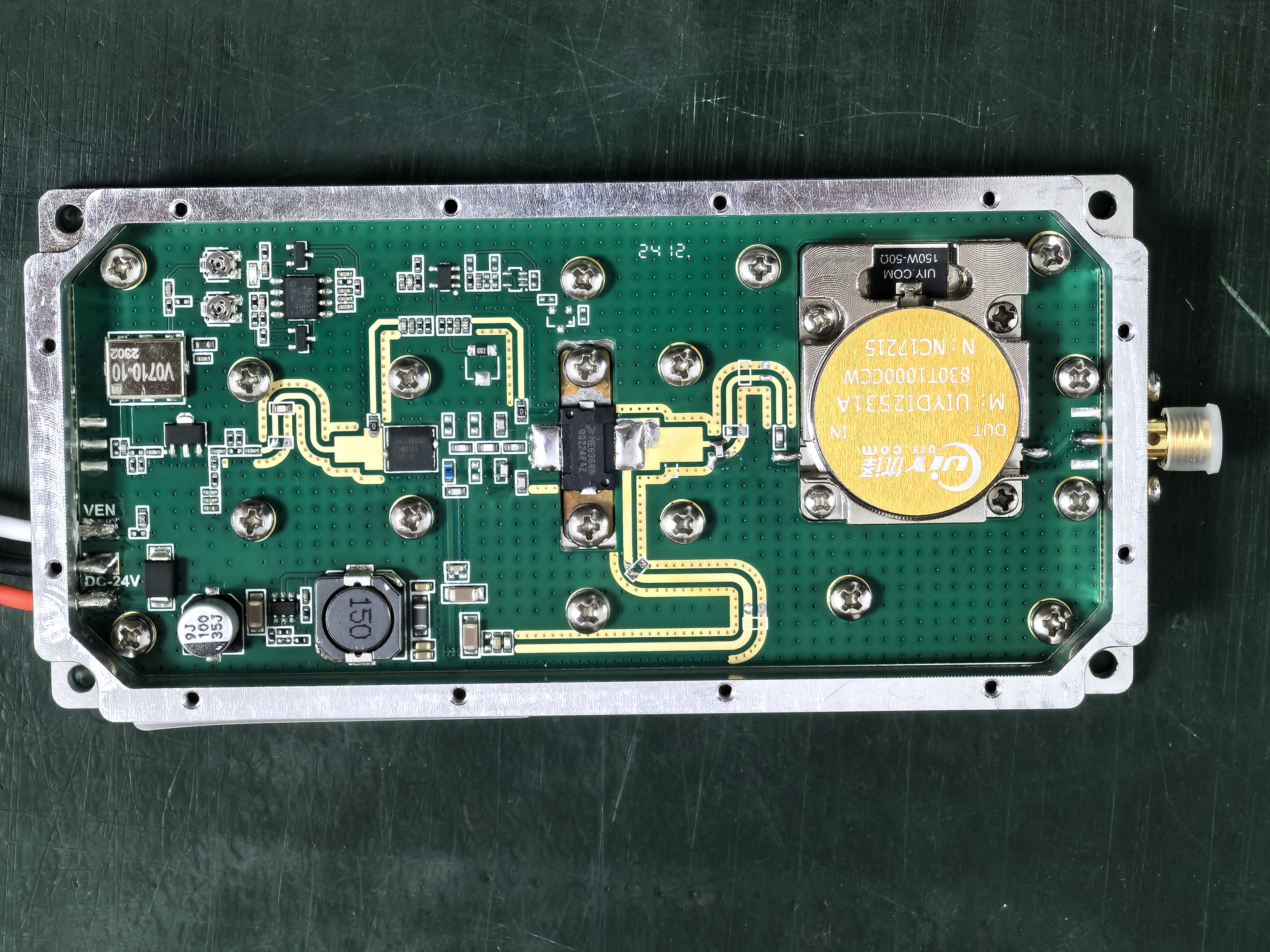

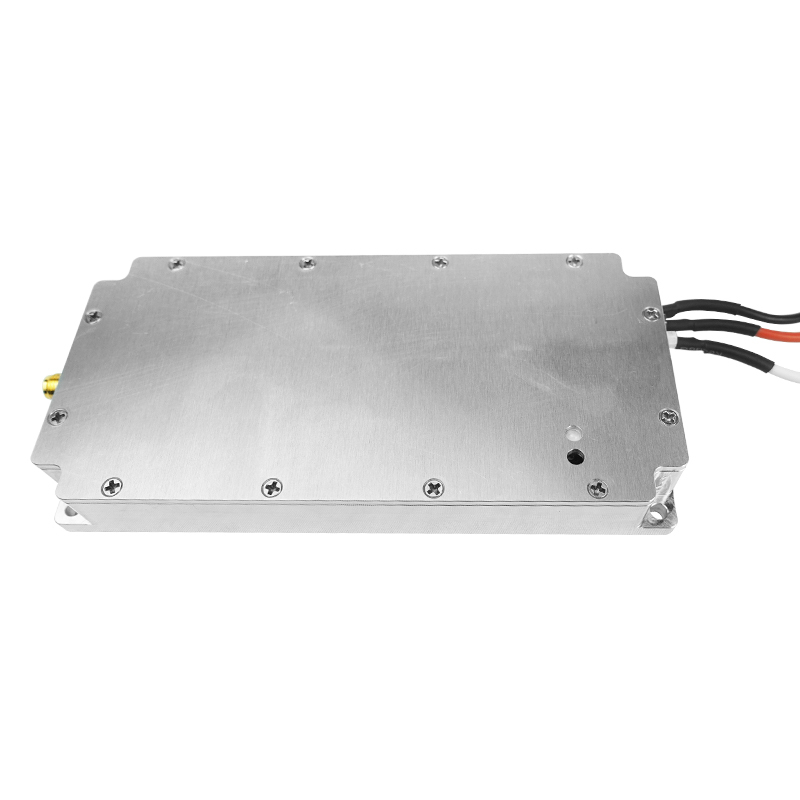

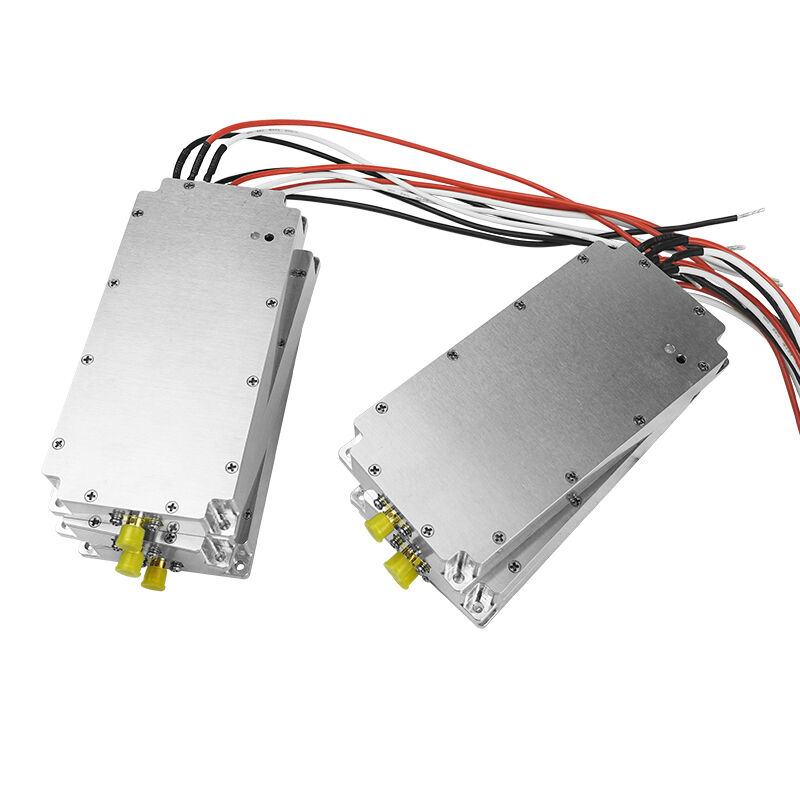

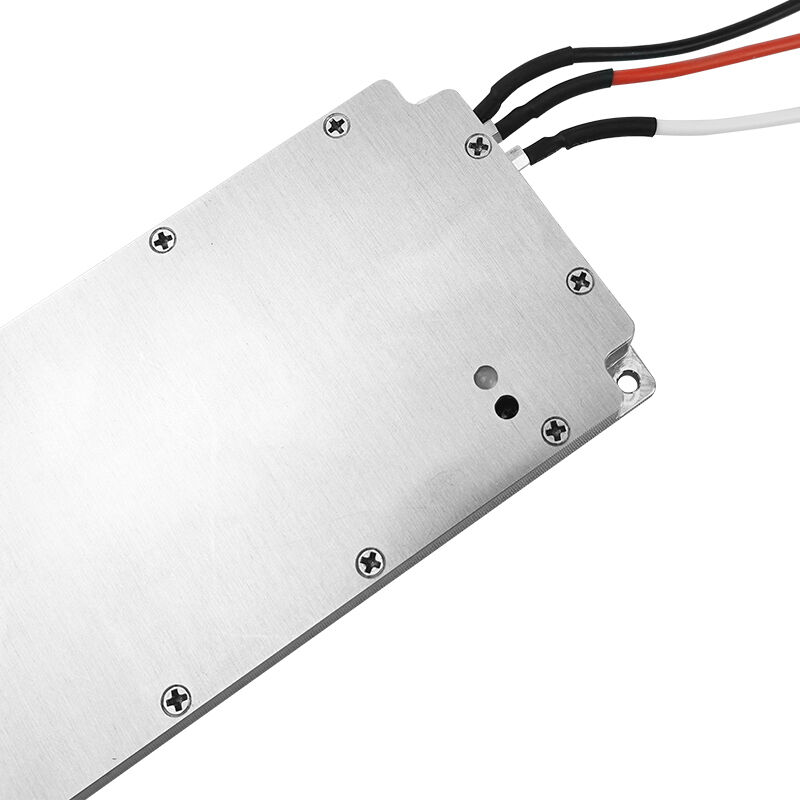

Pictures :
