High-Power Jammer 50W GaN PA Module with Circulator for Drone JammingSystem

Basic Information

Place of Origin:	Shenzhen ，China
Brand Name:	TeXin
Certification:	CE ISO
Model Number:	TX-SZC50W

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Durable case or box
Delivery Time:	Within 3 work days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000/month

Get Best Price Contact Now

Detail Information

Frequency:	100-7200MHz (Customized)	Test Voltage:	DC28V
Current:	3A	Output:	50W
Gain:	47dB	Output Stability:	1dB
Connector:	SMA / Female	Output Connector VSWR:	≤1.30 (No Power And VNA Test)
Standard Input:	0-10DB	Power Supply Wire:	Red+Black+Enable Wire
Enable Control:	High ON Low Off	Out Shell Size:	1305520mm
Weight:	239	Work Temperature:	-20~+70℃
Out Shell Material:	Aluminum	Standing Wave Protection:	OK
Highlight:	Customized Wireless Signal Jammer , 100 square meters Wireless Signal Jammer , aluminum shell Wireless Signal Scrambler

Product Description

GaN 50W power amplifier module with circle protection

Product specification

No.	Item	Data	Unit
1	Frequency	100-7200MHz (Customized)	MHz
2	Test voltage	DC28	V
3	Current	3	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Standard input	0-10DB
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off
12	Out shell Size	1305520	mm
13	Weight	239	g
14	Work Temperature	-20~+70	℃
15	Out shell material	Aluminum
16	Standing Wave Protection	OK
17	technology	GaN+Circulator

Product features

High power output: 50W powerful power output can meet the needs of various application scenarios.
Circulator protection: The built-in circulator can effectively prevent the reflected signal from damaging the module.
Excellent performance: It has excellent performance such as low noise, high gain, and high linearity.
Strong stability: It adopts high-quality components and advanced production technology.
Easy to integrate: The compact design and standard interface make the module easy to integrate into various systems.

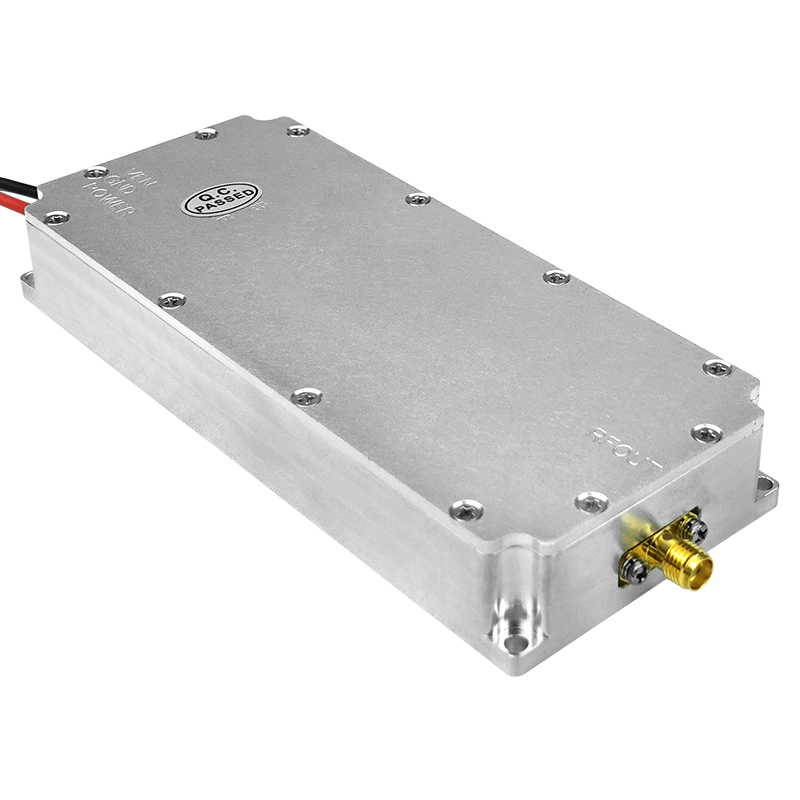

High-Power Jammer 50W GaN PA Module with Circulator for Drone JammingSystem 0

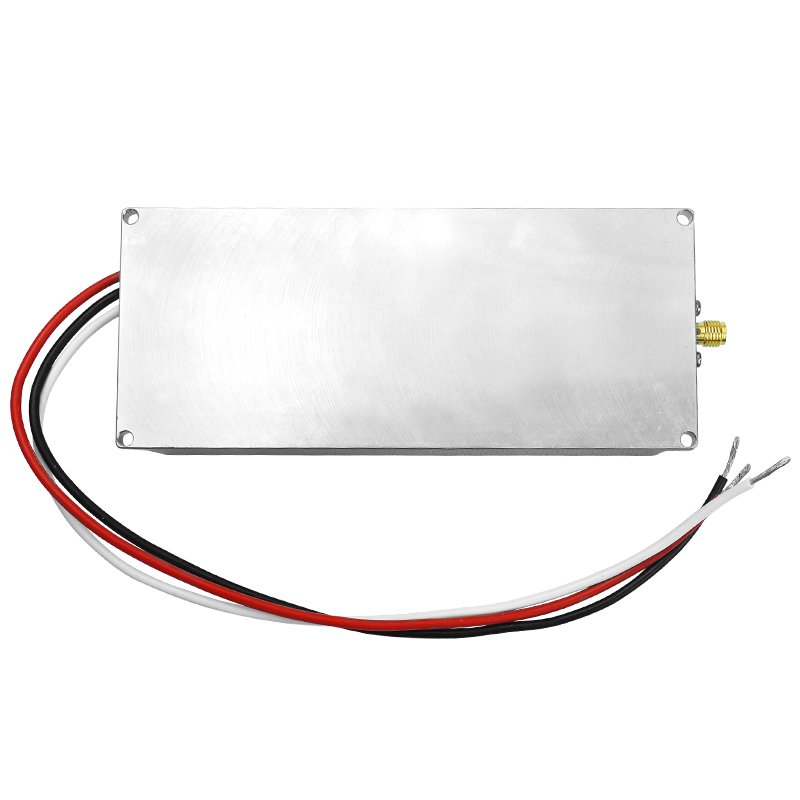

High-Power Jammer 50W GaN PA Module with Circulator for Drone JammingSystem 1

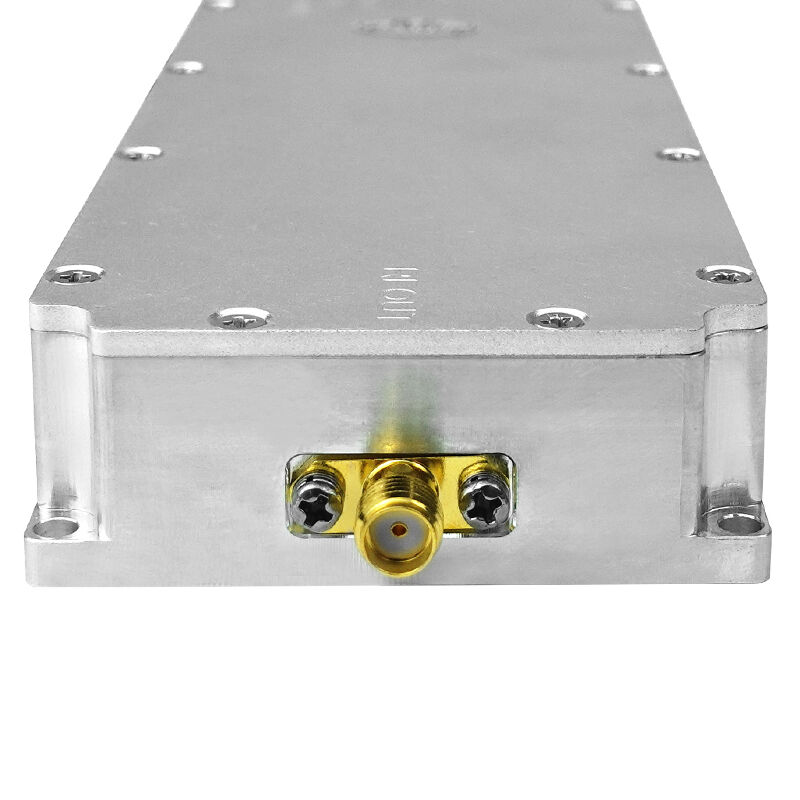

High-Power Jammer 50W GaN PA Module with Circulator for Drone JammingSystem 2

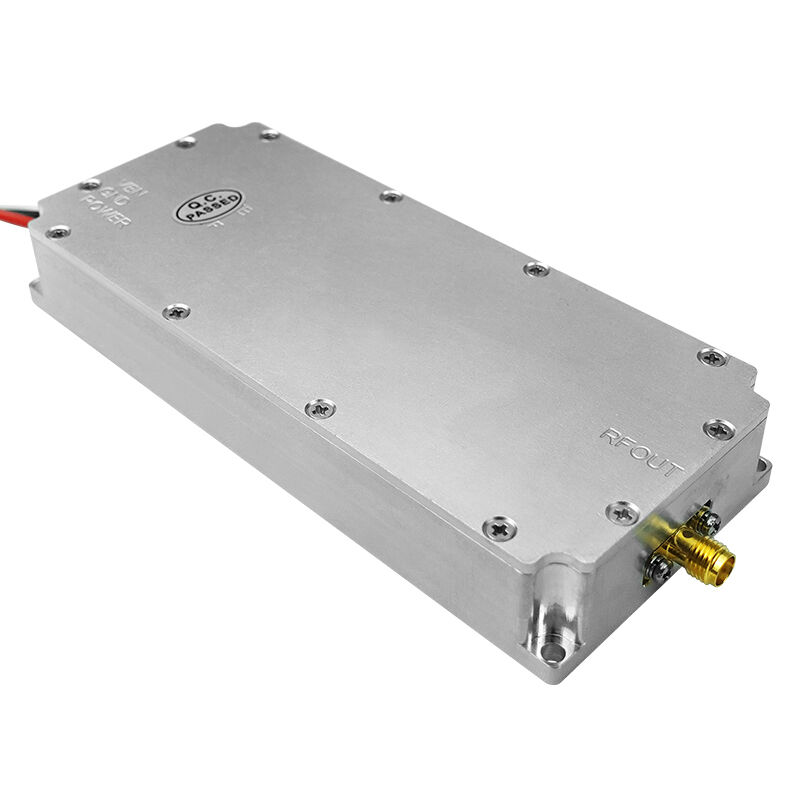

High-Power Jammer 50W GaN PA Module with Circulator for Drone JammingSystem 3
