Upgrade 100W 1.5G 2.4G 5.8G Anti Drone Signal Jammer Module

Basic Information
Place of Origin: China
Brand Name: TeXin
Certification: CE,SGS,IOS9001
Model Number: TX-NPA100
Minimum Order Quantity: 1 piece
Price: negotiated
Packaging Details: Neutral kraft paper box with 5 layer K=K kraft paper carton
Delivery Time: 1-30 days
Payment Terms: L/C, T/T, PayPal, etc.
Supply Ability: 10000 piece each month
Detail Information
Type: Effcient Signal Jammer Module Output Power: 100 Watt
Frequency: Customized Size: 218*112*25 Mm
Weight: 1.02 Kgs Material: Aluminum
High Light:

100W RF Power Amplifier


100 Watt Signal Jammer module


Aluminum Signal Jammer module

Product Description

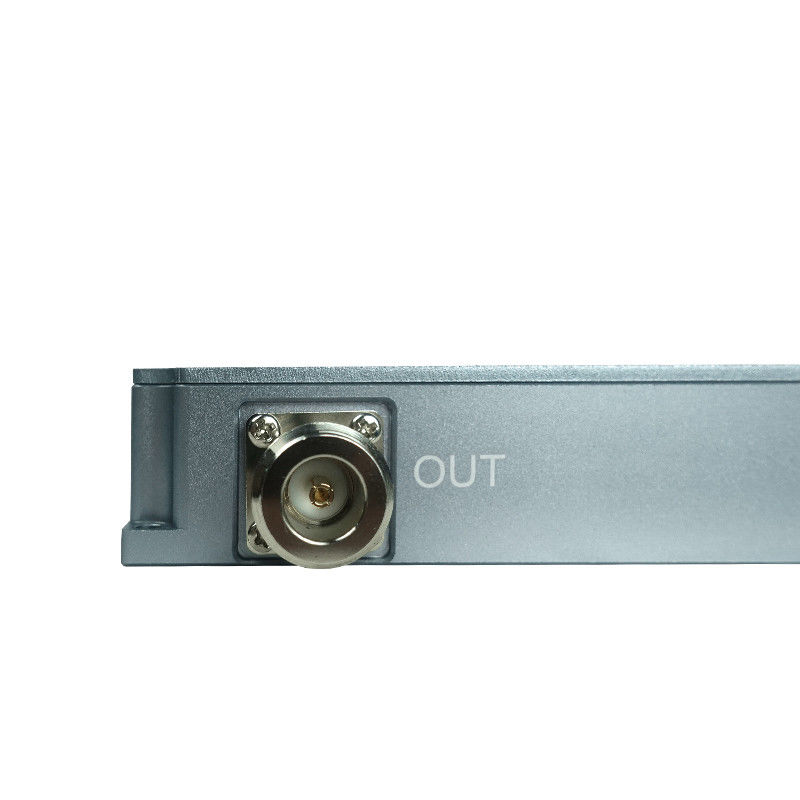

Upgrade 100W 1.5G 2.4G 5.8GHz Anti Drone Signal Jammer Module



Brief Introduction Output Power 100W Signal Jammer Module

* The China TeXin RF signal jammer module combines efficiency with great and efficient output power to transmit

  the efficient jamming effect.

* It need to be equipped with the suitable cooling, antenna and power supply to achieve the optimized effect.



3 Times Efficient 100W Signal Jammer Module Product Feature


* With output power adjustment knob

* With software control interface ( optional)

* Connector: N Female

* It is widely applied to the signal jammer assembly including drone signal jammer, phone signal jammer

  GPS signal jammer, WIFI jammer, etc.

* It features in the high average output power, good In-band-flatness and small off set between upper and

  lower side band

* The standard product has the VCO signal source inside ( it can do the version with no VCO )


Upgrade 100W 1.5G 2.4G 5.8G Anti Drone Signal Jammer Module 0



Upgrade 100W 1.5G 2.4G 5.8G Anti Drone Signal Jammer Module 1

Upgrade 100W 1.5G 2.4G 5.8G Anti Drone Signal Jammer Module 2


Output Power 100W Signal Jammer Module Part of Frequency

Band Name Frequency Band Name Frequency
WiFi 2.4G 2400-2485MHz DCS1800/1800MHz
1805-1880 MHz
WIFI5.2G 5150-5350MHz 3G CDMA / AWS 2110-2170 MHz
WIFI5.4G 5470-5725MHz GPS 1570-1580 MHz
WiFi 5.8G 5725-5850MHz WiFi2.4G 2400-2500 MHz
GPS L1 1560-1620MHz 4G LTE 800 791-821 MHz
GPS L2/Glonass 1100-1300MHz 4G LTE 700 (Optional) 725-770 MHz
5G 3400-3600MHz 4G LTE 2600 2620-2690 MHz
5G 1 3600-3800MHz 4G LTE 2300 (Optional) 2300-2400 MHz
RC315MHz 315 MHz VHF Walkie Talkie 135-174 MHz
450 MHz 460-470MHz UHF 433MHz 400-470 MHz
700/800 MHz 703-862MHz LOJACK 173MHz 170-175 MHz
CDMA 800 / 868 MHz 851-894 MHz Wireless Camera 1.2G 1100-1300MHz
GSM 900 / 915 MHz 925-960 MHz Wireless Camera 2.4G 2400-2483MHz


100W Signal Jammer Module Size and Weight

Upgrade 100W 1.5G 2.4G 5.8G Anti Drone Signal Jammer Module 3



Please ensure the RF analogue jammer module is equipped with the below items before its use, or it is

possible to be damaged by improper operation:

* Necessary heat dissipation accessory

* The well-connected antenna

* The suitable power supply before its use.


One Stop Service

Please feel free find us here for the one stop product including:

1. Signal ammer out shell moulding and assembly

2. the signal jammer RF analogue module

3. Directional/OMNI different types of Antenna

4. Cooling heat sink

5. Cooling fan

6. Power supply

7. Others
