N type GaN solution aluminum case 50W 6.5GHz 7.5GHz drone signal jammer module aplifieration

Basic Information

Place of Origin:	Shenzhen,China
Brand Name:	TeXin
Certification:	ISO9001,SGS
Model Number:	TX-H6K

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	K=K 5 layer paper carton
Delivery Time:	1-3 days
Payment Terms:	L/C, D/A, D/P, T/T,
Supply Ability:	10000pcs per month

Get Best Price Contact Now

Detail Information

Product Name:	External 6-Channel Signal Jammer School Anti-cheating Cell Phone GPS WiFi Signal Blocker	Color:	Black
Type:	Cell Phone Signal Jammer	Blocking Signal Type:	2G,3G,4G,5G,WiFi,GPS,etc.
Weight:	About 2Kg	Power:	AC110-240V DC24/8A
Feature:	Durable Aluminum Alloy Housing	Size:	Body 40014066mm Antenna 200* Ф10mm* 8pcs
Highlight:	Anti Cheating 6 Channel Signal Jammer , 6 Channel GPS WiFi Signal Blocker , ISO9001 Mobile Cell Phone Jammer

Product Description

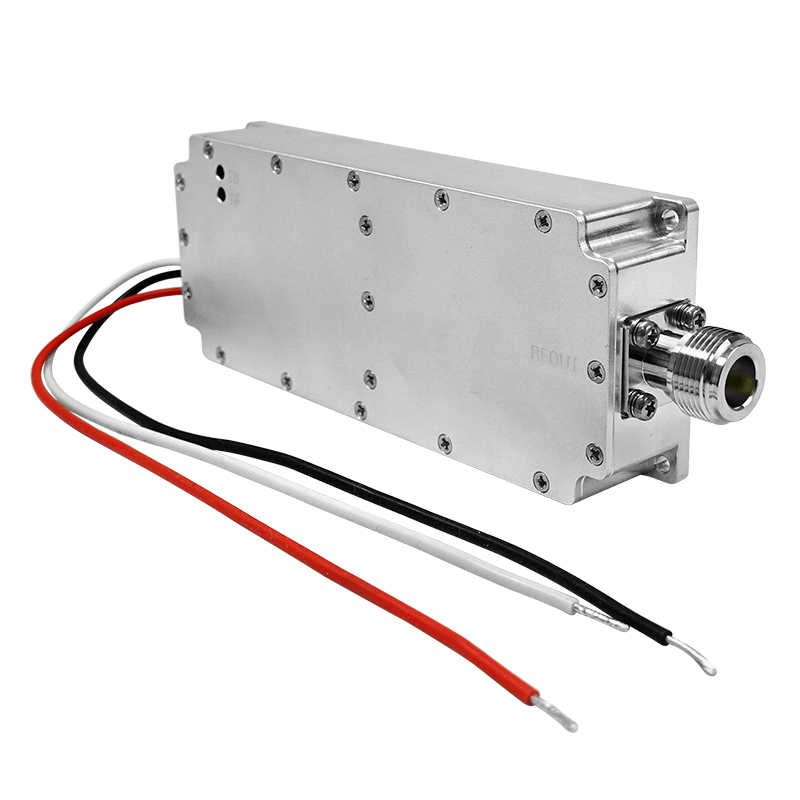

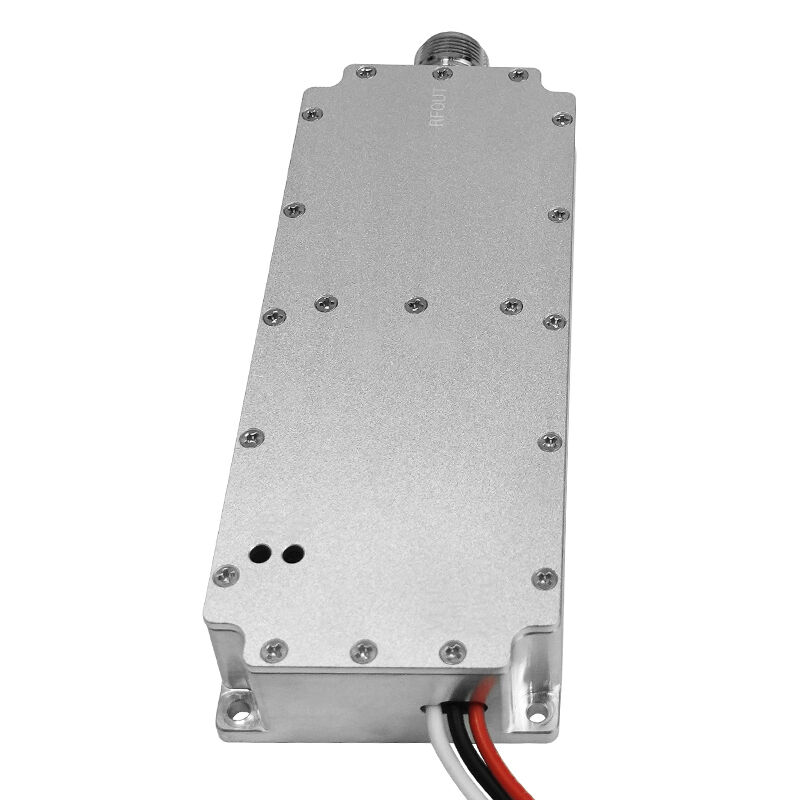

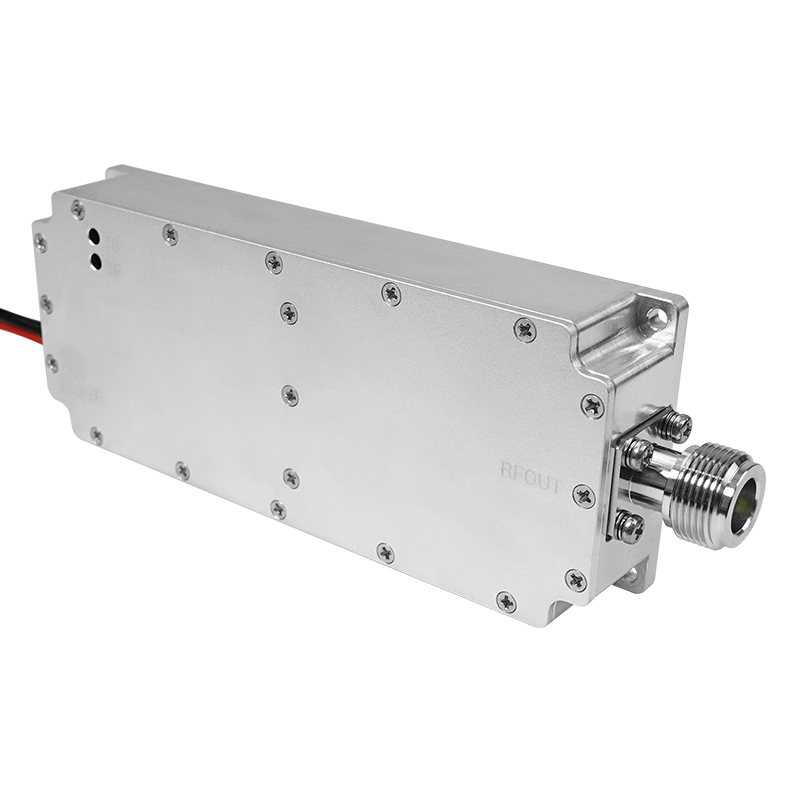

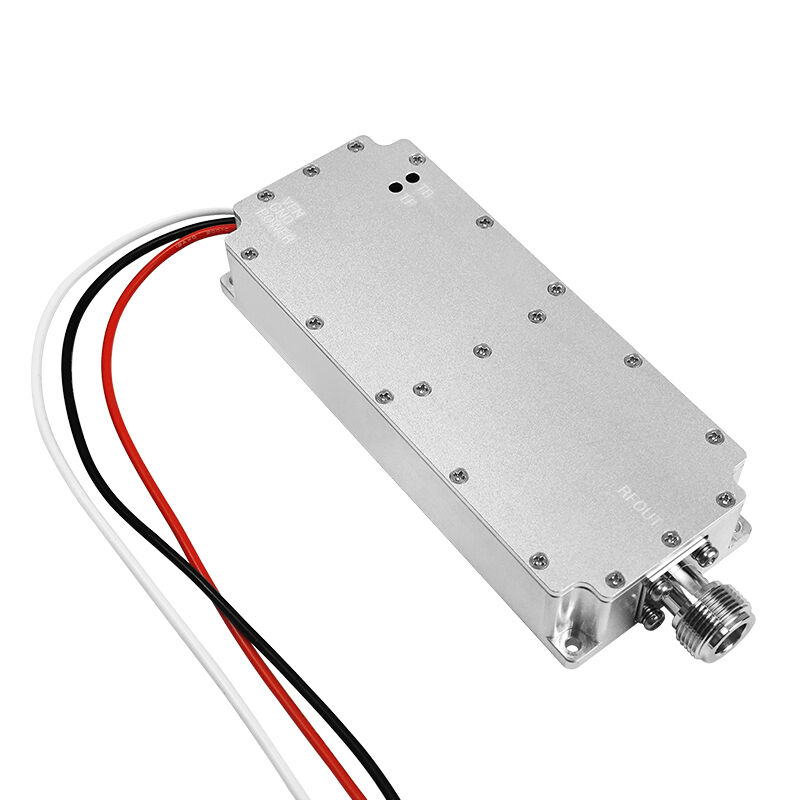

N type GaN solution aluminum case 50W 6.5GHz 7.5GHz drone signal jammer module aplifieration

The 50W signal jammer module takes GaN solution that is low consumption with highly efficient to transimit signal .It is very important part of RF signal jammer areas .According to the different case we offer multiple opption like 6000mhz 6200mhz 6500mhz 7000mhz 7500mhz .

Texin Electronics is a professional manufacture to produce signal jammer ,we offer good performance material ,best service and unique jammer solution to our clients .All the jammer can be customized ,if have any products you are interested ,welcome to contact us .

Product Specification

No.	Item	Data	Unit
1	Frequency	6350-6500	MHz
2	Test voltage	28	V
3	Current	7	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	N/ Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

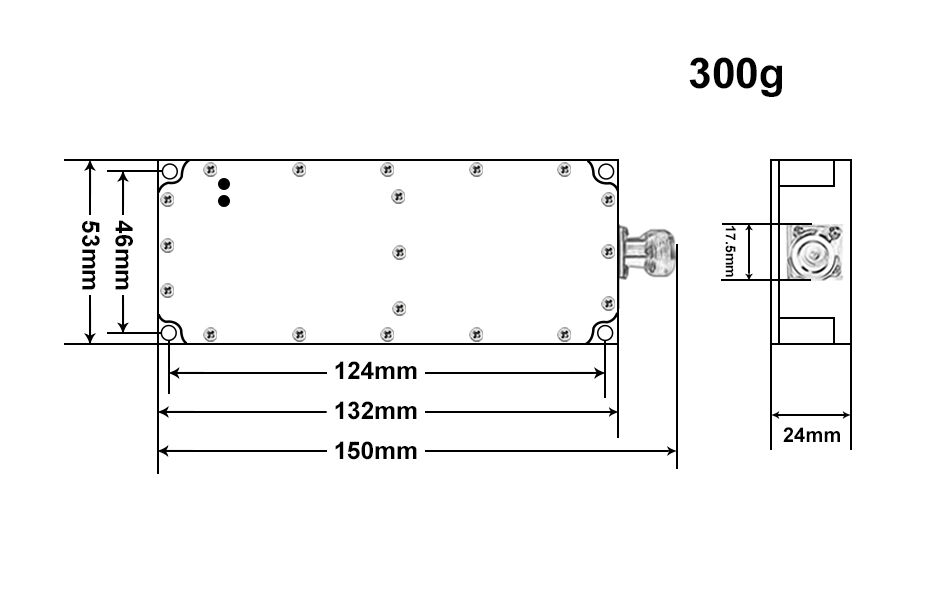

11	Out shell Size	1325324	mm
12	Mount hole	124*45	mm
13	Weight	300	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK

Feature

High frquency 6.5ghz 7ghz 50W output.

Small size and compact size designed .

Highly efficient to jamming the signal .

GaN material low comsuption and low teperature.
