China factory N type lora digital circulator anti drone jammer module illege FPV block

Basic Information
Place of Origin: Shenzhen ,China
Brand Name: TX TELSIG
Certification: SGS,ISO9001
Model Number: TXC050C
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Durable case or box
Delivery Time: In 2 work day
Payment Terms: T/T,Paypal, Etc.
Supply Ability: 100,000pcs/month
Detail Information
Features: Customized Such As 2345G WiFi GPS VHF UHF ,etc Product Name: 50W Anti Drone Module
Size: 165*58*24mm Weight: 254G
Voltage: 28V Warranty: 1 Year
Highlight:

dual band signal booster

,

cellular signal booster


Product Description

China factory N type lora digital circulator anti drone jammer module illege FPV block



Texin 50W FPGA rf jammer module is a important part of security system .Nowadays, many illegal drones pose a threat to public safety and privacy due to improper operation.The 50W FPGA jammer module is special designed for security system ,it can high efficient jamming the drone FPV in 3-5 second .it can jamming the DJI TACMAV Advanced UAV.Texin has own factory that support customized ,if you need multiple frequency band and wattage is available .



Main Features

*. The module using GaN chip that low comsuption than common jammer module

*. Full wattage 50W in 28V

* aluminum alloy material keeps the case cool even in hot temperatures

*. Aim subjuct 3-5seconds when the operate

*.The jammer module has circulator to protect when high power operate



Specifications :

No. Item Data Unit
1 Frequency Customized MHz
2 Test voltage 24-28 V
3 Current 4 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector N
8 Output connector VSWR ≤1.30
10 Power supply wire Red+Black+Enable wire
11 Enable Control High ON Low Off
12 Out shell Size 165*58*24 mm
13 Mount hole 148*52 mm
14 Weight 254 g
15 Work Temperature -40~+65
16 Out shell material Aluminum
17 VSWR protection VSWR protection function realized by coupler +detection+ switch, prevent equipment from being damaged by overload caused by VSWR
18 Vibration need Car load OK

Application:
1. Movie, Theatre, Hospital, Religion Places, Churches
2. School, University, Class room, Libraries
3. Prison, , and Government
4. Petrochemical Industry
5. Sports V enues
6. VIP convoy protection
7. Bomb Prevention&Disposal

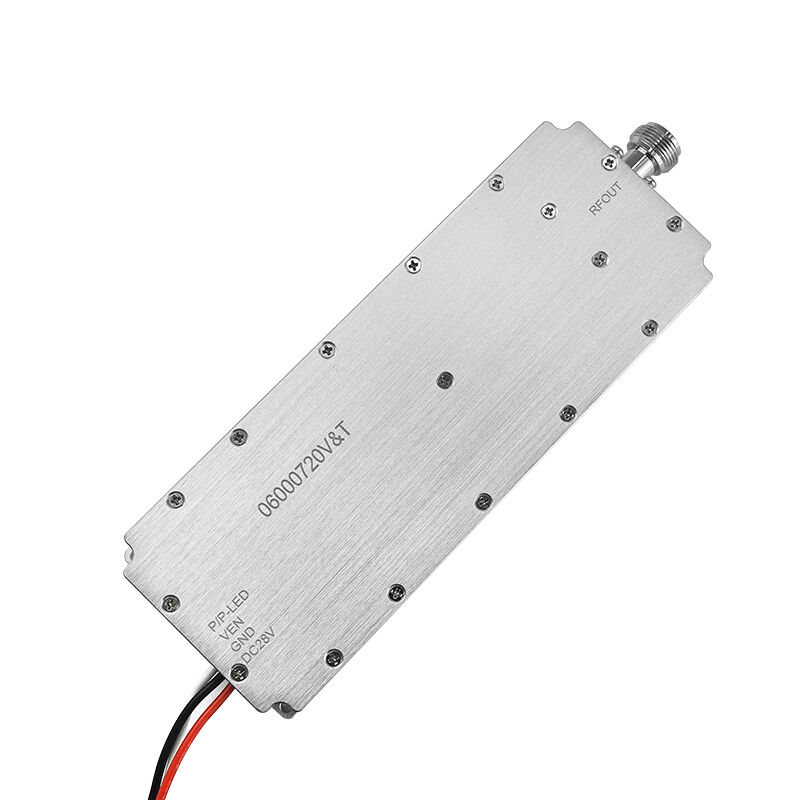

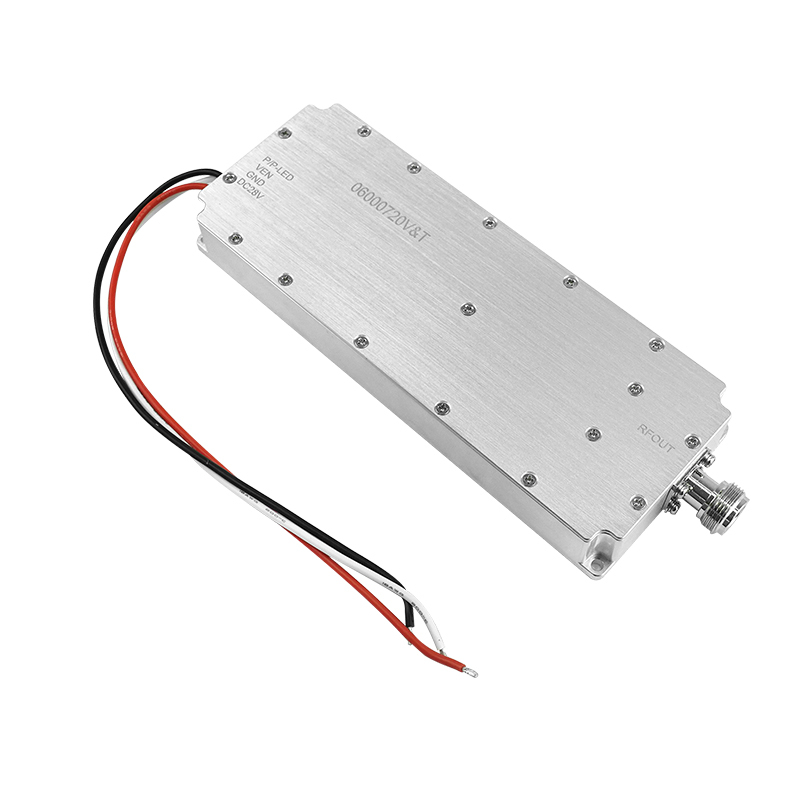

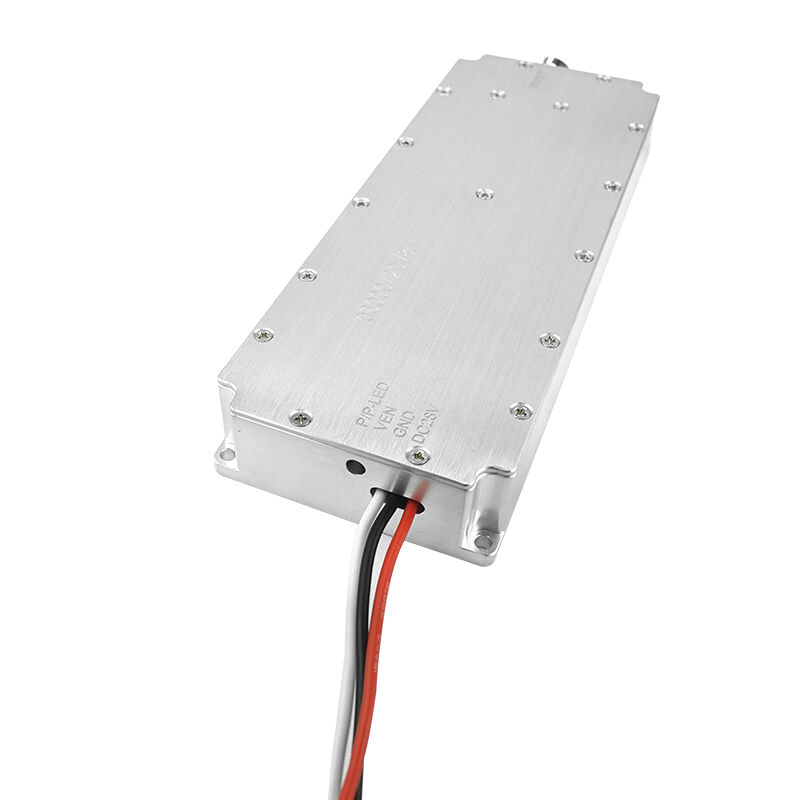

Pictures:





China factory  N type lora digital circulator anti drone jammer module illege FPV block 0China factory  N type lora digital circulator anti drone jammer module illege FPV block 1China factory  N type lora digital circulator anti drone jammer module illege FPV block 2
