Detail Information

Type:	GaN Jammer Module	Frequency:	Customized
Power:	30W	Gain:	43dbi
Marterial:	Aluminum	Size:	1044017mm
Weight:	0.13Kg	Switch Control:	24-28V
Highlight:	rf frequency jammer , high power cell phone jammer , 10 channel phone wifi signal jammer

Product Description

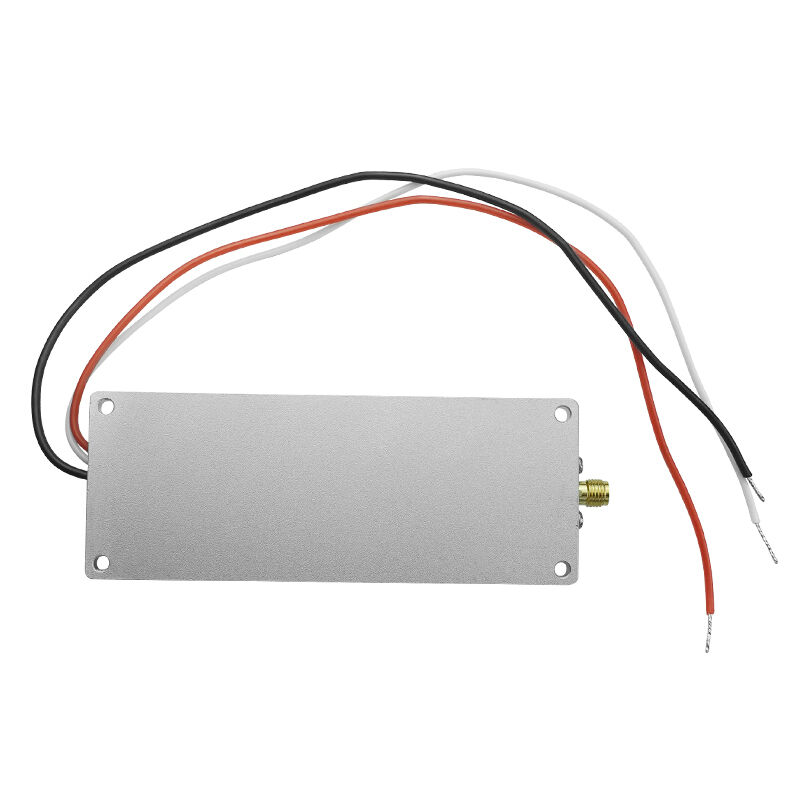

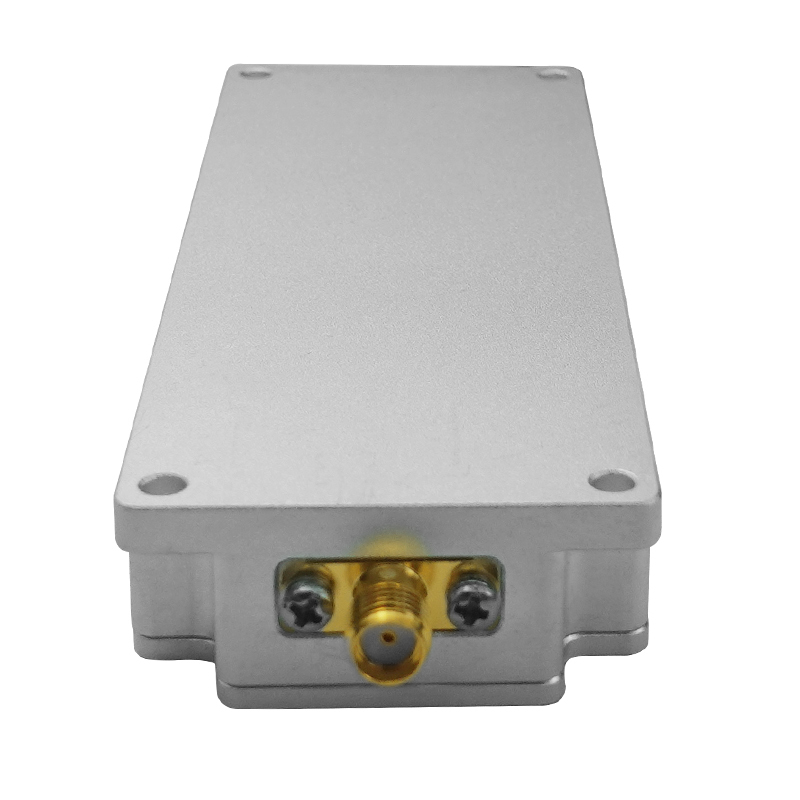

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy

It is a wireless information security module dedicated to 890-960MHz signals, or customize support. This module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.

Precautions for use
Before the module is used, the customer must first configure the corresponding heat dissipation measures, antenna connection and power connection

-- About cooling measures
* Due to the high output power, the module will heat up when it is used
* Please be sure to add heat sink and cooling fan to the module to keep the module low temperature and high efficiency
* If there is no corresponding heat dissipation measures, the module will be short-circuited or directly damaged

-- About the antenna connection
When connecting, you must screw on the antenna first, then connect the front-end source equipment, and finally supply power

-- power connection
Power supply support voltage DC24-28V
When the power supply is 28V, the use effect of the module is better

Application

Examinations, School, Conference Room, Parking Place, Office, Home, Theatre, Library, Training room, etc

Those place forbidden phone,wifi, GPS signal sometime or all the time.

890-960mhz 30W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	890-960	MHZ
2	Work Temperature	-40~+70	℃
3	Max Output Power	30	W
4	Work Voltage	24-28	V	24-28V all okay
5	Max Gain	46	dB
6	Max Current	2.3	A
7	iutput connector	SMA-female		If need
8	Output Connector	N/F 50Ω		Customized
9	Power Amplifier Efficiency	45		when Max Output
10	Switch Control	24-28	V	Same as the voltage
11	Standing Wave Protection	OK
12	Temperature Protection	75°	℃
13	Size	1044017	mm
14	Weight	0.13	Kg

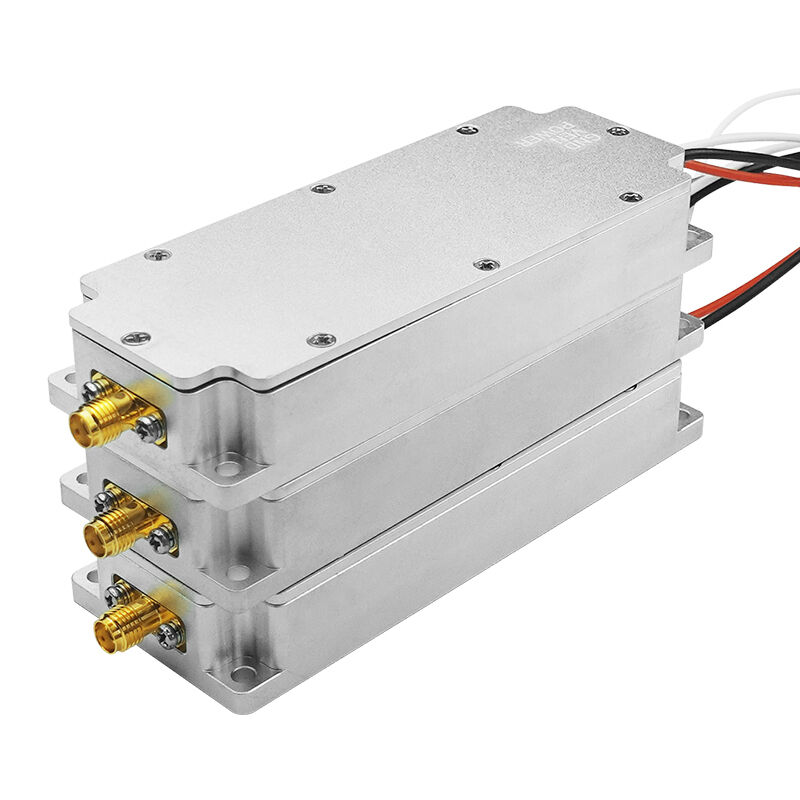

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy 0

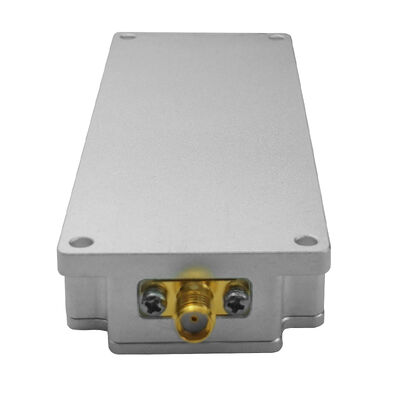

20W 30W GaN SAM connector rf jammer module DJI defense for Low-altitude economy 1

Tag:

Place of Origin:	China
Brand Name:	TX TELSIG
Certification:	SGS,ISO9001
Model Number:	TX-S030

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Durable case or box
Delivery Time:	In 2 work day
Payment Terms:	T/T,Paypal, Etc.
Supply Ability:	100,000pcs/month
