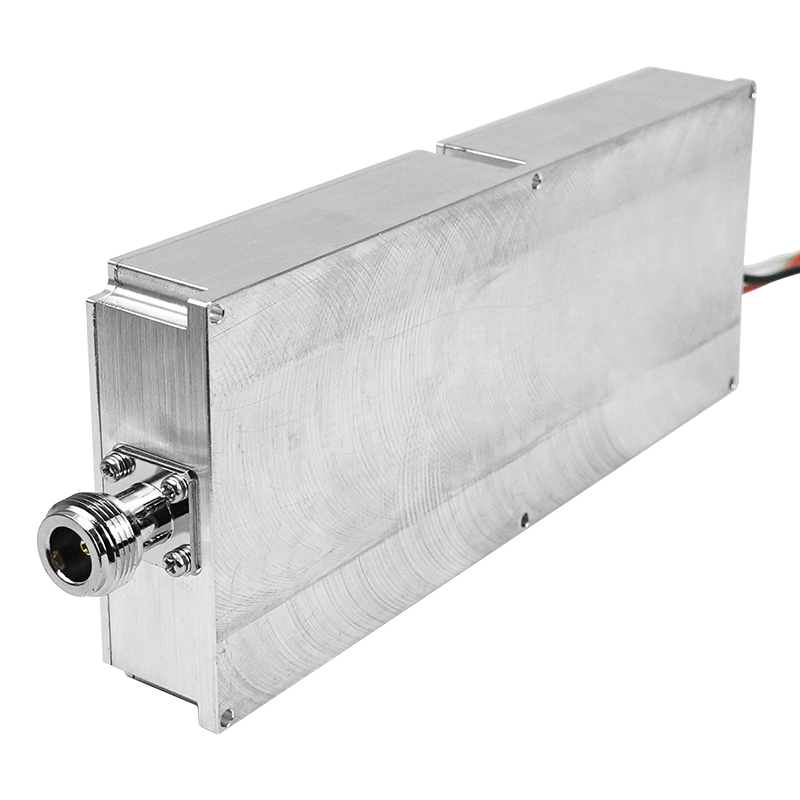

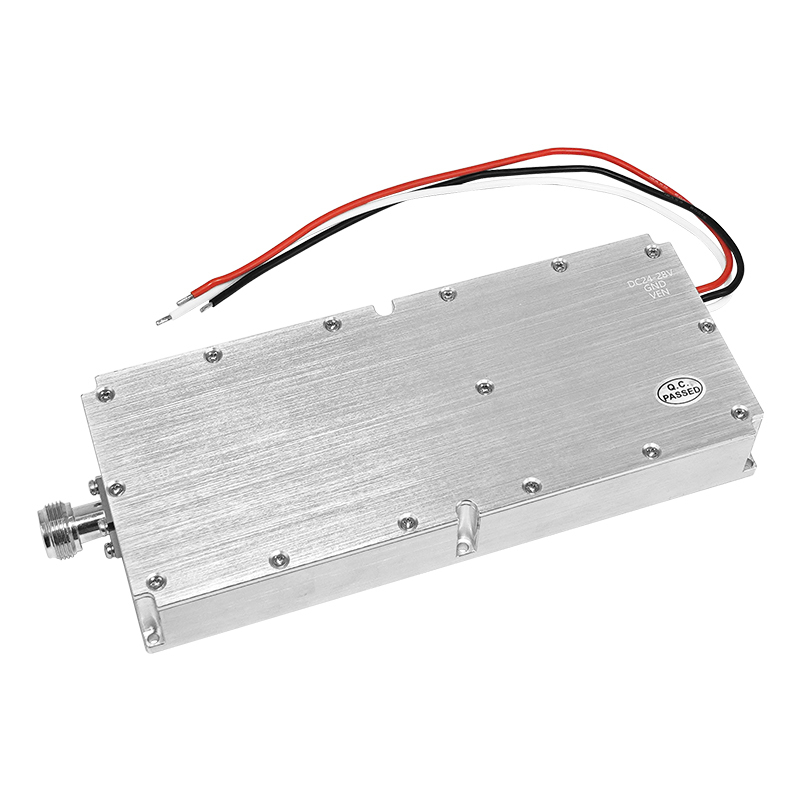

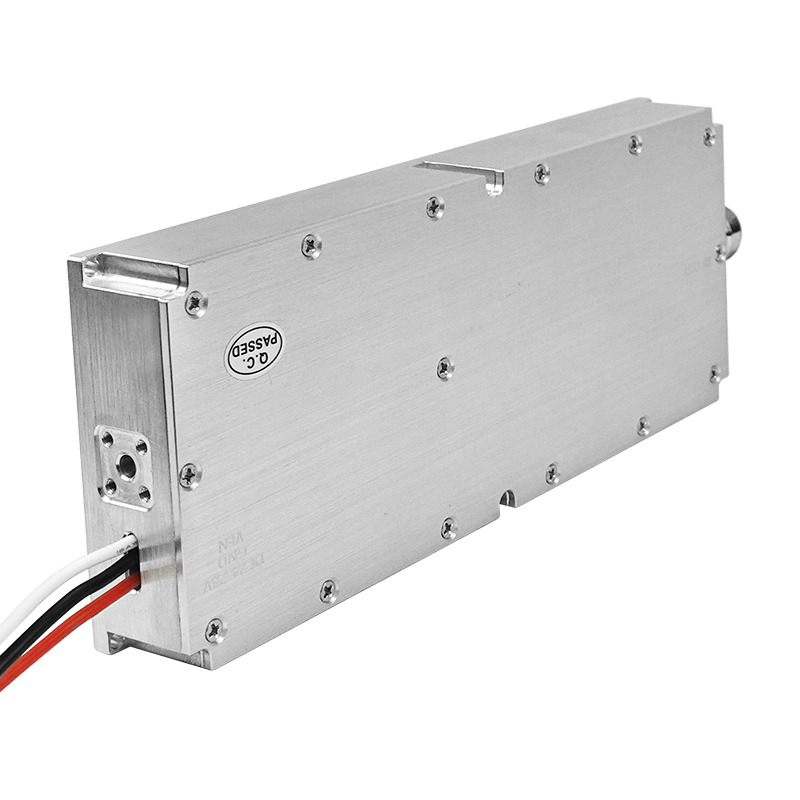

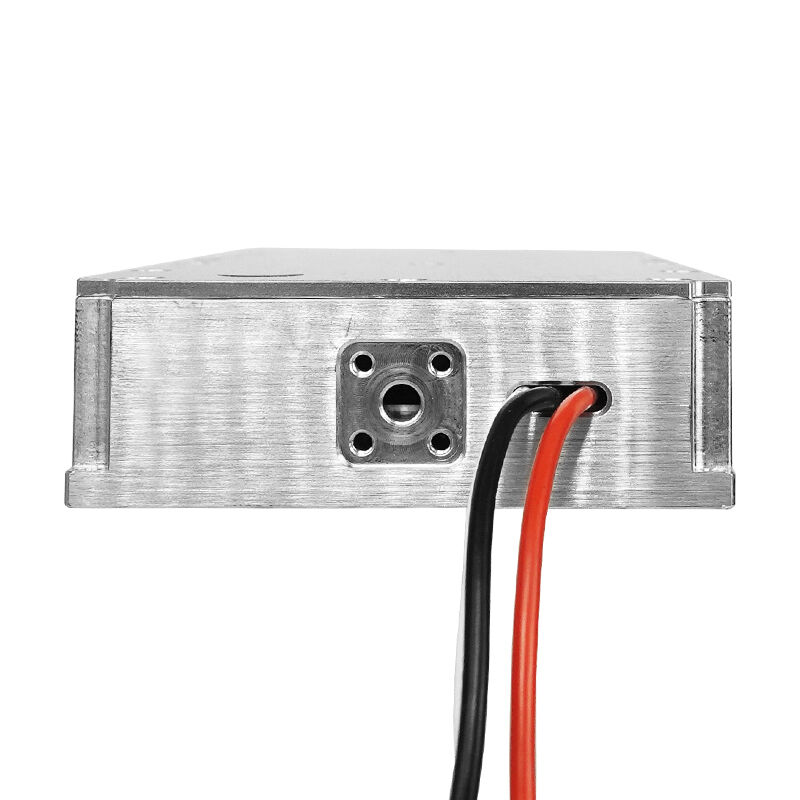

100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module

100W GaN WIFI 5.8GHZ drone signal blocker jamming module Image Transmission Interception Module

TXPD1005800 is special designed for defense the high image transmit FPV drone.It can stable output 100W at 28V .

He can effectively cut off the 5.8GHz image transmission channel for drones, forcing them to make an emergency landing or return to base.This module is of the high average output power, good in-band flatness and the small offset between upper and lower side band. The frequency band and output power of the module can be customized according to customer needs.

TXtelsig is a professional developer and producer of Signal Jamming and Coverage product.

Feature

1. Easy to install and operate with few minutes

2. Can jamming the drone within in 3-5 seconds

3. High power 100W output

4. Each band can be opened separately or simultaneously to block specific signals with effective high power

5. Durable aluminum alloy shell also with inner cooling system to keep the device working

6. Can endure pretty high or low temperature to cater to different environment need

Attention

• Power supply better carry about 28V 15.3A when itself 10.2A for its stable work

• Heat dissipation measure is necessary including the thermal glue, suitable-size

heat sink and cooling fans

• Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

Specification
