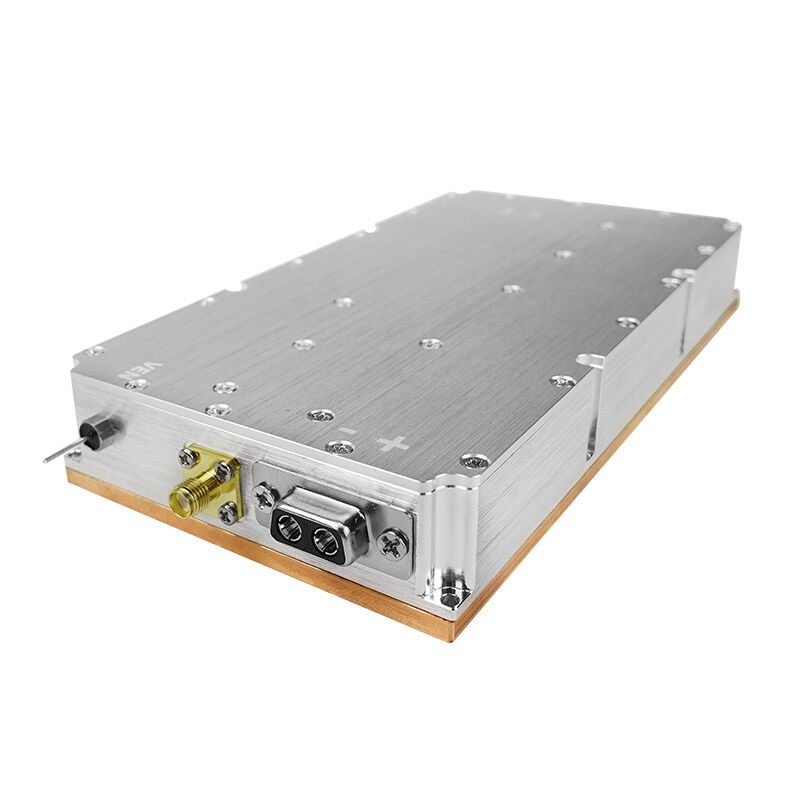

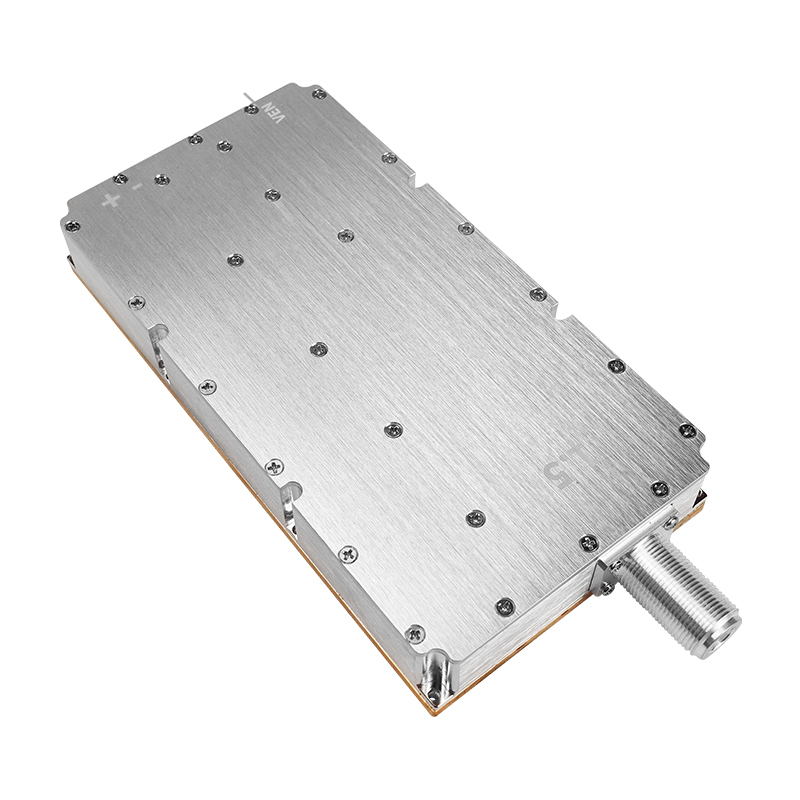

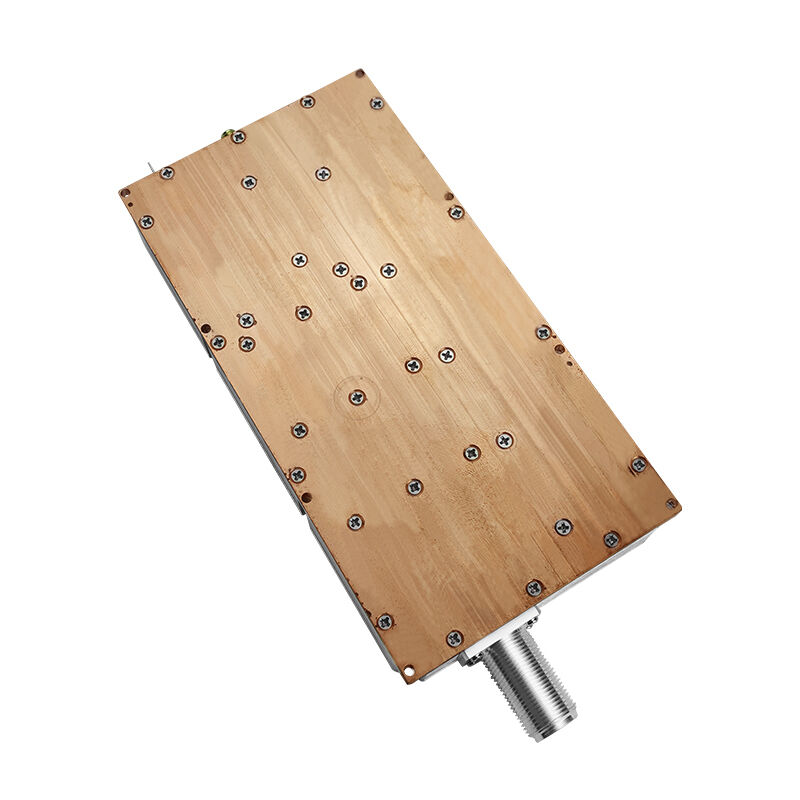

Ultra high power 300W N female circultor 1.2ghz 1.5ghz drone signal base station jammer module

Ultra high power 300W N female circultor 1.2ghz 1.5ghz drone signal base station jammer module

TXPD 300W is a ultra high power about 300W , the drone  signal blocker jammer can disable the 90% drone FPV in the market .The frequency  band can customized  that wanted to block. The shielding radius around 500-1000 meters, the jamming distance will be varied depending on the antenna and the real environment .

Because this jammer has 300W output ,Therefore  this module can support high-powered drones to intercept signal base stations. Capable of intercepting drones over a wide range.Welcome to ontact us with your requirements and we will help to design the most suitable plan for you.

TXtelsig is the leading manufacturer to design and produce signal jamming and wireless coverage product with professional and experienced research and development teams. We have the strength to provide you with the most cost-effective products and plan.

Specifications:
Output Power:300W
Shielding Radius: Up to 500-1000 meters
Power supply: 28-32V
Connector : N type
Dimension:180x 99 x 30mm (without antenna)
Weight: 1143g

Notes for jamming distances:

The jamming distances we mentioned on website are for customer's reference only. The actual jamming distance will be varied depending on the signal strength and the use location and if full charges, etc.

Power supply better carry about 28V 25A when itself 20A for its stable work

Heat dissipation measure is necessary including the thermal glue, suitable-size heat sink and cooling fans

Antenna or Load must be firstly connected before the power supply is ON or it will be short wire

Package contents:
