400-2700MHz 50W Signal Power Amplifier Module for Anti-UAV Communication and Control Frequencies

Basic Information
Place of Origin: China
Brand Name: TX TELSIG
Certification: SGS,ISO9001
Model Number: TX-50W
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Foam Box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000/month
Detail Information
Color: Sliver Frequency: 400-2700MHZ (Customized)
Marterials: Aluminum Weight: 286g
Connector: SMA / Female Power Supply: Red+Black+Enable Wire
Gain: 47 DBm Voltage: 28V
Out Shell Size: 145*53*20mm
Highlight:

mobile phone signal jammer

,

mobile network blocker

,

SGS approved GPS Signal Jammer


Product Description

50W Hot-Selling 400-2700MHz Signal Power Amplifier Module For Anti Drone

This popular 50W signal power amplifier module is mainly used in anti-UAV systems. It can effectively amplify the signal power in the wide frequency range of 400-2700MHz, thereby interfering with the UAV's communication link and control signal. This prevents UAVs from illegally invading specific airspace and ensures regional security.  In the wide frequency range of 400 - 2700MHz, the communication and control frequency bands commonly used by drones are specially optimized, such as 433MHz, 900MHz, 2.4GHz, and other frequency bands, which can achieve more accurate and effective signal amplification and interference in these key frequency bands, maximize the destruction of drone signal links, and ensure anti-drone effects.

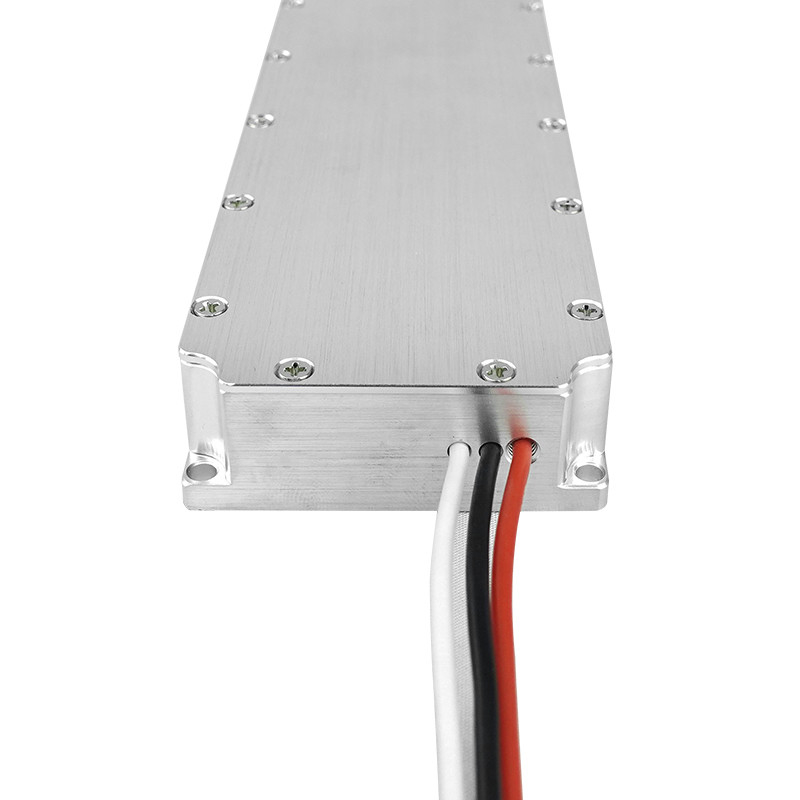

400-2700MHz 50W Signal Power Amplifier Module for Anti-UAV Communication and Control Frequencies 0

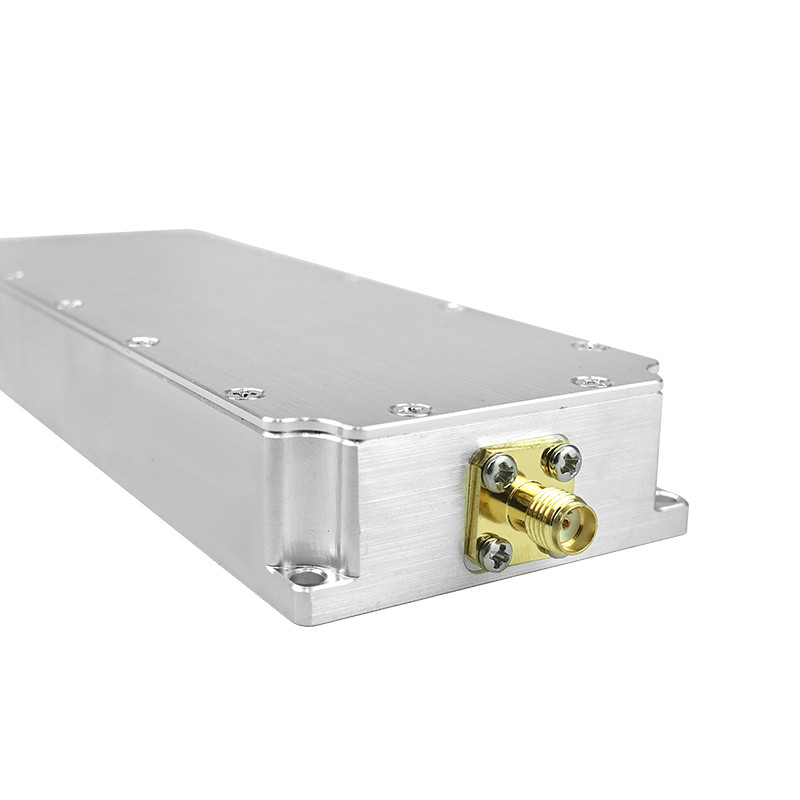

400-2700MHz 50W Signal Power Amplifier Module for Anti-UAV Communication and Control Frequencies 1

Product specification



No. Item Data Unit
1 Frequency 400-2700 MHz
2 Test voltage 28 V
3 Current 4.1 A
4 Output 50 W
5 Gain 47 dB
6 Output stability 1 dB
7 Connector SMA / Female
8 Output connector VSWR ≤1.30 (No power and VNA test)
9 Power supply wire Red+Black+Enable wire
10 Enable Control High ON Low Off
11 Out shell Size 145*53*20 mm
12 Mount hole 139*48 mm
13 Weight 286 g
14 Work Temperature -40~+65
15 Out shell material Aluminum
16 Vibration need Car load OK

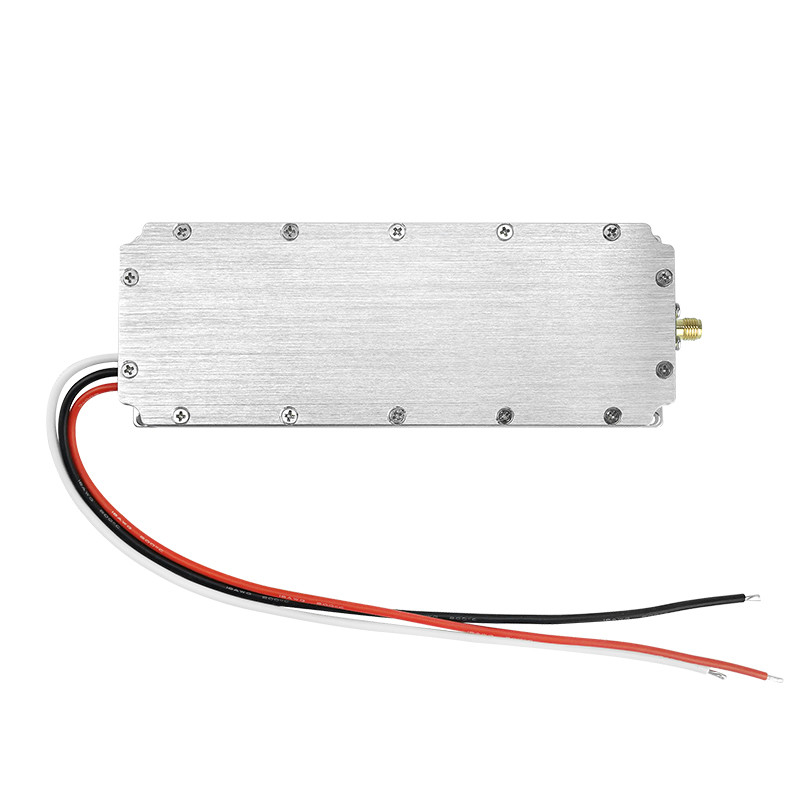

400-2700MHz 50W Signal Power Amplifier Module for Anti-UAV Communication and Control Frequencies 2

Product feature

1. Broadband coverage
2. 50W high power output
3 . High-quality components
4 . Compact, lightweight, easy to integrate
