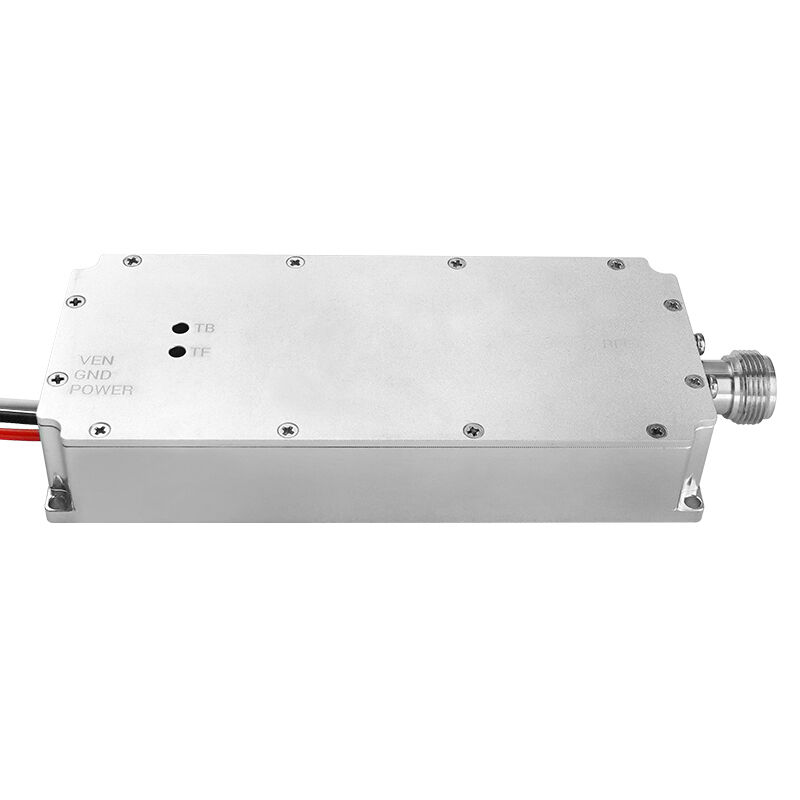

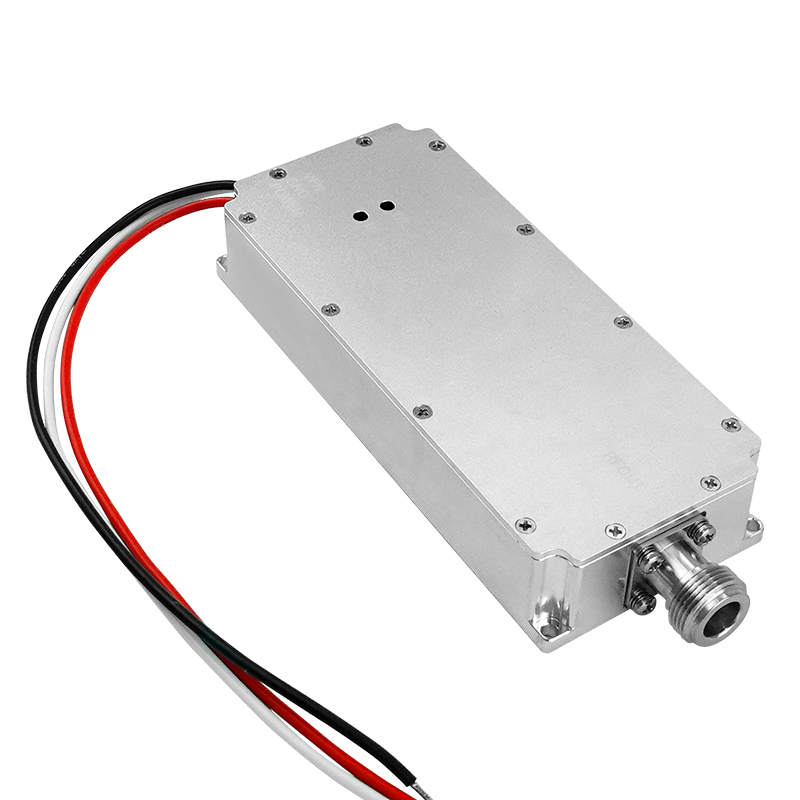

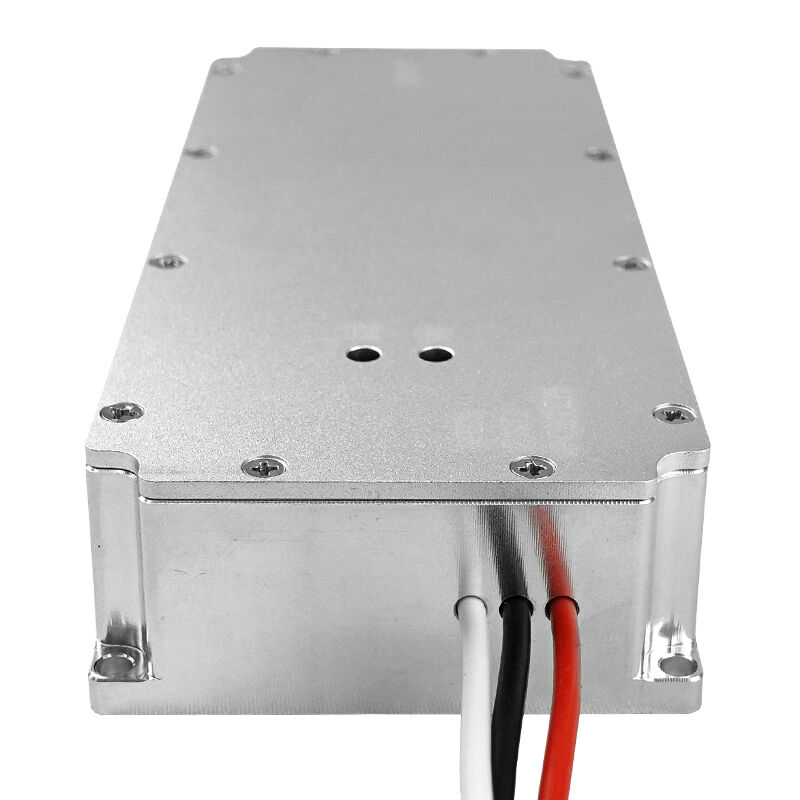

Wireless TX radio drone signal jammer module 100W 700-1000mhz GaN solution VCO modulation

Wireless TX radio drone signal jammer module 700-1000mhz GaN solution VCO modulation


It is a wireless information security module dedicated to 700-1000MHz 100w 50dbm signals. Taking GaN material and module has the advantages of high average output power, good in-band flatness, and small offset between upper and lower sidebands.
Regular type with signal source,if you want without signal source type also can offer(input signal 0-10dBm)

3. Feature

• Frequency range :700-1000MHz
• Solution :GaN and 100W
• With adjustment holes
• High performance aluminum alloy, ceramic sealing tube
• Power supply :24-28V 6.2A

Regular specifications :


Precautions for use

• Power supply needs to carry 28V 6A
• If the output power is greater than 5W and above, it is recommended to strengthen the heat dissipation treatment, such as adding a heat sink or adding a fan.
• When connecting, you must first screw on the antenna, then connect the front-end source device, and finally supply power

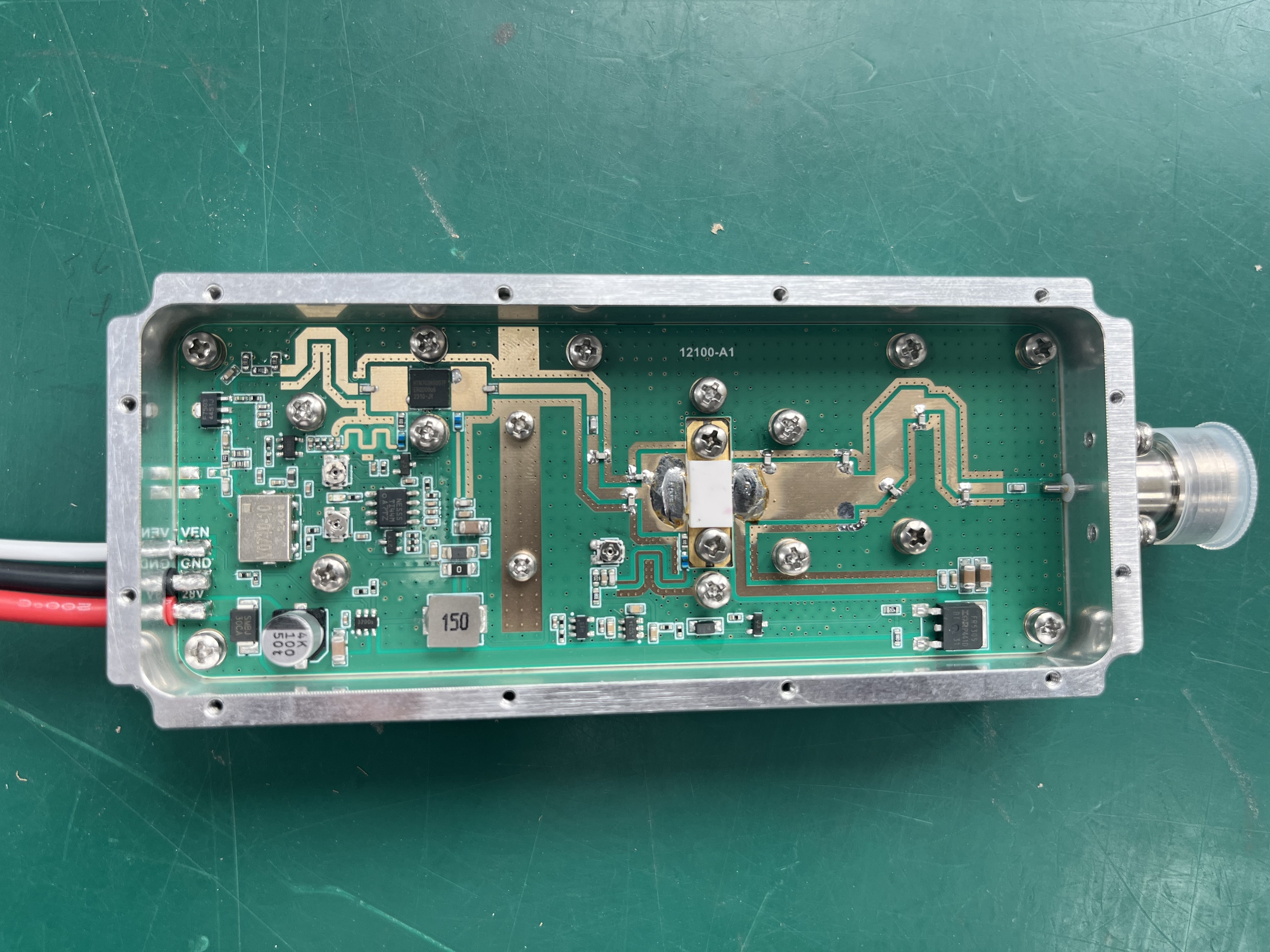

Pictures:
