| Product Name: | Drone Extender | Frequency: | 2.4ghz 5.2ghz 5.8ghz |
|---|---|---|---|
| Rang: | 300-400sqm | Size: | 249*130*62mm |
| Weight: | 1.5kg | Application: | Privacy Protection, Prisons, Schools |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | Aluminum Alloy mobile phone signal blocker,400Sqm mobile phone signal blocker,omnidirectional antenna Cell Phone Signal Jammer |
||
Long distance 20W 2.4ghz 5.2ghz 5.8ghz thri port drone signal booster extender
1. Product Introduction

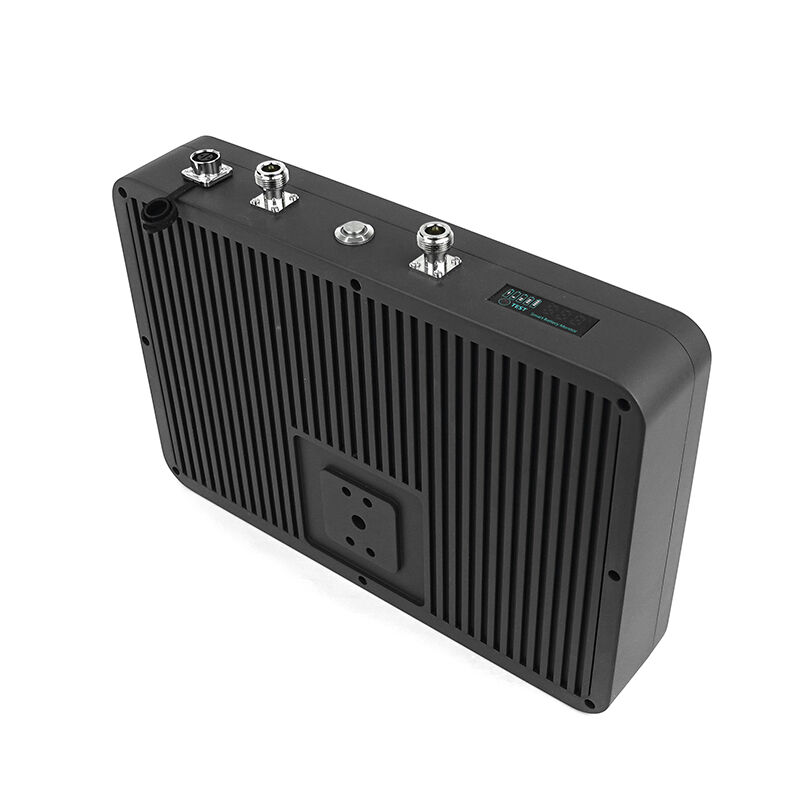

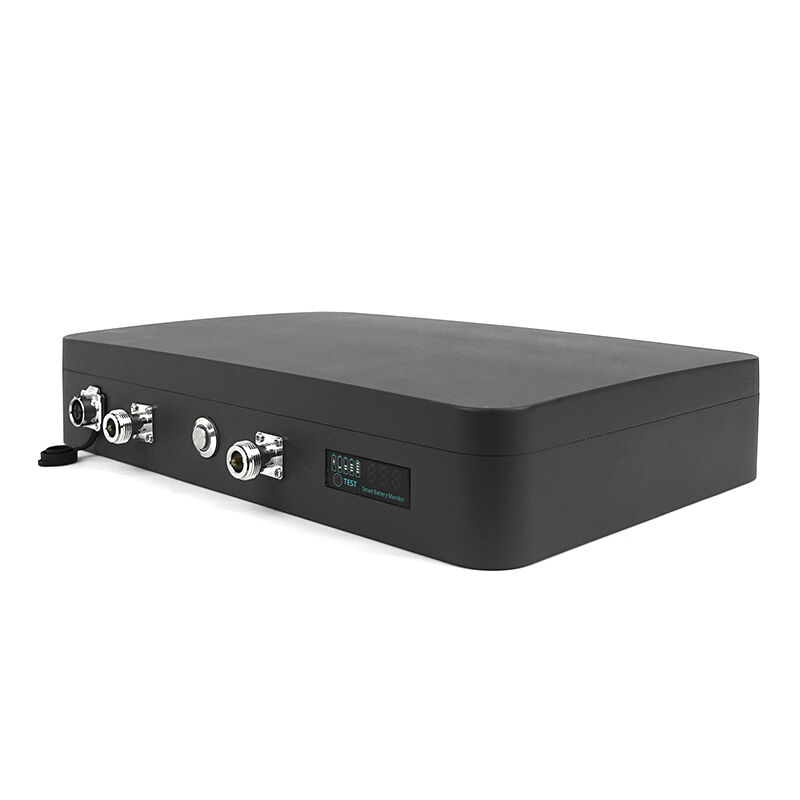

This is a drone signal extender independently developed and manufactured by Texin. This drone signal extender can increase the flight range of drones over long distances. It features dual-port output across three frequency bands: 2.4GHz, 5.2GHz, and 5.8GHz. And built-in battery design supports extended outdoor use.
2. Specification
| Overall parameters | work frequency | 2400-2500 | 5150--5850 | MHz | mark |
| work voltage | 12 | V | |||
| Operating temperature | -40~+70 | ℃ | |||
| Battery Capacity | 6500 | mAh | 12V 3s battery | ||
| Working Time | 2.5 | hours | |||
| Charging Port | Aviation Plug | Supports charging while using | |||
| Size | 249*130*62 | mm | |||
| weight | 1.5 | kg | |||
| RF Connector | N-Female | ||||
| TX Path | TX Gain | 18±1 | 22±1 | dB | customize support |
| Max ouput power(P1dB) | 44 | 46 | dBm | ||
| EVM | 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz | 3%@33dBm 802.11a54Mbps OFDM 64QAM BW 20MHz | dBm | ||
| fluctuations | 0.3 | 0.3 | dB | ||
| Operating current | 2.6 | 2.2 | A | @Pout=30dBm, VCC=12V | |
| Switching delay | <1 | <1 | us | ||
| RX Path | RX Gain | 14±1 | 15±1 | dB | customize support |
| Noise figure | <2.2dB | <2.2dB | dB | ||
| Operating current | 11 | 11 | mA | ||
| fluctuations | 0.2 | 0.2 | dB | ||
3. Product Feature
Ø Maximum output power 20W
Ø Ultra-large capacity battery, 12V 6500mAh
Ø 2.4G/5.2G/5.8G Tri-band dual-port working at the same time,
Ø Free switching easy to operate
Ø All-aluminum shell, better cooling effect waterproof
Ø Fashion designed light weight to carry
4. Multi Application
FPV Signal Booster/Drone Signal Extender
Government: Prison, Court, Military, Police, other Law enforcement, etc
Infrastructure: Petrol Station, Oil Depot, Gas Station, Airport, Drug rehabilitation centers, Security agency, etc
Public&Events: Stadium&Events, Important Meetings,etc
Transportation: Port&marine, Superyachts, etc
Detention Centers, School (examination,library,etc),Theatre,Church, Hospital,etc
![]()
![]()
