Place of Origin: | Shenzhen,China |
---|---|
Brand Name: | TeXin |
Certification: | ISO9001,SGS |
Model Number: | TX-30W |
Document: | Module -TeXin.pdf |
Minimum Order Quantity: | 1 |
Price: | $170-$150 |
Packaging Details: | Durable carton packaging |
Delivery Time: | 1-3 days |
Payment Terms: | L/C, D/A, D/P, T/T, |
Supply Ability: | 10000pcs per month |
Product Name: | Lora Digital 30W Temperature And VSWR Protection Module | Color: | Silver |
---|---|---|---|
Type: | Temperature And VSWR Protection | Frequency: | 3300-3600 (Customized) |
Weight: | About 254.5g | Power: | DC 24-28V |
Current: | 4A | Size: | 151*50*20mm |
Power: | 30W | Gain: | 43dbm |
Highlight: | GPS Signal Jammer Anti Tracking,Anti Tracking Positioning Signal Blocker,1 Channel Cell Phone Signal Jammer |
Lora digital 30W Temperature and VSWR protection function 3300-3600MHz RF anti drone jammer module
It is a part of drone signal jammer ,the module can install by operators self .Depends on the environment and drone type model that anti drone jammer can be customized .For the jammer module regular band support 200MHz,but if you have special request also we can provide customization.
The lora module build in digital source ,compare with common modules ,the module did special treatment that has temperature and VSWR protection .When high power operate the module turn on the automatic protection function to prevent the module from being damaged due to overheating
Features
2, Product Specification
No. | Item | Data | Unit | Notes |
1 | Frequency | 3300-3600 | MHZ | |
2 | Work Temperature | -20~+70 | ℃ | |
3 | Max Output Power | 30 | W | |
4 | Work Voltage | DC28 | V | |
5 | Max Gain | 45 | dB | |
6 | Flatness | ±1 | dB | |
7 | Max Current | 4 | A | |
8 | Output VSWR | ≤1.5 | ||
9 | Output Connector | SMA/F 50Ω | Customized | |
10 | Power Amplifier Efficiency | 45 | when Max Output | |
11 | Switch Control |
high low level current |
V | 0V off /0.6 on |
12 | Standing Wave Protection | OK | ||
13 | Temperature Protection | 75° | ℃ | |
14 | Size | 151*50*20 | mm | |
15 | Weight | 0.254 | Kg |
4,Application

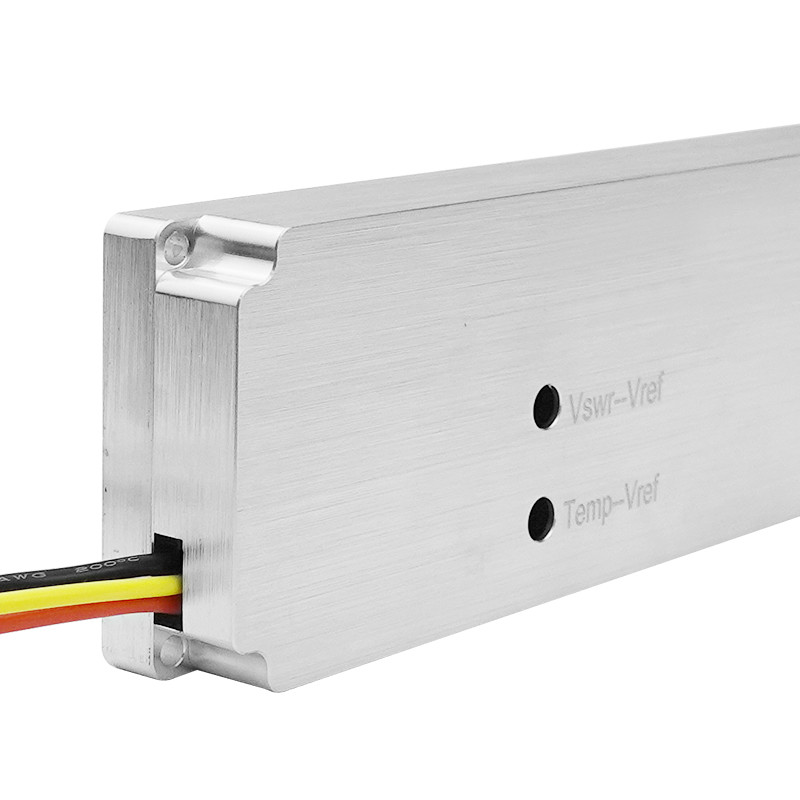

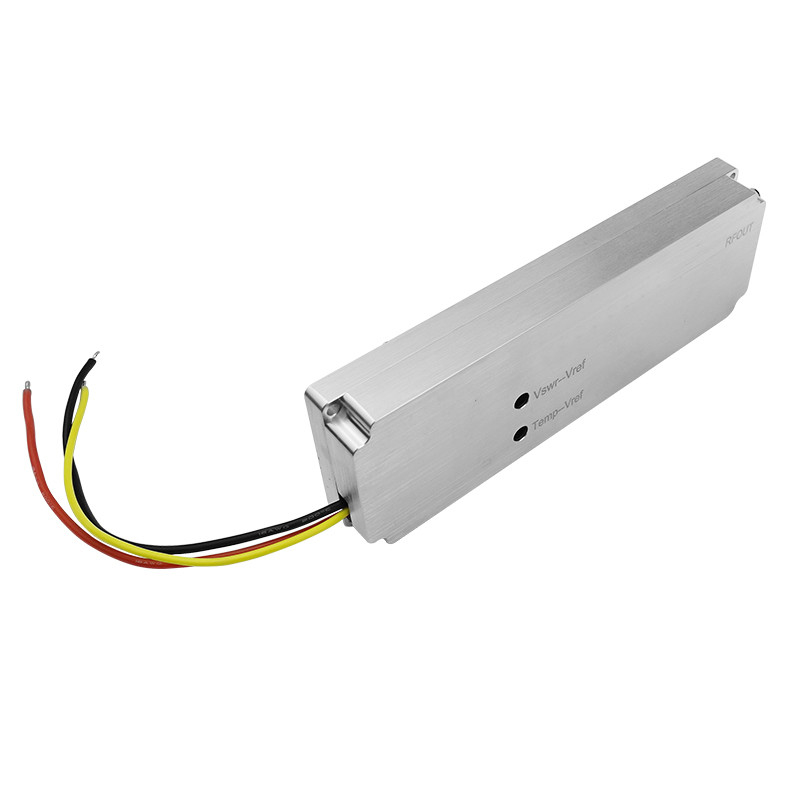

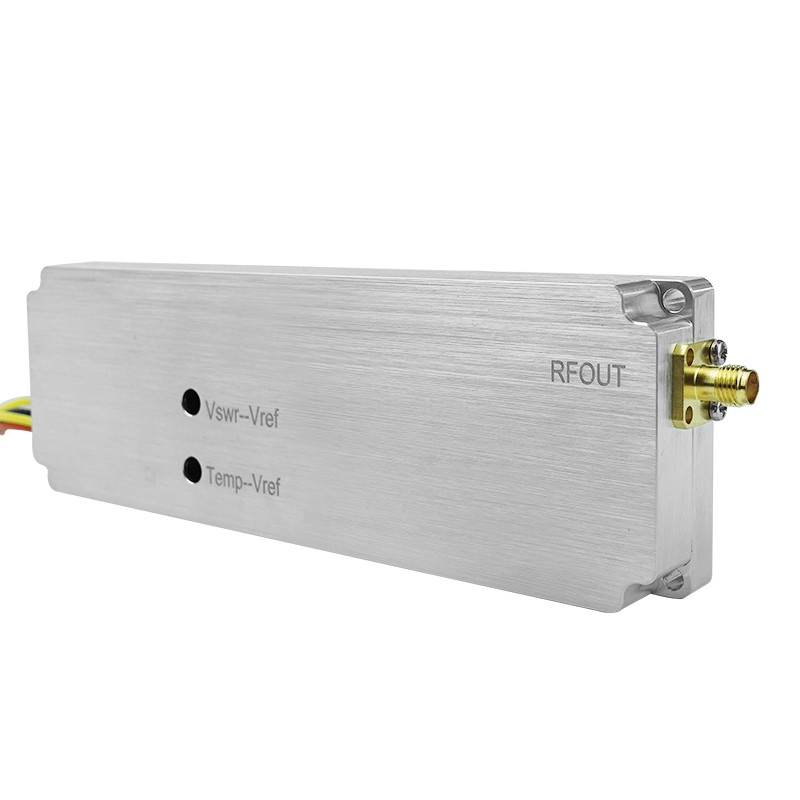

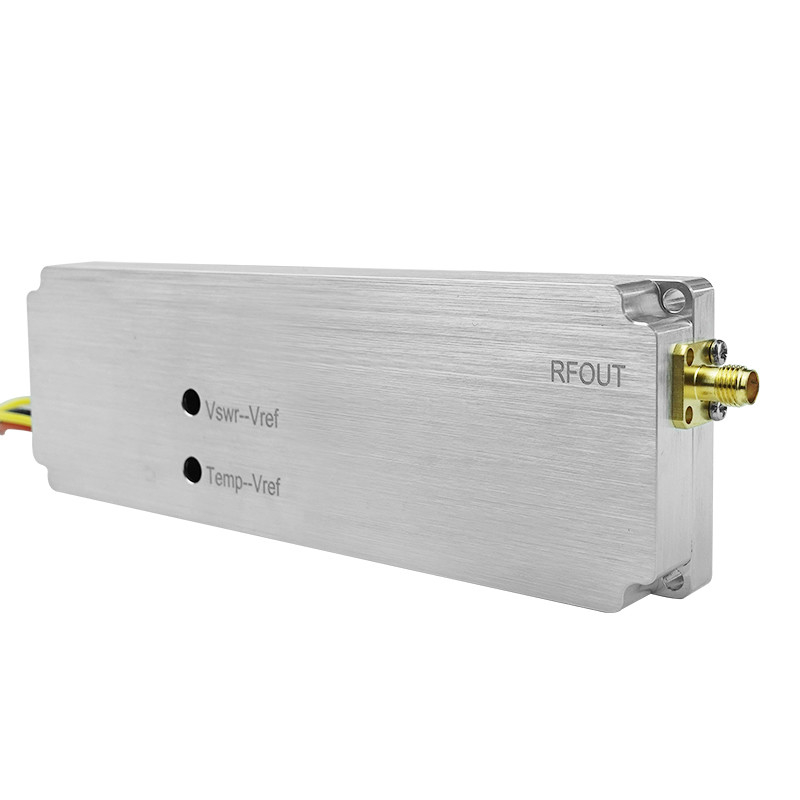

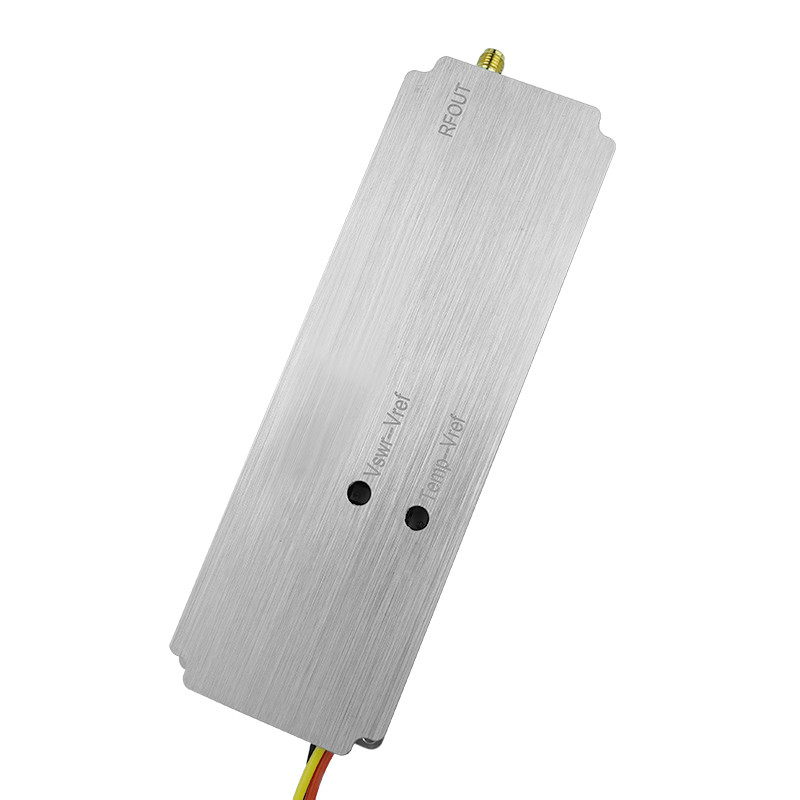

5,More Photoes
