| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | TxXin |
| Certification: | ISO9001,SGS |
| Model Number: | TX-Mini2 |
| Document: | Module -TeXin.pdf |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | K=K 5 layer paper carton |
| Delivery Time: | 1-3 days |
| Payment Terms: | L/C, D/A, T/T, D/P, |
| Type: | Drone Signal Jammer | Product Name: | 100-400MHz 50W |
|---|---|---|---|
| Size: | 145*53*20mm | Voltage: | 24-28V |
| Application: | Anti Drone System | Color: | Silver |
| Material: | Aluminium | Power: | 50w(customized) |
| Gain: | 47dB | ||
| Highlight: | CE Cigarette Lighter Tracker Blocker,DC12V Cigarette Lighter Tracker Blocker,2 Channel Cigarette Lighter GPS Jammer |
||
Super Bandwidth 100-400MHz small size anti drone FPV UAV jammer module VCO RF module
This is a anti drone signal jammer module ,the frequency band can make 100-400MHz and the out put 50W at 28V .The module build in advance VCO chips that mainly through radio frequency vibration to emit jamming singal .It is installed drone system like drone jammer gun,drone jammer manpack ,and drone jammer aluminum case .Operaters can use in center city,school,government,jail .......
Product Specification
| No. | Item | Data | Unit |
| 1 | Frequency | 400-2700 | MHz |
| 2 | Test voltage | 28 | V |
| 3 | Current | 4.1 | A |
| 4 | Output | 50 | W |
| 5 | Gain | 47 | dB |
| 6 | Output stability | 1 | dB |
| 7 | Connector | SMA / Female | |
| 8 | Output connector VSWR | ≤1.30 (No power and VNA test) | |
| 9 | Power supply wire | Red+Black+Enable wire | |
| 10 | Enable Control | High ON Low Off | |
| 11 | Out shell Size | 145*53*20 | mm |
| 12 | Mount hole | 139*48 | mm |
| 13 | Weight | 286 | g |
| 14 | Work Temperature | -40~+65 | ℃ |
| 15 | Out shell material | Aluminum | |
| 16 | Vibration need | Car load OK | |
Features
* 100-400MHz supper bandwidth
* Super mini size, light weight 286g excellent hiding performance;
* Aluminum material waterproof and strong heat dissipation
* Support 24-28V voltage to operate
* High average output power, good in-band flatness
* Advance VCO chips build in higly efficient to emit
*Support customized full frequency band and power
* Wide range of applications
Attention
* Operate need use in correct voltage 24-28V
*Antenna or Load must be firstly connected before the power supply is ON or it will be short wire
* When it high power operate need install cooling fans
* Do not install similar frequency band together

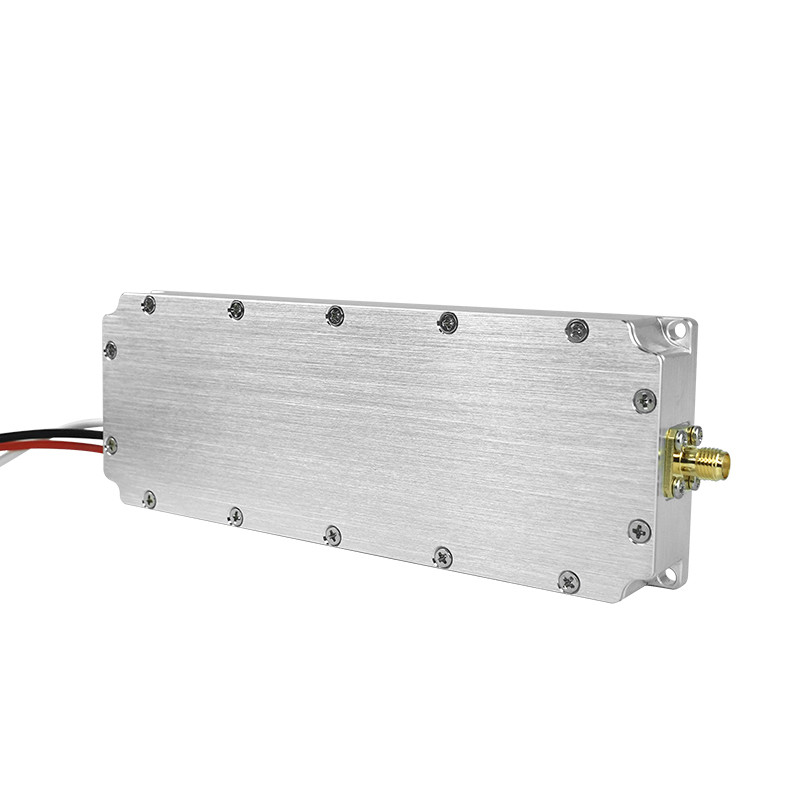

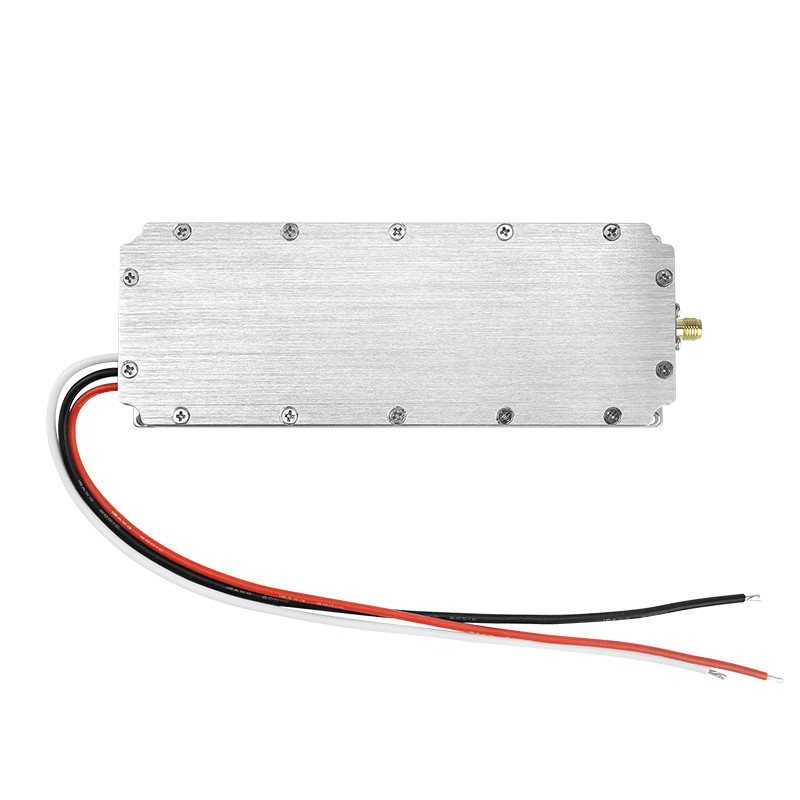

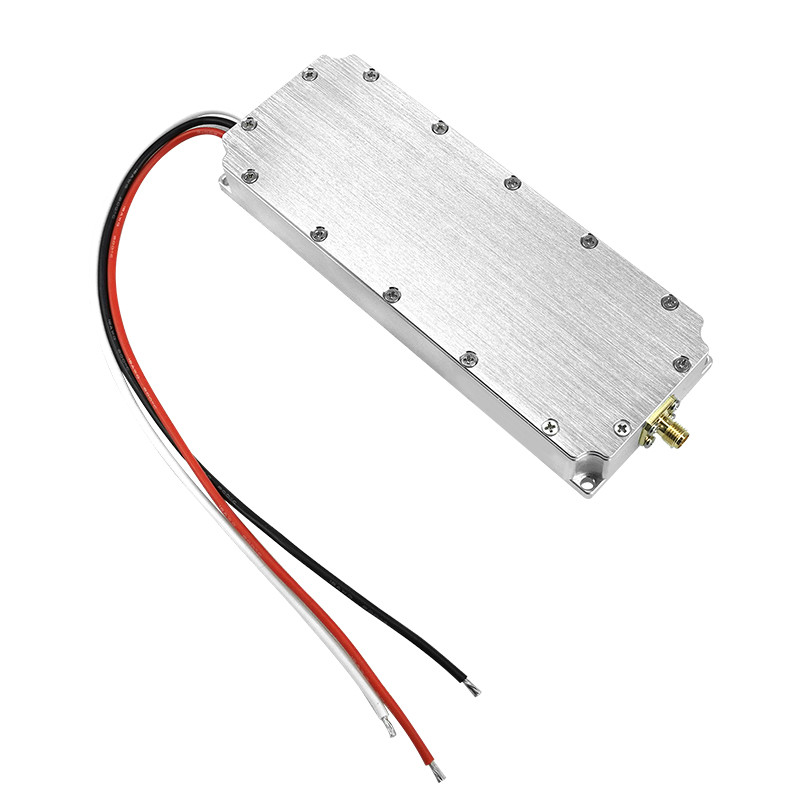

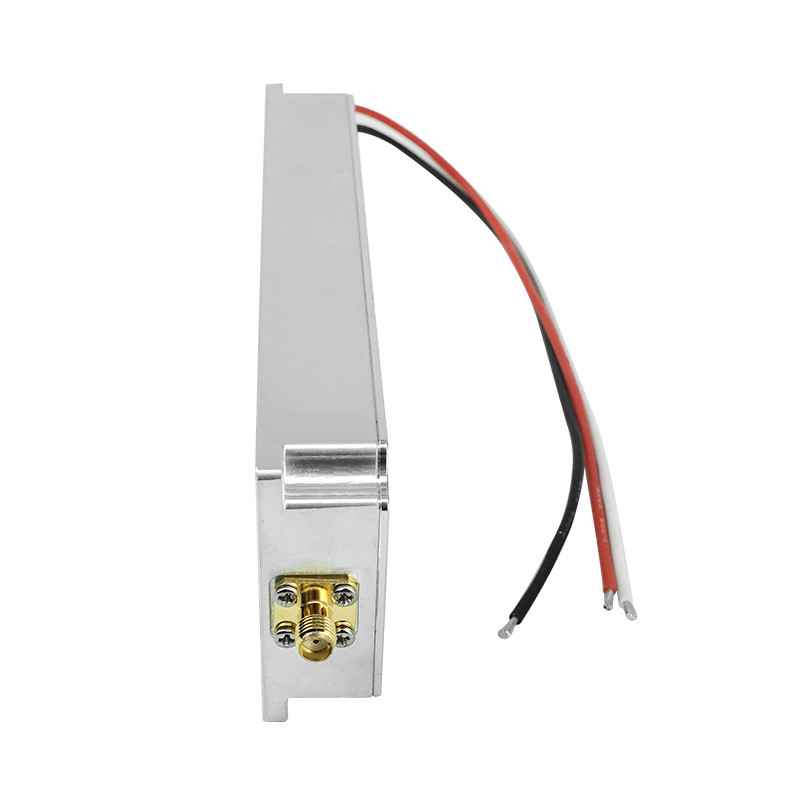

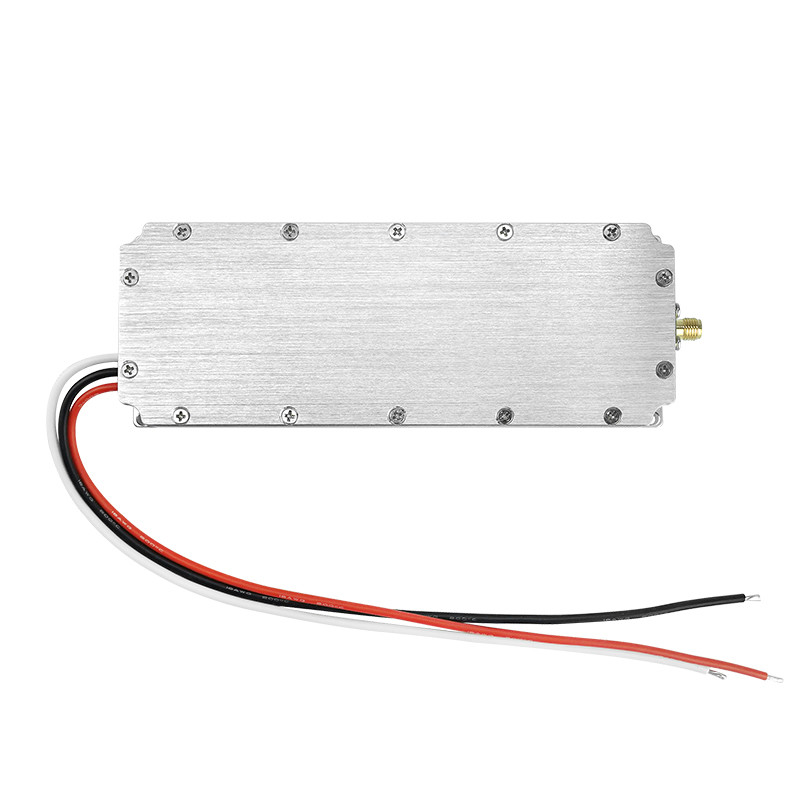

Detail of module
Packing
FQA
Q:Are you have own factory?
A:Of cource we have ,our factory located 201, Building A, No.1 Xinghua Road, Pingxi Community, Pingdi Street, Longgang District, Shenzhen.Welcome to visit our factory.
Q:Are this module can be customized?
A:Yes ,all of our products provide customization service ,such modules ,anti drone devices ,antennas
Q:How to ensure quality
A:We promise 100%test before shipment ,so you dont worry about quality of goods .And also we offer 1 year warranty service after sales.
